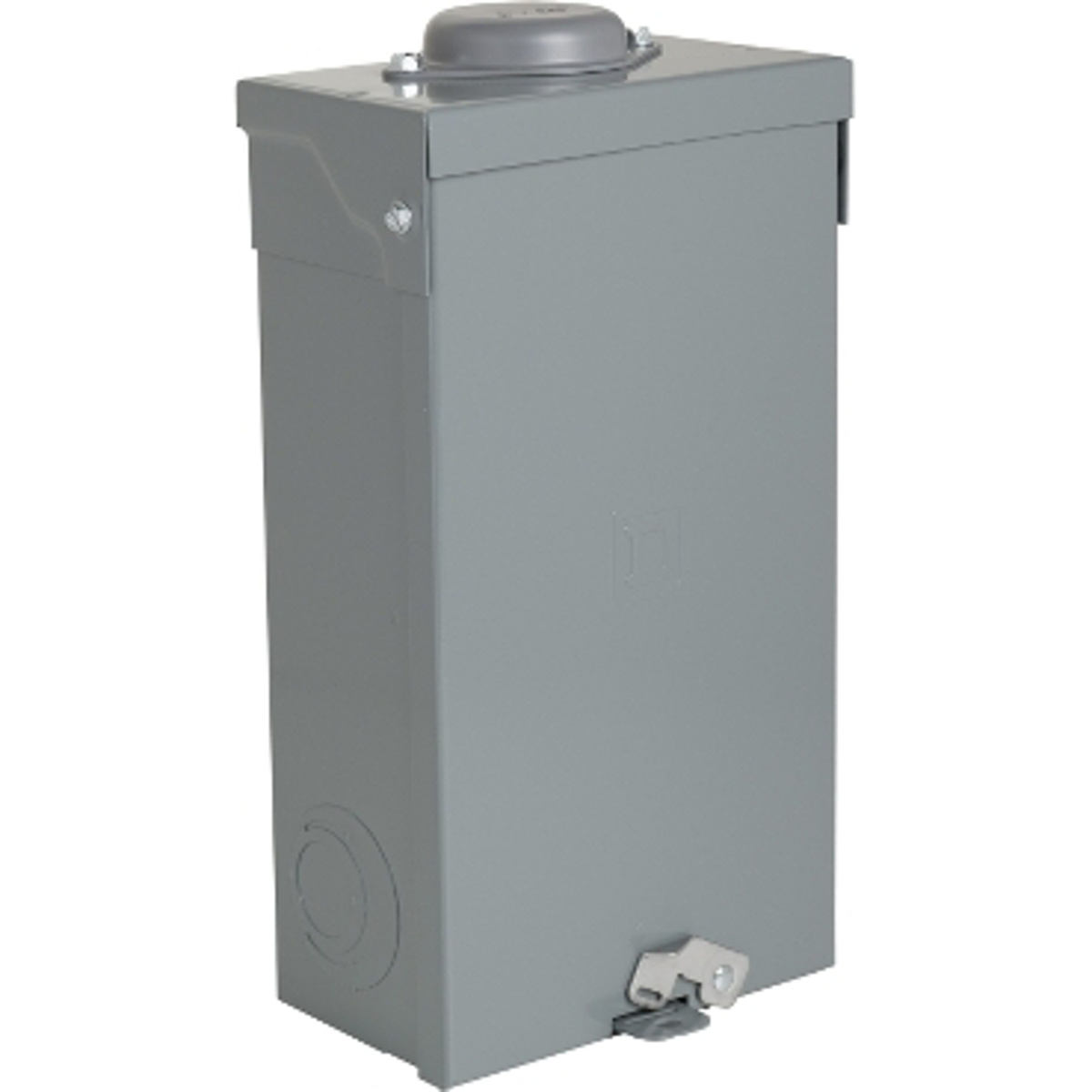

Square D QO™ Circuit Breaker Enclosures 13.19 x 6.93 x 4.12 in NEMA 3R 100 A
Mfg #:
QO2100BNRB
BOR #:
154412
Circuit Breaker Enclosures
- QO™ Series
- Circuit breaker enclosures are UL listed for QO circuit breakers.
| Brand | Square D |
| Interrupting Rating | 22 kAIC |
| Height | 13.19 in |
| Enclosure Type | enclosure |
| Voltage | 240 VAC |
| NEMA Rating | NEMA 3R |
| Width | 6.93 in |
| Mounting Type | Surface |
| Number of Phases | 1 phase |
| Compatible With | Square D QO |
| Depth | 4.12 in |
| Number of Spaces | 2 |
| Amperage | 100 A |
| Enclosure Material | welded galvannealed steel |
| Number of Poles | 2 Pole |

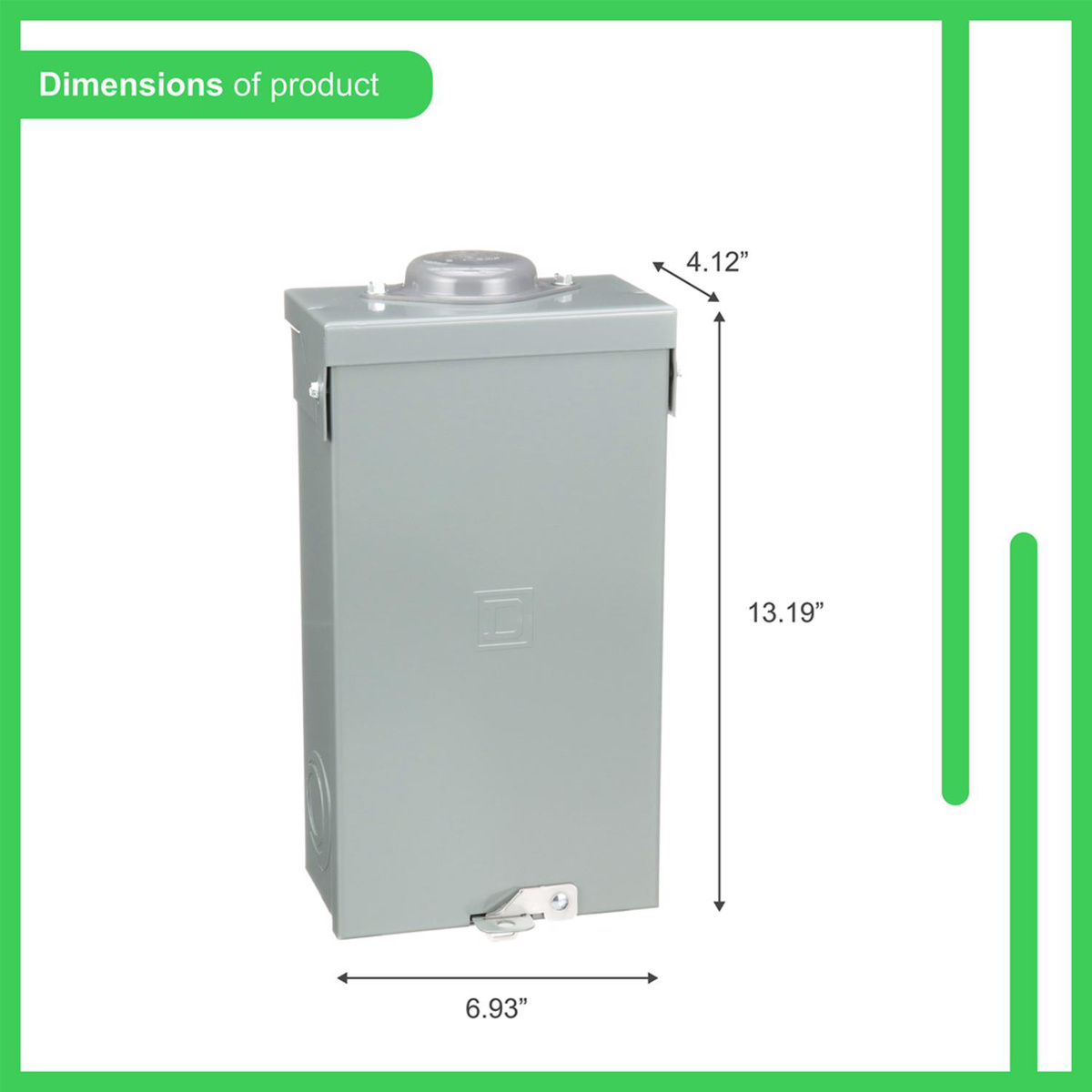

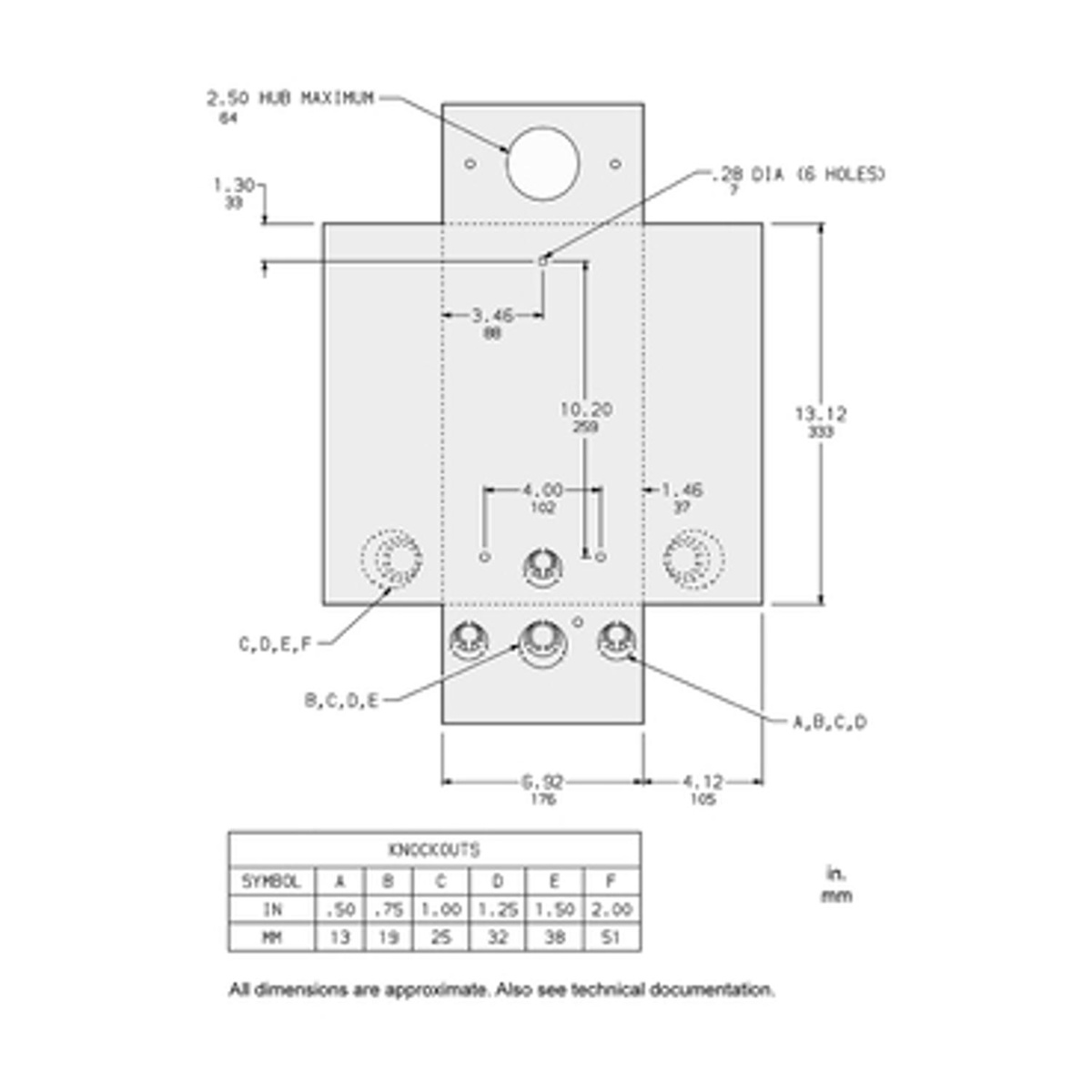

| Enclosure Size | 13.19 x 6.93 x 4.12 in |
| Number of Circuits | 2 Circuit |
| Certificate | Compliance |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf) | Brochure |
|
| Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf) | Catalog |
|
Differentiating Square D™ QO™ & Homeline™ Branch Circuit Breakers | Schneider Electric Support
In this video, we provide an in-depth comparison between Square D™ QO™ and Homeline™ Branch Circuit...
