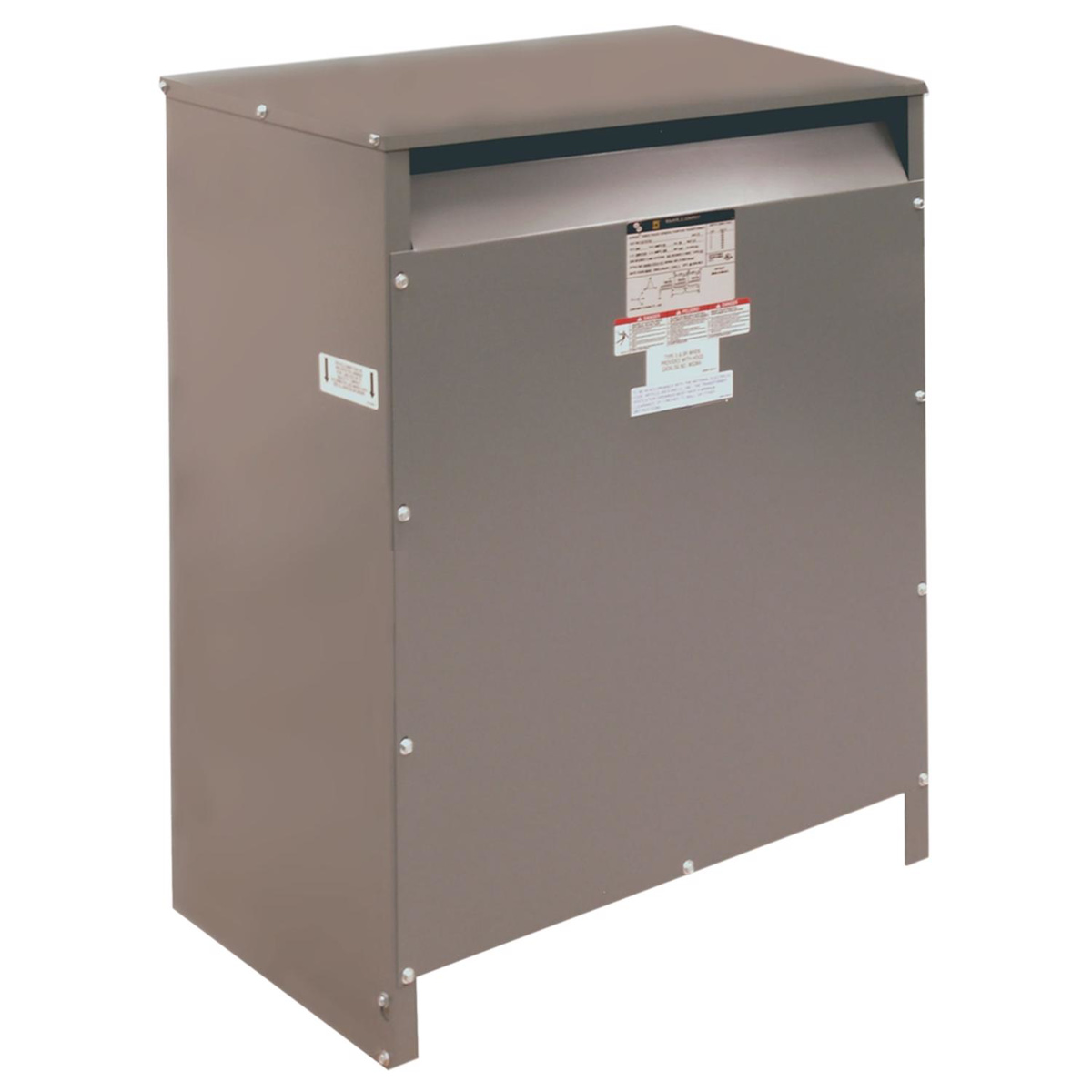

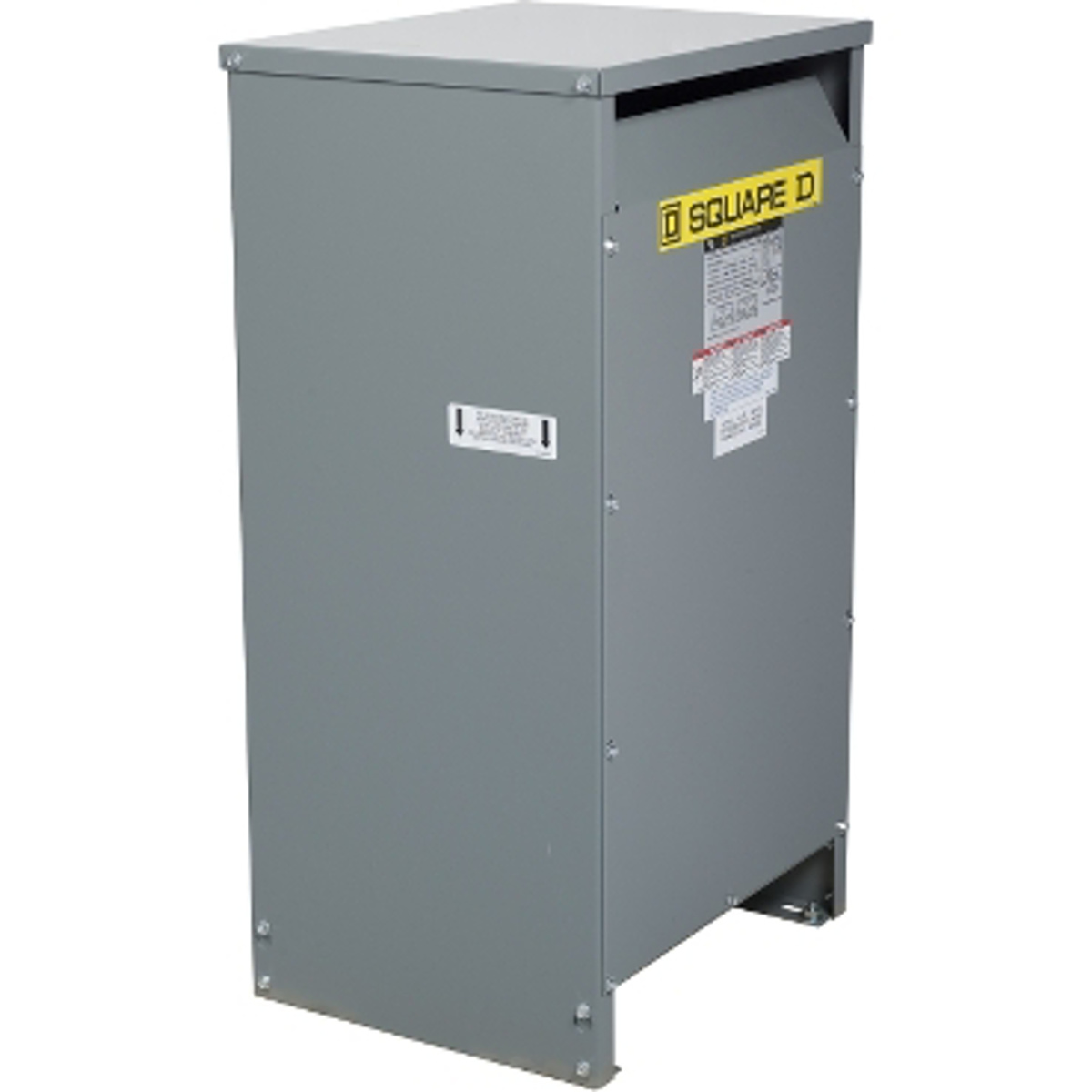

Square D Energy Efficient Non-ventilated Single Phase Dry-type Transformers 240 x 480 VAC - 120/240 VAC 25 kVA N2 Enclosures (2) 2.5% ANFC, (4) 2.5% BNFC at 480 V, (1) 5% ANFC, (2) 5% BNFC at 240 V
Mfg #:
EE25S3H
BOR #:
916477
Related Items
Select Options
| Brand | Square D |
| Type | Dry Type |
| Secondary Voltage | 120/240 VAC |
| Number of Phases | 1 phase |
| Width | 20 in |
| Primary Voltage | 240 x 480 VAC |
| Voltage | 240 x 480 VAC - 120/240 VAC |
| Mounting Type | Floor |
| Depth | 16 in |
| Height | 37 in |
| Insulation Temperature | 220 deg C |
| Number of Taps | (2) 2.5% ANFC, (4) 2.5% BNFC at 480 V, (1) 5% ANFC, (2) 5% BNFC at 240 V |
| Winding | Aluminum |
| Enclosure Type | N2 Enclosures |
| KVA Rating | 25 kVA |
| Series | EE |
| Transformer Style | Encapsulated |
| NEMA Rating | NEMA 2 |
| Certificate | Compliance |
|
| Transformers: Section 14 - Digest 179 (2024) - Transformers-Digest-Catalog-0100CT2401-SEC-14 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| Square D EE Low Voltage Distribution Transformers Catalog - 7400CT0601 (pdf) | Catalog |
|
| Dry-Type Transformers (1000 V and Below) Installation and User Guide - 43006-850-01 (pdf) | Installation and Instruction Manuals |
|
