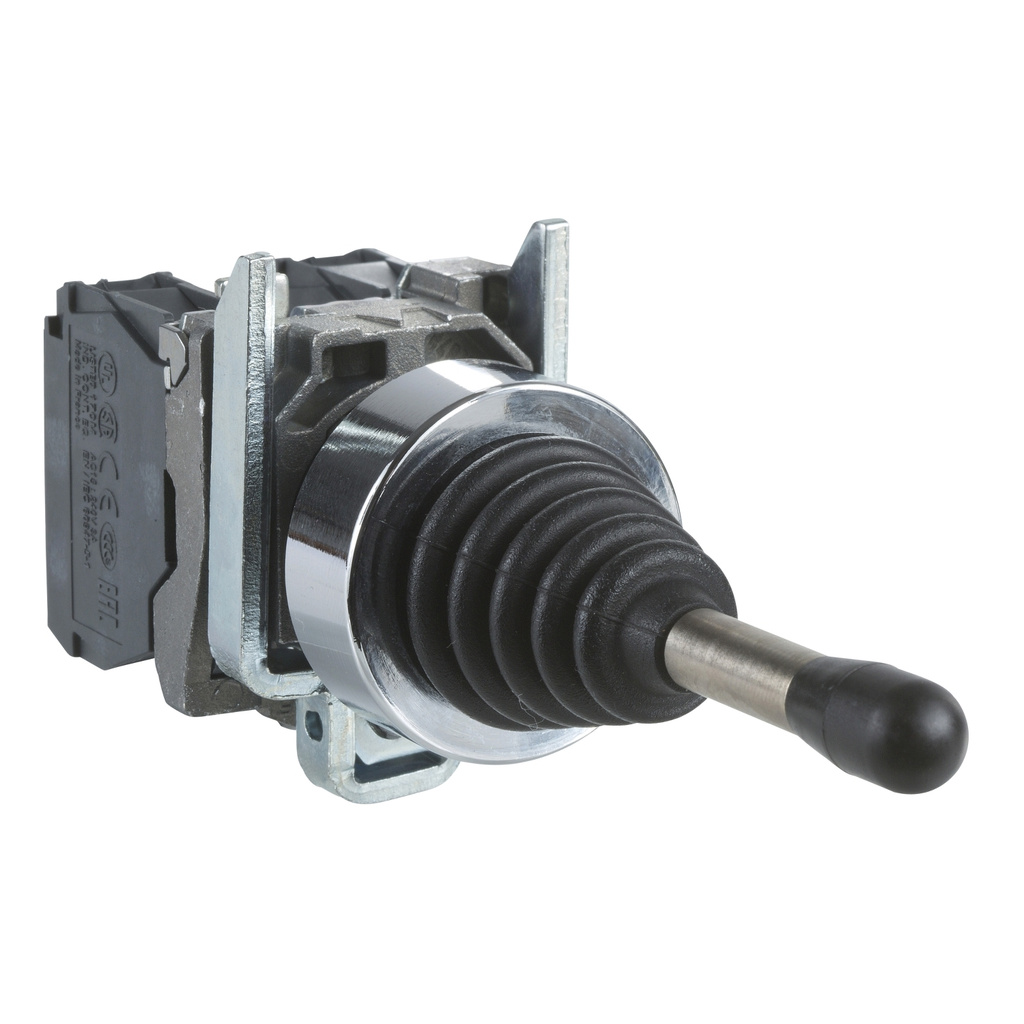

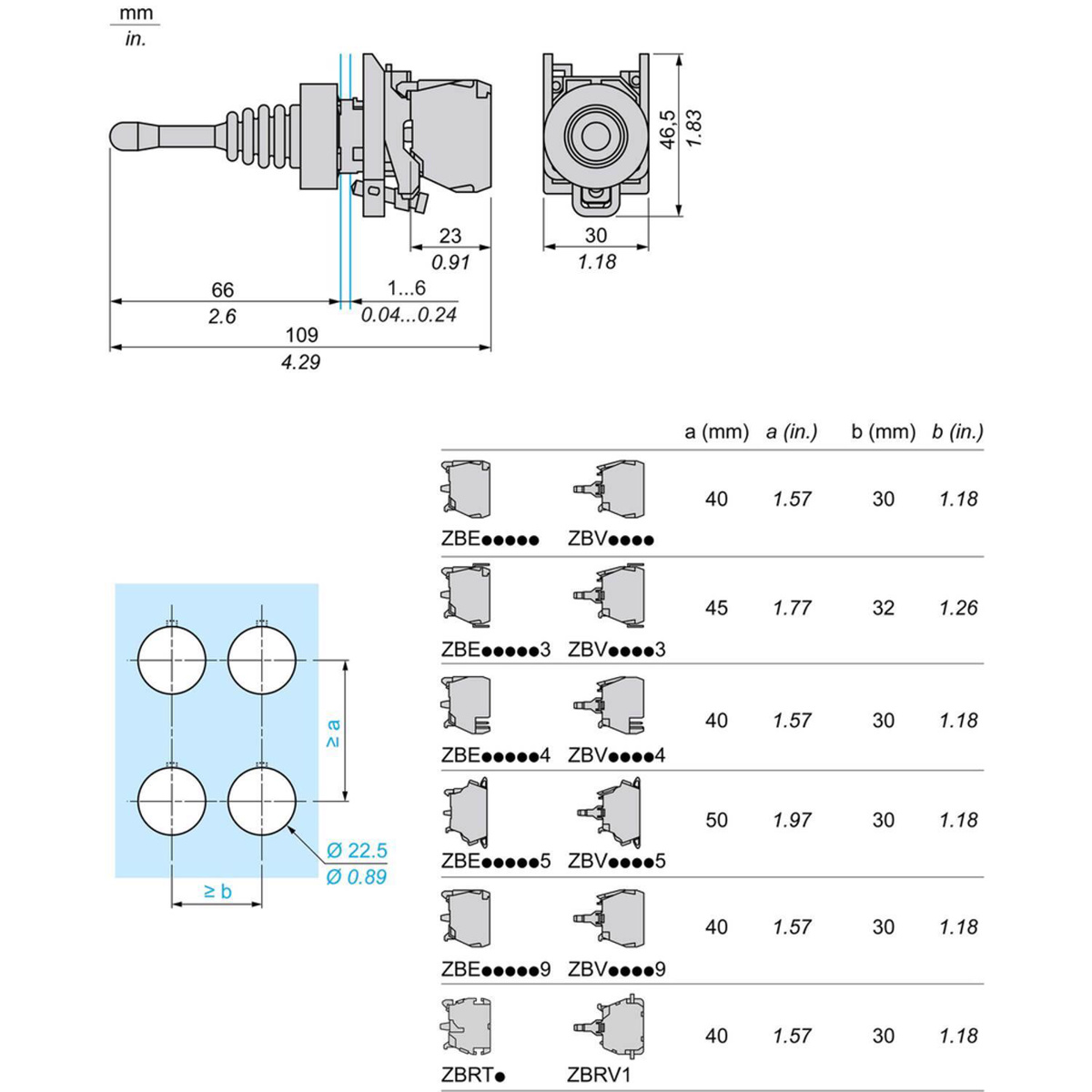

Schneider Electric Harmony™ XDA Complete Joystick Operators
Mfg #:
XD4PA12
BOR #:
3663912

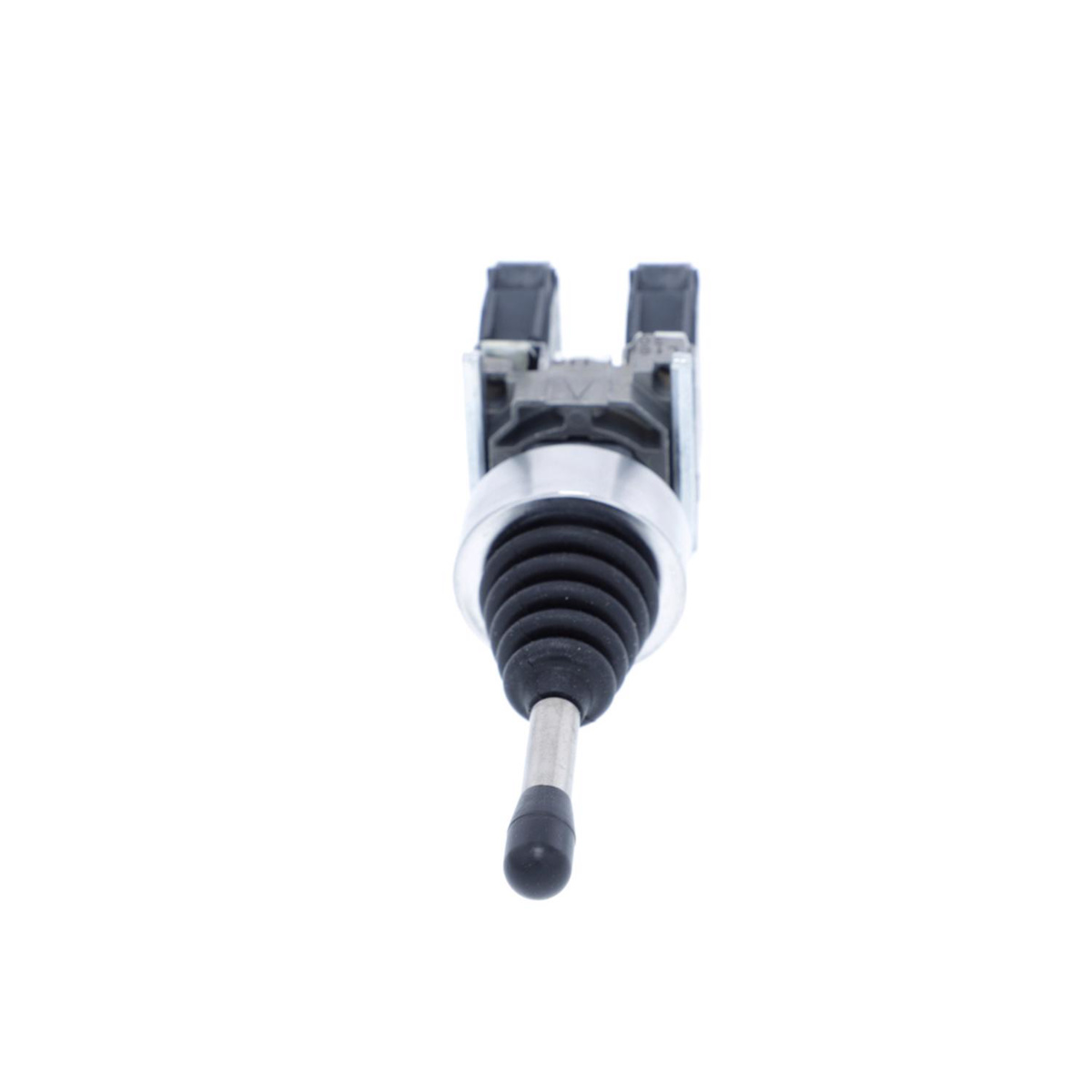

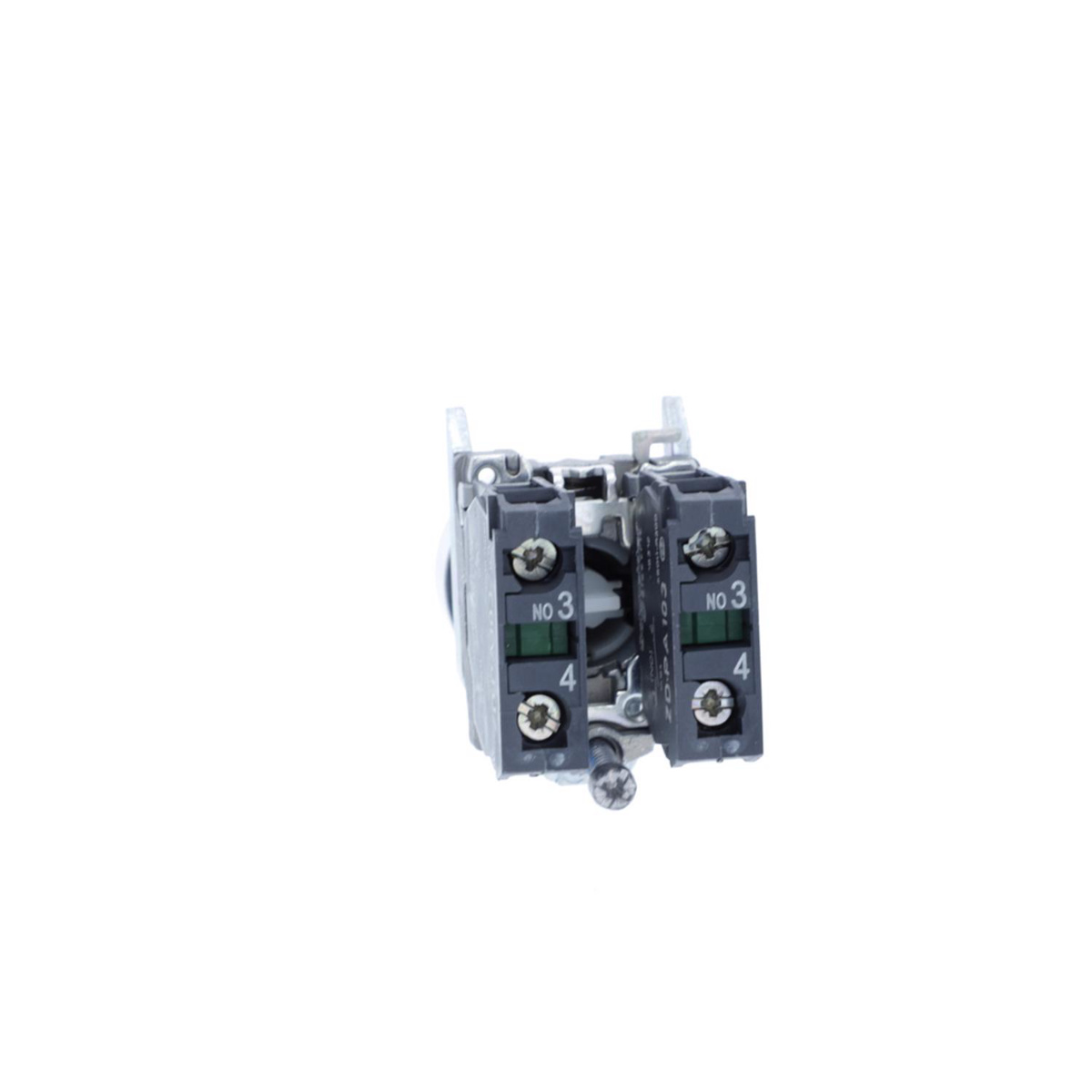

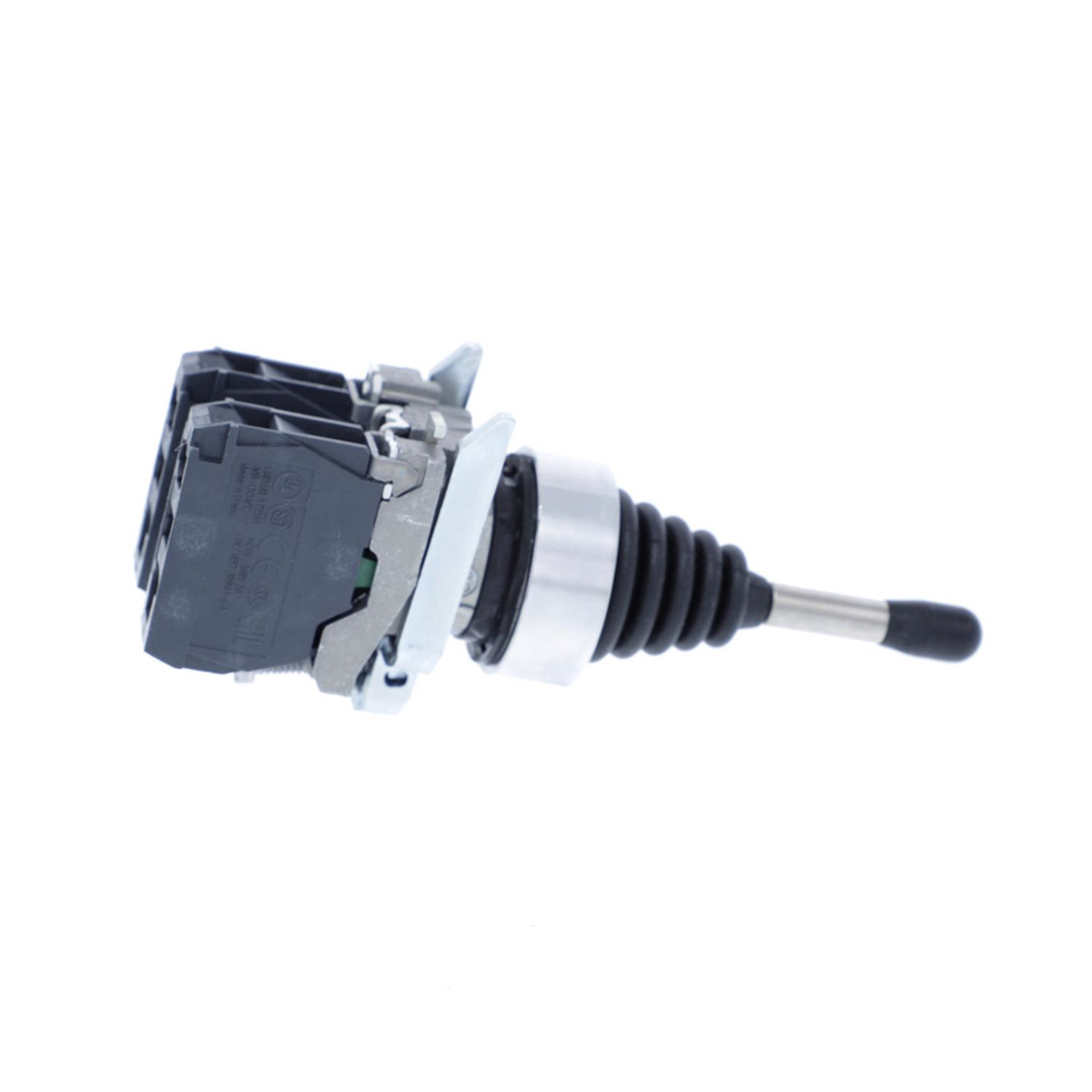

XDA Harmony™ Series Complete Joystick Operators
- Telemecanique Harmony™ XDA Joystick Switch, 1 NO, 600 VAC/10 A Contact, 5 Positions, Spring Return Operator, 1000000 Cycles Operating Cycles, Screw Clamp, Bezel/Housing: Chromium Plated Metal, 22 mm, NEMA 4X/13/IP66/IK03
- -40 to 70° C (Storage)/-25 to 70° C (Operation) Ambient Air Temperature
- 0.1 A at 250 VAC/0.22 A at 125 VAC, DC-13, R300 conforming to EN/IEC 60947-5-1 rated operational current
- 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 short circuit protection
- 10 A conforming to EN/IEC 60947-5-1 conventional free air thermal current
- 1015.26 psi (7000000 Pa) at 131 deg F (55 deg C) and 0.1 m distance resistance to high pressure washer
- 3 degree of pollution
- 6 kV conforming to EN 60947-1 rated impulse withstand voltage
- 600 VAC conforming to EN 60947-1 rated insulation voltage
- 7.08 to 10.62 In-lb (0.8 to 1.2 N-m) conforming to EN 60947-1 tightening torque
- Cross head compatible with Philips No 1 screwdriver, cross head compatible with pozidrive No 1 screwdriver, slotted head compatible with flat 4 mm Dia screwdriver and slotted head compatible with flat 5.5 mm Dia screwdriver shape of screw head
- Four directions operator
- One sale per indivisible quantity
- Round shape of signaling unit head
- Silver alloy (Ag/Ni) contacts
- Single notch per direction
| Brand | Square D |
| UL certificate XB4-XB5 ZBE ZEN ZBV ZAL ZB4 ZB5 ZBZ XD4 XD5 ZBY ZBC ZBD ZBG ZBP ZB2 Harmony pushbutton - UL-E39281-19981027 (pdf) | Compliance |
|
| Discover the Harmony XB4 metal Control and signaling units catalog - Harmony+XB4+metal+Control+and+signaling+units+catalog (pdf) | Catalog |
|
| Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf) | Brochure |
|
| Certificate No.00/00156 - cLR2333559TA-1562215-Schneider+Electric (pdf) | Compliance |
|
| DNV-GL Marine Certificate XB4B XB5A Control and signaling units, XD4PA XD5PA Joystick Controllers - TAE00001C8-revision1 (pdf) | Compliance |
|
| IECEE CB SCHEME Certificate XB4B, XB4F, ZB4B, ZB4F, ZB4S, XB5A, XB5F, XB5EV, ZALV, ZB5A, ZB5C, ZB5F, ZB5S, ZBE, ZBP, ZBV, ZBW, ZBY, ZBZ, ZENL, ZB2BE, XD4P, ZD4P, ZD5P - DK-154887-UL (pdf) | Compliance |
|
| Harmony 22mm and 30mm Push Button Selection Guide - Brochure - 9001BR9401 (pdf) | Brochure |
|
| Contractor Rewards Program Brochure - 998-20854327_GMA_US_ContractorRewards (pdf) | Brochure |
|
