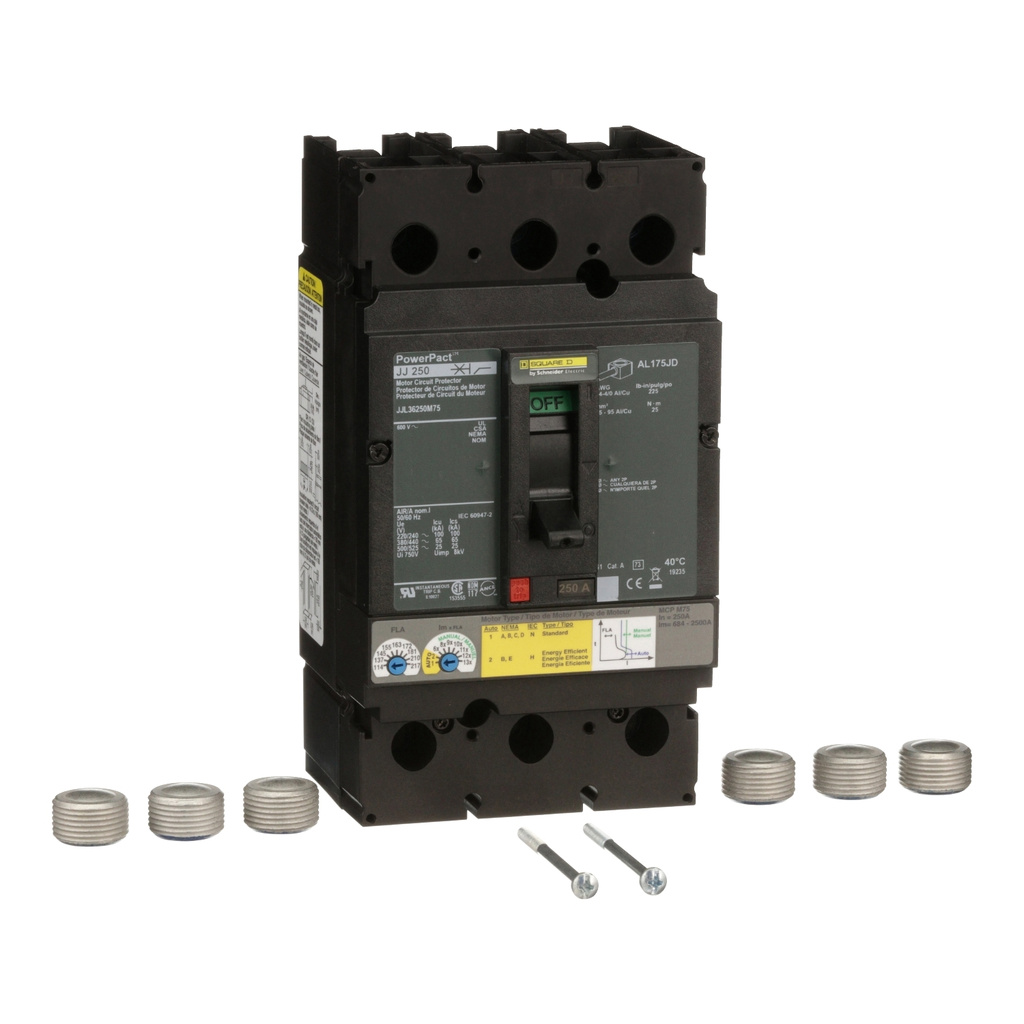

Square D PowerPacT™ JJL Motor Circuit Protectors 250-250 A 600 VAC 3 Pole unit mount lug)
Related Items
Select Options
| Circuit Breaker Type | Molded Case Breaker |
| Frame Type | J Frame |
| Interrupting Rating | 25 kAIC |
| Number of Phases | 3 Phase |
| Trip Type | Fixed Thermal and Adjustable Magnetic Trip |
| Magnetic Tripping Current | 2500-2500 A |
| Indicator Type | Common Trip |
| [Ith] Conventional Free Air Thermal Current | 250-250 A |
| Wire Stripping Length | 25 mm |
| Product Certifications | UL ,, CSA ,, NOM |
| Net Weight | 2.4 kg |
| Brand | Square D |
| Number of Poles | 3 Pole |
| Mounting Type | unit mount lug) |
| Amperage | 250-250 A |
| Voltage | 600 VAC |
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Motor Circuit Protector (MCP) Settings for PowerPacT H- and J-Frame Motor Circuit Protectors Installation Instructions - 48940-260-01 (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
| Mechanical Lug Kits Installation Instructions - 48940-221-02 (pdf) | Installation and Instruction Manuals |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Motor Operators for PowerPacT H- and J-Frame Circuit Breakers Installation Instructions - 48940-236-02 (pdf) | Installation and Instruction Manuals |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
