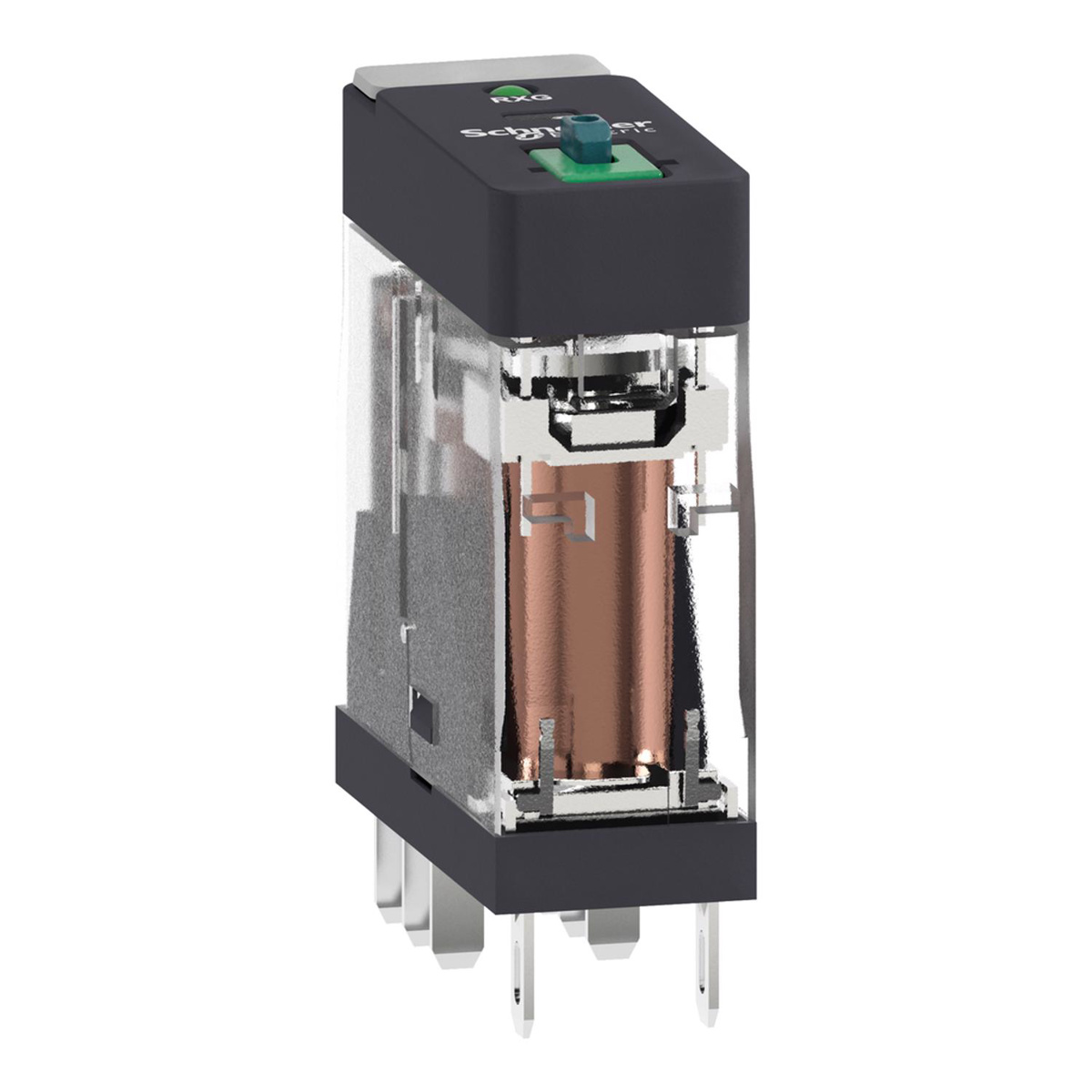

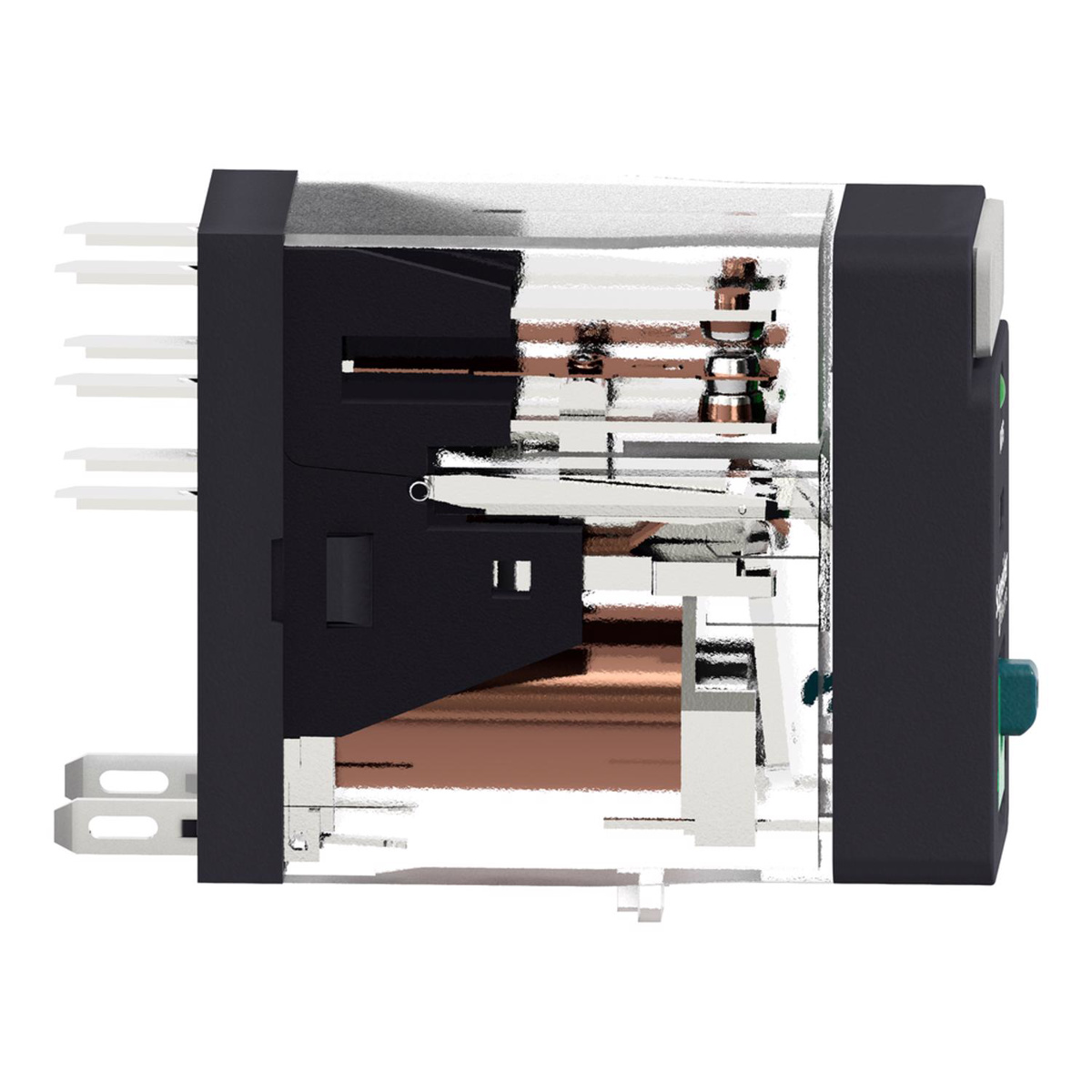

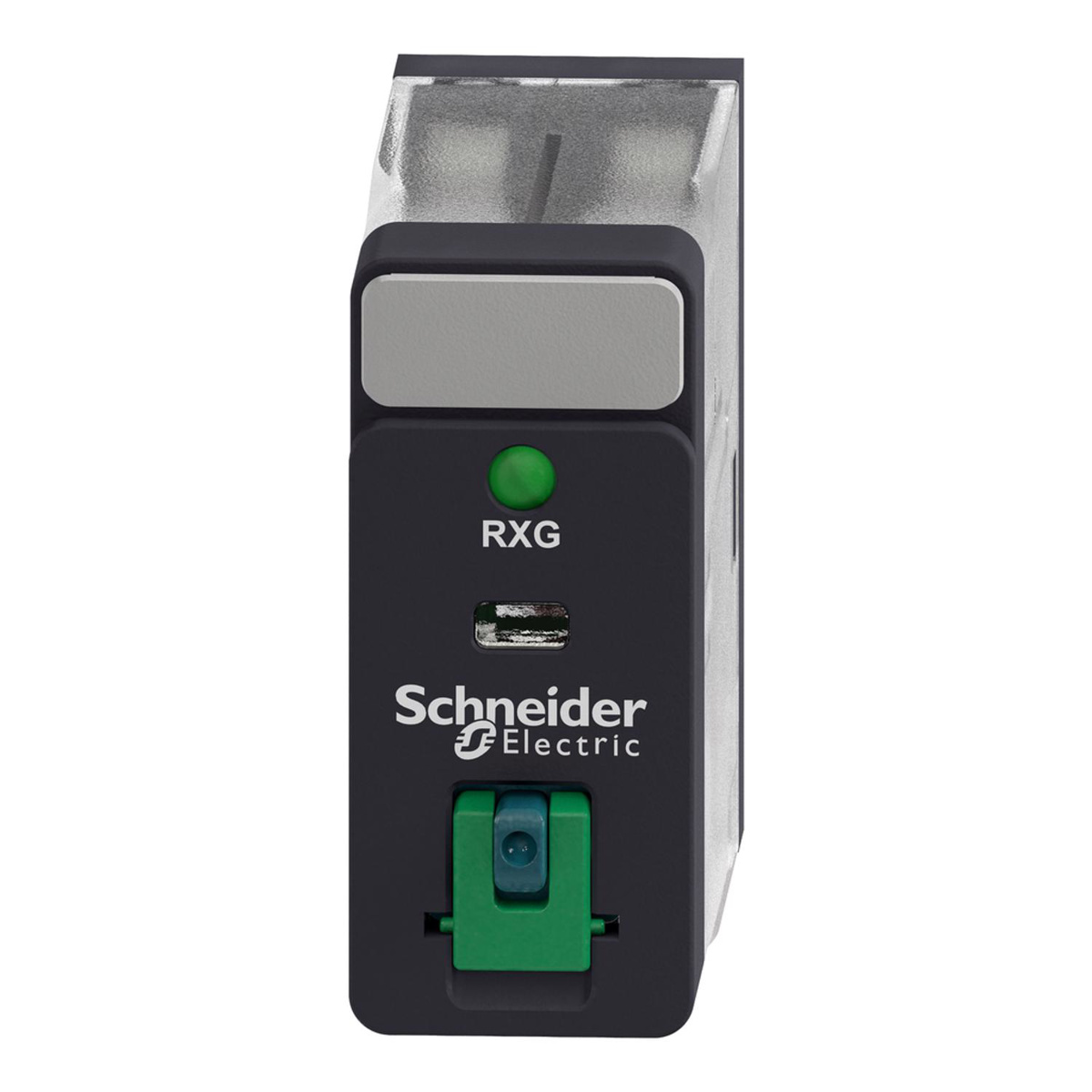

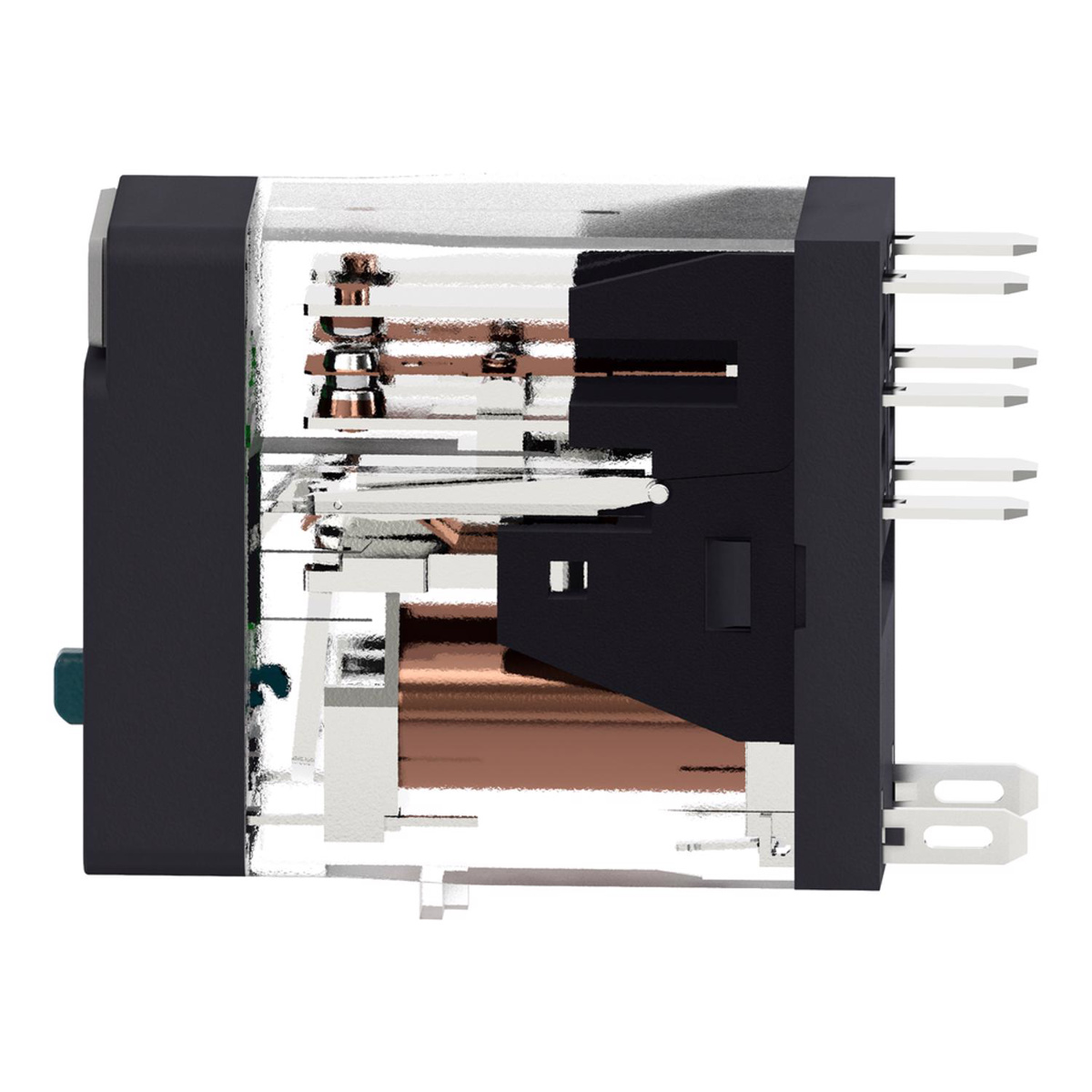

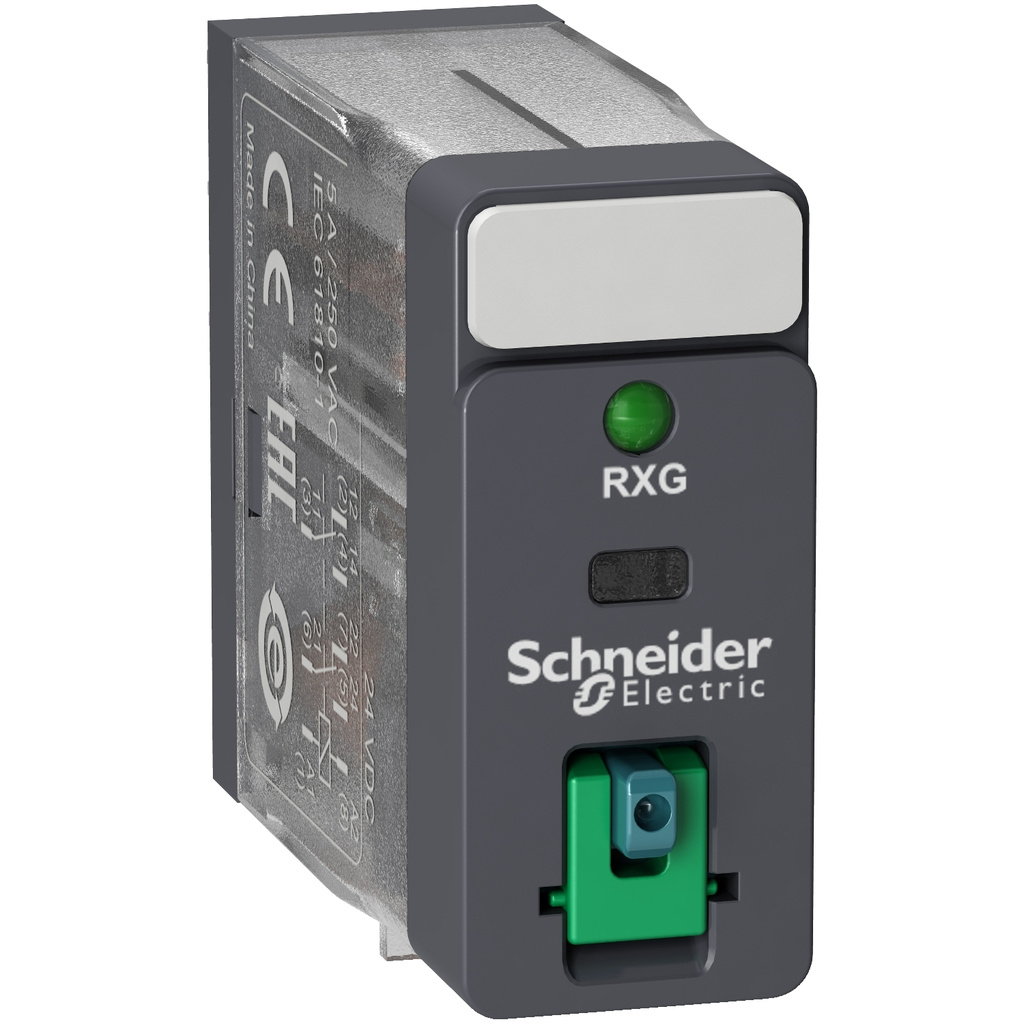

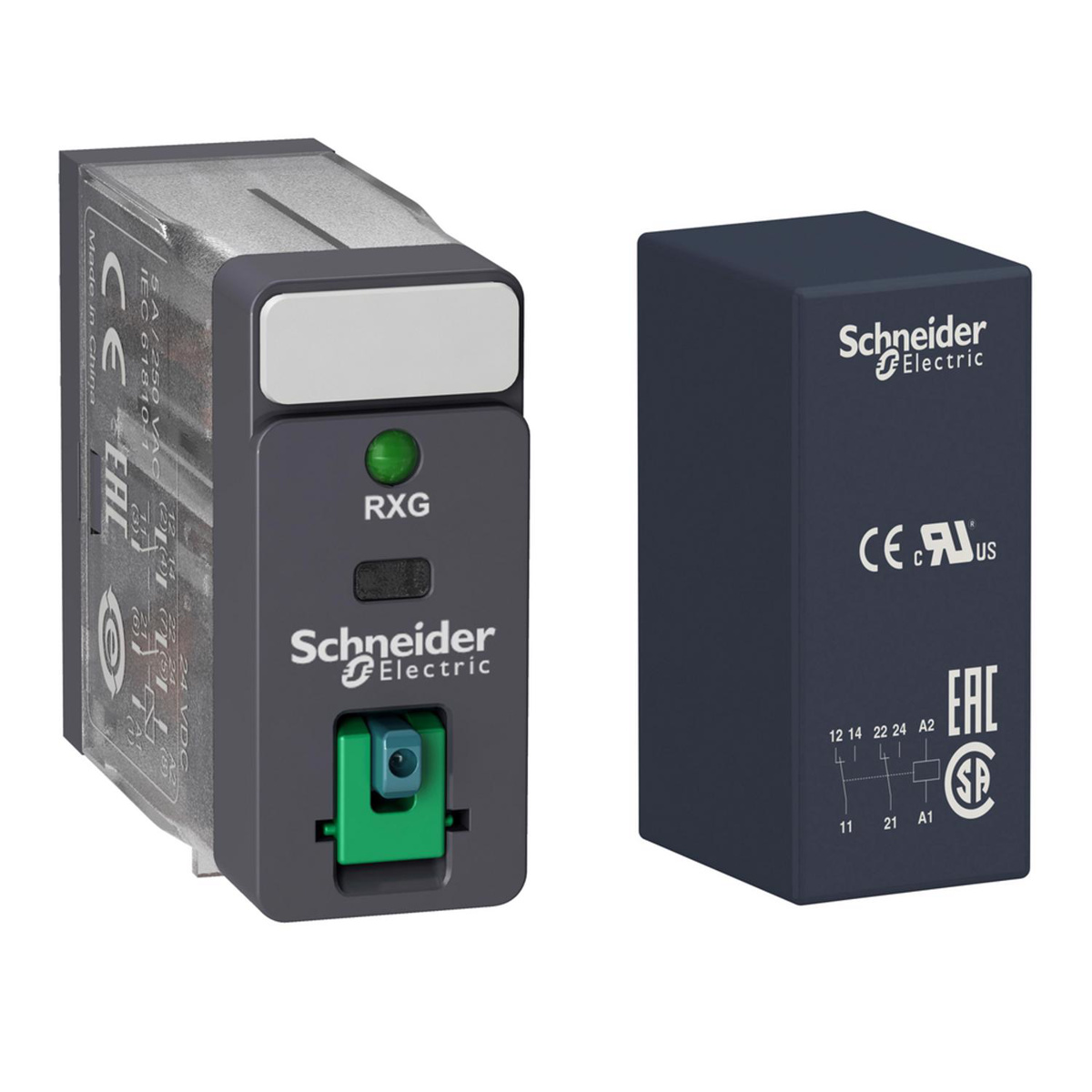

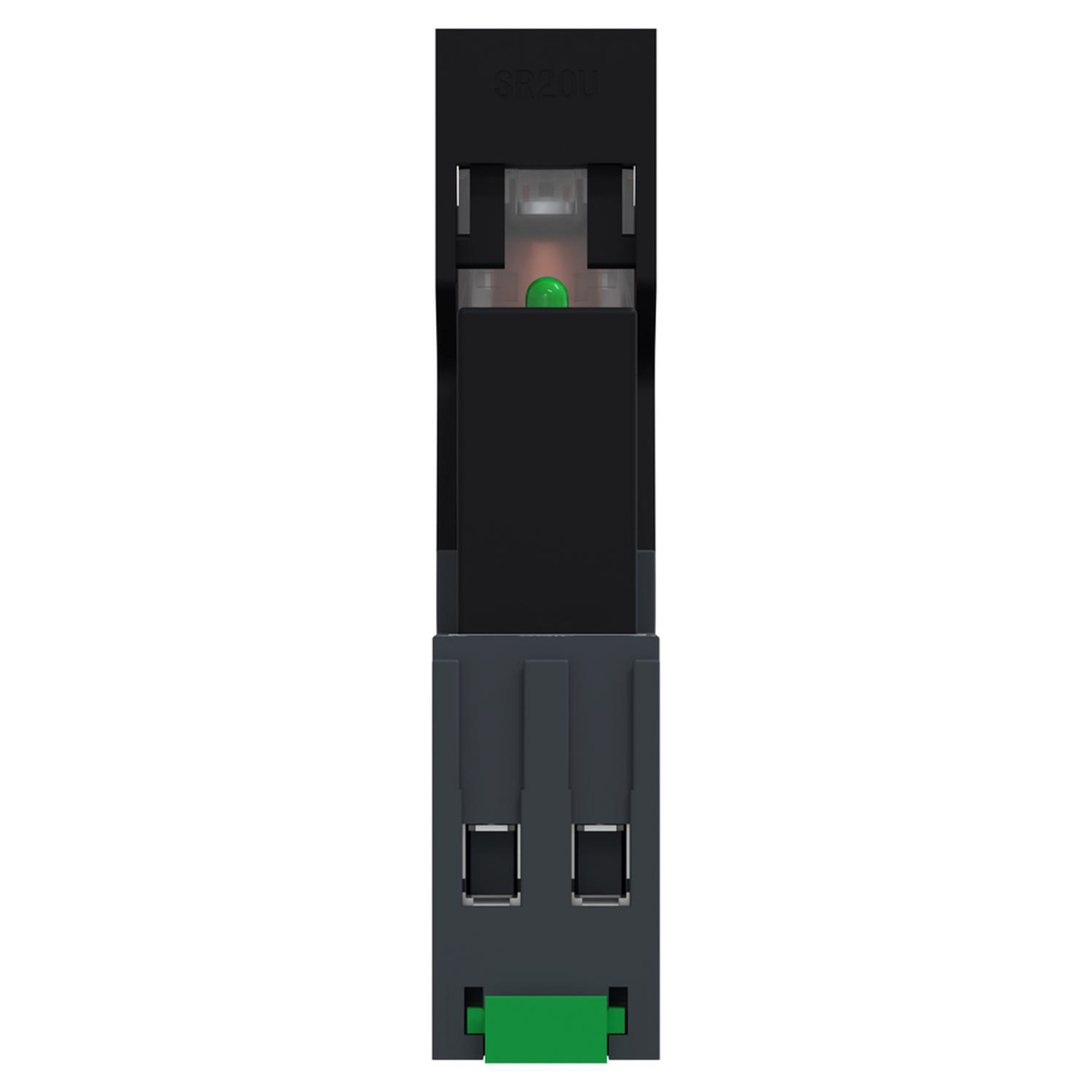

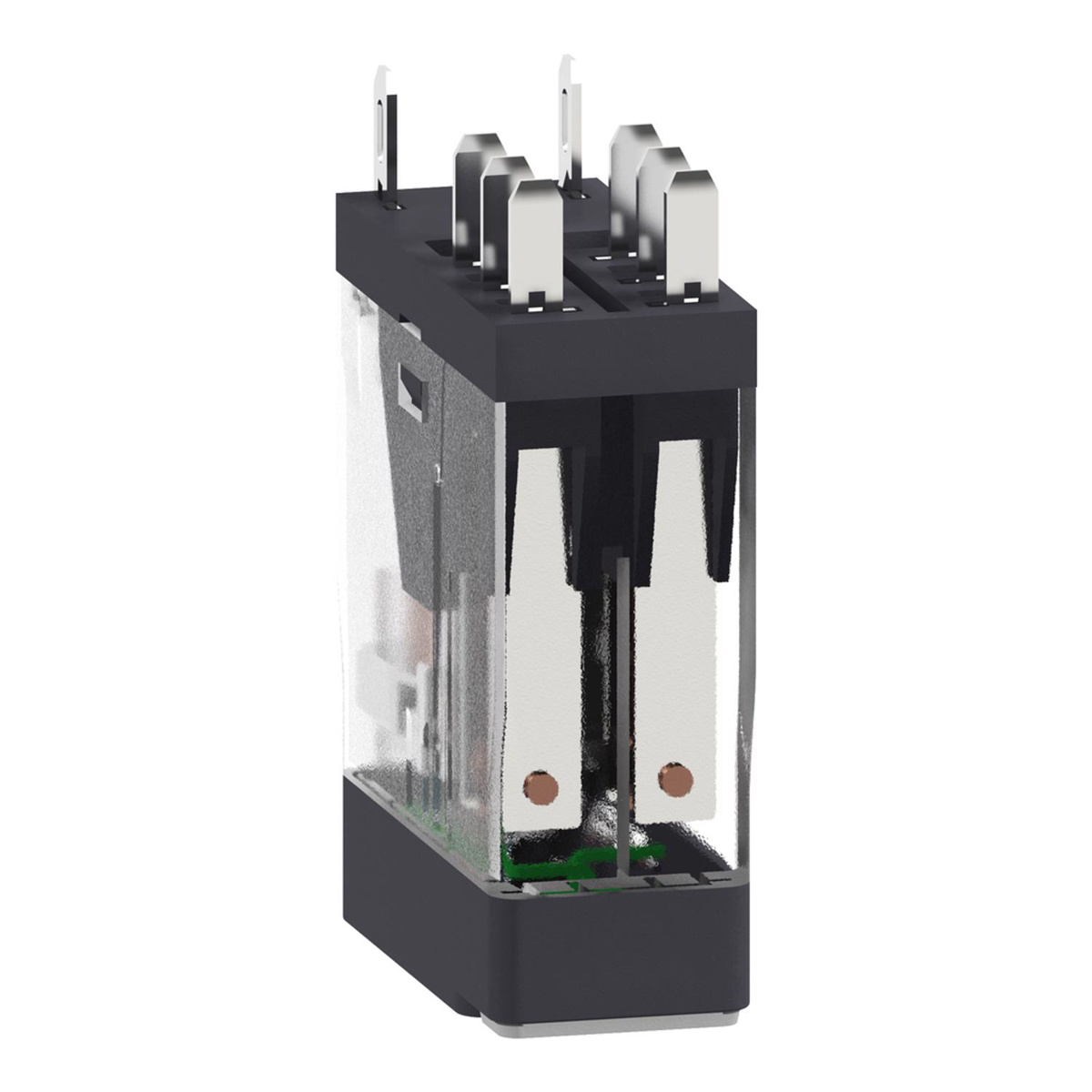

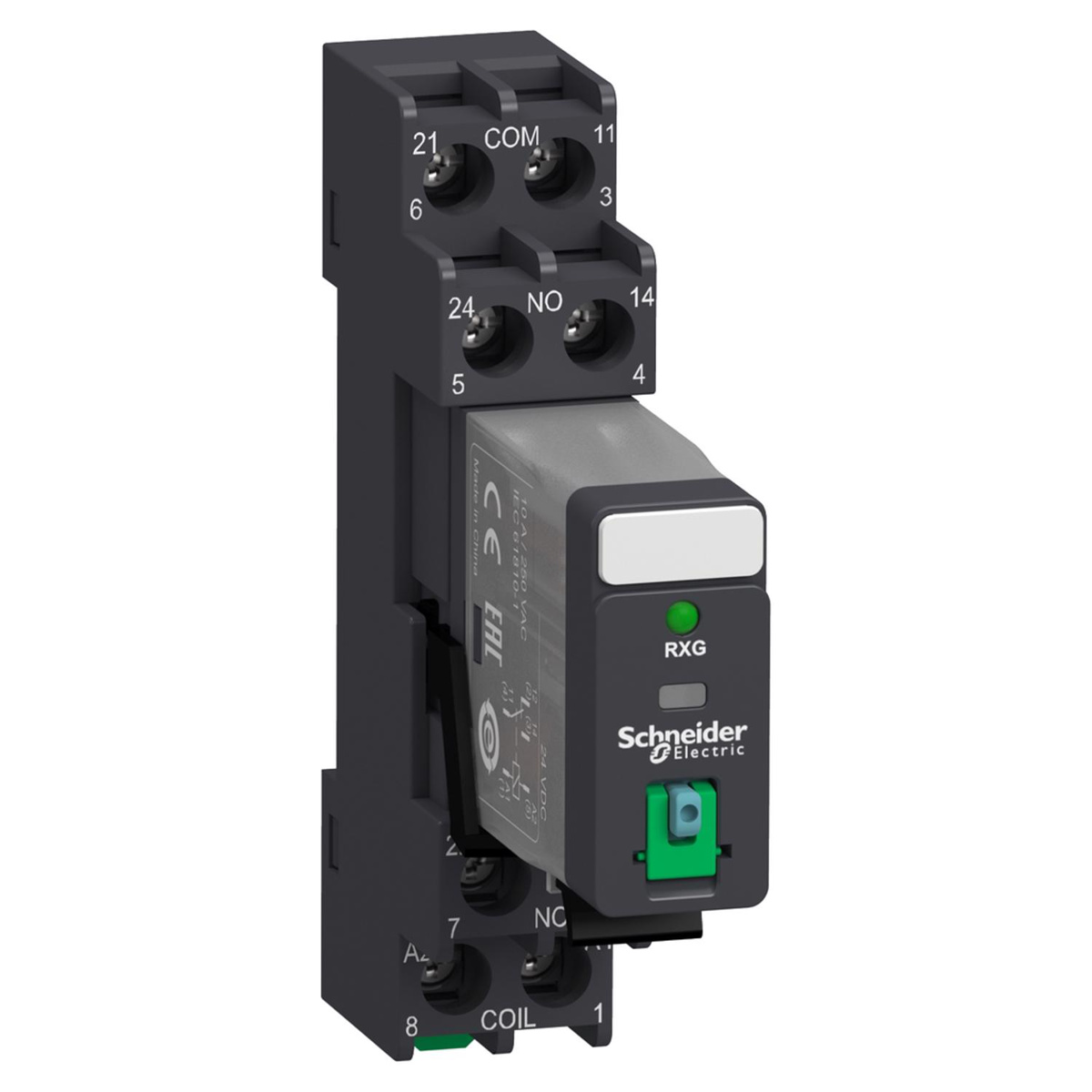

Schneider Electric Harmony™ RXG Plug-in Interface Relays 24 VDC Square Base 8 Blade 5 A DPDT
Image shown may be a representative image and may not reflect the exact product
| Brand | Square D |
| Base Type | Square Base |
| Relay Type | Plug-in Relay |
| Contact Configuration | DPDT |
| Relay Style | Interface |
| Coil Voltage | 24 VDC |
| Contact Rating | 5 A |
| Includes | Test Button & Lock-down Door |
| Cover Type | Standard Cover |
| Series | RXG Zelio Harmony™ |
| Configuration | 8 Blade |
| Digest Catalog 23: Relays and Timers (OCT 2020) - 0100CT1901_SEC-23_OCT2020 (pdf) | Catalog |
|
| DNV Certificate RXG RGZE - 260525_A0945633-r2-TAA00002ZS_240126+RXG+RGZE+redacted (pdf) | Compliance |
|
| CSA Certificate RXZE2S114S - 210309+MC254977_80065485+CofC (pdf) | Compliance |
|
| CSA Certificate RXZE2S114S - 254977+Class+3211-07 (pdf) | Compliance |
|
| CSA Certificate RXZE2S114S - MC254977+Cert+80024450+CofC (pdf) | Compliance |
|
| Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf) | Catalog |
|
| CSA Certificate RXZE2S114S - 200116+MC254977_80024451+CofC+RXZE14P (pdf) | Compliance |
|
| CSA Certificate RXZE2S114S - 170206+MC254977_2491248_CofC (pdf) | Compliance |
|
