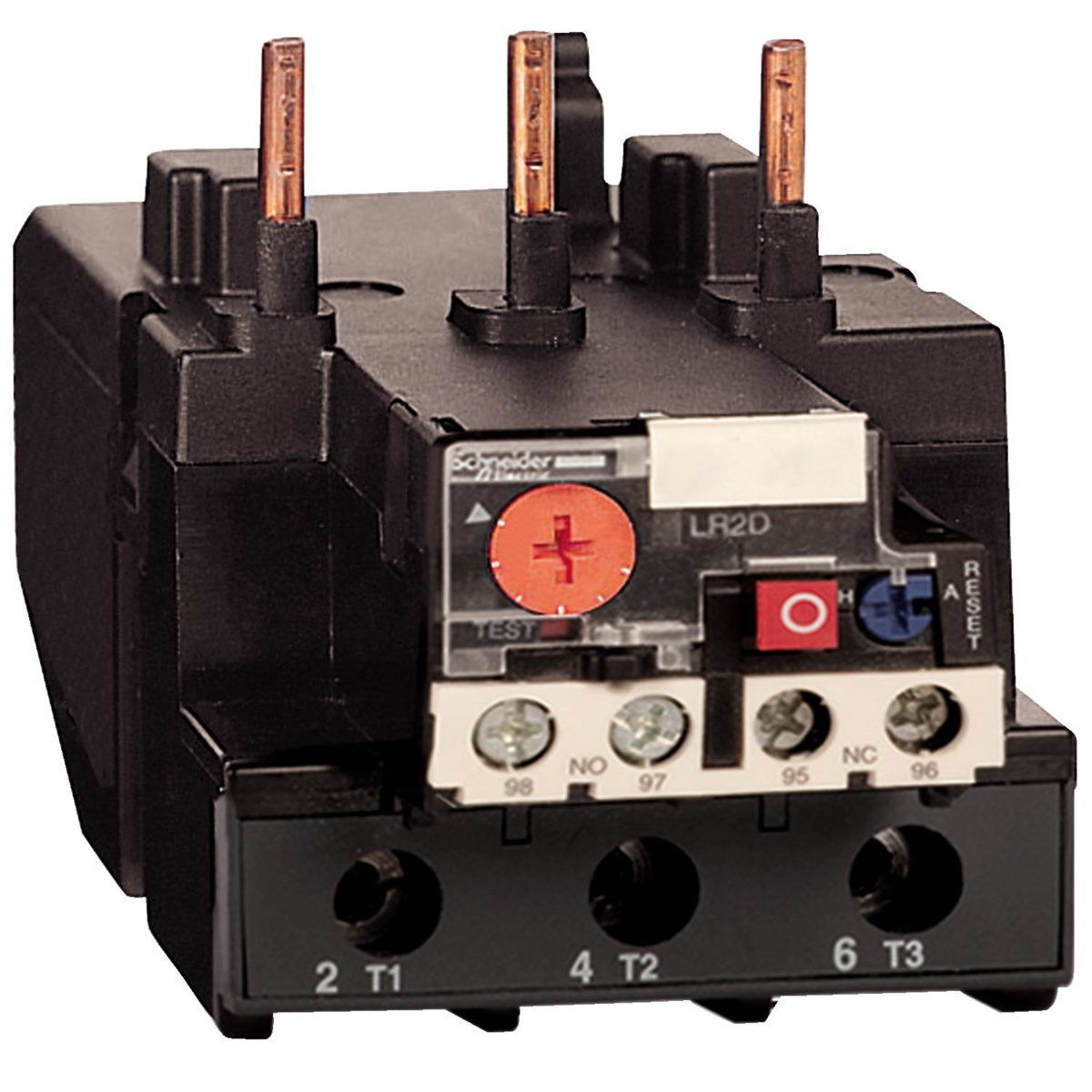

Schneider Electric TeSys™ Deca LR2D Differential Thermal Overload Relays 48 - 65 A 1 NO 1 NC Class 20 Size 00, 1
Mfg #:
LR2D3559
BOR #:
311274
LR2D TeSys™ Deca Differential Thermal Overload Relays
- LR2D TeSys™ Deca Differential Thermal Overload Relays
- For Use With fuses or magnetic circuit breakers GV2L and GV3L
- Compensated relays with manual or automatic reset
- With relay trip indicator
- For AC or DC
Related Items
Select Options
| Brand | Square D |
| Series | LRD/LR2D TeSys™ Deca |
| Relay Type | Thermal Overload Relay |
| Contact Configuration | 1 NO 1 NC |
| Mounting Type | Direct Mount |
| Amperage | 48 - 65 A |
| Trip Class | Class 20 |
| Enclosure Type | Size 00, 1 |
| Voltage | 1000 VAC |
| Number of Poles | 3 Pole |
| Relay Style | Differential |
| TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
| Certificate 1 | Compliance |
|
| Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf) | Brochure |
|
| Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf) | Brochure |
|
| TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf) | Brochure |
|
| Altistart 46 Soft Start Units for Motor Control Centers, Class 8998 Installation Instructions - 80438-069-01A (pdf) | Installation and Instruction Manuals |
|
