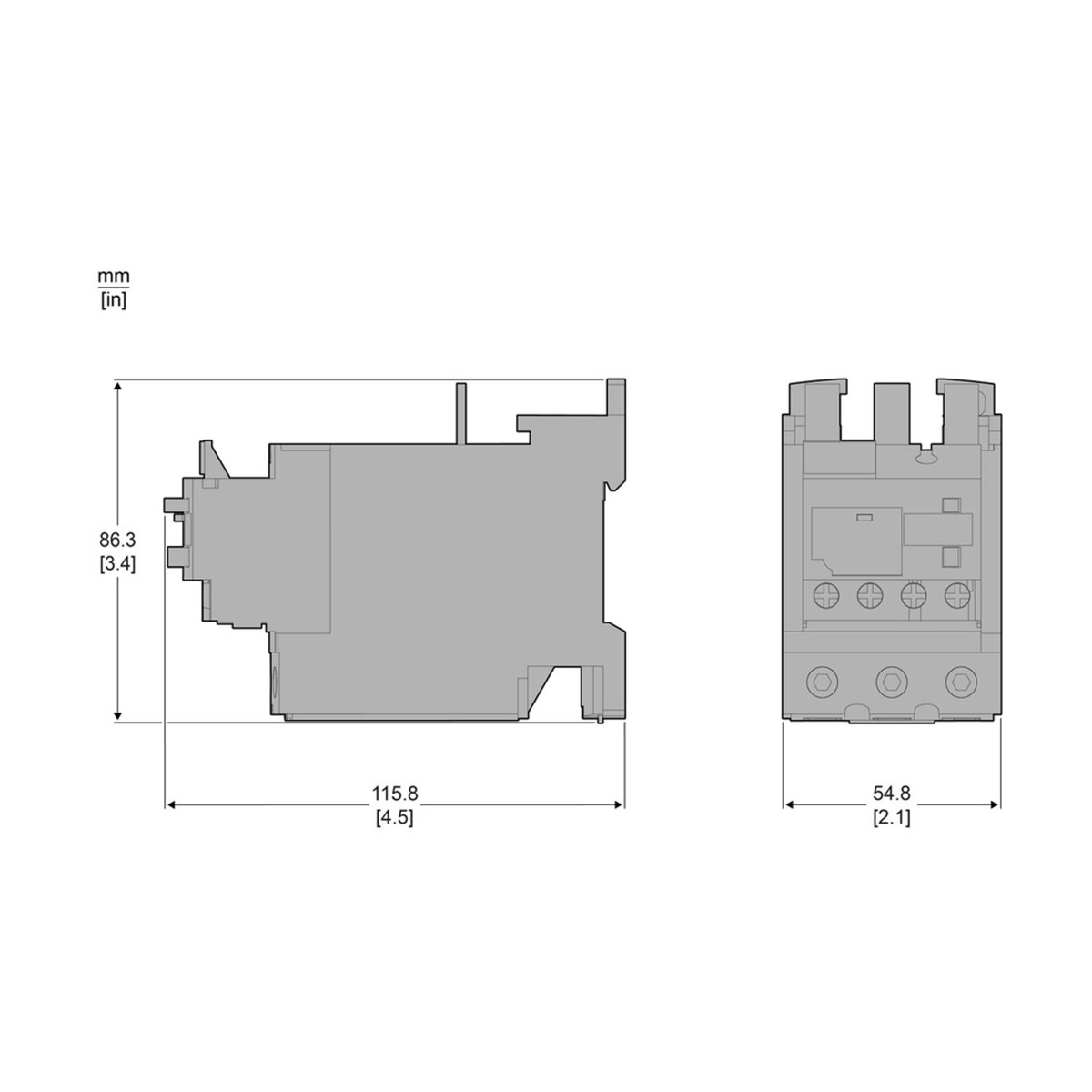

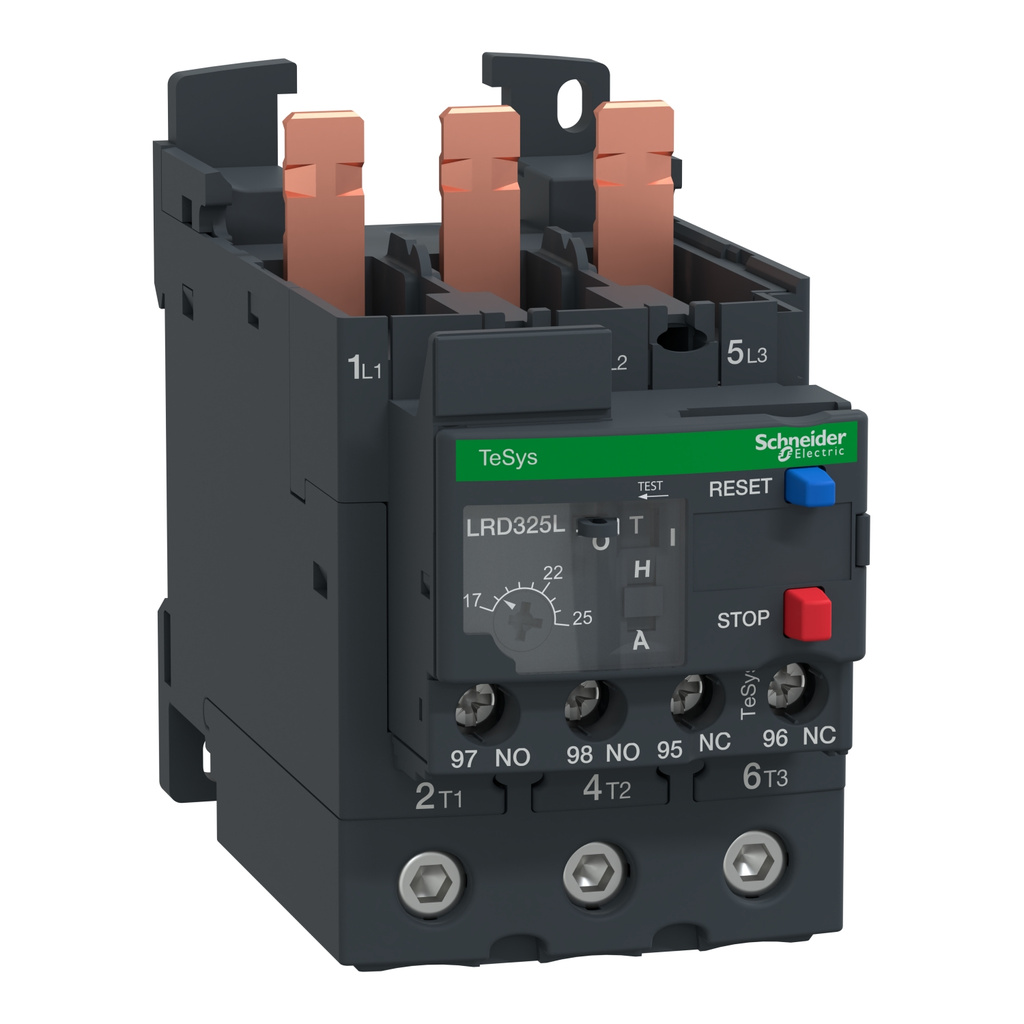

Schneider Electric TeSys™ LRD Differential Thermal Overload Relays 17 - 25 A 1 NO 1 NC Class 20
Mfg #:
LRD325L
BOR #:
2434847
Related Items
Select Options
| Brand | Square D |
| Series | LRD TeSys™ Deca |
| Relay Type | Thermal Overload Relay |
| Contact Configuration | 1 NO 1 NC |
| Mounting Type | Direct Mount |
| Amperage | 17 - 25 A |
| Trip Class | Class 20 |
| Voltage | 690 VAC |
| Number of Poles | 3 Pole |
| Relay Style | Differential |
| NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf) | Catalog |
|
| TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf) | Catalog |
|
| CB Certificate TeSys D - LRD313L-365L - CB_LRD313-365L_Dj_FR_707043 (pdf) | Compliance |
|
| Square D Specification Sheet | Specification Sheet |
|
| Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf) | Brochure |
|
| Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf) | Brochure |
|
| IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf) | Catalog |
|
| CSA Certificate_ TeSys D_LRD313-380&LR3D313-380 - CoFC_80070405_EN (pdf) | Compliance |
|
| UL_Certificate_TeSys D_LRD313-380&,LR3D313-380&DPER325-365 - E39281-20070630-CertificateofCompliance (pdf) | Compliance |
|
| TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf) | Brochure |
|
