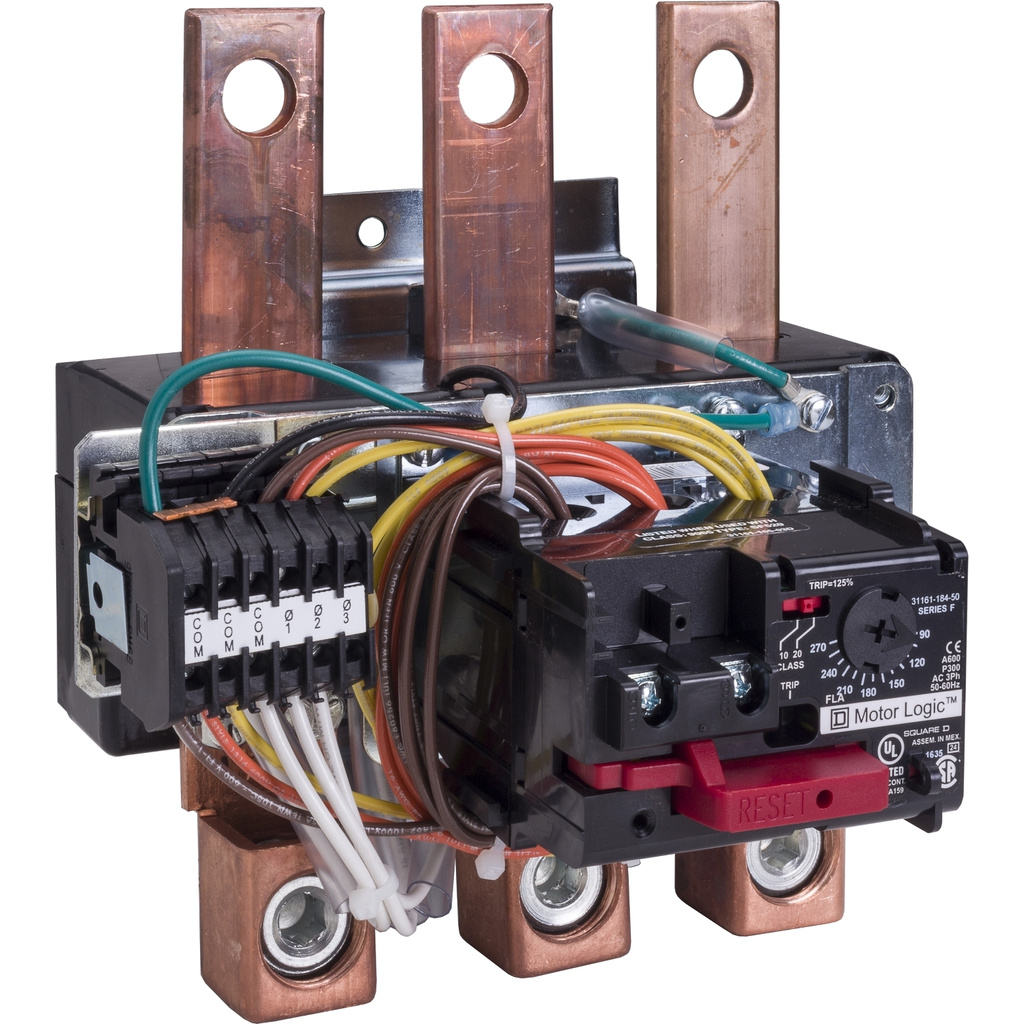

Square D 9065 Motor Logic Solid State Overload Relays 90 - 270 A Class 10/20 Size 5
Mfg #:
9065SF520
BOR #:
1118557
Motor Logic Solid State Overload Relays
- 9065 Series
| Brand | Square D |
| Series | 9065SF Motor Logic |
| Relay Type | Overload Relay |
| Mounting Type | Separate Mount |
| Amperage | 90 - 270 A |
| Trip Class | Class 10/20 |
| Enclosure Type | Size 5 |
| Voltage | 600 VAC |
| Number of Poles | 3 Pole |
| Number of Phases | 3 phase |
| Relay Style | Solid State |
| Motor Logic Solid-State Overload Relay Installation Instructions - 30072-452-39+final (pdf) | Installation and Instruction Manuals |
|
| Overload Relays and Thermal Unit Selection Catalog - 9065CT9701_R0321+Overload+Relays+and+Thermal+Units+Selection (pdf) | Catalog |
|
| NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| Solid State Overload Relay, Motor Logic, Certificate, UL - UL_Certificate_E14839_NKCR (pdf) | Compliance |
|
| Motor Logic Solid-State Overload Relay Assembly Installation Instructions - 30072-013-48_01 (pdf) | Installation and Instruction Manuals |
|
Manually Tripping a Motor Logic™ Solid State Overload Relay | Schneider Electric Support
Tutorial for manually "test tripping" a Square D Motor Logic™ Solid State Overload Relay. To reset...
