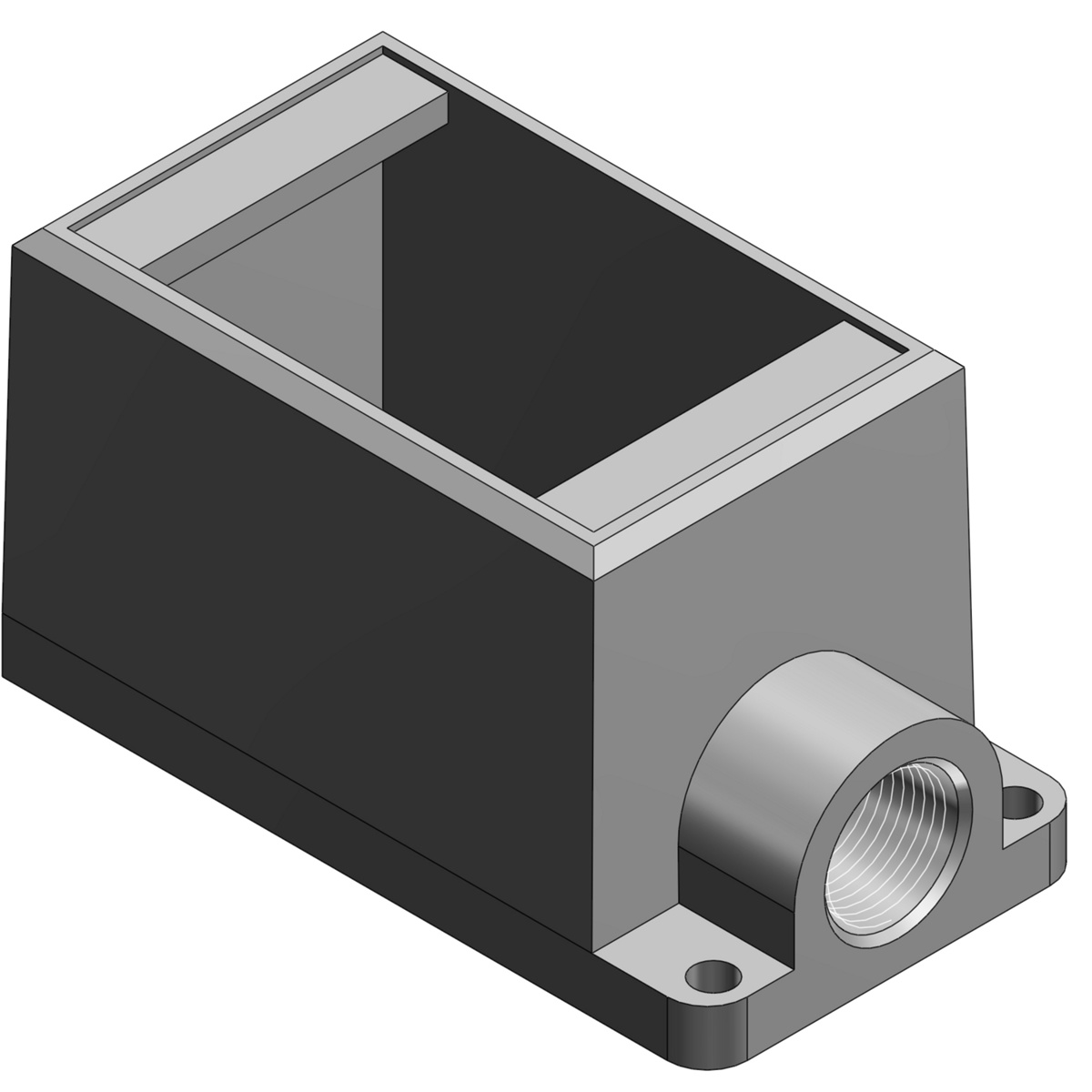

ABB Thomas & Betts FD Device Boxes Iron FD Box
Mfg #:
FD2TB
BOR #:
1109039
All hubs have NPT Threads with a minimum of five full threads and integral bushing. Internal grounding screw standard on boxes.
- Suitable for wet locations when used with gasketed covers
- Act as mounting outlets for wiring devices and lighting fixtures
- Provide access to conductors for maintenance and future system changes
- Left side opening only, 90 deg hub placement
- Provide easy access for splices in brand conductors, make 90 deg bends in conduit runs
- All cover holes are #6-32
- Mounting lugs are standard
- Serve as pulling outlets during conductor installation
- Suitable for use in concrete
- To connect conduit sections
- Zinc-plated iron construction with aluminum acrylic coating provides durability, impact resistance and corrosion resistance
- 1 stud of 3/8 in
- Conically shaped screw compresses copper conductor so each strand is forced to carry its share of the load
- Exerts equal pressure on each conductor strand
- UL listed and CSA certified
Related Items
Select Options
| Brand | ABB |
| Number of Hubs | 1 Hub |
| Hub Size (Fraction) | 3/4 |
| Height (Fraction) | 4-9/32 in |
| Depth (Fraction) | 2-13/16 in |
| Number of Gangs | 1 Gang |
| Width (Fraction) | 2-3/4 in |
| Device Box Type | FD Box |
| Box Mounting Type | Nail-on/Screw-on |
| Knockouts | Without Knockouts |
| Material | Iron |
| Series | FD Series |
| ABB Thomas & Betts Specification Sheet | Specification Sheet |
|
