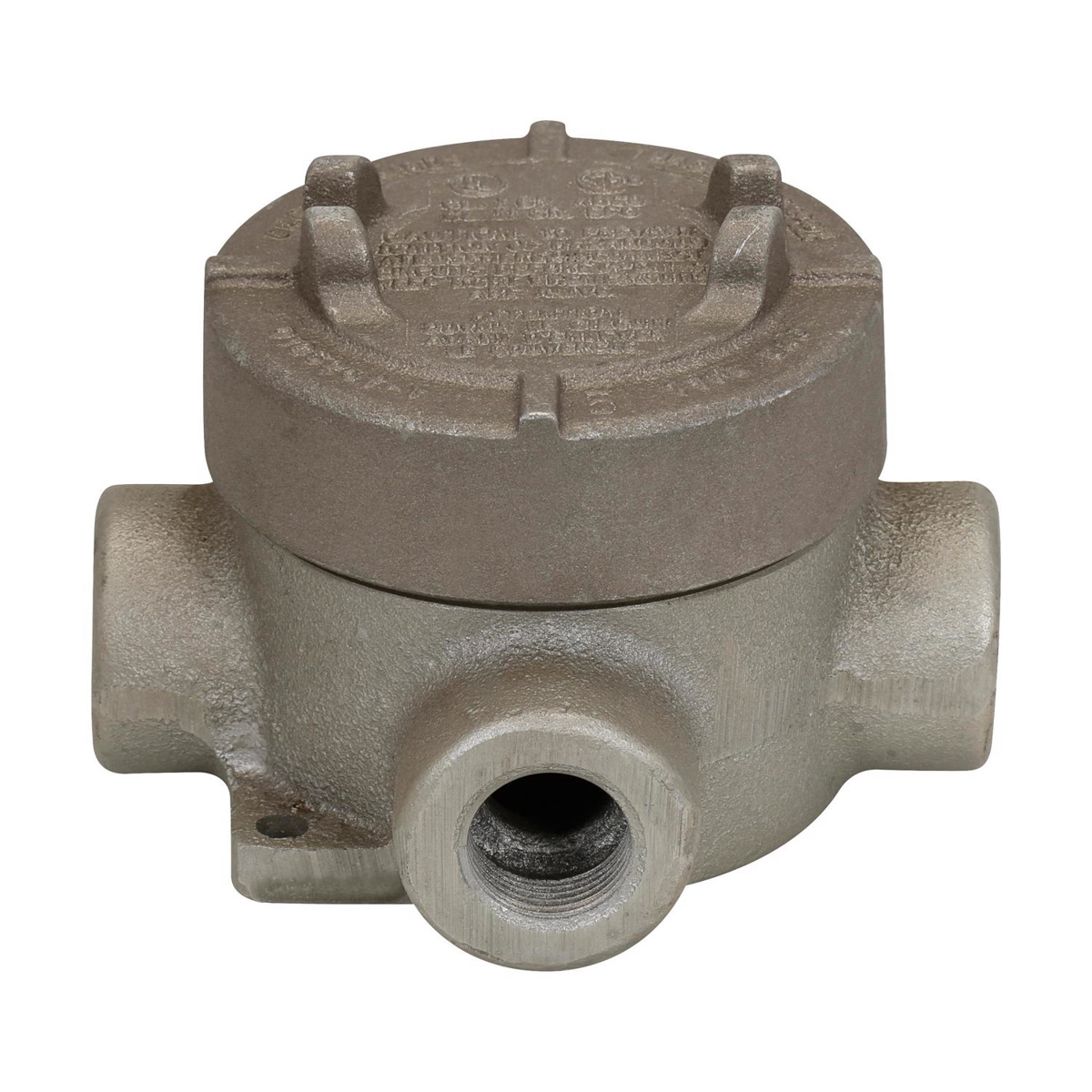

Eaton Crouse-Hinds EAJ Series Conduit Outlet Boxes Malleable Iron Type X
Mfg #:
EAJX26
BOR #:
864012
EAJ series conduit outlet boxes are installed in conduit systems within hazardous areas.
- Class I, Division 1 & 2, Groups A,B,C,D
- Class II, Division 1, Groups E,F,G
- Class II, Division 2, Groups F,G
- Class III
- NEMA 3, 4, 7ABCD, 9EFG
- Explosionproof
- Dust-ignition-proof
- Wet locations
- Raintight
- Act as pulling and splice fittings
- Change direction of conduit
- CSA Standard: C22.2 No. 30
- External cover threads on body protect conductors from damage during pulling
- Green ground screw standard in all boxes
- Interconnect lengths of conduit
- NEC/CEC: Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1, Groups E, F, G, Class II, Division 2, Groups F, G, Class III
Brand | Eaton Crouse-Hinds |
Material | Malleable Iron |
Finish | Coated (Aluminum Acrylic), Zinc-plated |
Diameter (Fraction) | 3-3/4 in |
Depth (Fraction) | 2-25/32 in |
Hub Size (Fraction) | 3/4 |
Cubic Capacity | 20.5 inĀ³ |
NEMA Rating | NEMA 3/4/7A/7B/7C/7D/9E/9F/9G |
Diameter | 3.75 in |
Box Configuration | Type X |
Conduit Type | Rigid/IMC |
