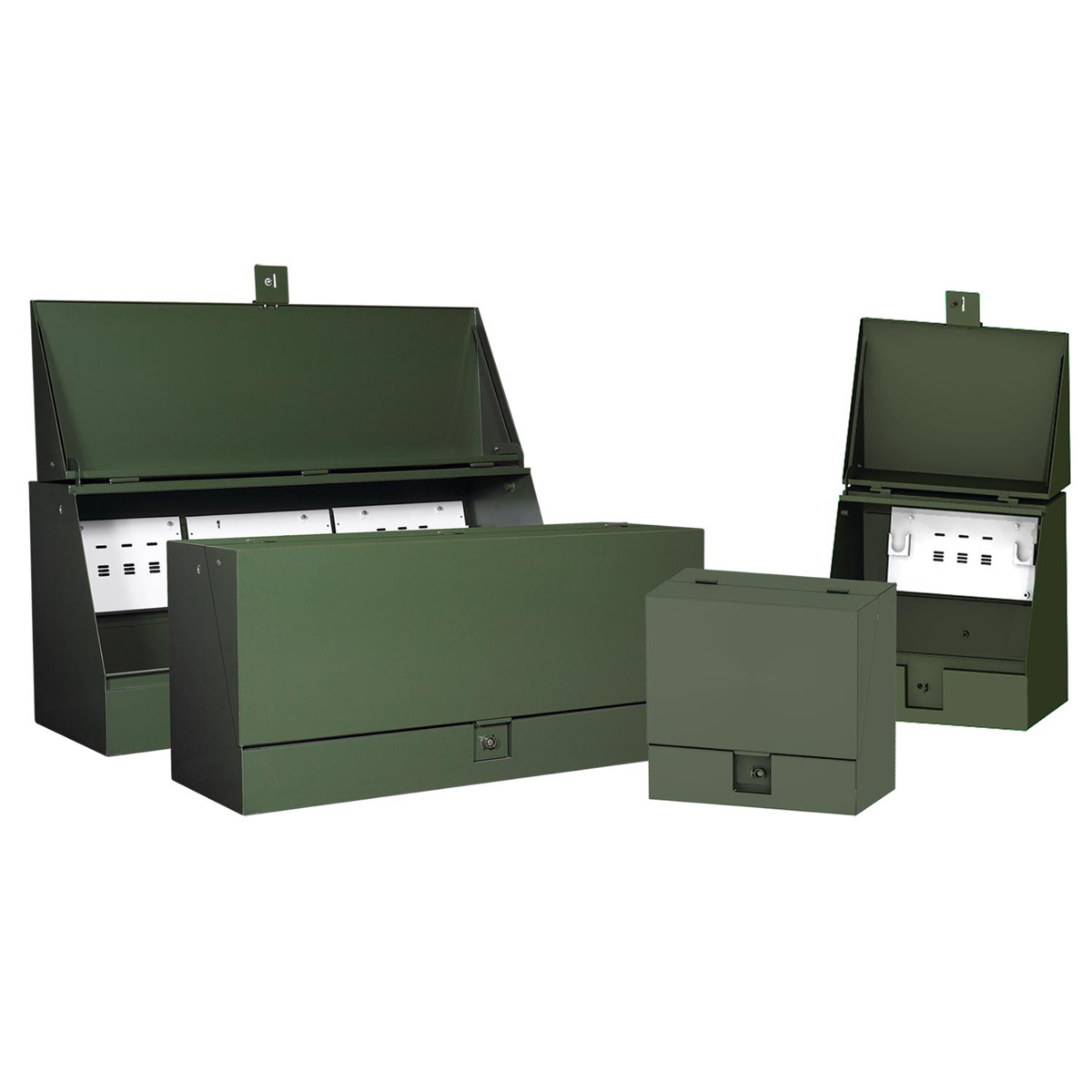

nVent HOFFMAN UJ Series Utility Junction Cabinets 30 in 18 in

Mfg #: UJ303018A
BSE #: 2435734

Enclosures provide sectionalizing and tap-point functionality for underground distribution systems.

  • These enclosures are rated 15 and 25 KV at 200 or 600 amperes and will accept two-, three- and four-way junctions from all manufacturers.
  • Recessed stainless steel penta-head bolt with padlock security system standard on all models
  • 5/8-11 threaded lifting provisions
  • Wind stop standard on all models (two stops provided if B dimension is greater than or equal to 42-inch (1067mm))
  • Ground nut for each phase
  • Full range of modifications available on request
  • When ordering UJ cabinets, customer may specify multiple mounting panel options, including mild steel, galvanized and stainless steel (panels must be purchased separately)
  • ANSI C57.12.28 Pad-Mounted Equipment Enclosure Integrity RUS Approved
See More
Looking for prices?
Product can be ordered only in multiples of


Brand nVent HOFFMAN
Material Aluminum
Color Green (Munsell)
Width 30 in
Height 30 in
Depth 18 in
For Use With Underground Distribution Systems
Environmental Condition RUS Approved
Includes Recessed stainless steel penta-head bolt with padlock security system, Wind stop, Ground nut for each phase
