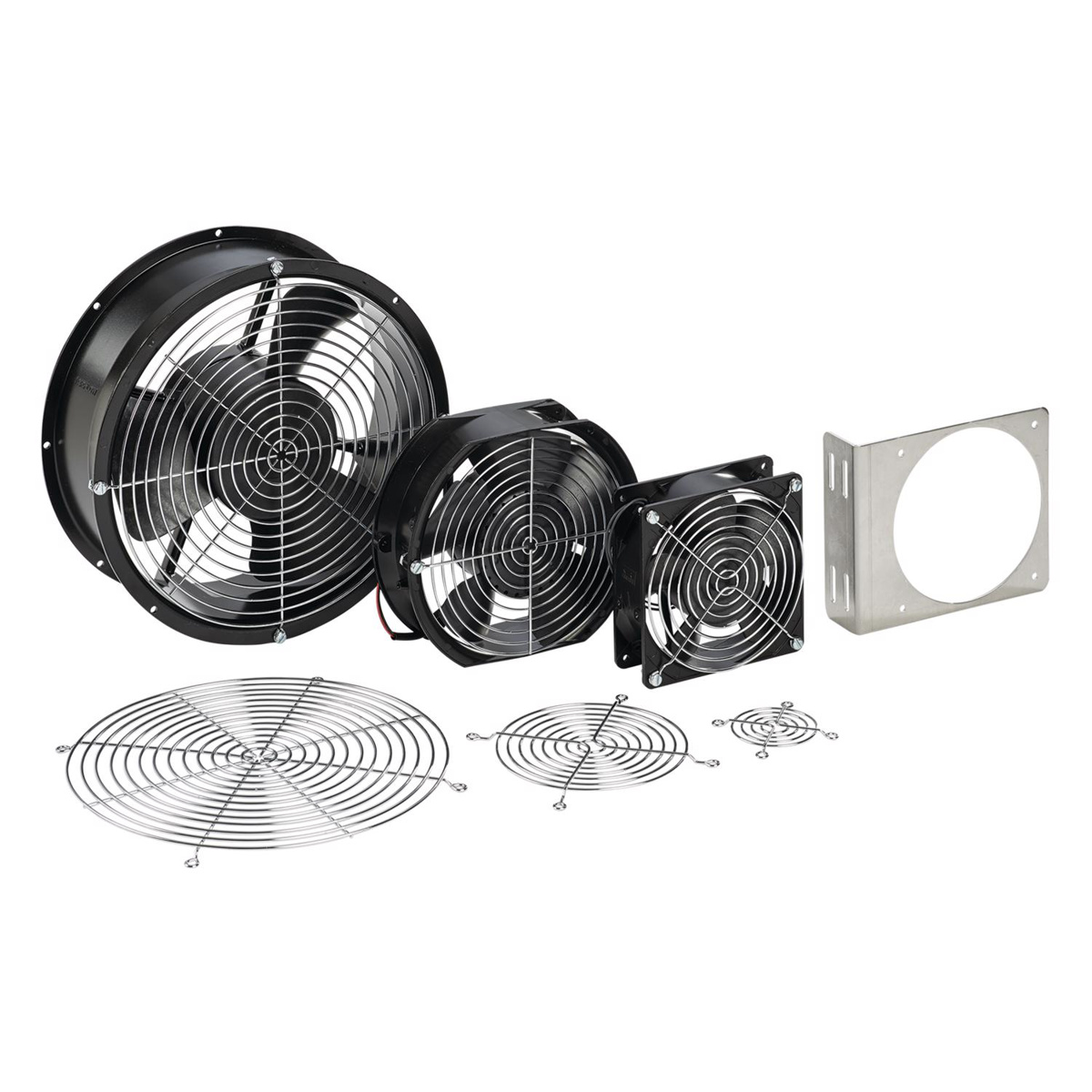

nVent HOFFMAN DTHRM 6 in Compact Axial Enclosure Fans

Mfg #: A6AXFNGQ

BOR #: 1471442

View all 2 in product family

Looking for prices?

Create an Account

Designed for use in enclosures where space is limited and reliable cooling is required. Powered by 115 V or 230 VAC, 60/50 Hz single-phase motors and available in three sizes with nominal airflows of 100, 240 and 560 cubic feet per minute (CFM). These fan

4-inch fan is thermally protected and uses permanently lubricated ball bearings
6 and 10-inch fans have ball-bearing construction and split-capacitor motors
Engineered for 50,000 hours of continuous operation without lubrication or service
Fan housing is black
Maximum operating temperature is 158° F (70° C)
Rigid housing eliminates breakage and grounding problems
Split-capacitor motors are thermally protected to avoid premature failure
UL Component Recognized and CSA certified

Product can be ordered only in multiples of

Specifications

Brand	nVent HOFFMAN
Voltage	115 VAC
Depth	2-1/4 in
Size	6 in nom 5.88 x 5.88 x 2.25 in
Height	5.88 in
Width	5.88 in
Air Flow	85/102 cfm

nVent HOFFMAN Specification Sheet	Specification Sheet
Certificate - CE-UKCA-00094_Accy-Enclosure - NAM-US	Compliance
Certificate - CERT-00277 - NAM-US	Compliance
Certificate - CERT-00298 - NAM-US	Compliance
