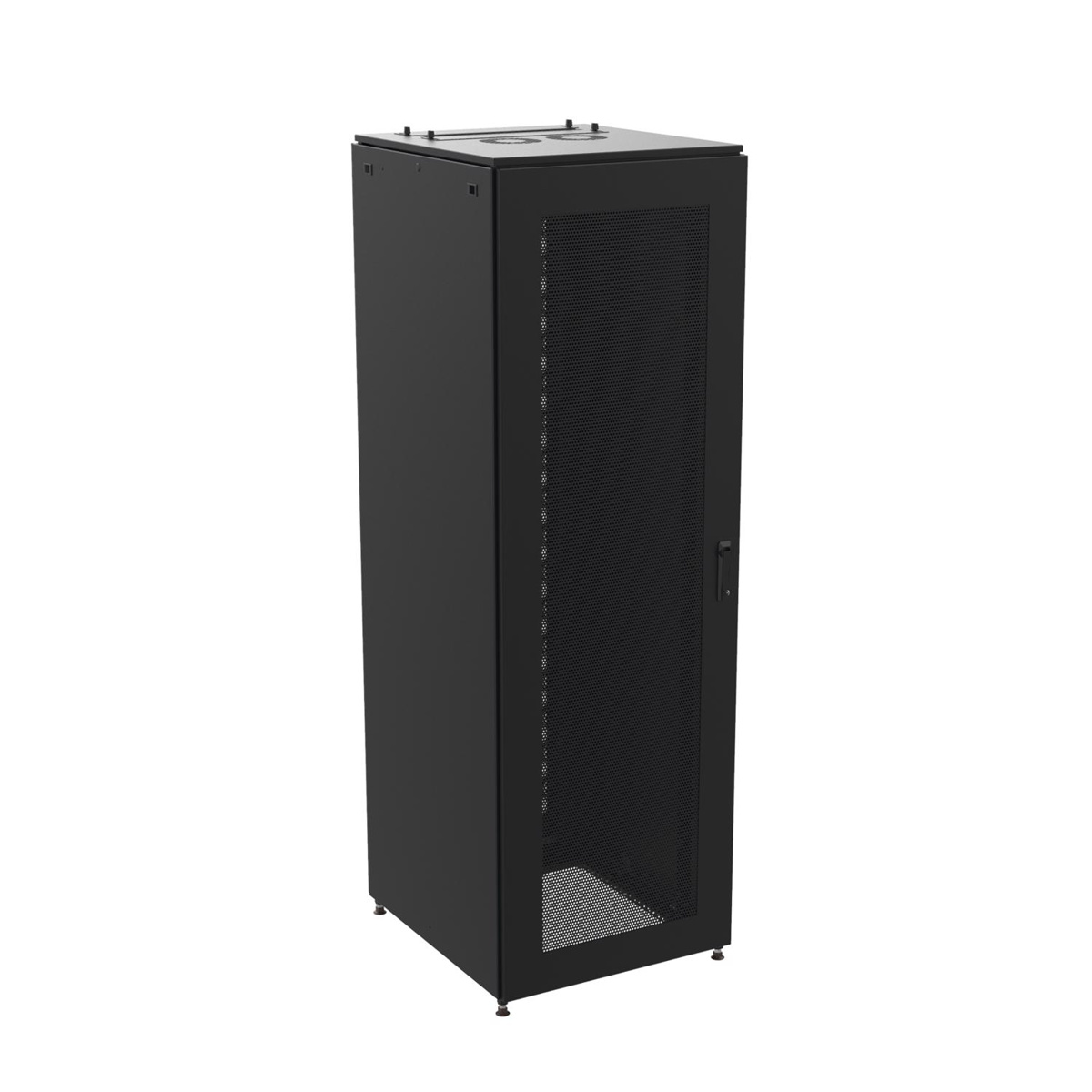

nVent HOFFMAN DPS1 ProLine® S1 Communication Cabinet Enclosures 2150 x 700 x 800 mm
Mfg #:
PS1C2178B
BOR #:
3465614
ProLine S1 Cabinets are an economical solution for those that require a general purpose cabinet to house servers, switches, cables and other communication equipment.
- Multiple sizes, configurations, and accessories give ProLine S1 Cabinets wide application flexibility.
- All doors have toolless hinges that allow the doors to easily be removed or reversed in the field
- All doors have ergonomic opening, keylocking handles
- Easy-to-remove side panels with optional keylocking latch provisions
- Front and rear doors are fully perforated to allow for maximum air flow
- Top accepts additional cooling fans (2 x 6-in. fans) with integral finger guard prefabricated in place
- Top has sliding gland plate to accommodate large cable egress capacity
- Combination foot and adjustable leveler in each cabinet corner
- Open base for easy cable entrance
- Rack angles are fully adjustable front to rear, easily converting between tapped or square configurations
| Brand | nVent HOFFMAN |
| Width | 700 mm |
| Height | 2150 mm |
| Size | 2150 x 700 x 800 mm |
| Depth | 800 mm |
| Color | Black |
| Material | Steel |
| Certificate - CERT-00275 - NAM-US | Compliance |
|
| Certificate - CE-UKCA-00203_Proline-S1 - NAM-US | Compliance |
|
| nVent HOFFMAN Specification Sheet | Specification Sheet |
|
