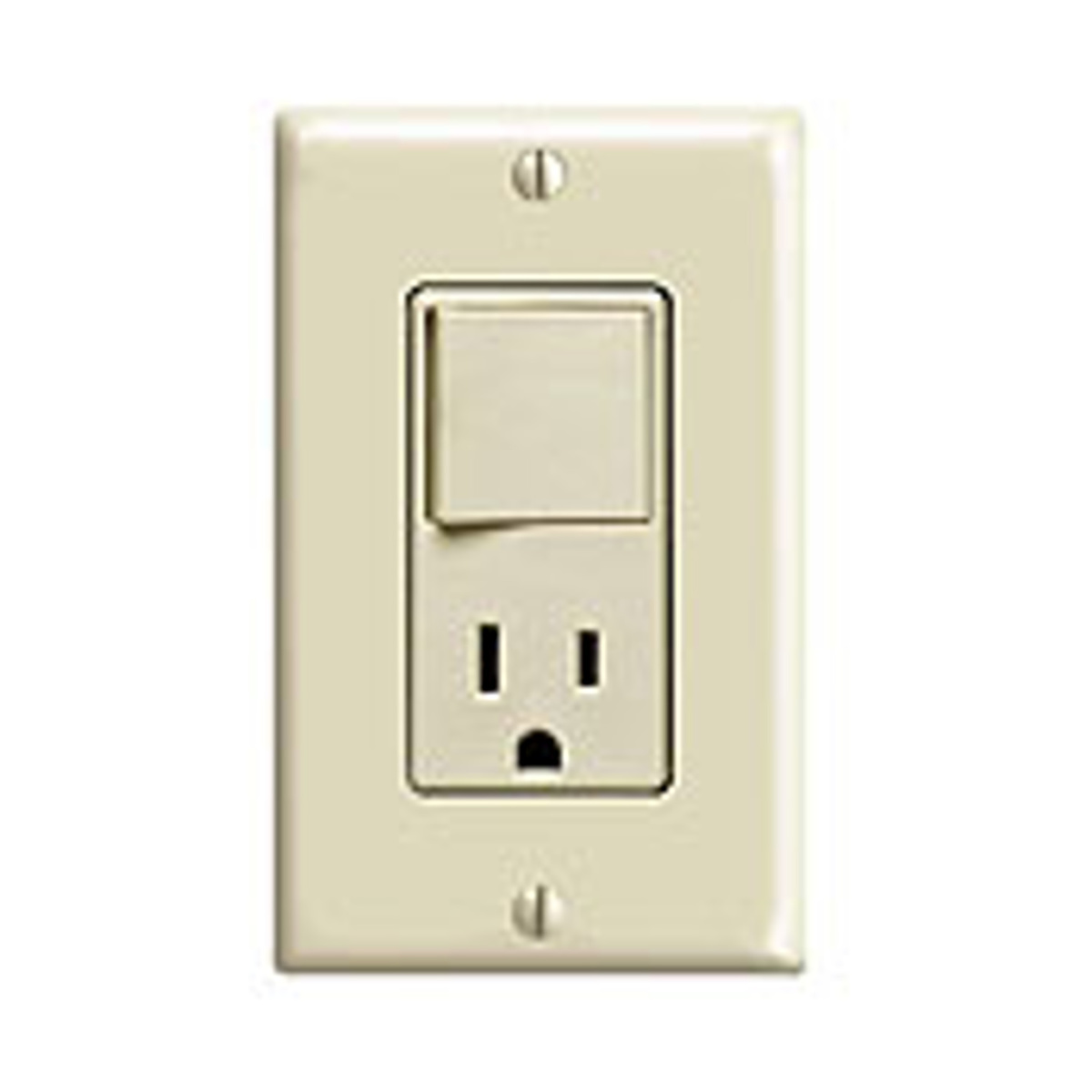

Leviton 5245 Series Combination Devices 15 A 125/277 V Toggle/Receptacle 5-15R

Mfg #: 5245I

BOR #: 119311

View all 2 in product family

Looking for prices?

Create an Account

AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wire contacts for maximum conductivity

100 cycles of OL at 4.8 times rated current
12-14 in pounds torque range
All devices have a grounding screw, except where noted
Break-off tabs on devices with switches permit conversion to separate feeds
Duplex style 3-way/5-15R AC combination switch, commercial grade
Fit standard wall boxes
Maximum 30 deg C temperature rise
Side termination, brass-hot black-hot white-neutral green-ground terminal ID, 14-12 AWG terminal accommodation
Terminal screws accept up to 12 AWG copper or copper-clad wire
Thermoplastic actuator and body material, steel strap material
Withstands 1500 V for 1 minute dielectric voltage
V-2 Per UL94 Flammability

Product can be ordered only in multiples of

With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two...
