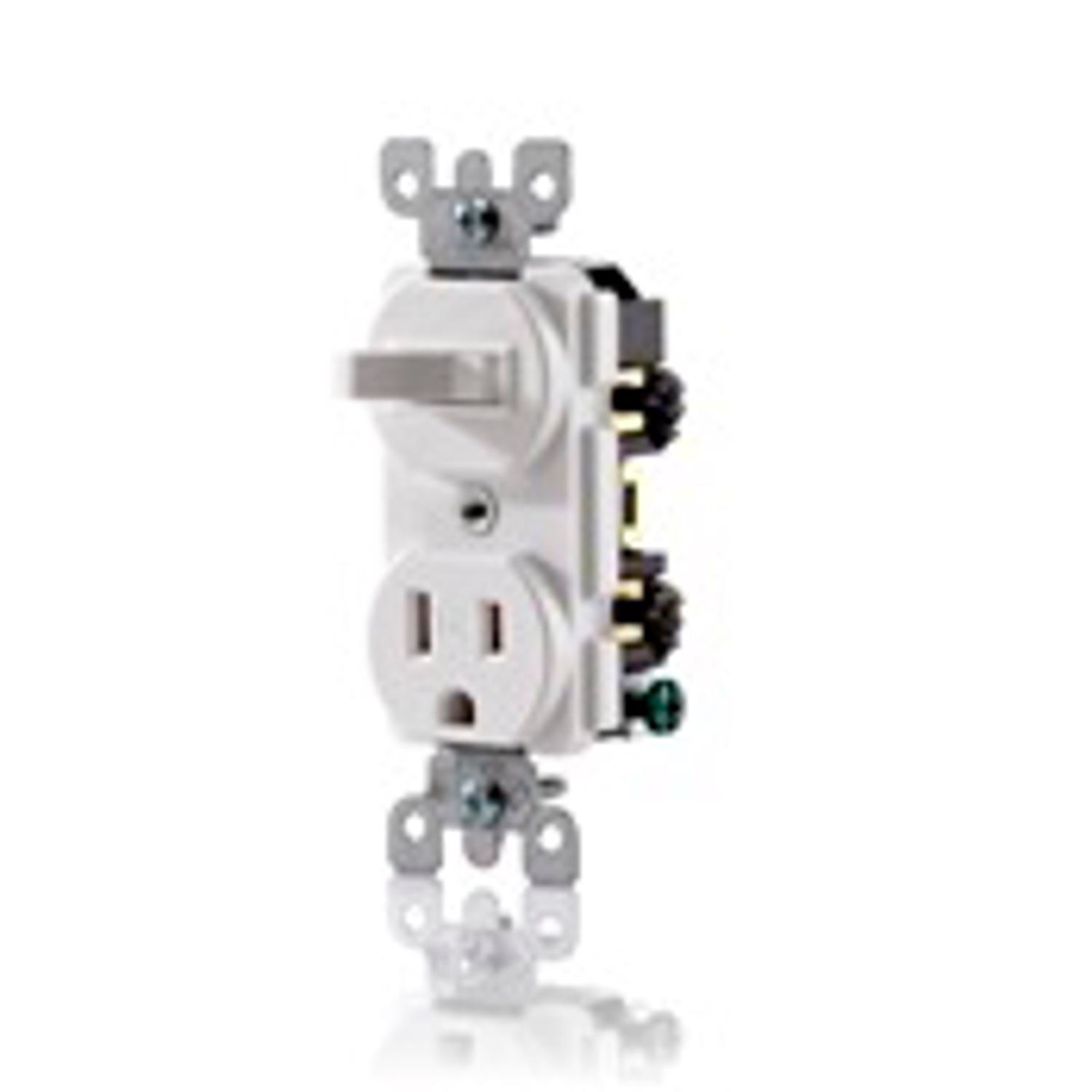

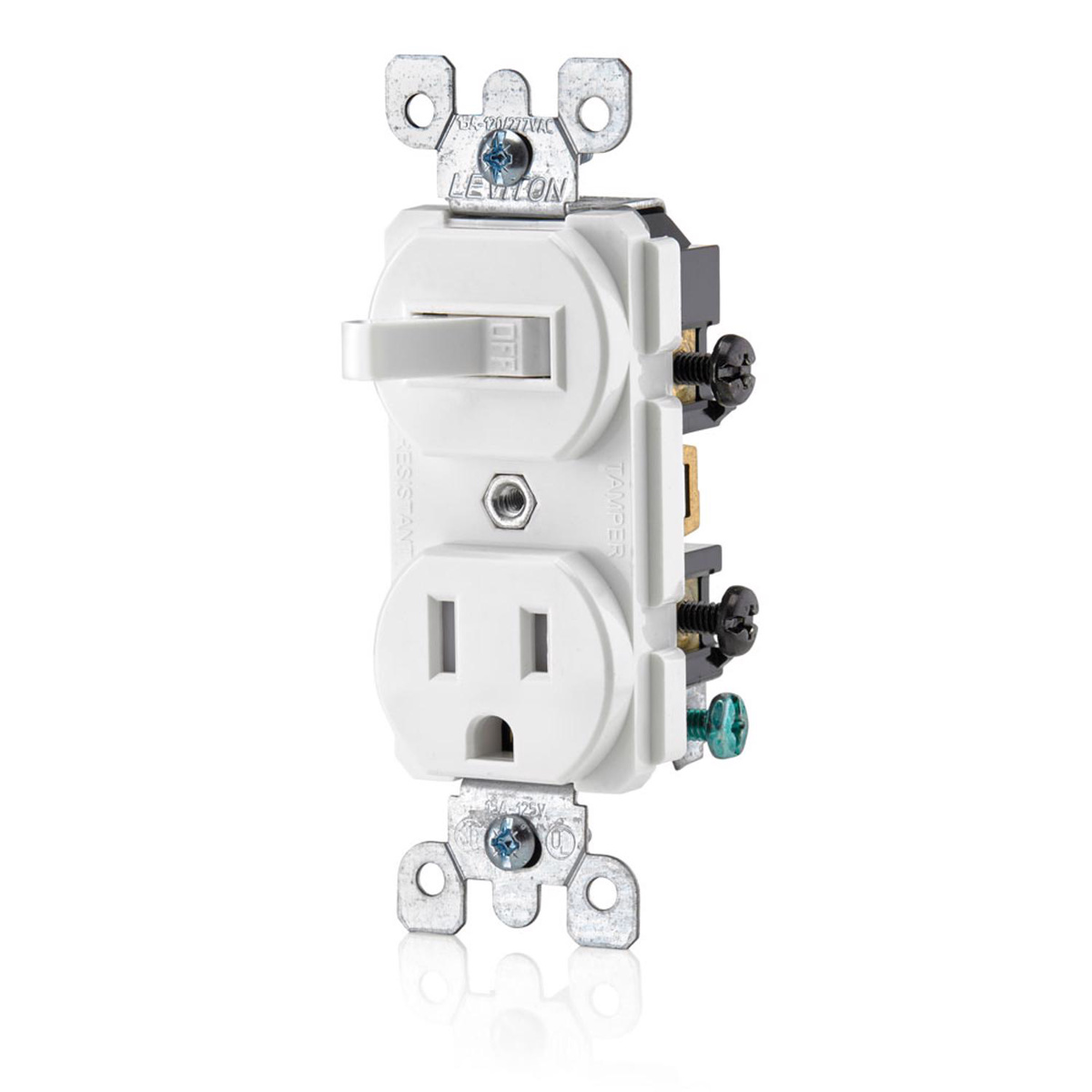

Leviton Decora® T5225 Series Combination Devices 15 A 125 V Toggle/Receptacle 5-15R

PrimaryProductImage
alternate_image
alternate_image
alternate_image
PrimaryProductImage alternate_image alternate_image alternate_image
Logo
Mfg #: T5225W
BOR #: 2249887
View all 5 in product family
Looking for prices?
Create an Account

AC Combination Devices have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity

  • Side wired with terminal screws that accept up to No. 12 AWG copper or copper-clad
  • All devices have grounding screw
  • Fits standard wall boxes
  • Horse Power: 1/2 @ 120 V, 2 @ 240 V
  • Operating Temperature: -40°C to 120°C
  • Rating: Switch - 15 A - 120 V AC, Receptacle - 15 A - 125 V
  • Environmental: Flammability UL-94, V2 rating
  • CSA (file #LR-3413)
  • NOM certified (#057)
  • Break-off tabs on devices with AC quiet switches permit conversion to separate feeds
See More
Product can be ordered only in multiples of
Specifications
Brand Leviton
Pole/Wire SP
Device Configuration Toggle/Receptacle
NEMA Configuration 5-15R
Ground Type Self-grounding
Voltage 125 V
Color White
Grade Residential
Wiring Method Side Wired
Contact Configuration SP
Design Duplex
Control Toggle
Amperage 15 A
