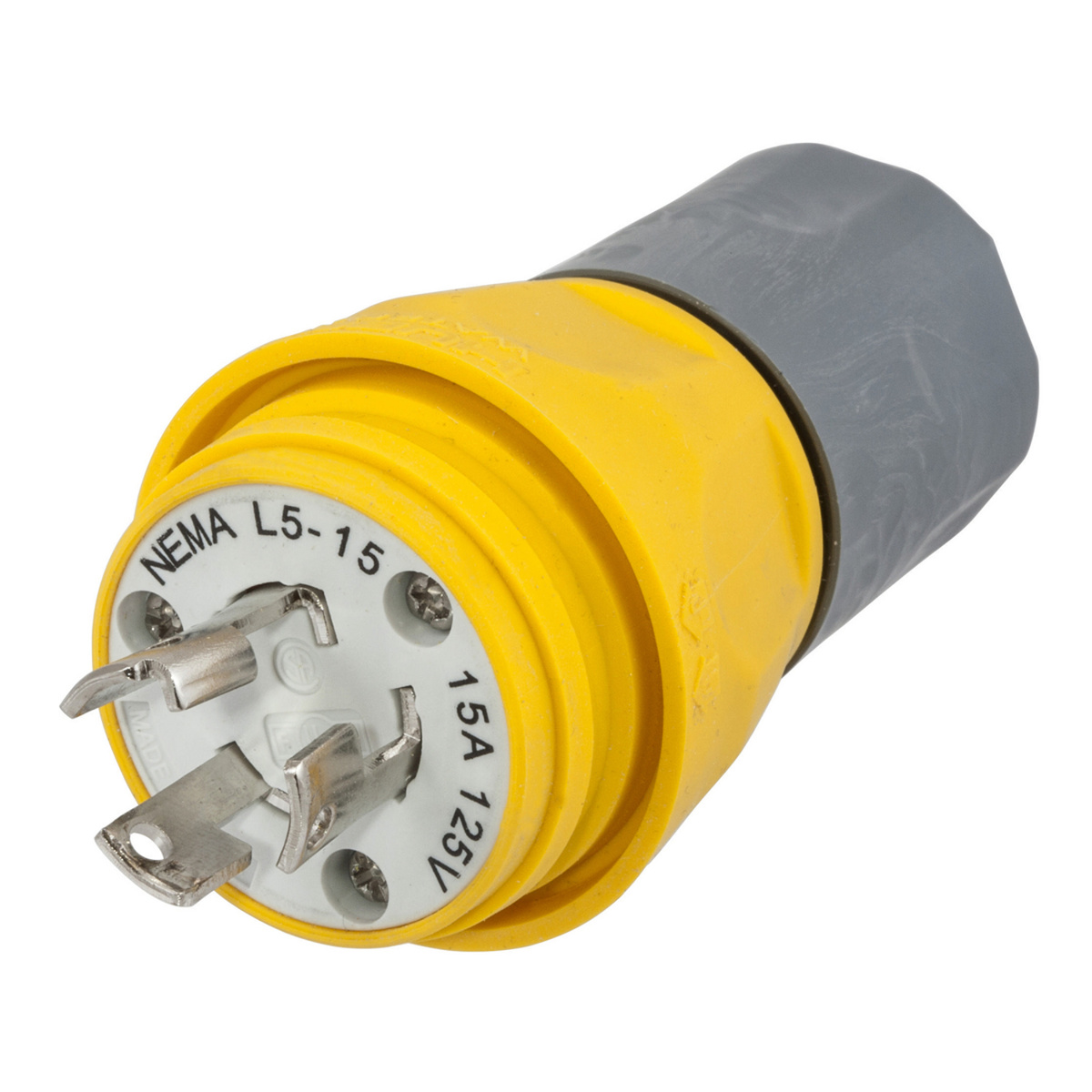

Hubbell Wiring Straight Locking Plugs 15 A 125 V 2P3W L5-15P Uninsulated Twist-Lock® Watertight

Mfg #: HBL24W47A
BOR #: 3221368
Looking for prices?
Product can be ordered only in multiples of
Brand Hubbell Wiring
Device Control Style Locking
Ground Type Grounding
Pole/Wire 2P3W

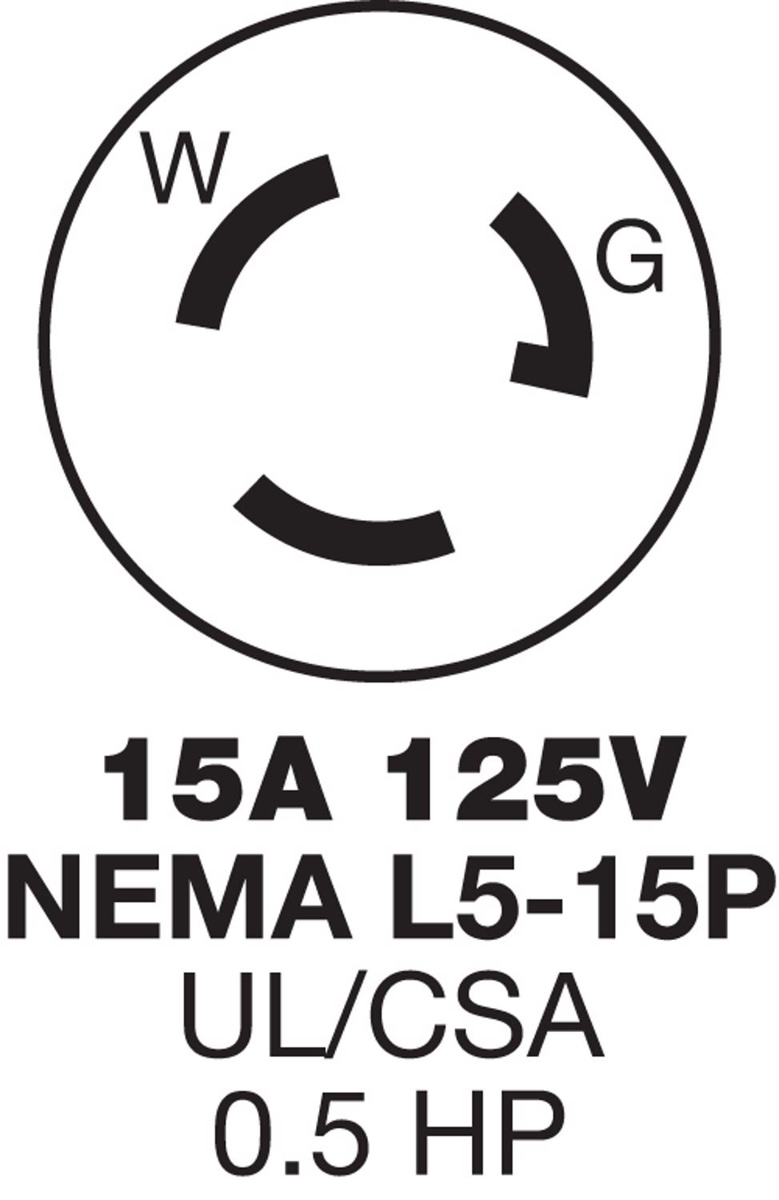

NEMA Configuration L5-15P
Plug/Connector Style Non-shrouded
Design Straight
Voltage 125 V
IP Rating IP69k
Color Yellow
Insulation Uninsulated
Device Configuration Male

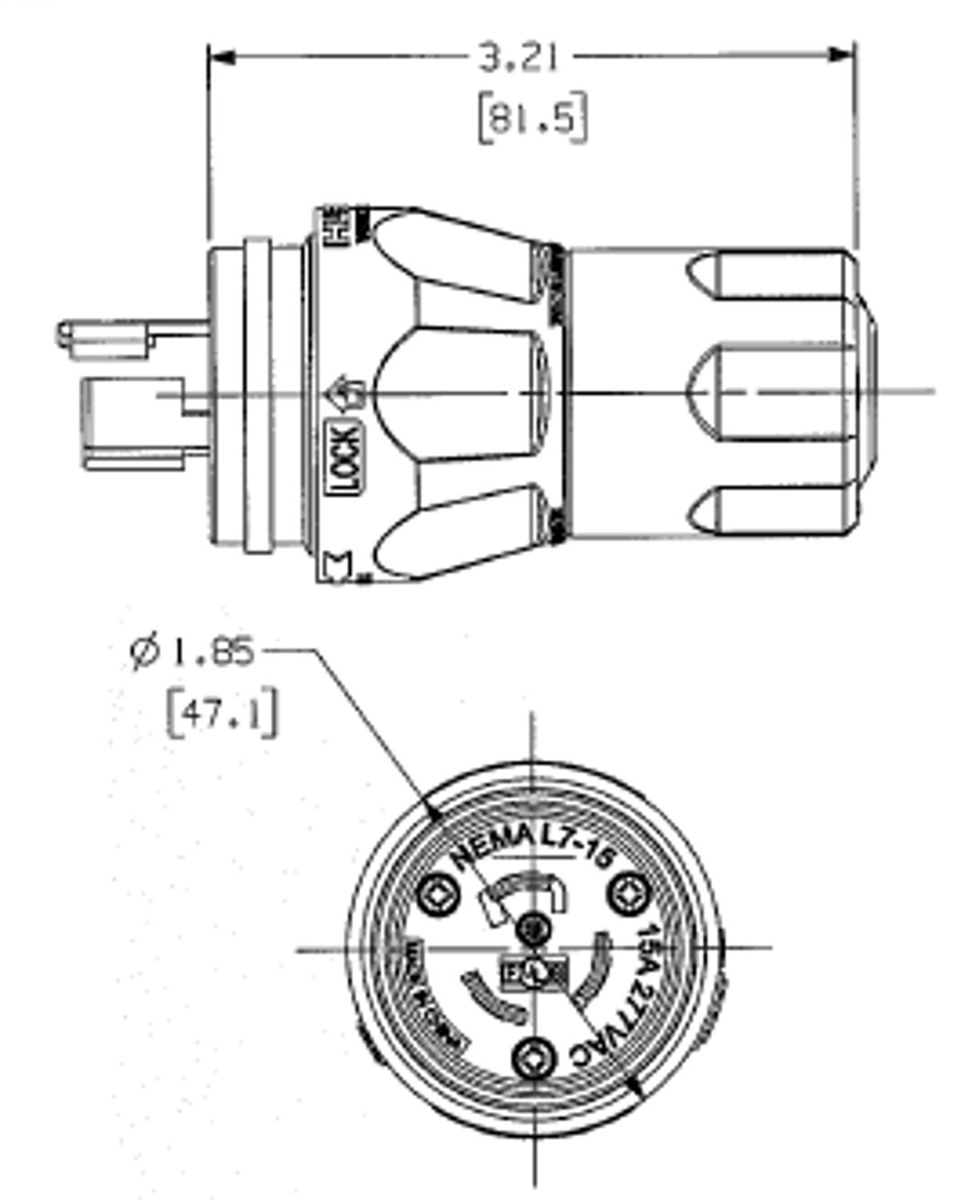

Length 3.21 in
Wiring Method Screw
Environmental Condition Watertight
NEMA Rating NEMA 4/4X/6/6P/12
Amperage 15 A
Wire Size 18 - 10 AWG
Mounting Type Cord
Material Thermoplastic Elastomer
Grade Industrial
Series Twist-Lock®
Plug/Connector Type Plug
WDK_CATALOG_2024_FULL.pdf Catalog
WDK_C-6_CatalogPage.pdf Catalog
Hubbell Wiring Specification Sheet Specification Sheet
WDK_C-7_CatalogPage.pdf Catalog
WIRING_PD2634_INSTALLINST.pdf Installation and Instruction Manuals
Watertight Plugs and Connectors
