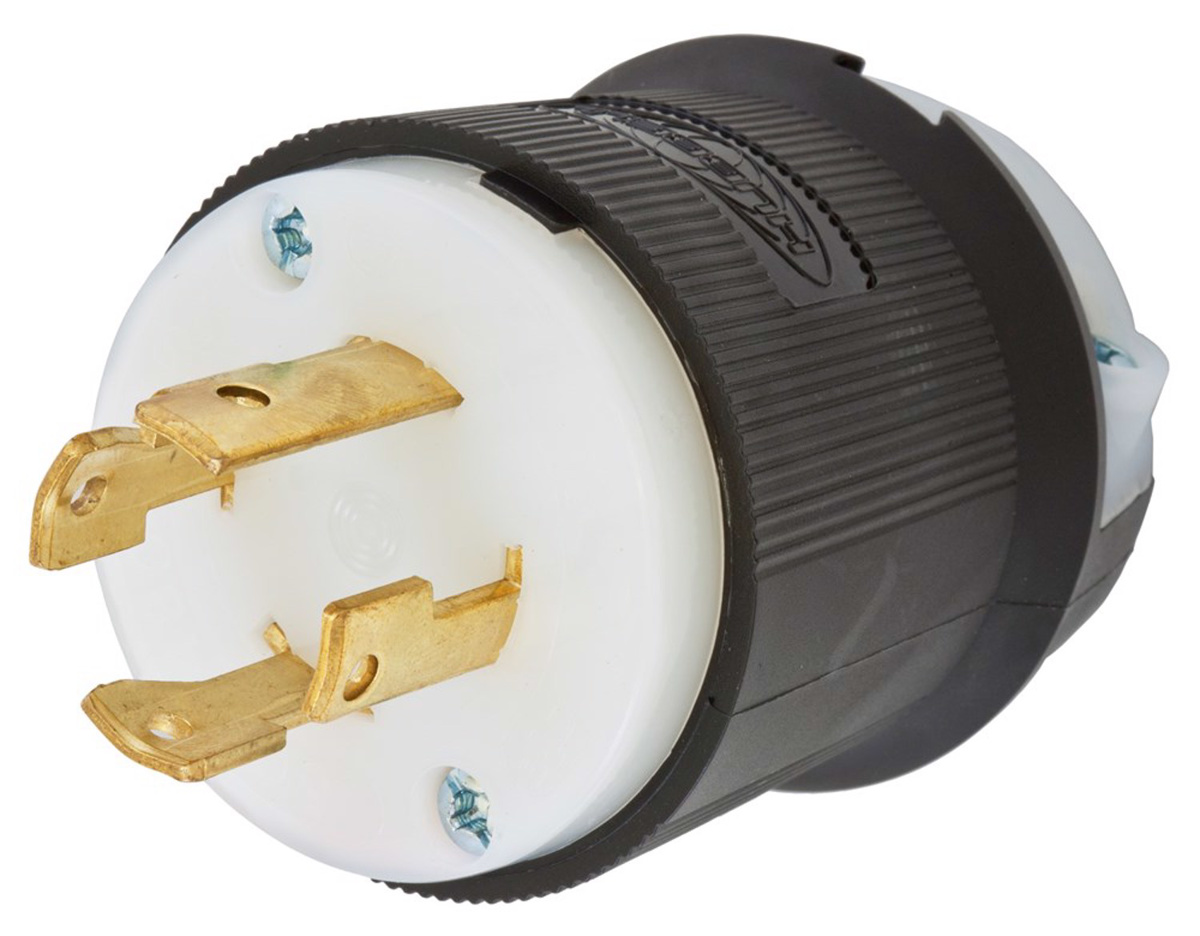

Hubbell Wiring Twist-Lock® Insulgrip® Series Locking Plugs L16-30P 3P4W Black/White

Mfg #: HBL2731
BSE #: 136631

Two-part cord grip tightens with two screws for maximum retention force. Broad gripping area to accommodate wide range of cable diameters.

  • Insulated nylon construction to keep noncurrent carrying parts from being energized
  • Self-threading screws specifically designed for secure assembly
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Single-piece shield/housing eliminates need for separate step at installation
  • Funneled holes to permit "straight-in" conductor insertion
  • Tough ribbed nylon housing for secure gripping
See More
Looking for prices?
Product can be ordered only in multiples of


Brand Hubbell Wiring
Amperage 30 A
Grade Industrial
Wiring Method Screw
Voltage 480 V
Color Black/White
NEMA Configuration L16-30P
Ground Type Grounding
IP Rating IP20
Pole/Wire 3P4W
