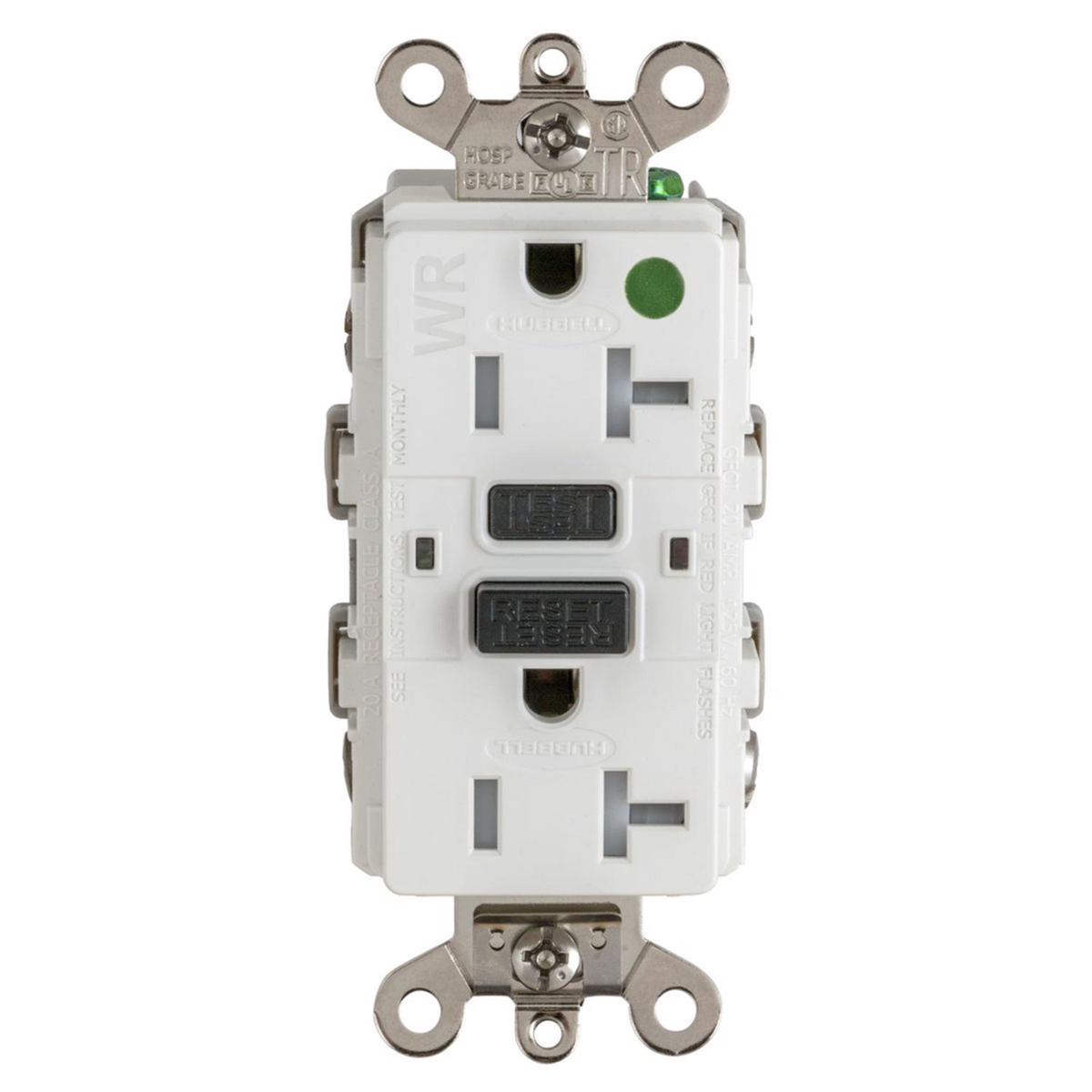

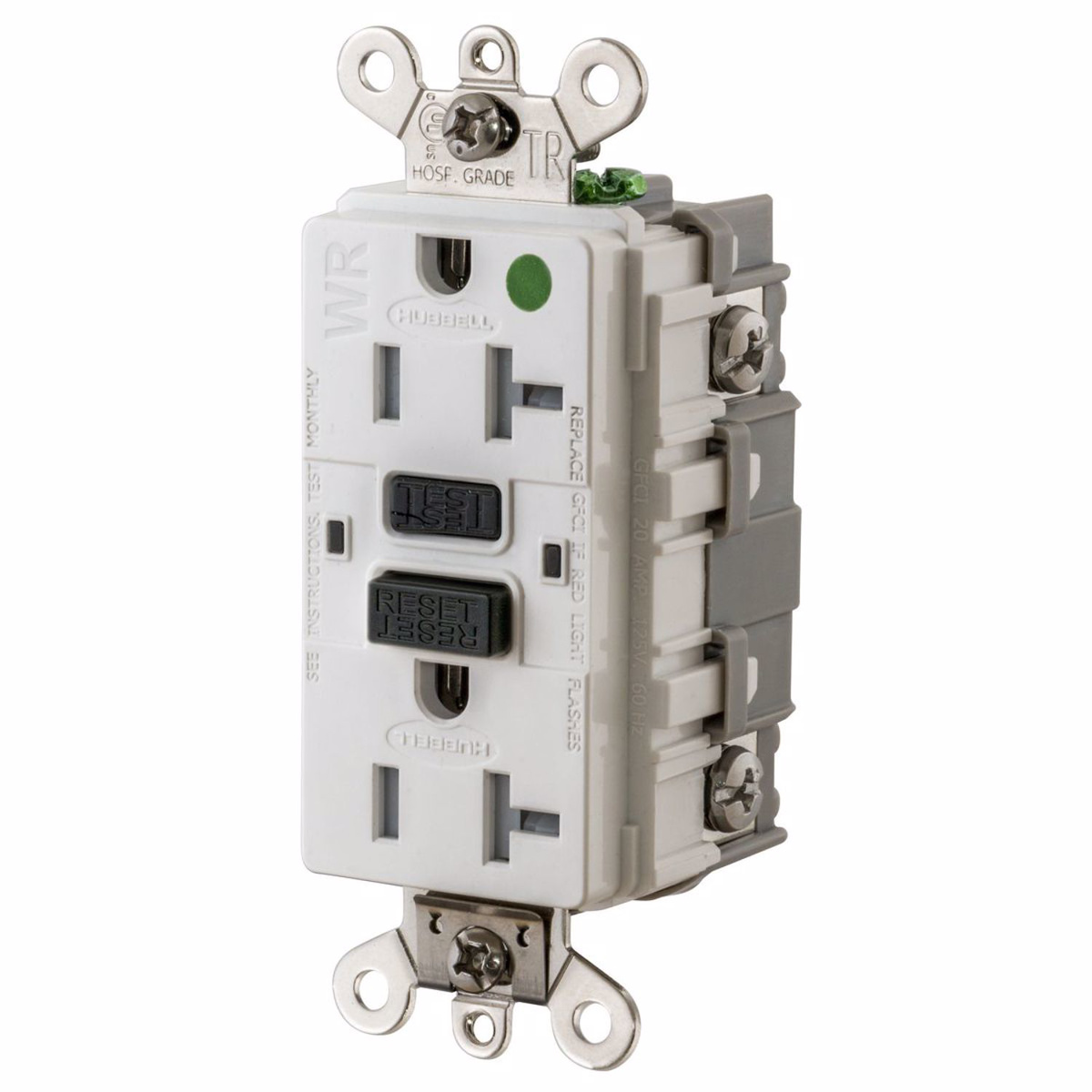

Hubbell Wiring GF8300SG Series Extra Heavy Duty Grade Duplex GFCIs 20 A 5-20R White Tamper-resistant, Weather-resistant

PrimaryProductImage
PrimaryProductImage WBP_GF8300SGW_front_PRODIMAGE_1200.jpg
This product has been discontinued.
Logo
Mfg #: GF8300SGW
BOR #: 3444824
View all 3 in product family
Looking for prices?
Sign In
Create an Account

Hubbell Wiring GF8300SG Series Extra Heavy Duty Hospital Grade Duplex GFCIs

  • Heavy duty robust construction, high impact resistant polyester housing
  • Corrosion Resistant: nickel-plated face contacts, mounting strap, line/load terminals and terminal clamps, stainless steel screws
  • Patented auto monitor, power denial technology
See More
Product can be ordered only in multiples of
Specifications
Brand Hubbell Wiring
Number of Phases 1 Phase
Includes Self-test, Stainless Wall Plate
Material Clear Polycarbonate
Height 1.48 in
Device Configuration Duplex Receptacle
Voltage 125 V
NEMA Configuration 5-20R
Length 3.28 in
Mounting Type Box
Environmental Condition Tamper-resistant, Weather-resistant
Design Decorator
Color White
Wiring Method Back and Side Wired
Illumination LED Indicator Light
Amperage 20 A
Grade Hospital
Ground Type Grounding
Pole/Wire 2P3W
Related Documents
WIRING_PD2825_INSTALLINST.pdf Installation and Instruction Manuals
WDK_CATALOG_2024_FULL.pdf Catalog
WDK_L-12_CatalogPage.pdf Catalog
Hubbell Wiring Specification Sheet Specification Sheet
Related Videos
Tamper Resistant Receptacle Mechanisms

We refined the design and functionality of traditional tamper-resistant plastic shutter mechanisms....

AUTOGUARD GFCI Receptacles

Self test monitoring now required in 2015 UL 943 GFCI Safety Standard… Hubbell AUTOGUARD® GFCI...
