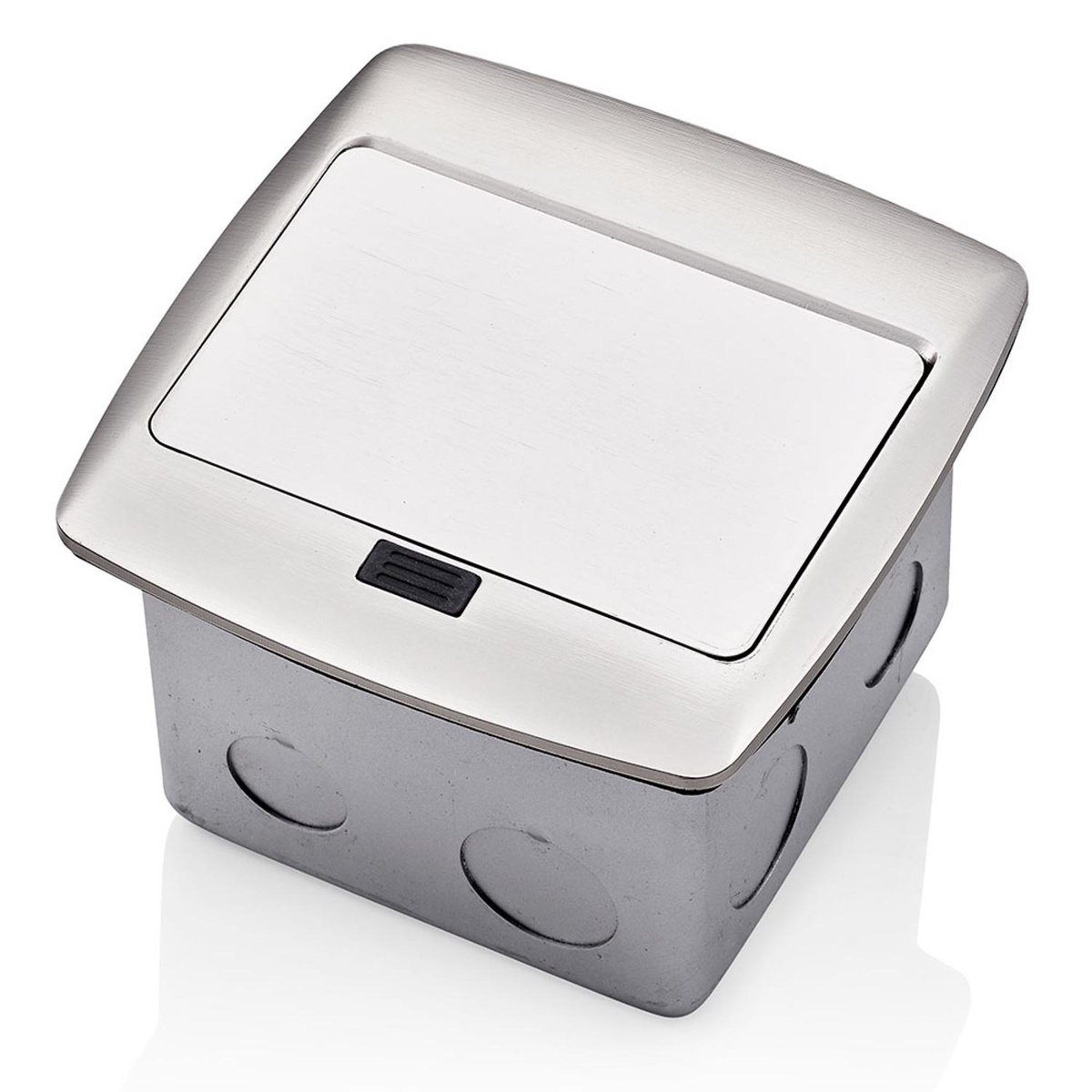

Leviton SmartlockPro® GFCI Receptacle Pop-up Floor Boxes 15 A 5-15R Nickel Tamper-resistant
Pop-Up Floor Box with 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-Test SmartlockPro GFCI that is pre-wired to terminal block
- Contoured top plate for enhanced aesthetics
- Side latch open/close mechanism prevents scratching of wiring device face
- Low profile cover recesses when not in use, reducing above-floor height to only ¼ inch
- Pre-wired terminal block for easy wiring access and installation
- IP 44 Rated: protection from ingress of water spray from any direction when closed
- Meets or exceeds UL 514A requirements including scrub water test
- Tamper-resistant to comply with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Adjustable concrete rated electrical box included
- Can be used with a variety of flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
- Terminal Accom.: 12-14 AWG
- Termination: Terminal Block
- Standard 4 in W x 4 in L x 3 inD
- Pop-up face: Brass Alloy
- Device face: Thermoplastic
- Box: Coated Steel
| Brand | Leviton |
| Material | Steel, Thermoplastic |
| Height | 3 in |
| Device Configuration | GFCI |
| Voltage | 125 V |
| NEMA Configuration | 5-15R |
| Length | 4 in |
| Mounting Type | Screw |
| Environmental Condition | Tamper-resistant |
| Design | Decorator, GFCI |
| Color | Nickel |
| Illumination | No Illumination |
| Amperage | 15 A |
| Pole/Wire | 2P3W |
| Floor Box Brochure Q 1270C | Brochure |
|
