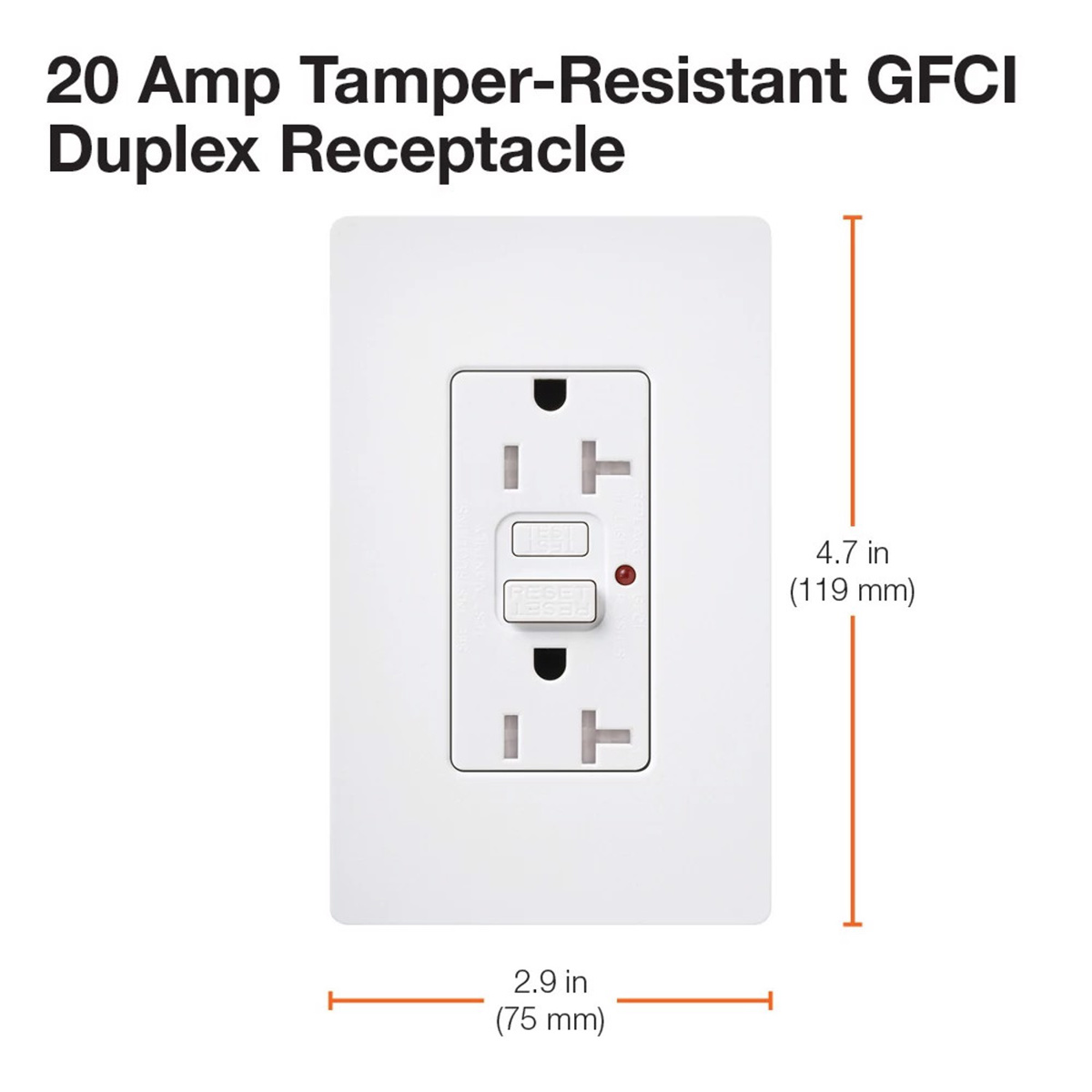

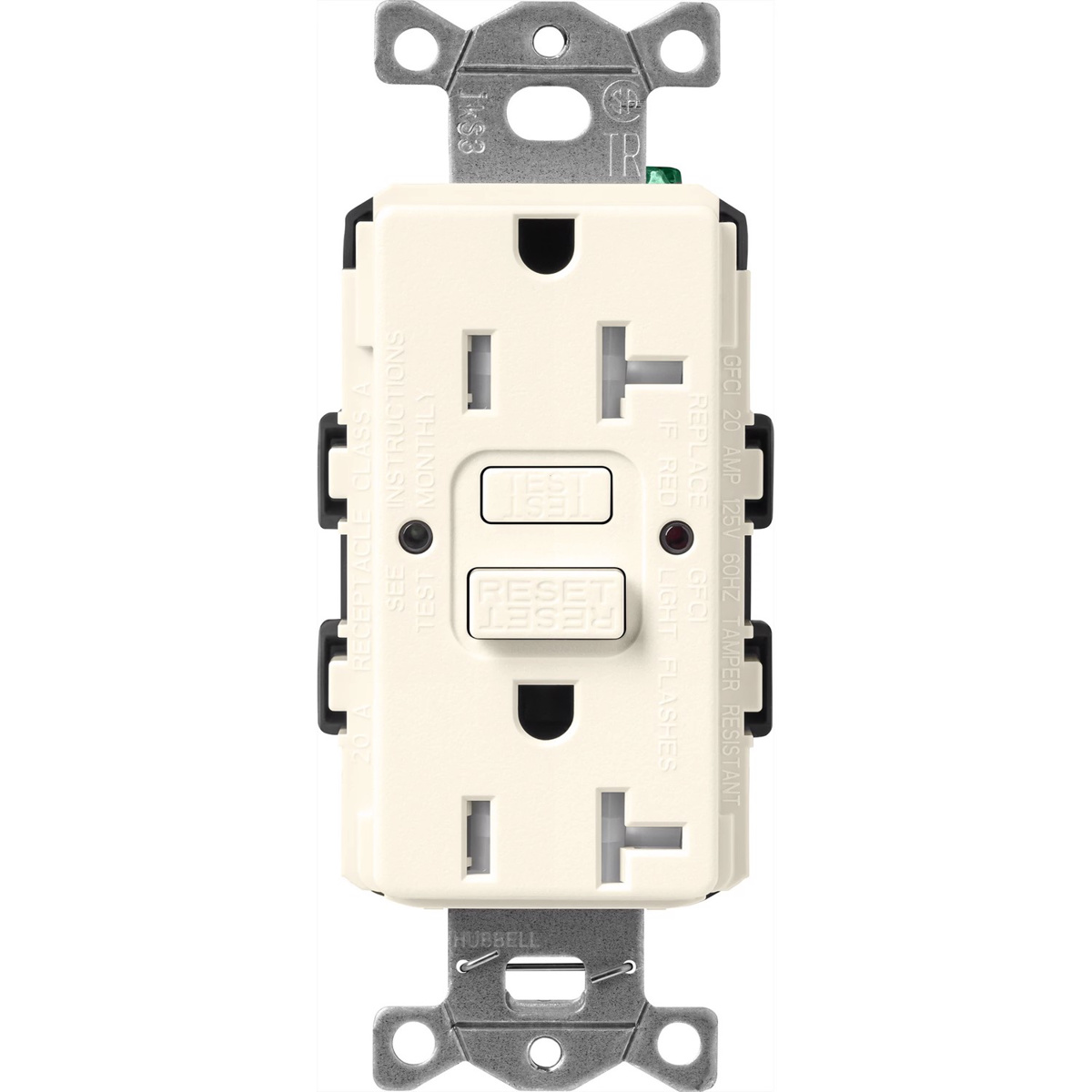

Lutron Duplex GFCIs 20 A 5-20R Biscuit
Mfg #:
SCR20GFSTBI
BOR #:
3290555
Image shown may be a representative image and may not reflect the exact product
| Type | GFCI receptacle |
| Configuration | Tamper-resistant, self-testing GFCI, duplex |
| Number of Poles | 2 Pole |
| Number of Gangs | 1 Gang |
| Frequency Band | 60 Hz |
| Finish | Satin |
| Wire Size | 10 - 12 AWG |
| Width | 2.94 in |
| Size | 4.69 x 2.94 in |
| Brand | Lutron |
| Wattage | 2500 W |
| Minimum Starting Temperature | -30 deg F |
| Includes | Continuous self-test, tamper-resistant shutters, reverse wire safety |
| Material | Metal, Plastic |
| Height | 4-11/16 in |
| Device Configuration | Duplex |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Mounting Type | Wall |
| Design | Decorator |
| Color | Biscuit |
| Wiring Method | Screw |
| Illumination | LED Indicator Light |
| Series | Satin Colors® |
| Amperage | 20 A |
| Ground Type | Grounding |
| Lutron Specification Sheet | Specification Sheet |
|
| Lutron Installation and Instruction Manuals | Installation and Instruction Manuals |
|
