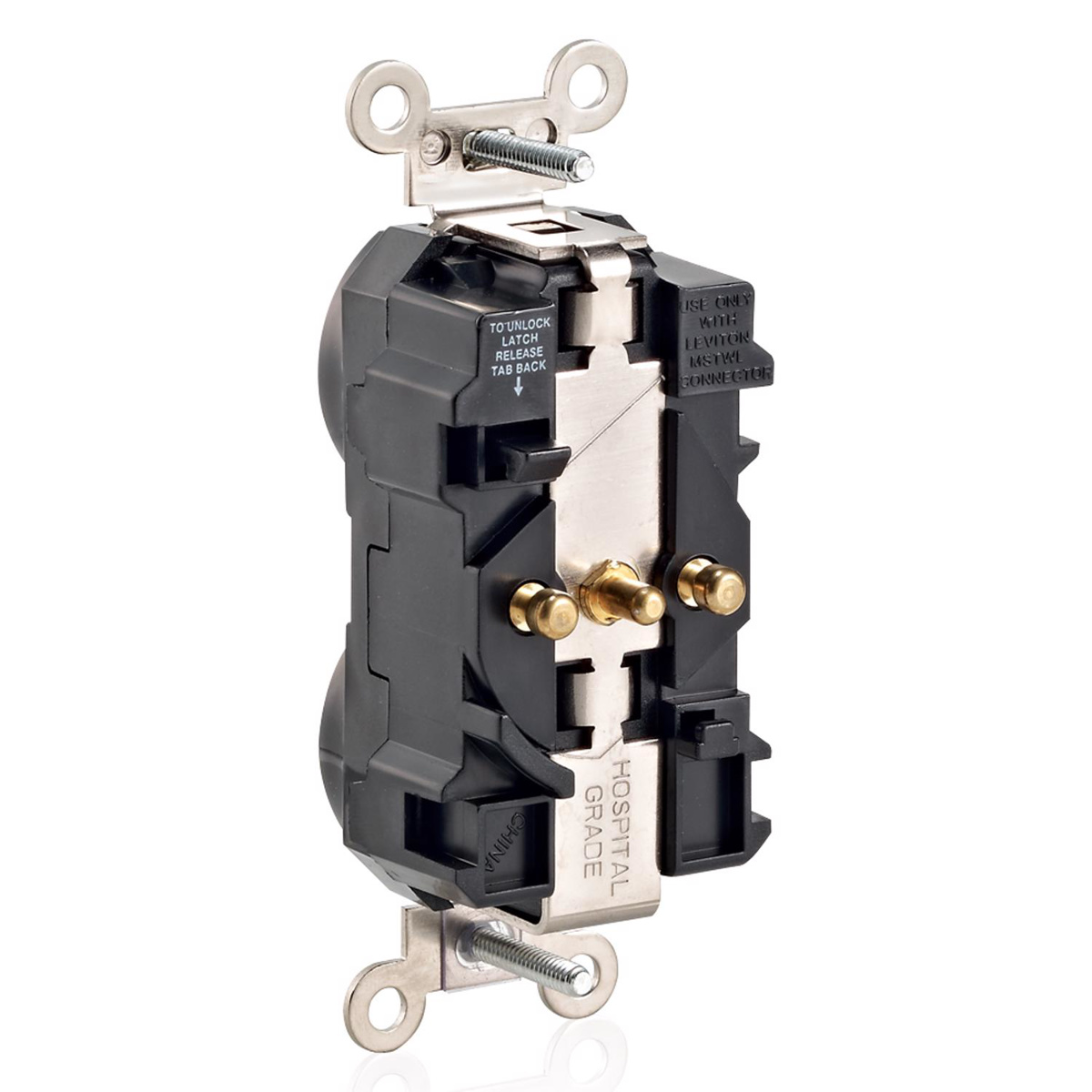

Leviton M8300 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Extra Heavy-Duty Hospital Grade Red
Lev-Lok Straight Blade Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R, Grade: Hospital, -40 to 60 deg C, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D
- Wall box mounting
- Self grounding
- 1 Phase
- Modular
- 12 AWG
- 2000 V (min) dielectric strength UL 94 V-2 flammability rating
- Nickel plated brass strap
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 125 V |

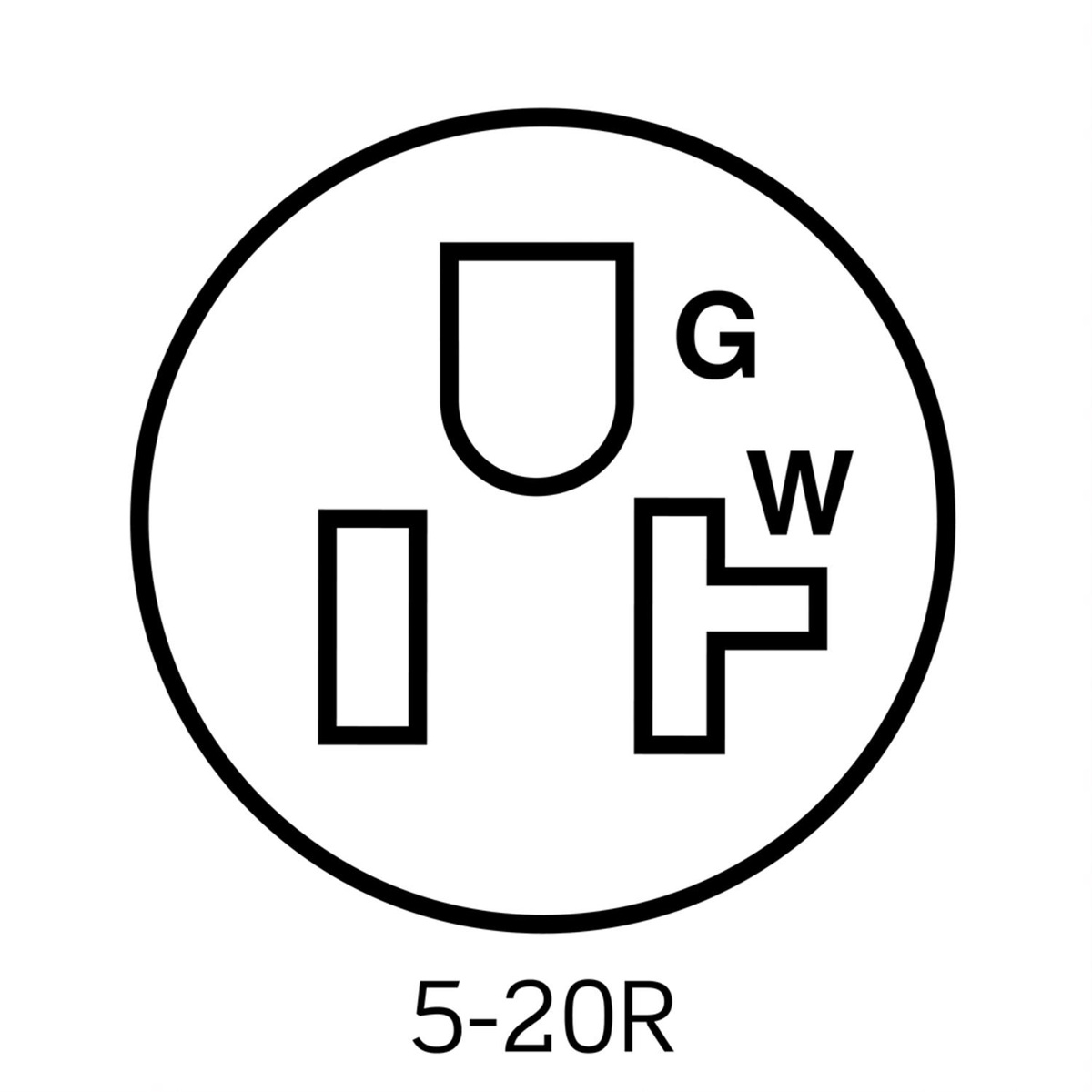

| NEMA Configuration | 5-20R |
| Ground Type | Self-grounding |
| Design | Modular |
| Color | Red |
| Device Configuration | Duplex |
| NEMA Rating | WD-1 & WD-6 |
| Number of Phases | 1 Phase |
| Grade | Extra Heavy-Duty Hospital Grade |
| Mounting Type | Screw |
| Wiring Method | Back Wired |
| Amperage | 20 A |
| Lev-Lok%20Brochure%20Q-360U%20(1).pdf | Brochure |
|
| Leviton Specification Sheet | Specification Sheet |
|
| Straight%20Blade%20Receptacle%20Catalog%20Q-1101H.pdf | Catalog |
|

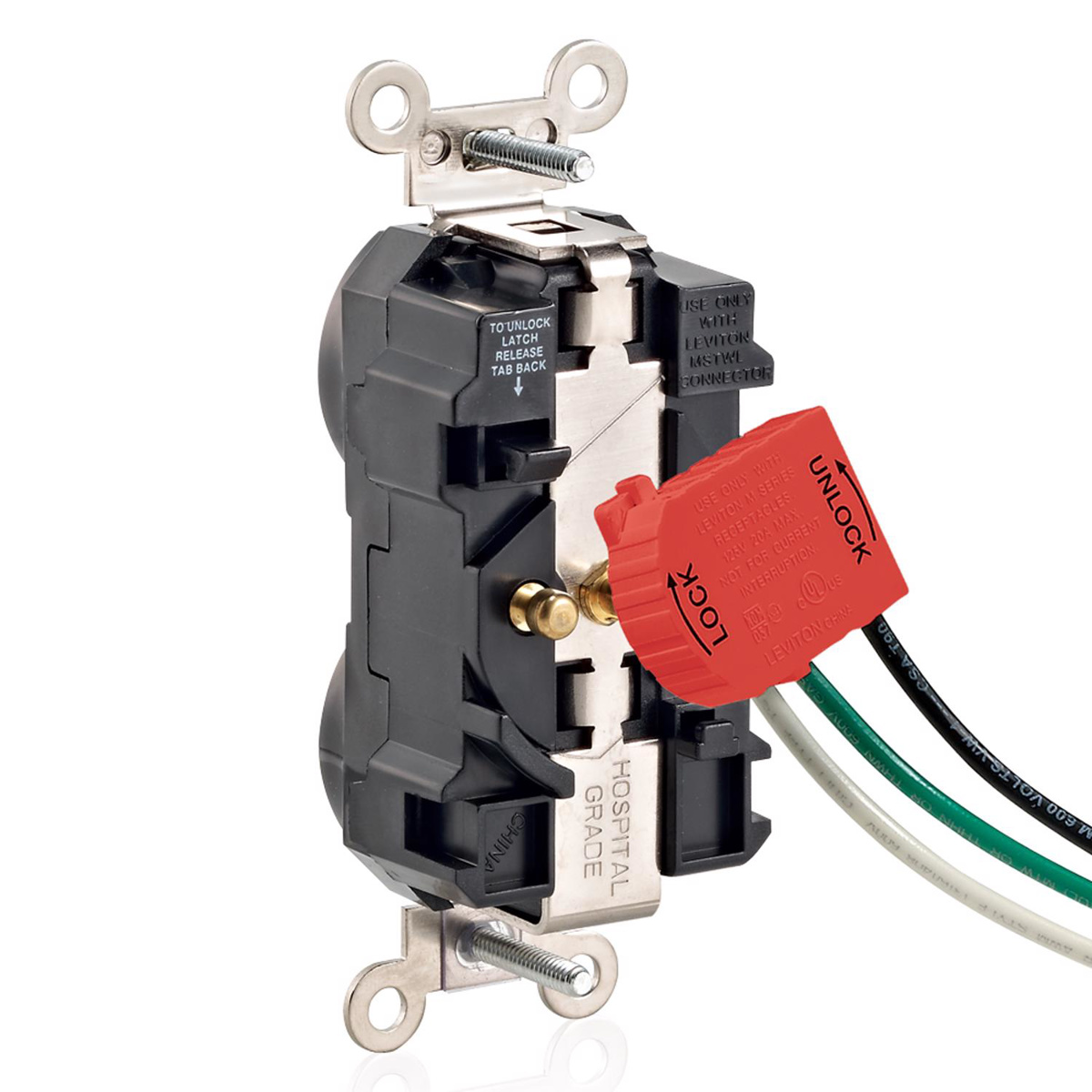

Lev-Lok Modular Switch and Receptacle
