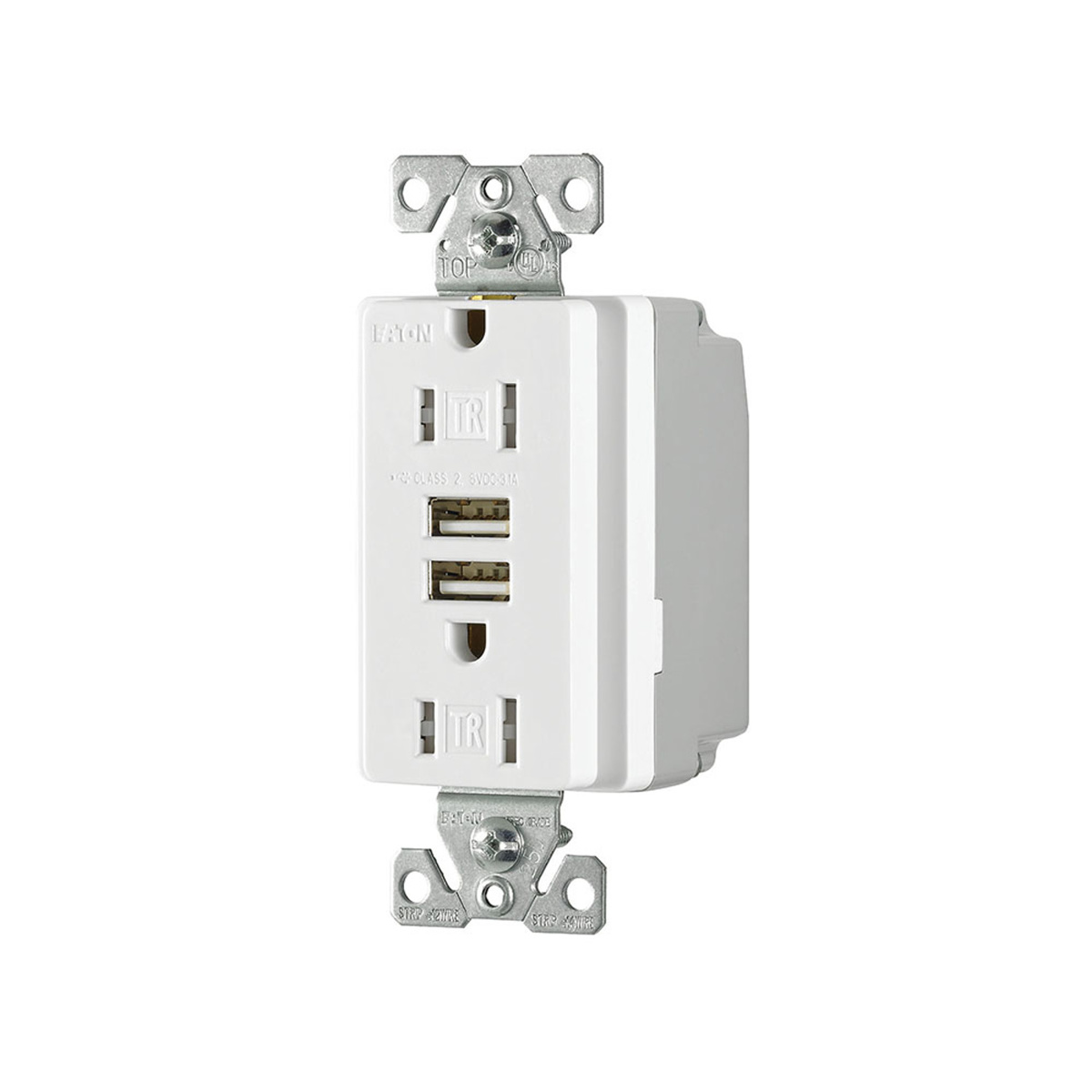

Eaton Wiring Devices TR7755 Series Combination Devices 2 USB/Duplex White 15 A
This product has been discontinued.
Mfg #:
TR7755WBOX
BOR #:
3275072
The Arrow Hart 3.1A USB Duplex Receptacle provides quick and convenient access to charge virtually any electronic component including smart phones, tablets, e-readers, cameras and MP3 players.
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Convenient patented built-in wire strippers speed installation
- Current limiting and thermal shutdown protection
- Dual USB charging ports charge most compatible electronic devices that charge via a 5V charger adapter
- Nominal 5V (/- 10%) output voltage, Typical 140 kHz switching frequency
- Phosphor bronze auto ground clip 0.03 in thick brass line contacts 0.014 in thick brass ground contact
- Receptacle withstands 2000V per UL498 dielectric voltage 0.045 in thick steel, zinc-plated strap
- Replaces a standard duplex receptacle
- Standard AC duplex receptacle with two USB charging ports rated at 3.1 A
- Steel mounting strap is zinc-plated for added corrosion resistance
- Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Three pre-stripped 6 in wire leads for line, neutral and ground for quick and easy installation
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
| NEMA Configuration | 5-15R |
| Brand | Eaton Wiring Devices |
| Color | White |
| Voltage | 125 V |
| Wiring Method | Wire Lead |
| Pole/Wire | 2P3W |
| Design | Decorator |
| Device Configuration | 2 USB/Duplex |
| Grade | Residential |
| Amperage | 15 A |
| Eaton Wiring Devices Specification Sheet | Specification Sheet |
|
