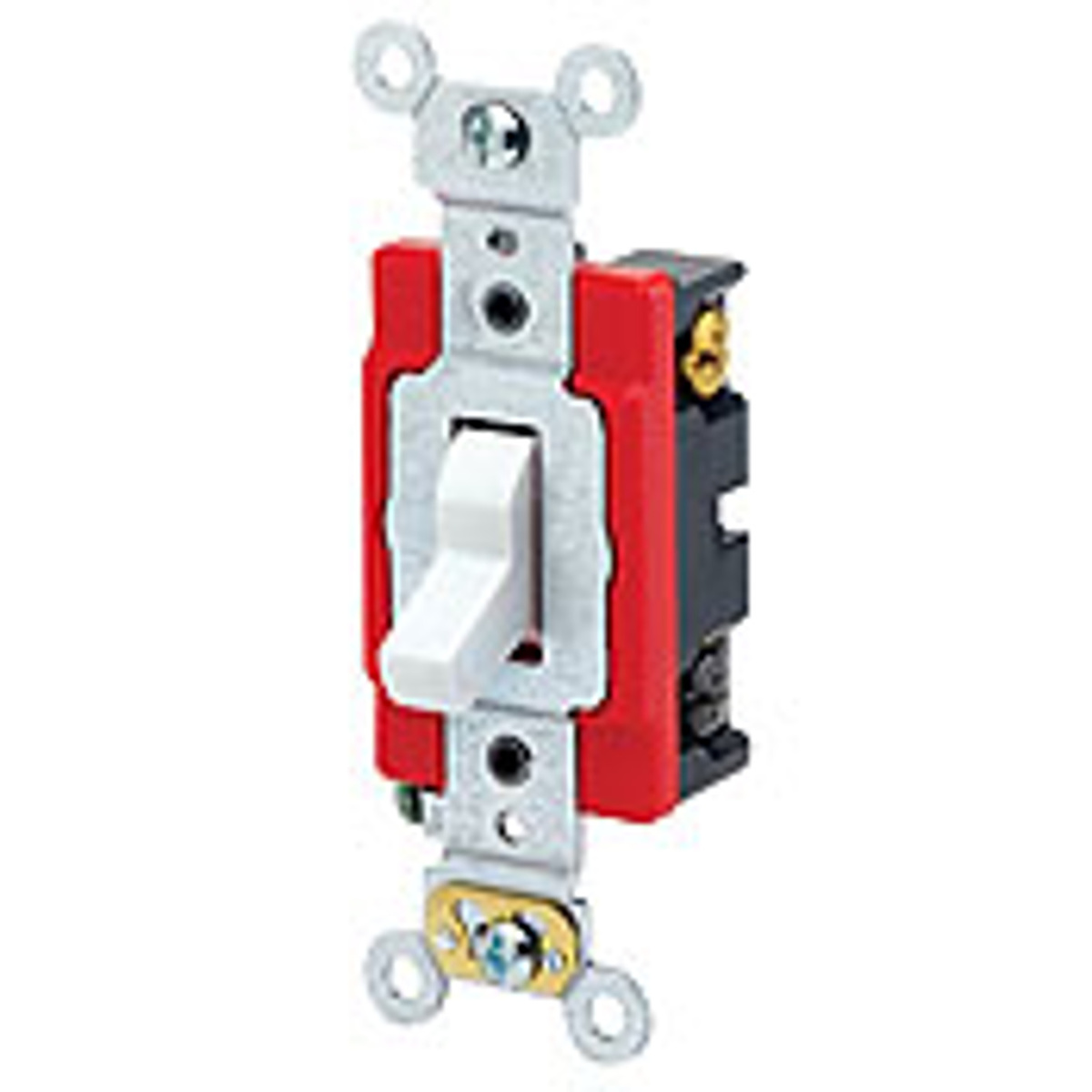

Leviton 1222-2 Series Toggle Switches 20 A White DPST

Mfg #: 12222W
BSE #: 628265

Back and side wired - Singe, double and 3 or 4-way toggle switches

  • Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance.
  • Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
  • Large silver cadmium-oxide contacts for long life, prevent sticking, welding and excessive pitting
  • Industrial Specification Grade, Fully enclosed switch mechanism in rugged housing for strength, tracking and arc-resistance
  • Power Rating: 1 HP at 120 VAC, 2 HP at 240 VAC, 2 HP at 277 VAC
  • Heavy gauge copper alloy one-piece arm for top performance
  • UL listed and CSA certified, Meets all NEMA requirements and Federal Specifications
See More
Looking for prices?
Product can be ordered only in multiples of

Brand Leviton
Amperage 20 A
Contact Configuration DPST
Number of Poles 2 Pole
Grade Industrial
Design Toggle
Voltage 120/277 V
Illumination No Illumination
Color White
