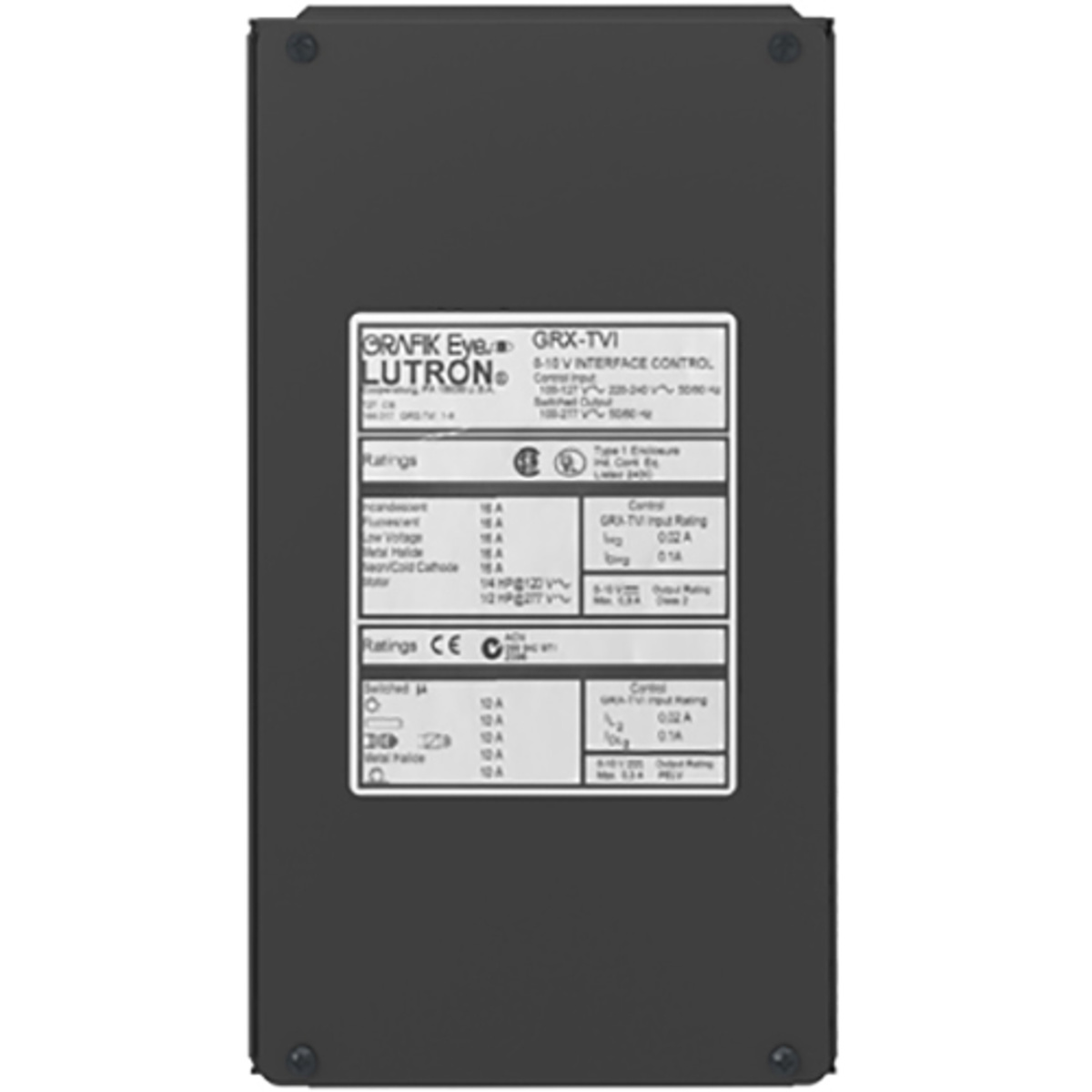

Lutron GRX Series GRAFIK Power Control Interfaces White Surface

Mfg #: GRXTVI

BOR #: 318251

Looking for prices?

Image shown may be a representative image and may not reflect the exact product

Product can be ordered only in multiples of

NEMA Configuration	Type 1
For Use With	GRAFIK Eye Control Unit, GP Panels, HomeWorks Wallbox Power Module, 0-10V Fluorescent Ballasts, 0-10V LED Drivers, electronic capacitive ballasts
Minimum Starting Temperature	32 deg F
Type	Ten volt power interface
Configuration	Phase control - 0-10V interface
Material	Metal
Amperage	16 A
Includes	Class 2 isolated 0-10V output, terminal blocks for 12 AWG conductors, surge protection
Dimmable	Dimmable
Illumination	Indicator Light
Length	11-3/4 in
Frequency Band	50/60 Hz
Height	12-1/2 in
Width	6.1 in
Environmental Condition	Indoor use only
Size	12-1/2 x 11-3/4 x 6.1 in
Lamp Type	Fluorescent, Incandescent, LED, Low Voltage, Metal Halide, Neon/Cold Cathode
Control	0-10V dimming control, GRAFIK Eye Control Unit, GP Panels, HomeWorks
Brand	Lutron
Mounting Type	Surface
Color	White
Series	GRAFIK Eye®

Lutron Specification Sheet	Specification Sheet
Lutron Installation and Instruction Manuals	Installation and Instruction Manuals
