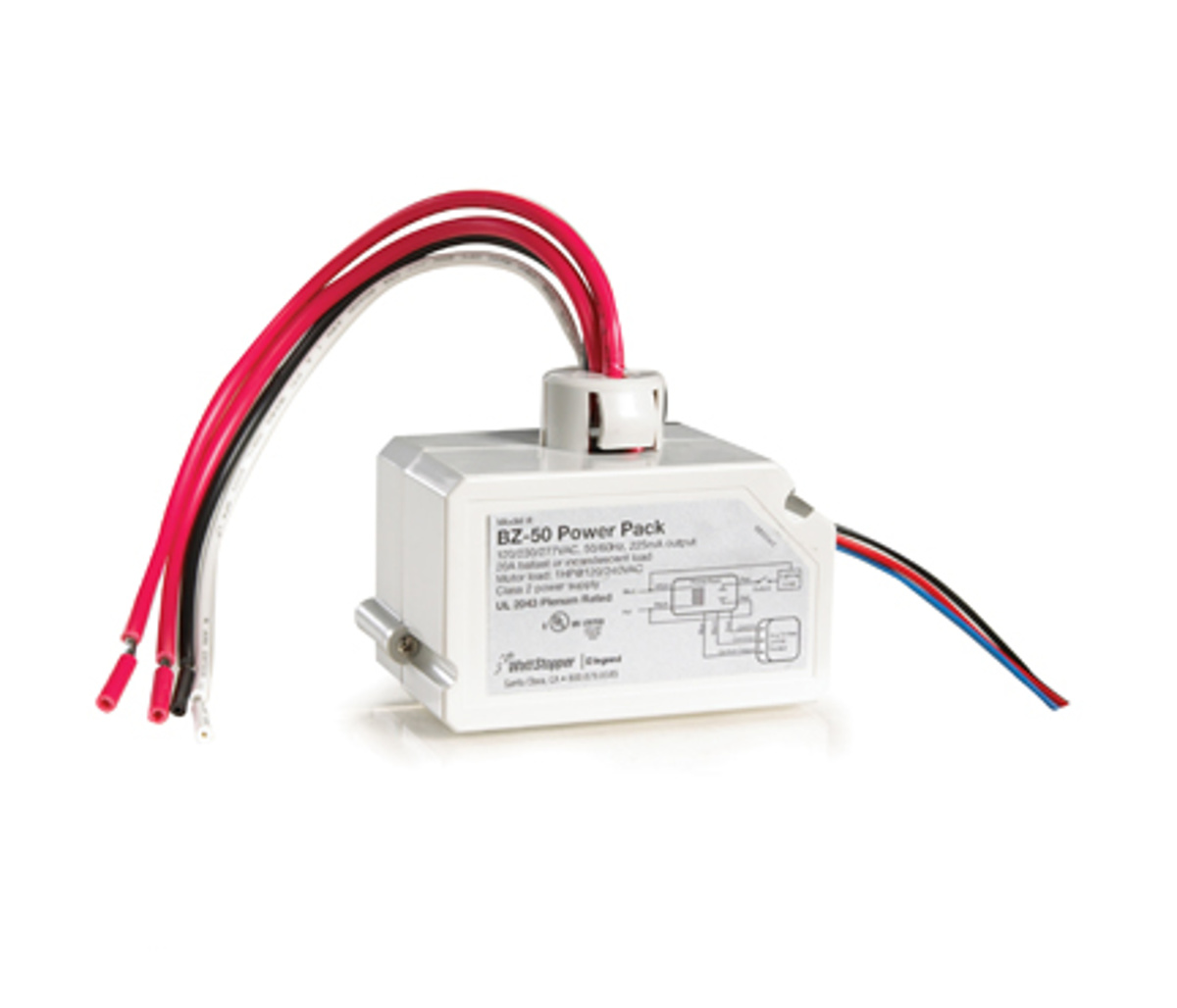

Watt Stopper BZ Series Occupancy/Vacancy Sensor Accessory - Power Pack White

Mfg #: BZ50
BOR #: 2392106
Looking for prices?

Universal Voltage Power Pack is full featured and can provide 24 VDC operating voltage to WattStopper’s low-voltage occupancy sensors.

  • Self-contained power supply relay system, Efficient switching providing optimized current output based on number of sensors
  • LED indicates status of relay or if there is a low-voltage overcurrent
  • Hold-on and hold-off inputs integrate with BMS, lighting control panels & other building systems
  • RoHS-compliant
  • Provides auto-on or manual-on field-selectable operating mode
  • Zero crossing circuitry for reliability and increased product life
  • UL 2043 plenum rated for cost-effective installation
  • 1/2 in snap-in nipple attaches to standard electrical enclosures through 1/2 in knockouts
  • 14 AWG wires on the relay for 20A operation
  • Qualifies for ARRA-funded public works projects
  • UL and CUL listed
  • This device is constructed with environmentally friendly materials.
  • Overcurrent protection (low voltage)
  • BZ-50 power pack is comprised of Teflon-coated low voltage leads and an ABS, UL 2043 and 94V-0 plastic resin enclosure that is plenum rated
  • High efficiency switching power supply
See More
Product can be ordered only in multiples of
Brand Watt Stopper
Amperage 20 A
Voltage 100 - 277 V Input, 24 VDC Output
Color White
Watt Stopper Specification Sheet Specification Sheet
