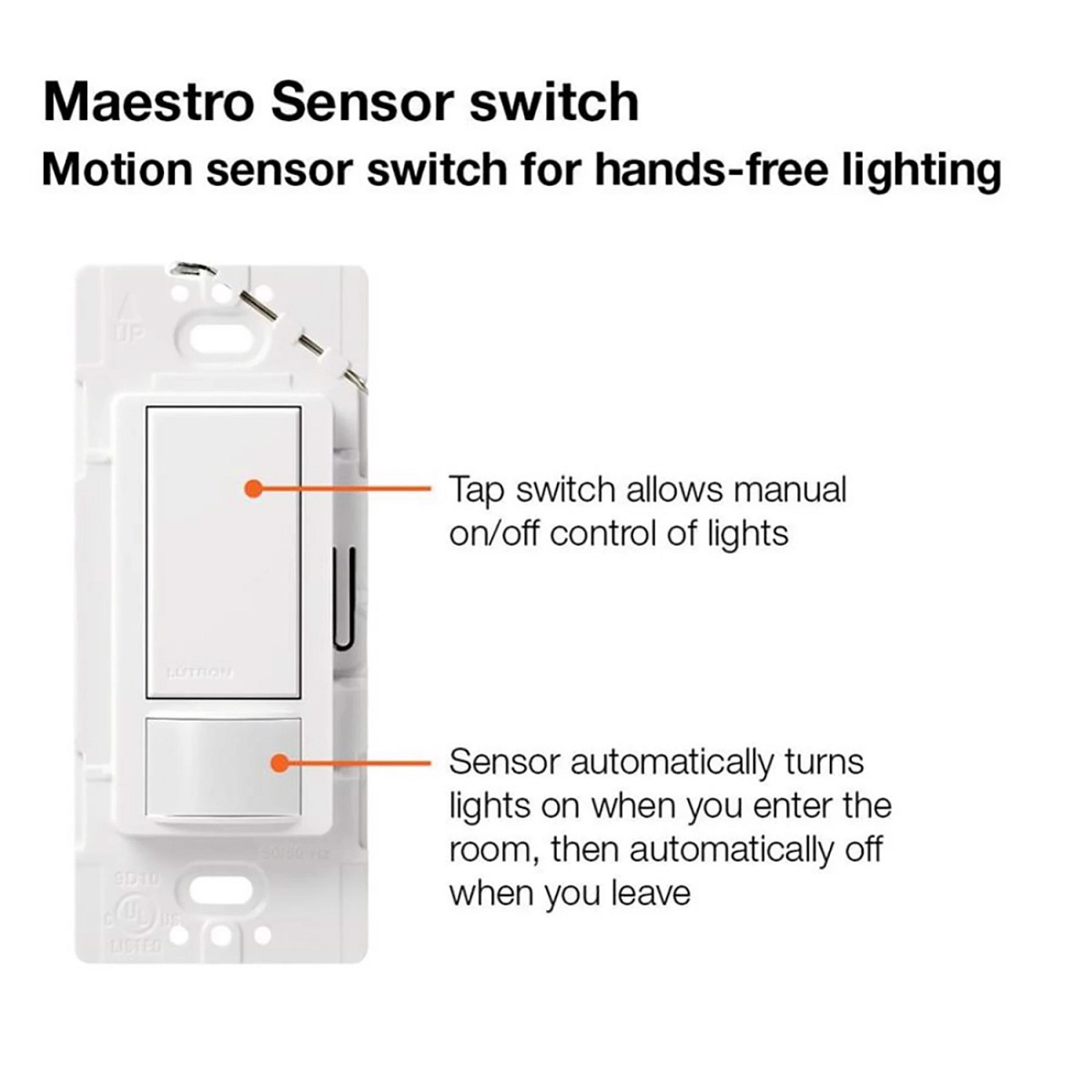

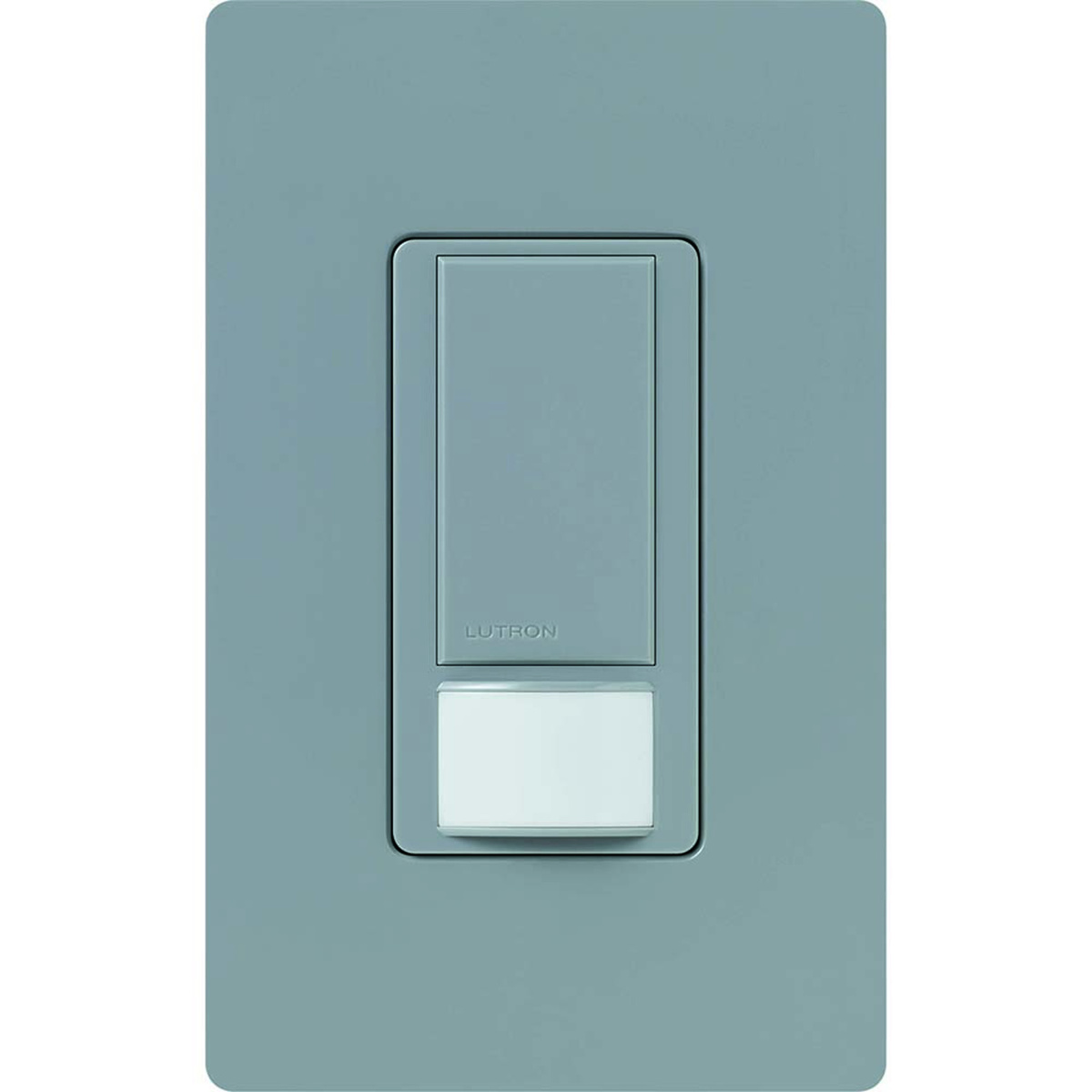

Lutron Maestro Passive Infrared Single Circuit Occupancy Sensor Switches Switch/Sensor
Mfg #:
MSOPS5MGR
BOR #:
2743879
Image shown may be a representative image and may not reflect the exact product
| For Use With | CFL/ELV/HAL/INC/LED/MLV, Fluorescent Ballasts |
| Minimum Starting Temperature | 32 deg F |
| Type | Occupancy sensor switch |
| Number of Gangs | 1 Gang |
| Material | Metal, Plastic |
| Includes | XCT Technology PIR sensor, crush-resistant lens |
| Illumination | LED Indicator Light |
| Frequency Band | 50/60 Hz |
| Height | 4-11/16 in |
| Finish | Gloss |
| Width | 2-15/16 in |
| Environmental Condition | Indoor use only |
| Size | 4-11/16 x 2-15/16 in |
| Brand | Lutron |
| Operator Function | Auto-on or Manual/Vacancy Mode |
| Color | Gray |
| Timing Range | 1, 5, 15, 30 min |
| Wiring Method | No Neutral Required |
| Design | Decorator |
| Series | Maestro® |
| Device Configuration | Switch/Sensor |
| Voltage | 120 V |
| Number of Circuits | 1 Circuit |
| Contact Configuration | 3-Way/Multi |
| Mounting Type | Wall |
| Coverage | 900 sq ft major motion, 400 sq ft minor motion |
| Amperage | 3 A Fan/5 A Lighting |
| Lutron Specification Sheet | Specification Sheet |
|
| Lutron Installation and Instruction Manuals | Installation and Instruction Manuals |
|
