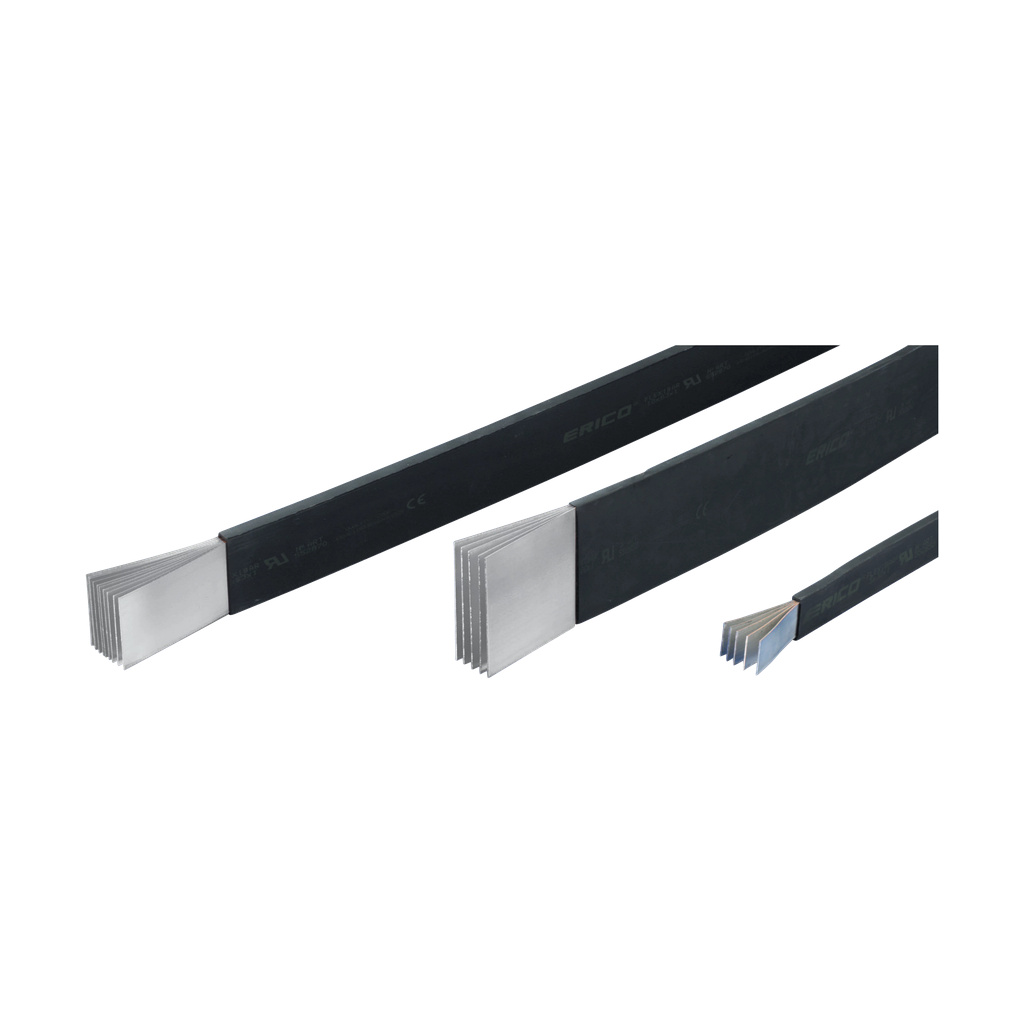

nVent Eriflex Flexibars Advanced, Tinned Copper

nVent ERIFLEX Flexibars Advanced, Tinned Copper

• Thin layers of tinned electrolytic copper formed into a stack
• Full range from 19.5 mm² up to 1200 mm² and 125 A to 2800 A
• Insulated by high-resistance, halogen free, flame retardant and low smoke material with less than 20% contact with conductor for high flexibility

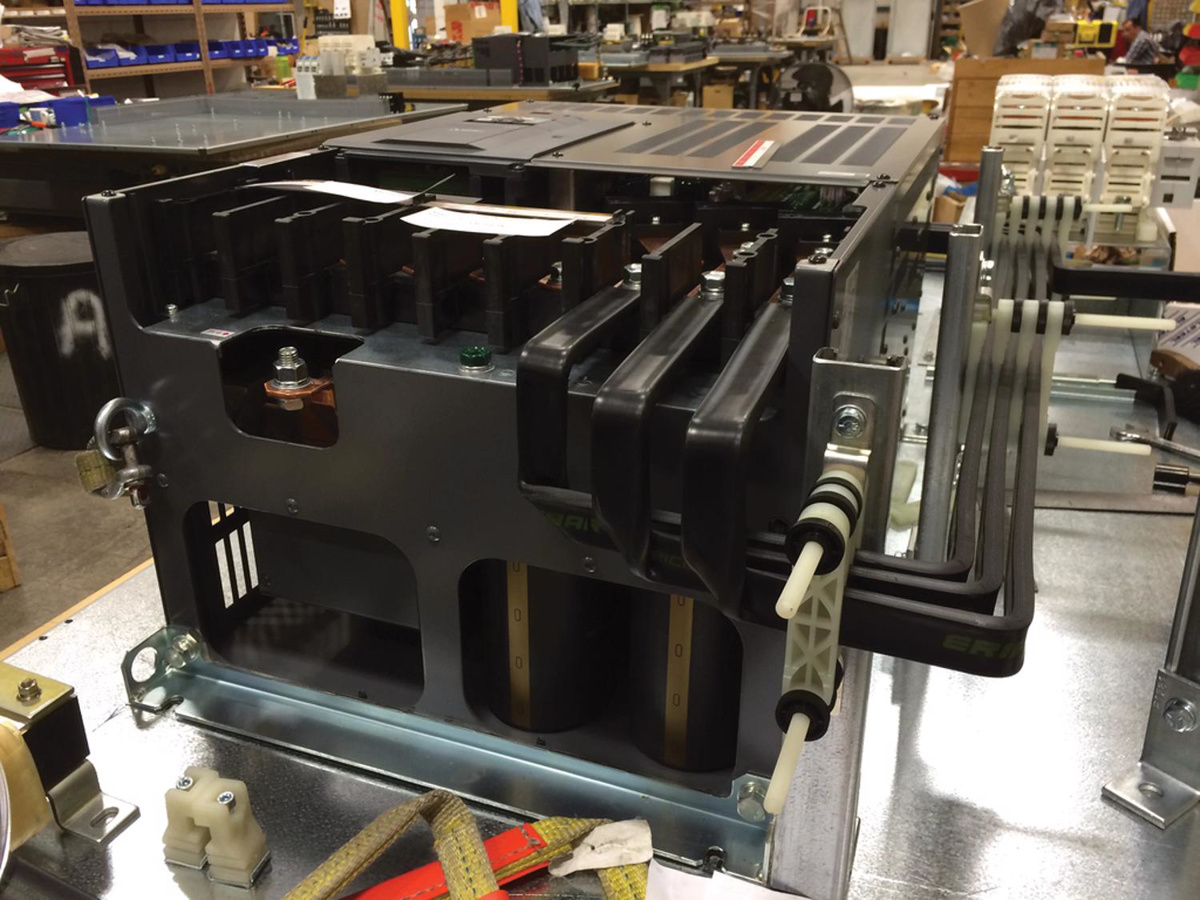

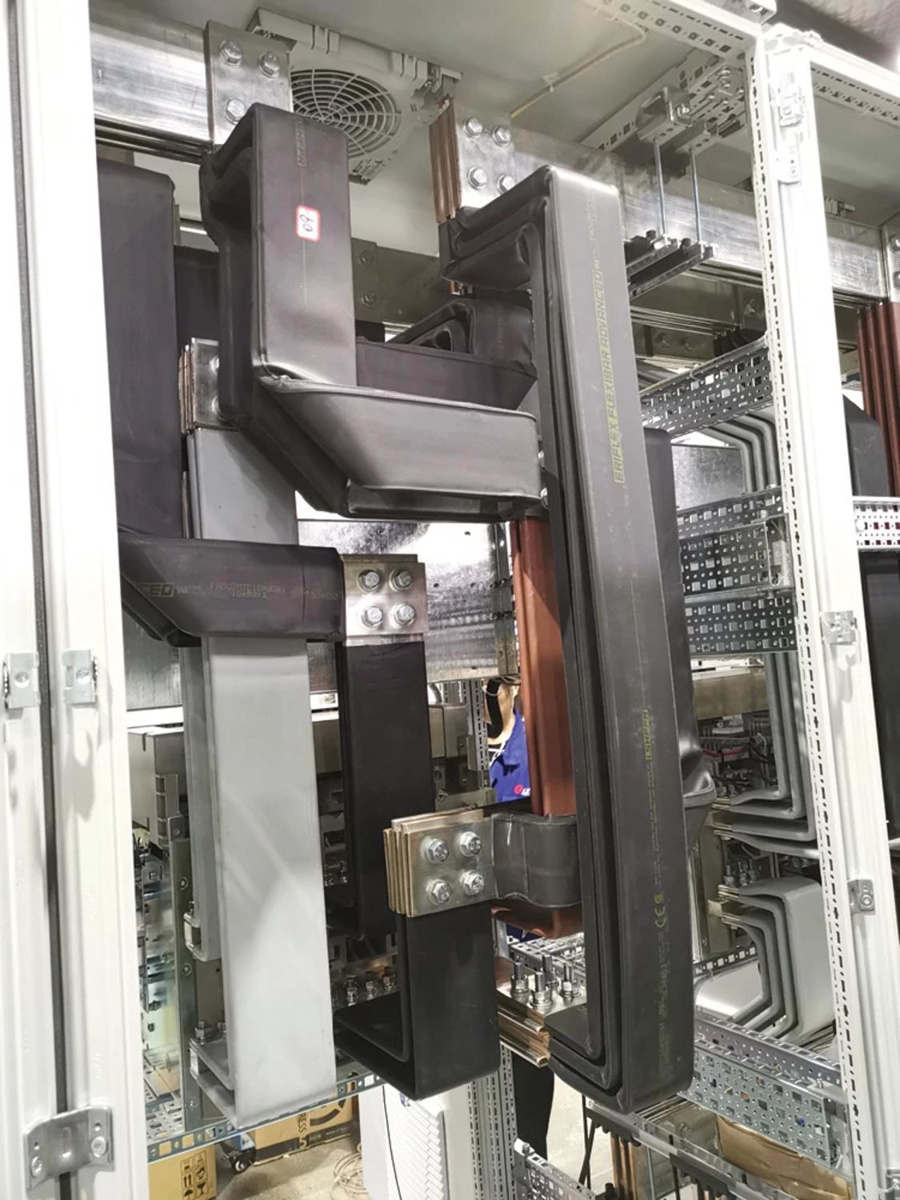

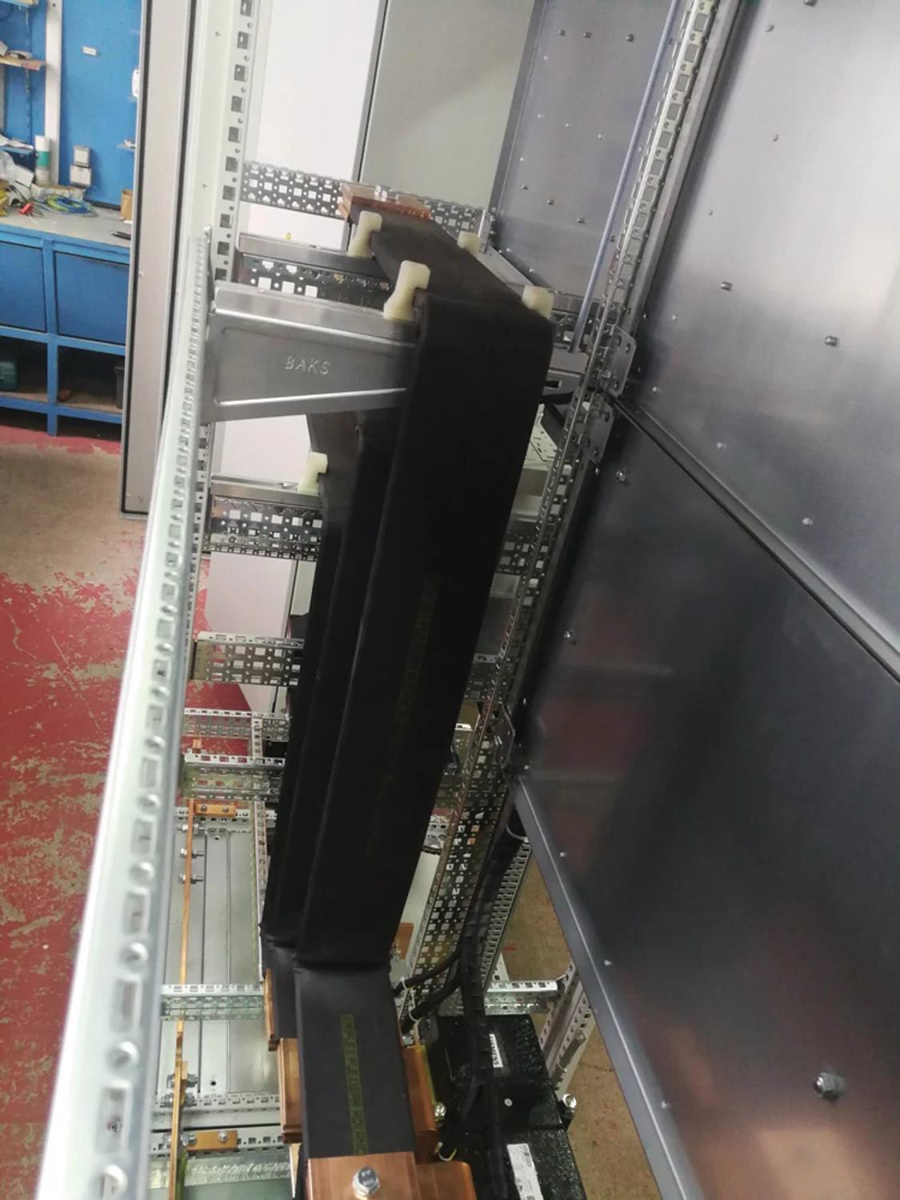

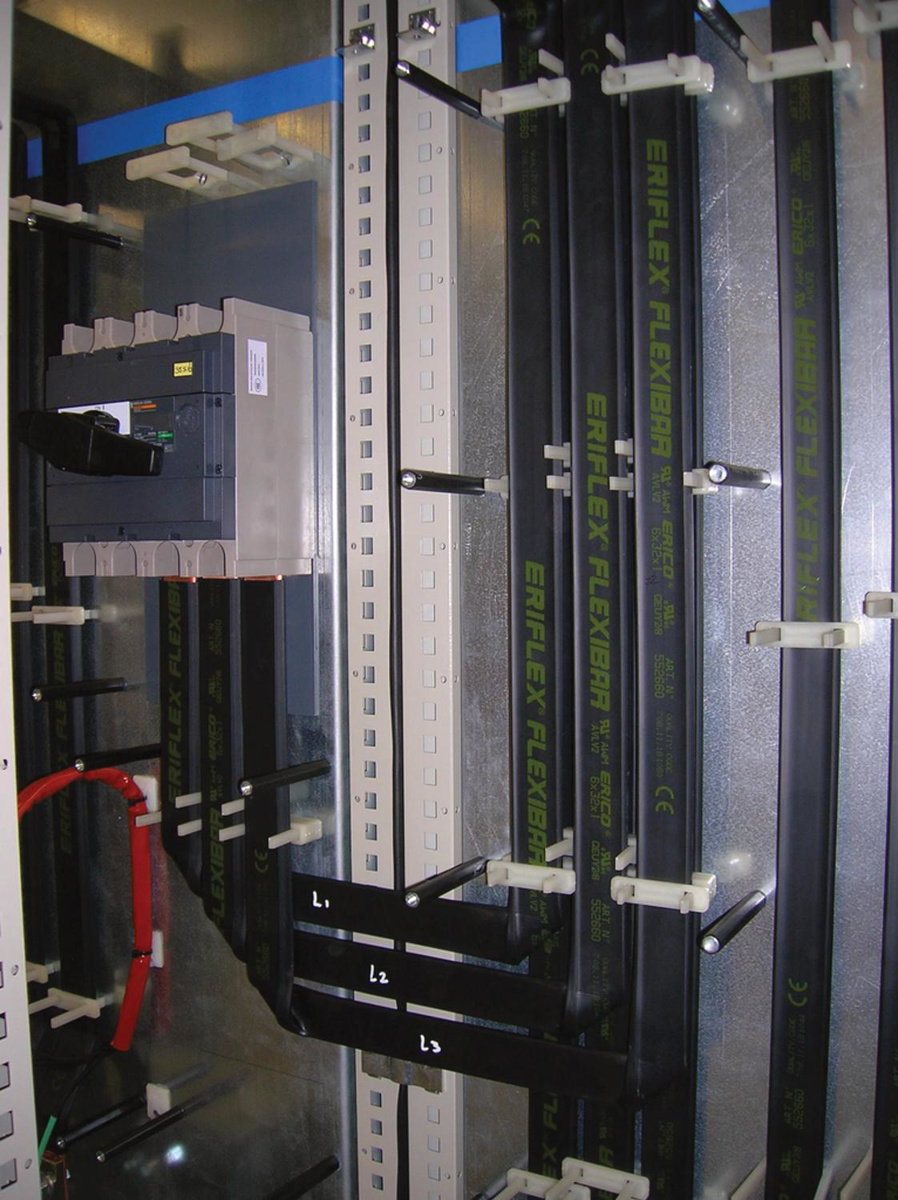

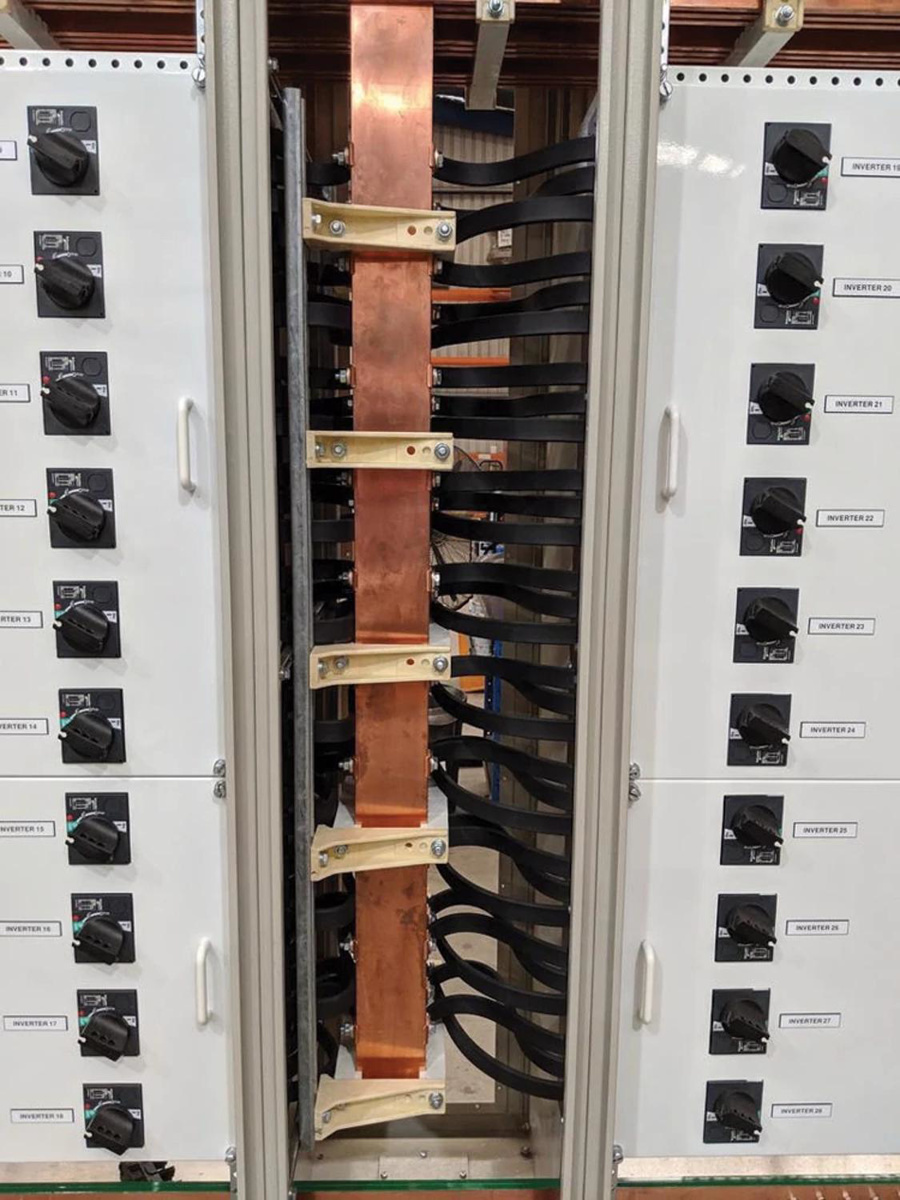

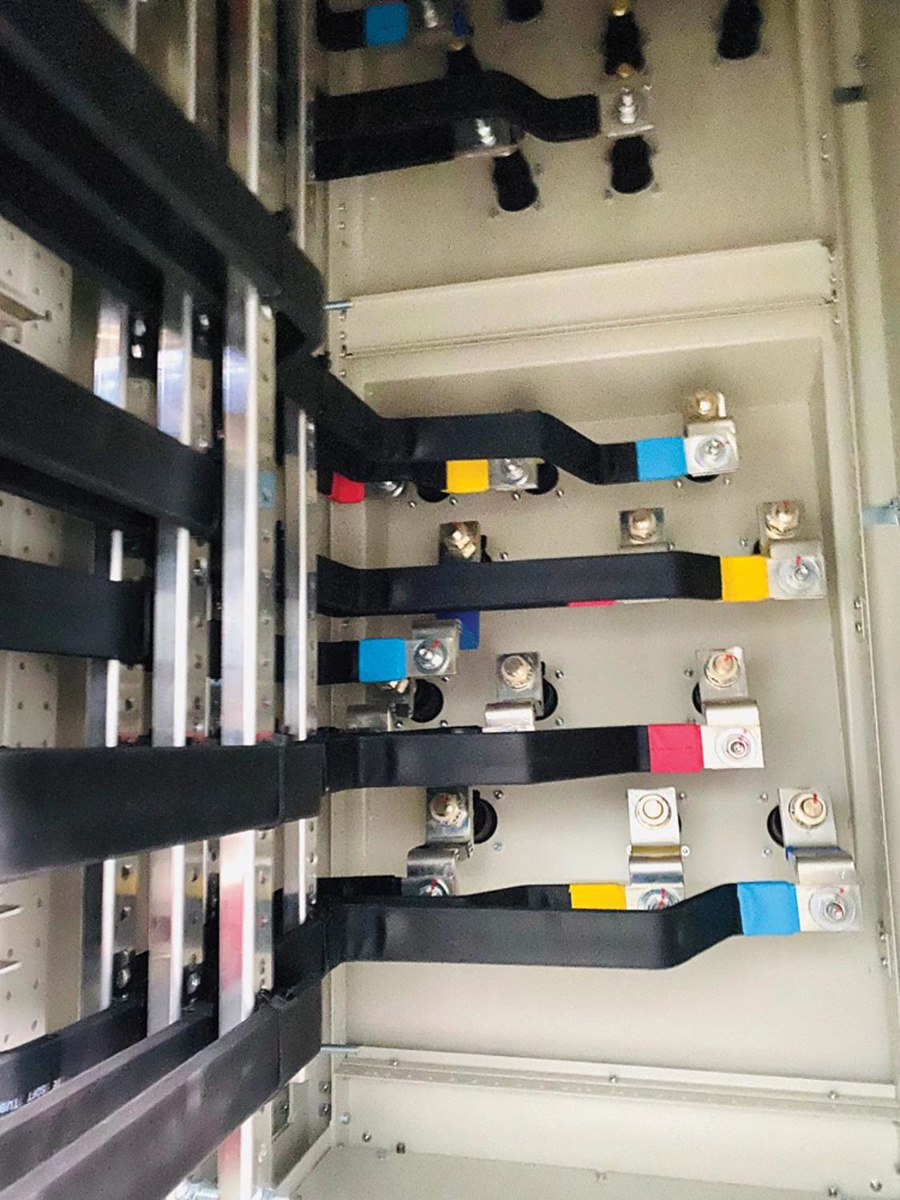

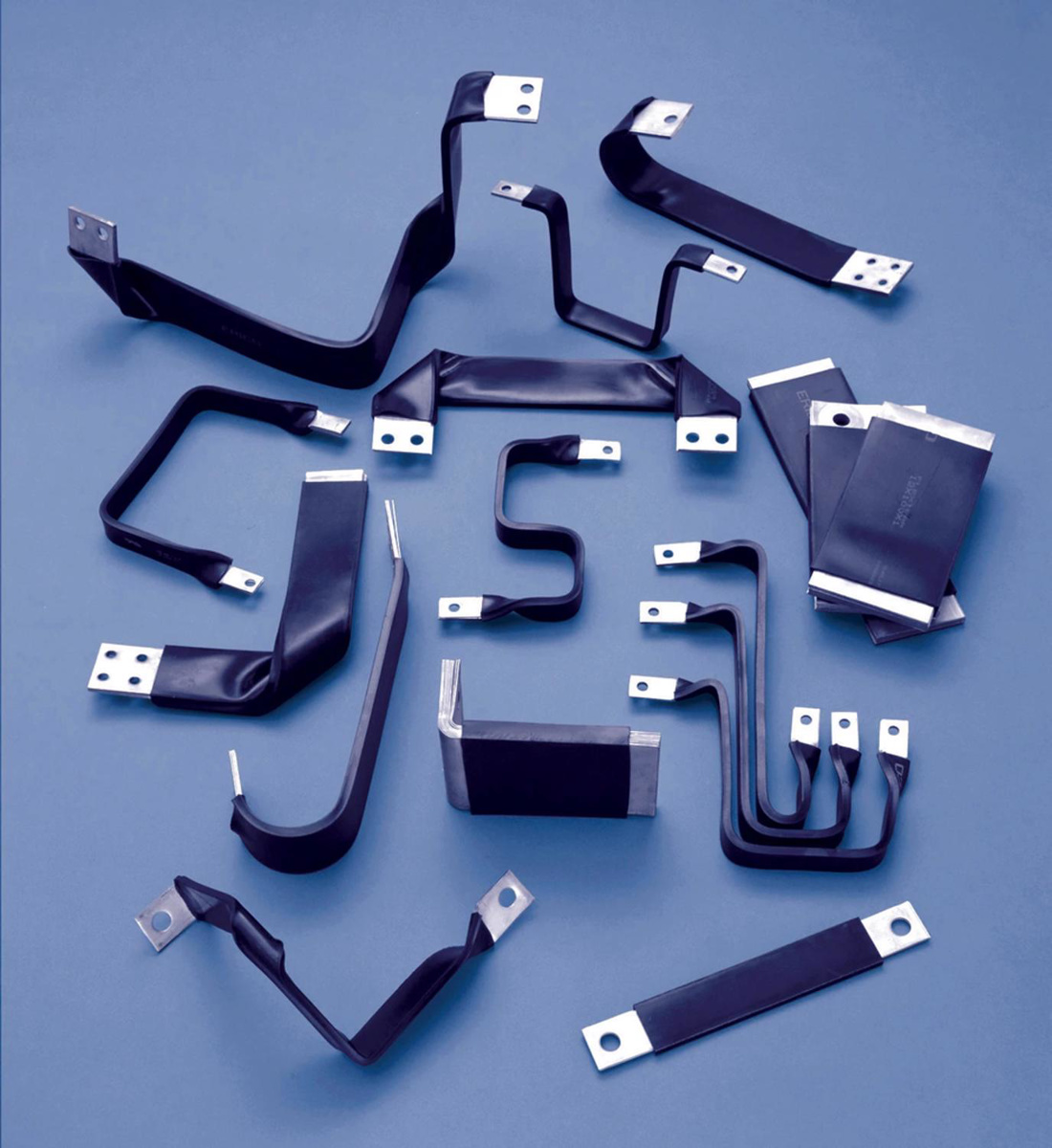

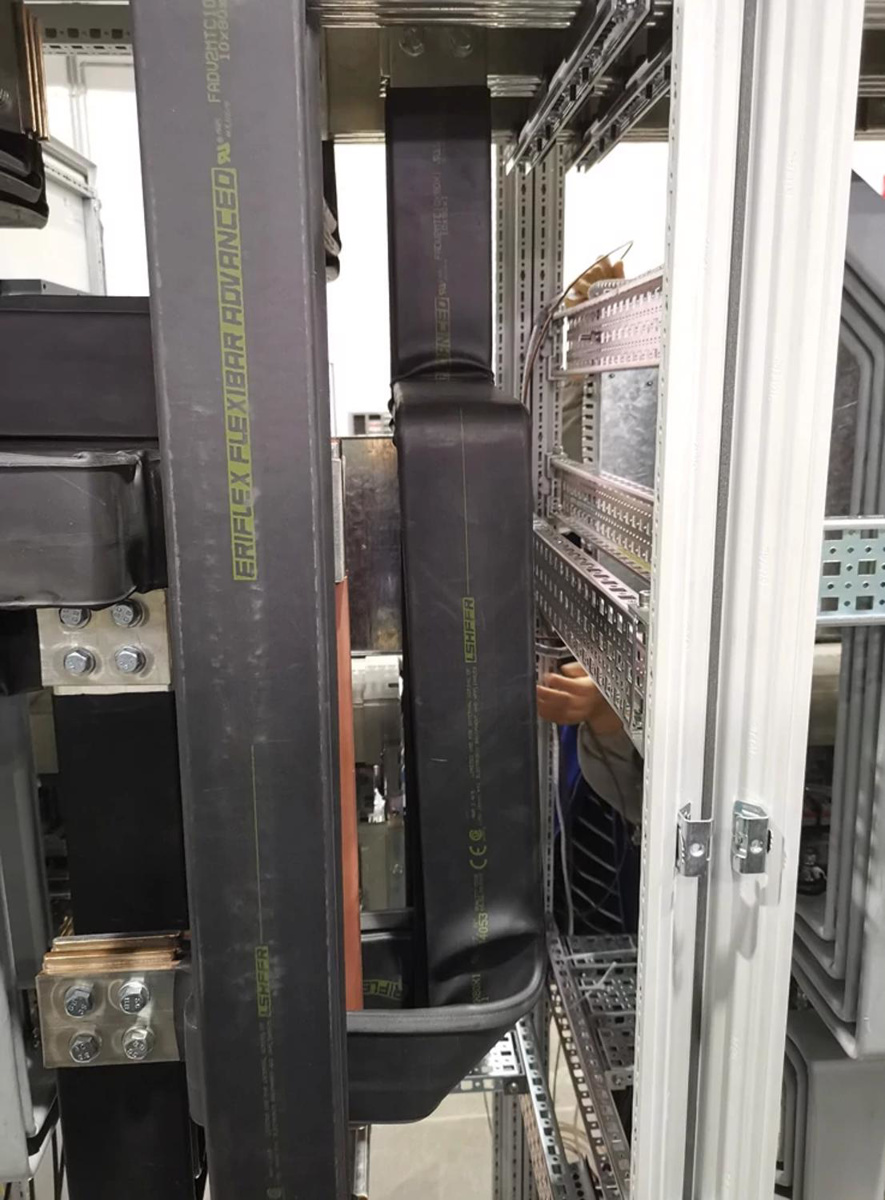

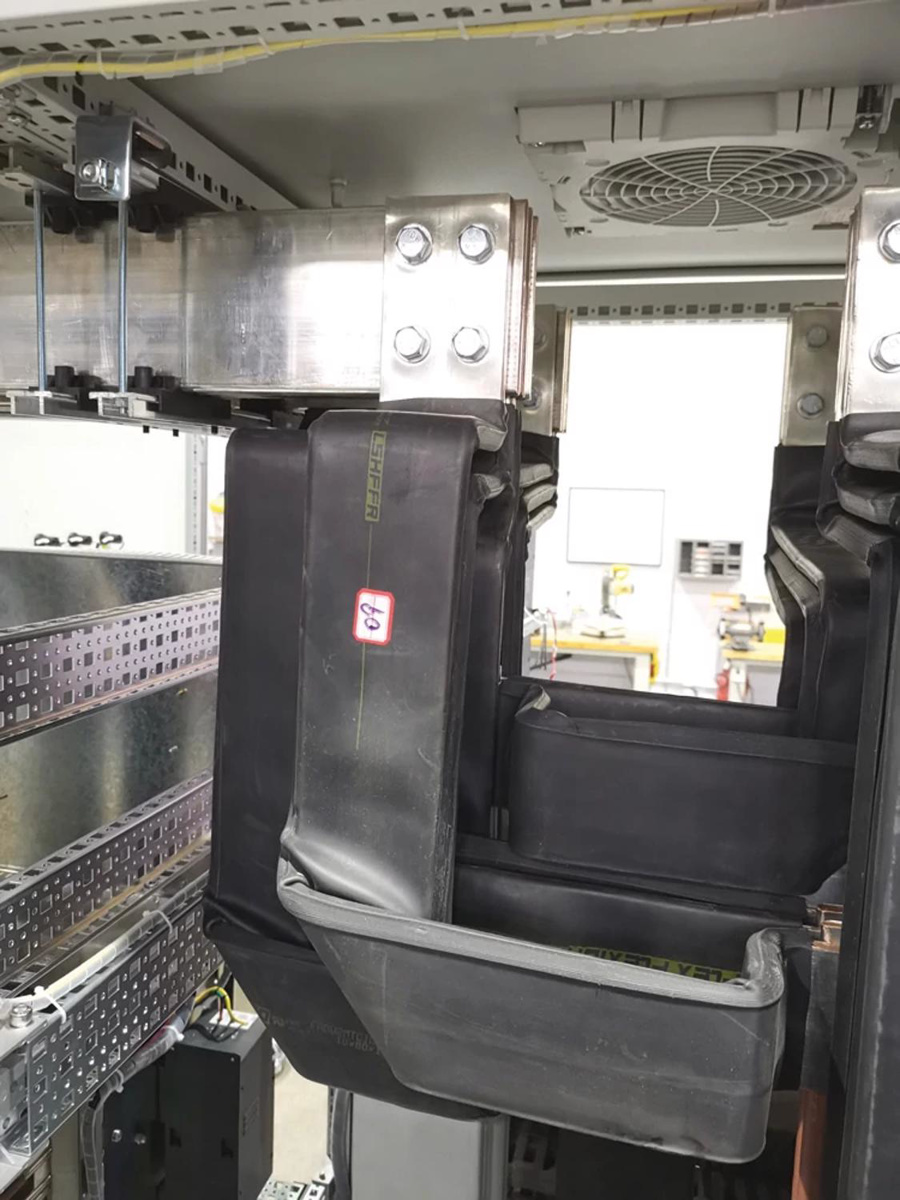

• Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
• Dramatically smaller and more flexible than comparable cable based on ampacity
• Better power density than cable with lower skin effect ratio

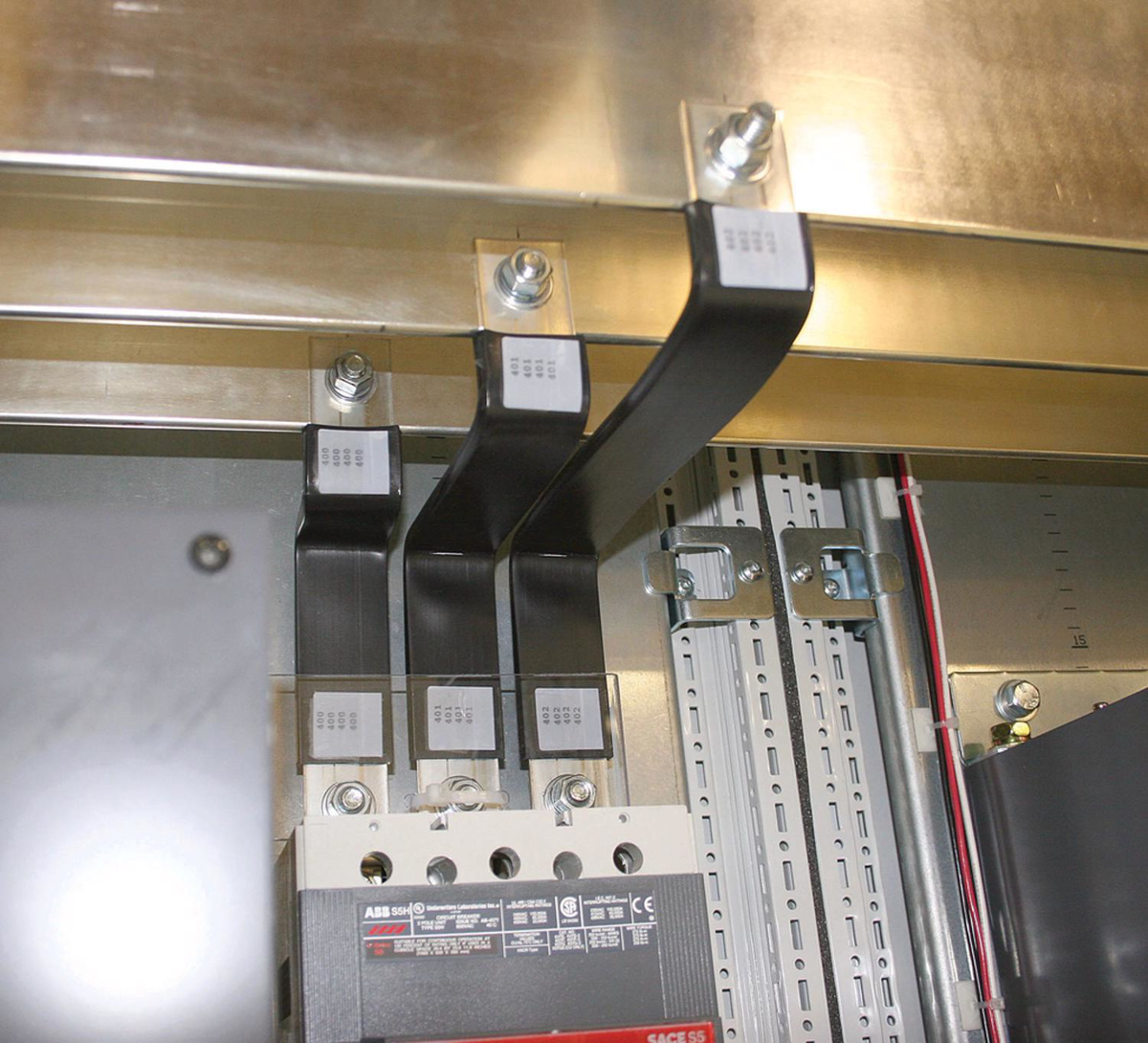

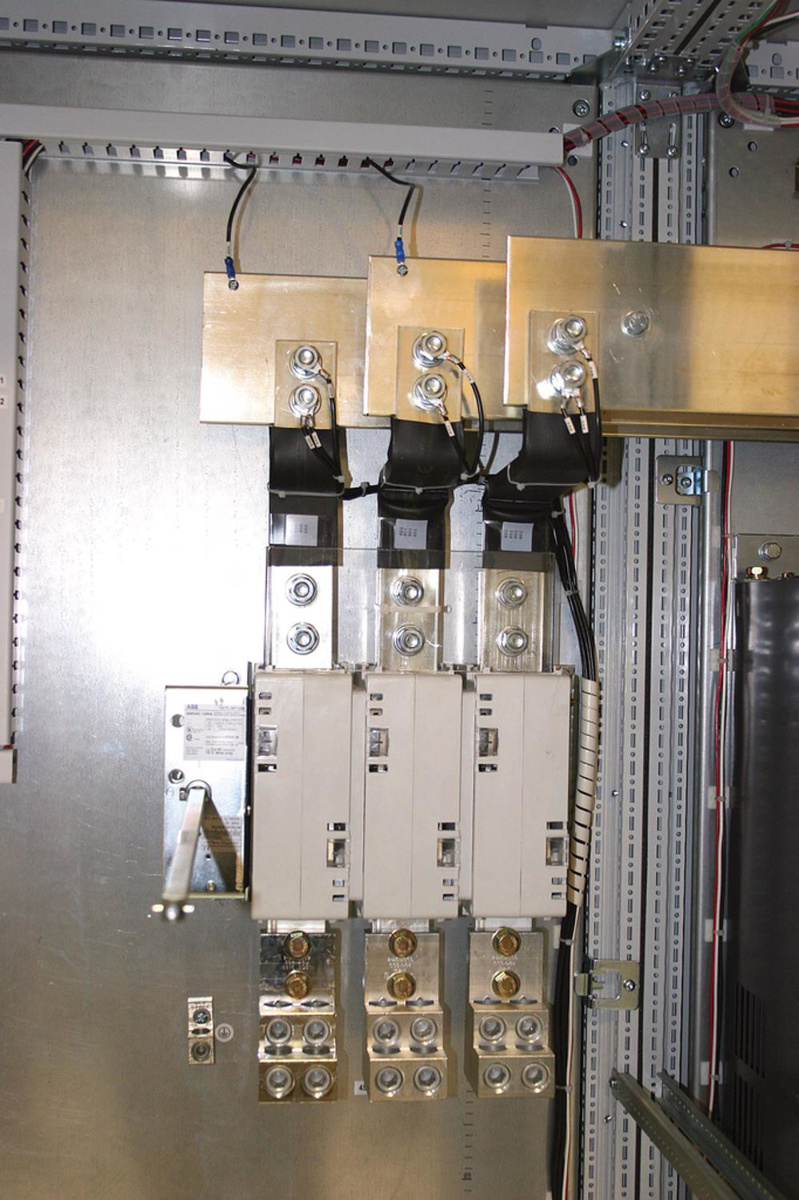

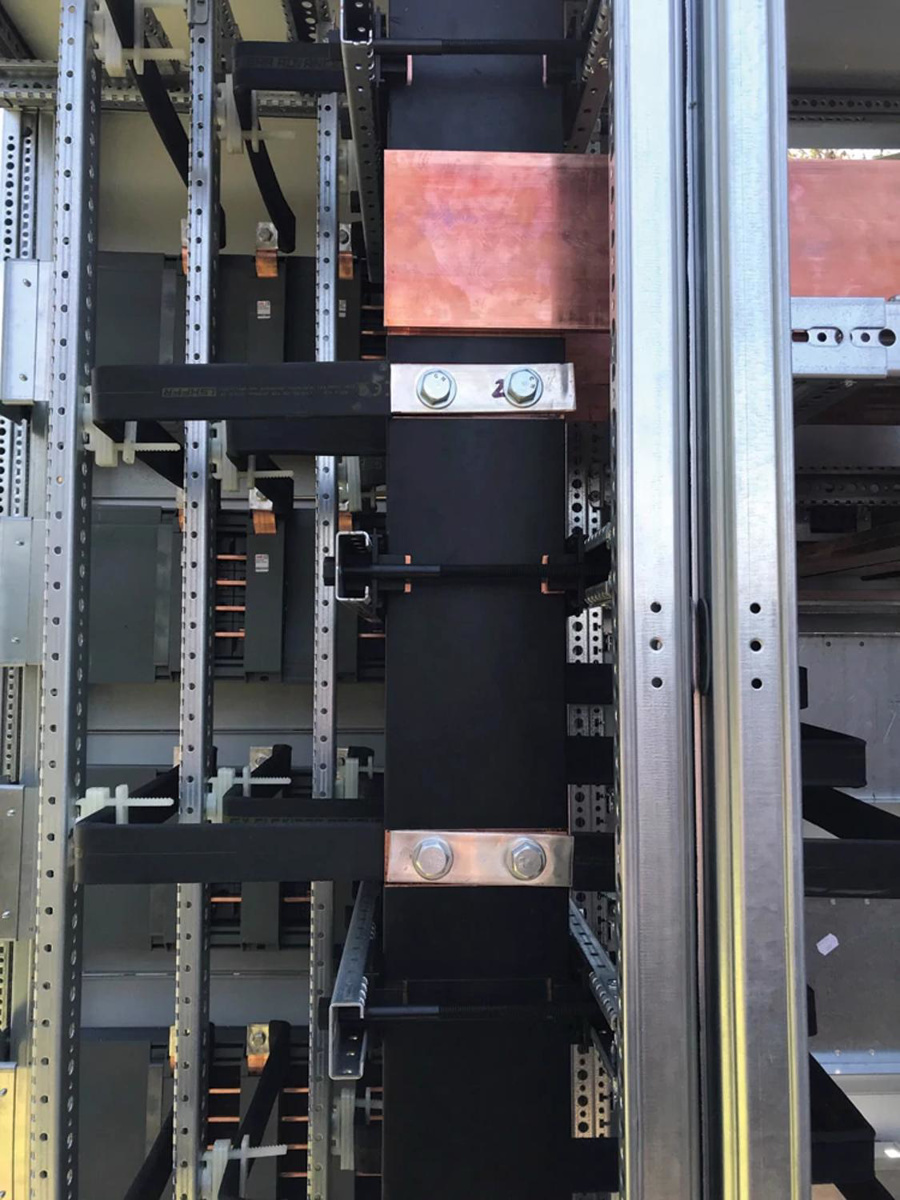

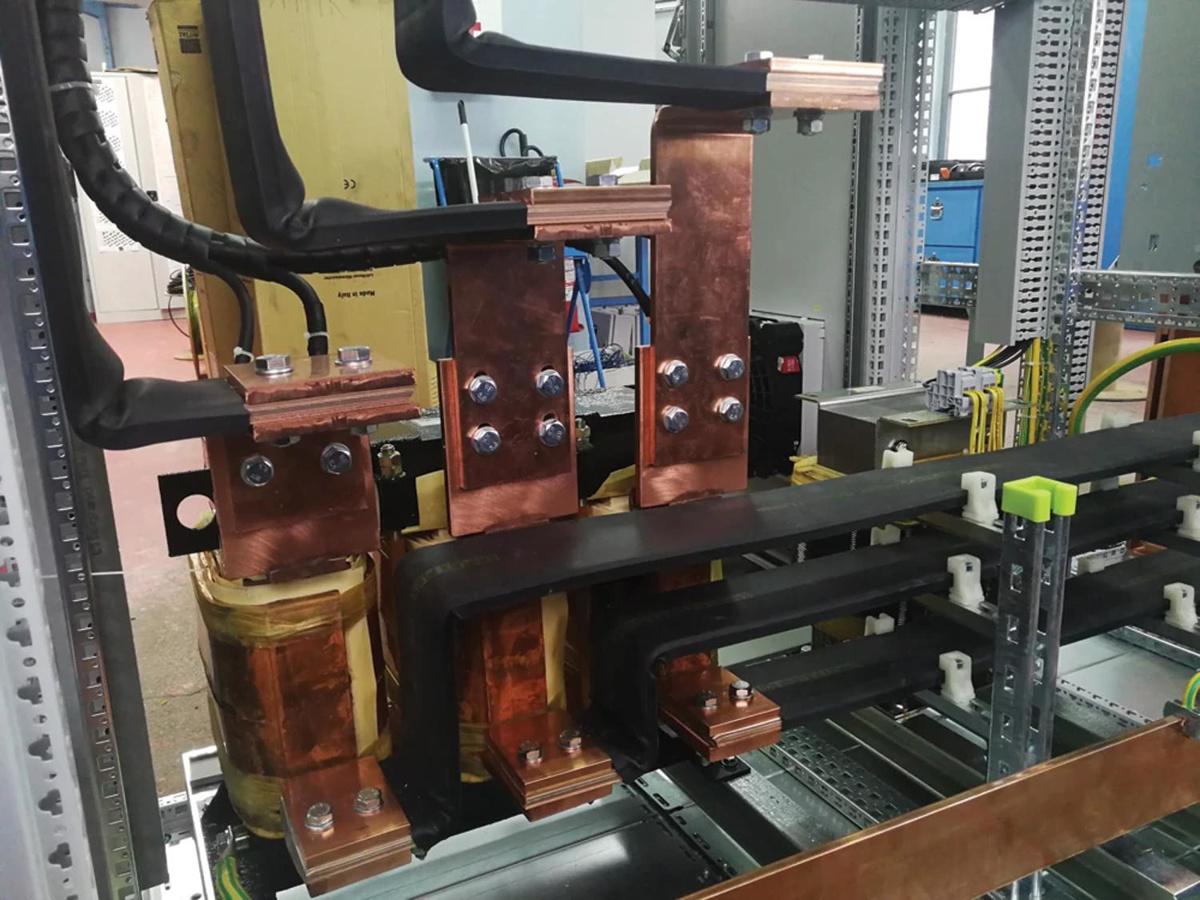

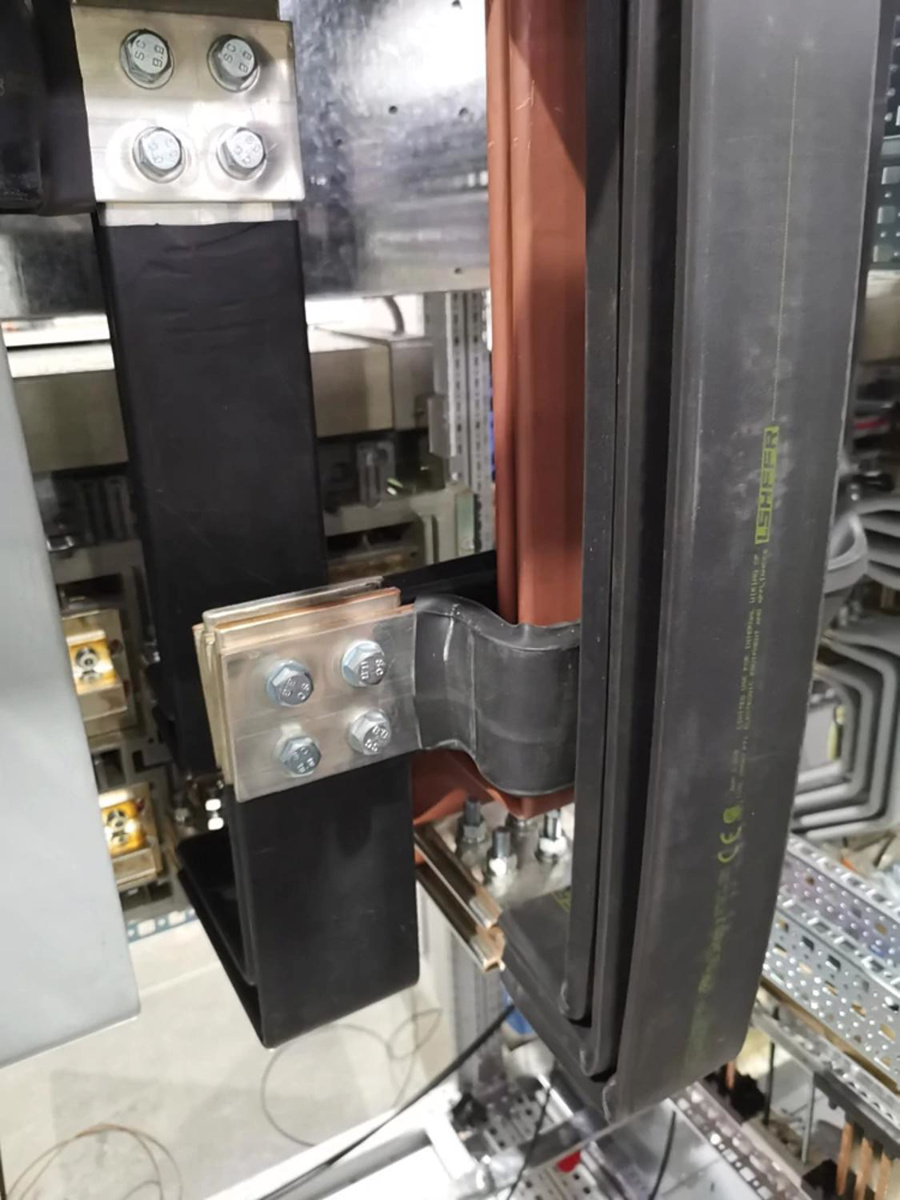

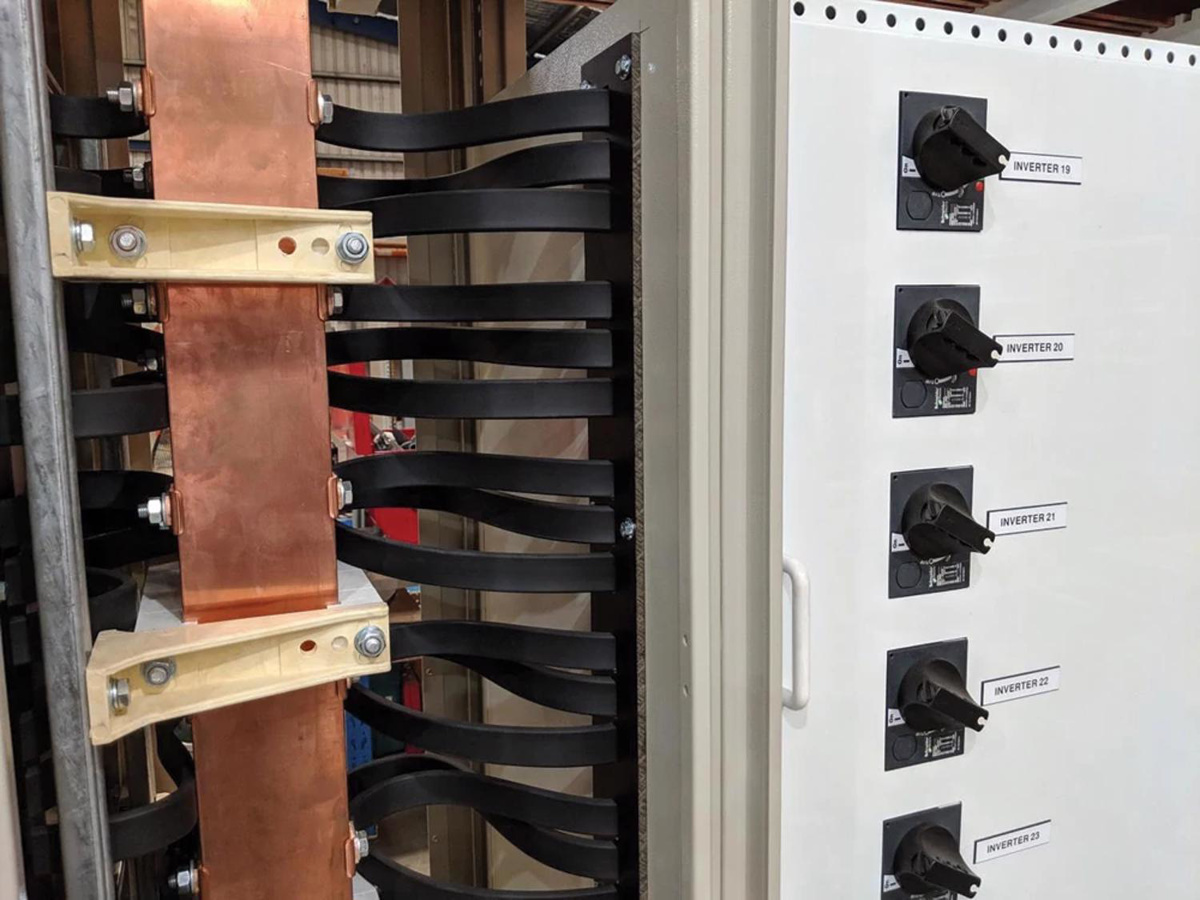

• Connections made by punching and bolting directly through the copper laminates or clamping onto the end of the nVent ERIFLEX Flexibar
• No lugs needed, reducing installation time and improving resistance to vibration
• Weight savings and material savings compared to wire alternatives
• Reduces total installation cost
• Traceability codes and designation part numbers printed on insulation
• Conforms to NF EN 45545 obtaining an HL2 classification for chapters R22 and R23, Compliant to ISO 6469-1 (Electrically propelled road vehicles - Part 1: Rechargeable energy storage system) - Section 6.2.2 Vibration
• 100% production dielectric tested
• On request, can be manufactured with other colors (typically with Orange sleeve for battery connection)
• Tinned copper allows for copper or aluminum conductor connections
