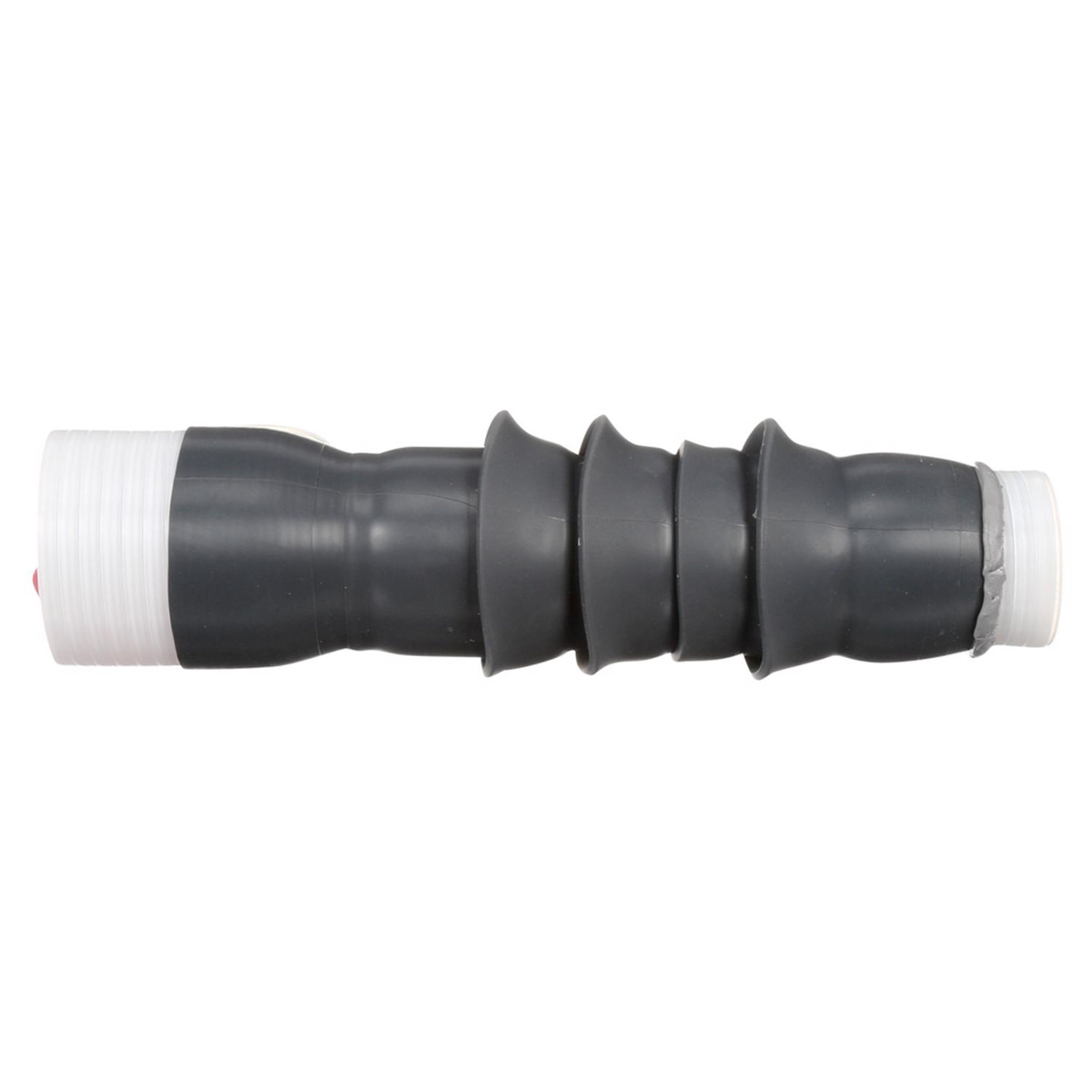

3M 76 Series Cold Shrink Termination Kits 2/0 AWG - 750 kcmil 12-1/4 in
Mfg #:
7695S4
BOR #:
115796
| Brand | 3M |
| Insulation Material | Silicone Rubber |
| Number of Conductors | 1 Conductor |
| Conductor Range | 2/0 AWG - 750 kcmil |
| Overall Length | 12-1/4 in |
| Maximum Compatible Conductor Size | 750 kcmil |
| Minimum Compatible Conductor Size | 2/0 AWG |
| Type | Outdoor Skirted, Cold Shrink |
| For Use With | Medium Voltage |

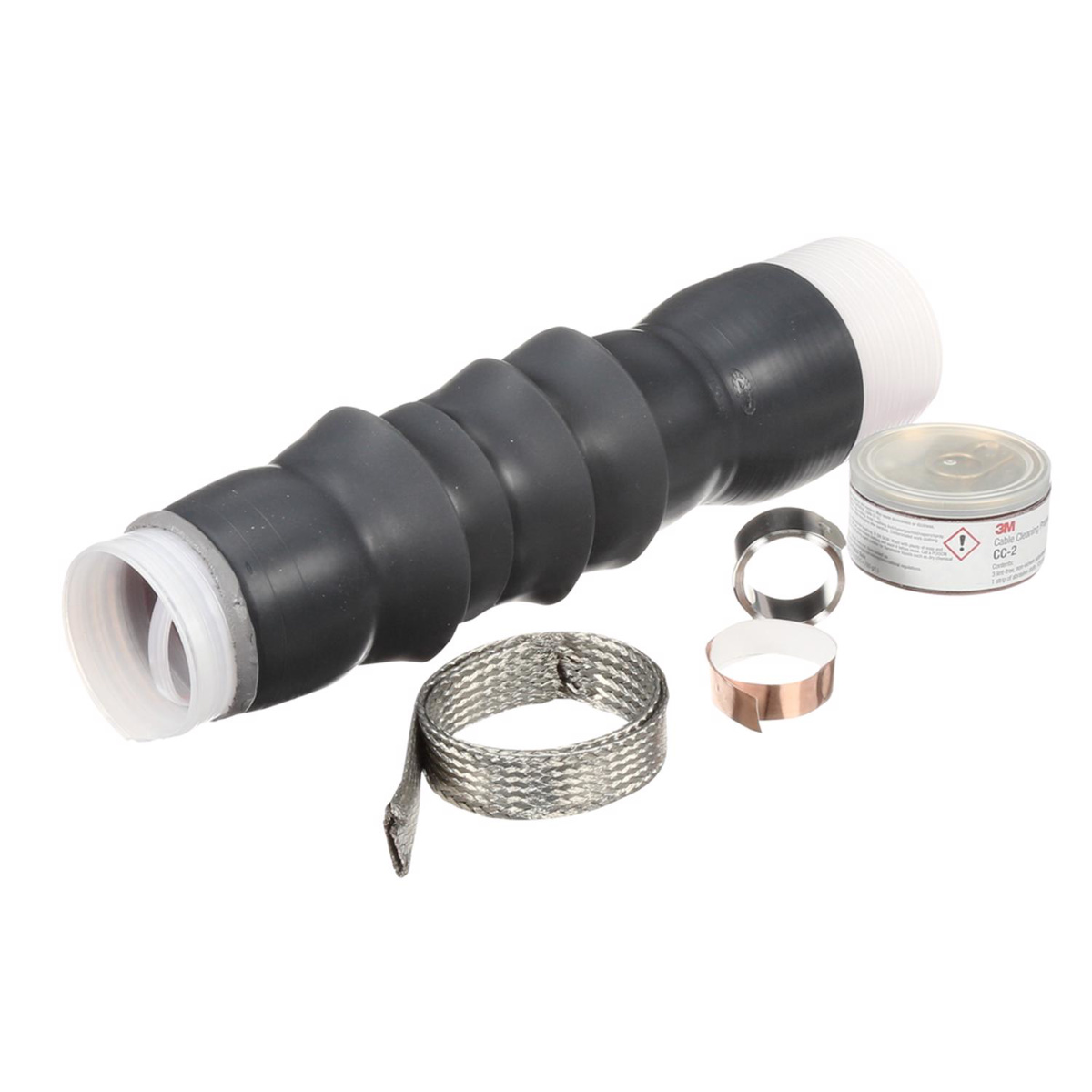

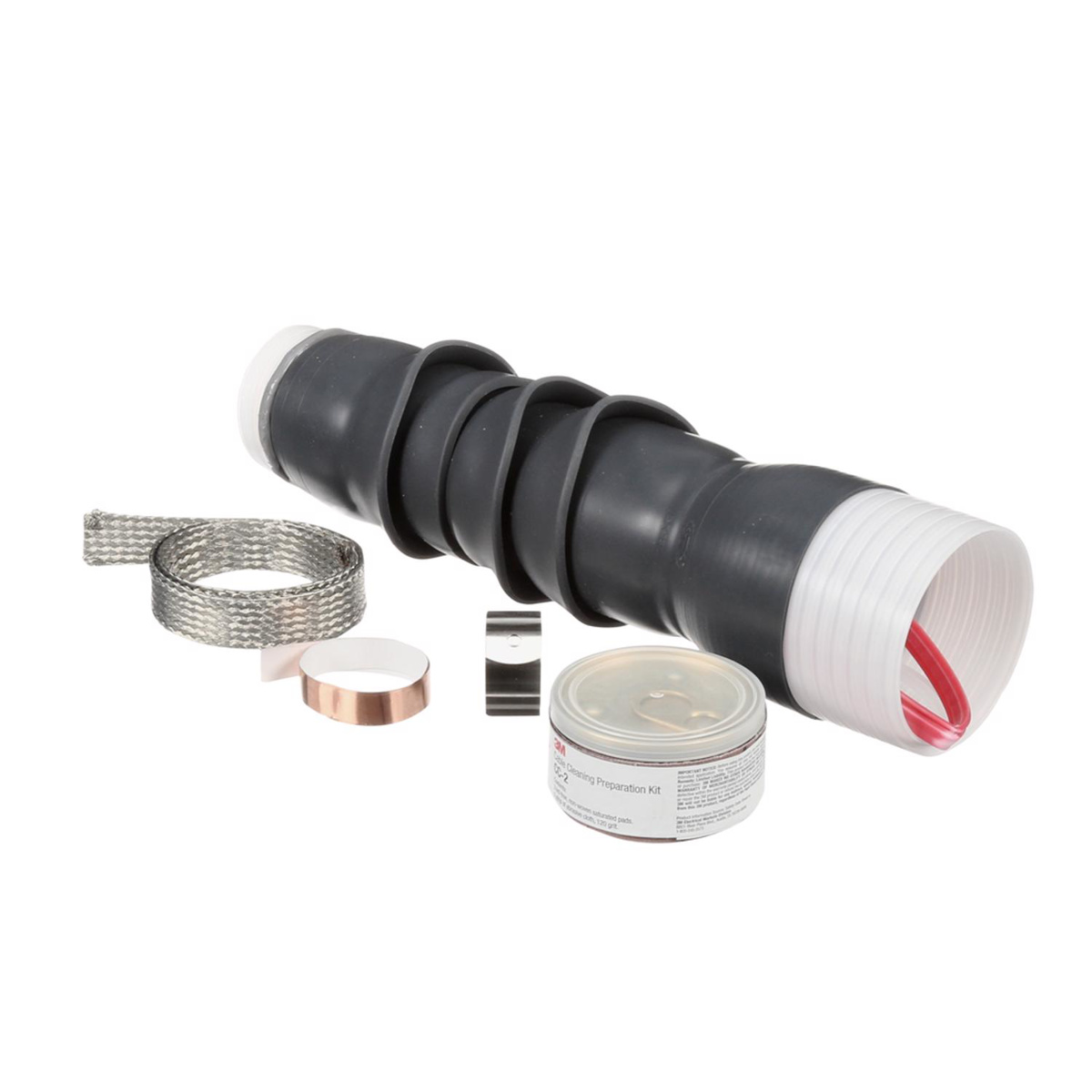

| Includes | (3) 1 piece, 3 phase, skirted terminations |
| Environmental Condition | Outdoor Skirted (4 Skirts) |
| Voltage | 5 kV, 8 kV, 15 kV, 25 kV |
| BIL (kV) | 150 kV |
| Series | QT-III 7690-S |
| Document Brochures | Brochure |
|
| Document Catalogs | Catalog |
|
| 3M Specification Sheet | Specification Sheet |
|
