3M Insulated Block Fork Terminals 12 - 10 AWG Brazed Seam Barrel Vinyl Yellow
Mfg #:
MV1010FBX
BOR #:
115614
Brand | 3M |
Minimum Compatible Conductor Size | 12 AWG |
Barrel | Brazed Seam Barrel |
Connector Material | Copper |
Stud Hole Size | #10 |

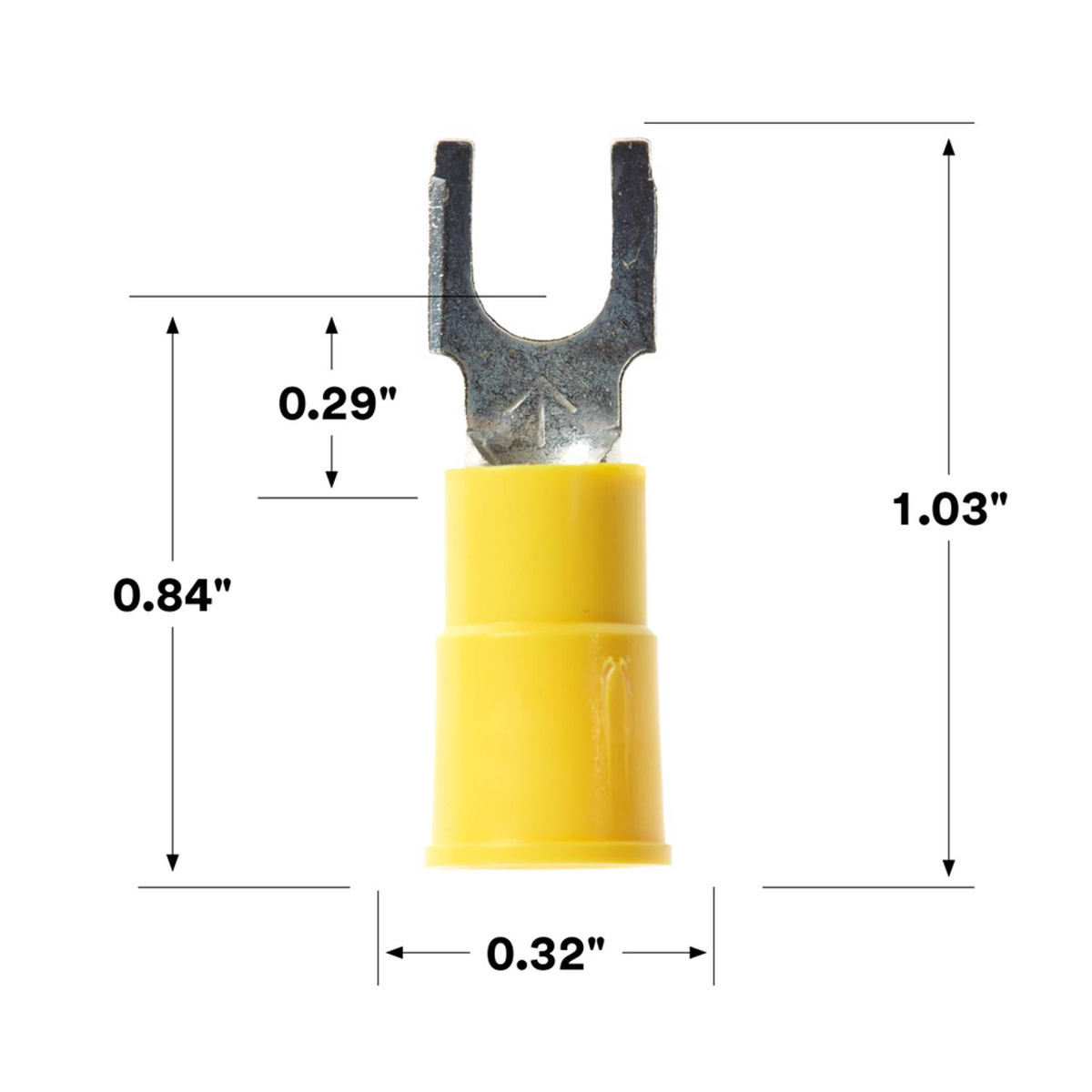

Length | 1.03 in |

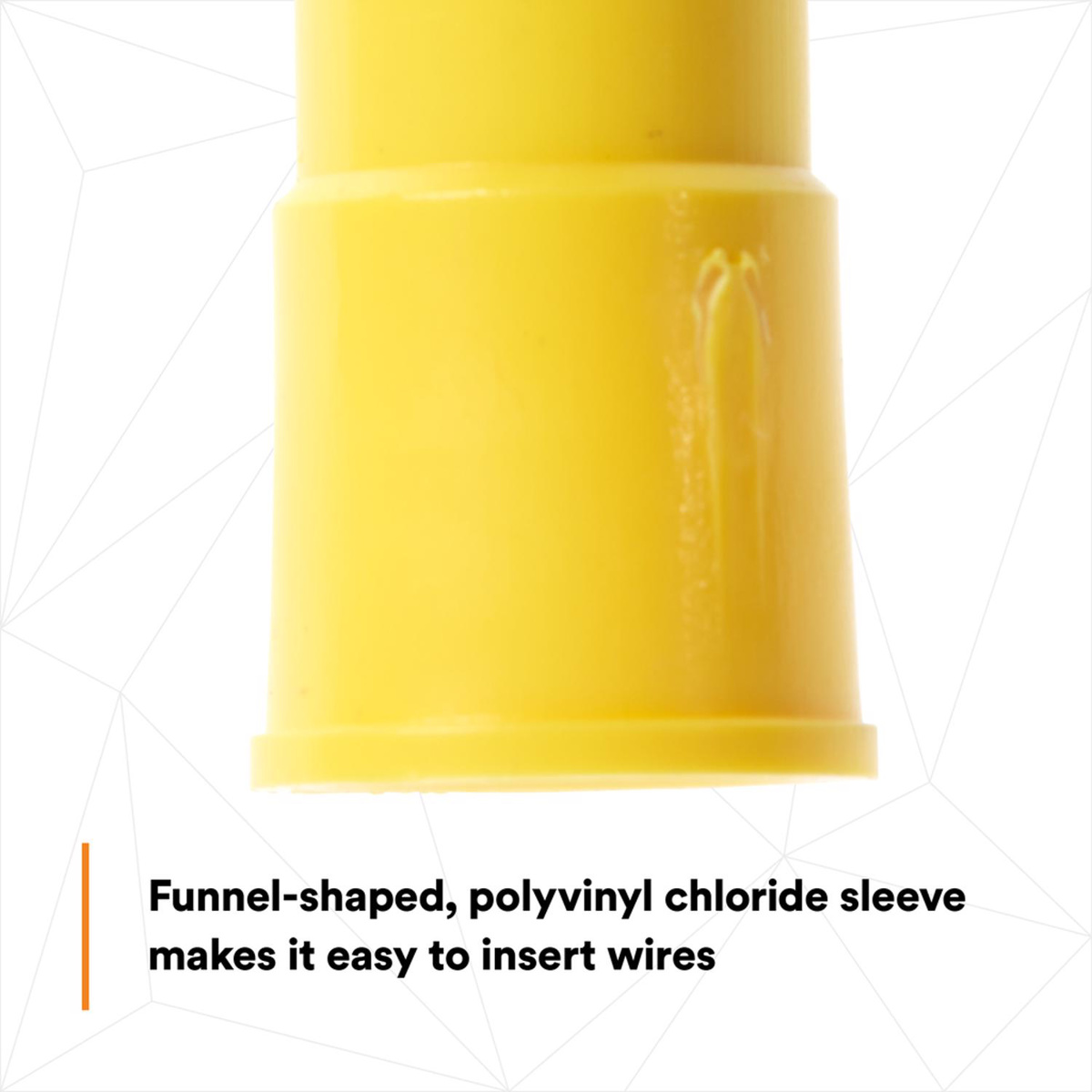

Insulation Material | Vinyl |
Insulation | Insulated |
Connector Type | Fork |
Maximum Compatible Conductor Size | 10 AWG |
Conductor Size | 12 - 10 AWG |
Width | 0.32 in |
Temperature Range | 221 °F |
Finish | Tin-plated |
Packaging | 500 per Pack |
Voltage | 600 V |
Series | Scotchlok™ |
Insulation Color | Yellow |
