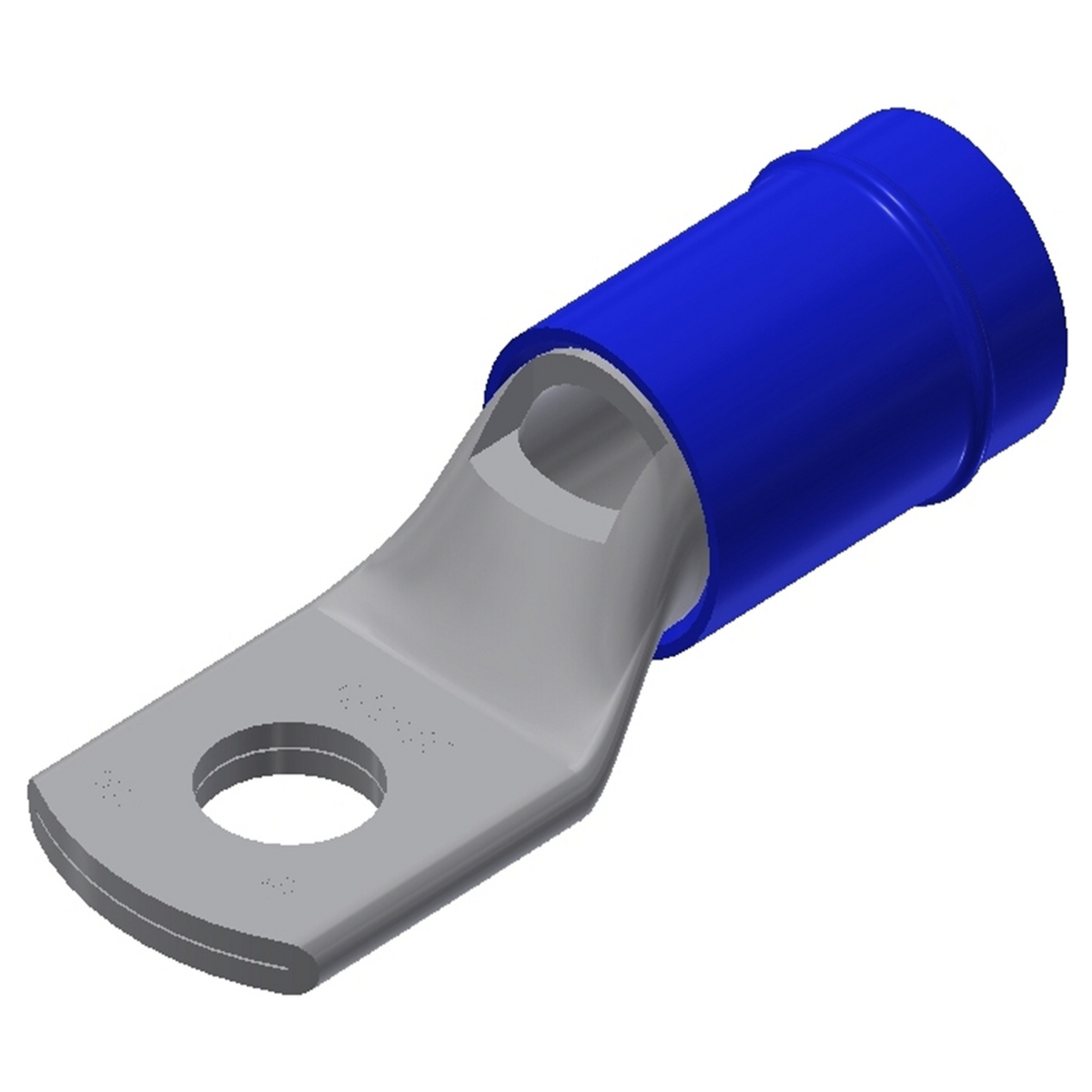

Burndy YAEV Series Insulated Ring Terminals 18 - 14 AWG #8 - #10 Blue

Mfg #: YAEV14
BOR #: 430003
Looking for prices?
Product can be ordered only in multiples of
Brand Burndy
Finish Tin-plated
Voltage 600 VAC
Overall Length 0.94 in
Series YAEV
Maximum Compatible Conductor Size 14 AWG
Minimum Compatible Conductor Size 18 AWG
Pad Width 0.31 in
Connector Material Copper
Insulation Material Nylon
Stud Hole Size #8 - #10
Insulation Color Blue
Connector Type Ring
Insulation Insulated
Conductor Size 18 - 14 AWG
Temperature Range 105 deg C
Burndy Specification Sheet Specification Sheet
Catalog Full Asset Reference Catalog
