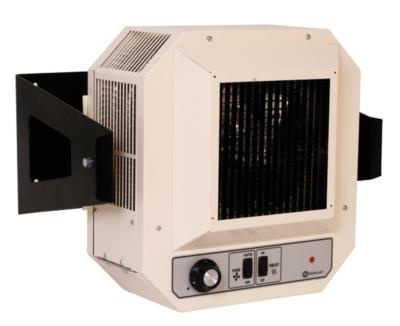

Ouellet OHV-RF Series Hard Wired Unit Heaters 240/208 V 5/3.75 kW 1 Phase

The OHV-RF built-in unit heater is finished in a powder paint almond and black to complement the appearance of garages, workshops and construction sites.

• It can be mounted on the wall or ceiling.
• Available in 5 kW/240 volts, it comes equipped with a 2 heat selector switch, integral thermostat and fan-only operation during summer months.
• An automatic thermal reset overload protects the unit in case of misuse.
• Unit can also be operated at 208 volts with a 25% wattage reduction.
• The special egg crate diffuser and draw-through design maximize evenly heated air for optimal air throw into the room.
• The bracket provides adjustable rotation for personal selection of air throw angle.
• Positive off, double-pole, single-throw thermostat
• Fan on/auto switch.
• Two level finger-tip high/low heat selector switch.
• Automatic reset over temperature protector.
• Specially designed outlet diffuser provides maximum air velocity and prevents foreign objects from entering heater
• Motor - totally enclosed - thermally protected
• Draw-through design permits greater heat transfer.
• Minimum mounting height of 6 ft. (1.8 m), Maximum mounting height of 10 ft. (3 m)
• Versatile bracket for ceiling or wall mounting.
• Adjustable bracket allows all angle rotation.
