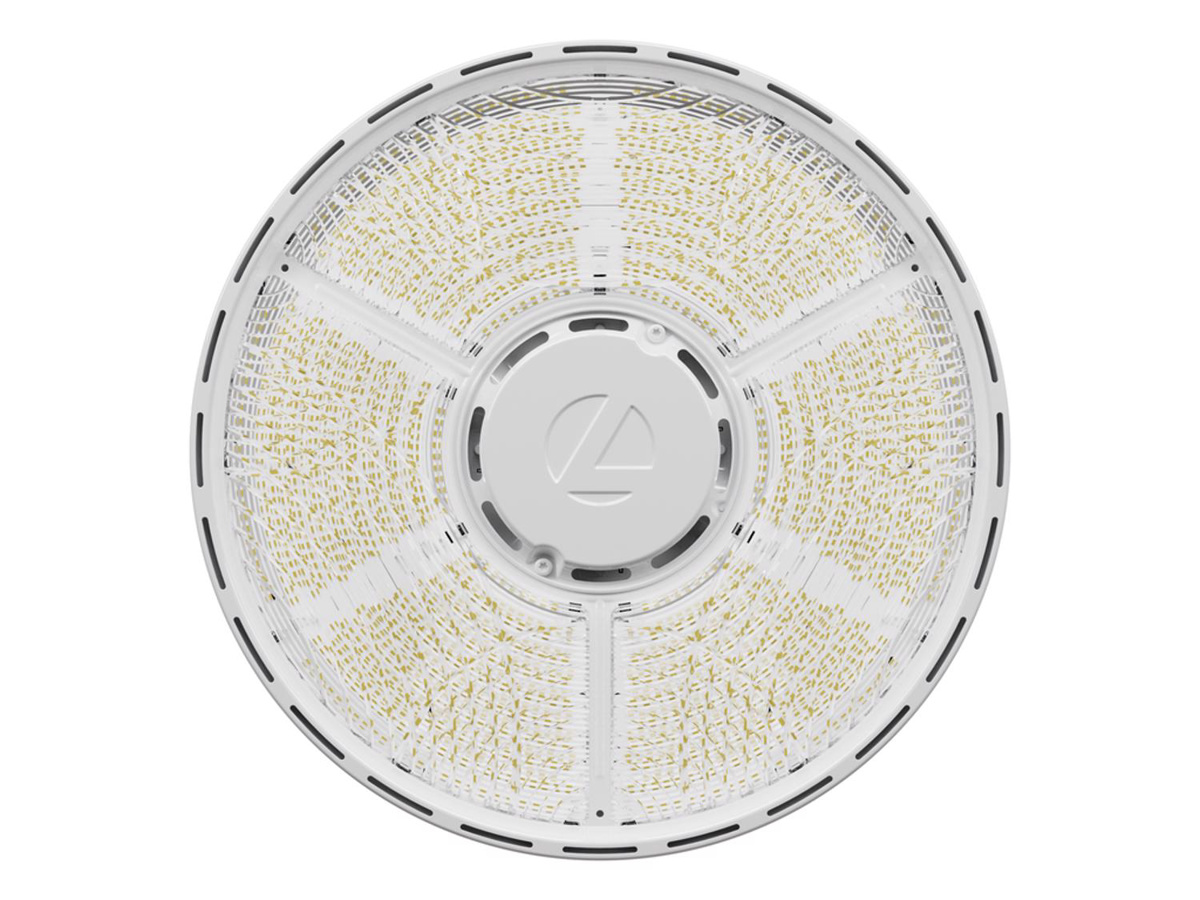

Lithonia CPRB Contractor Series LED Round Highbays 120 - 347 V 83/106/132 W 12000/15000/18000 lm 4000/5000 K Dimmable Medium LED Driver
Mfg #:
CPRBALO14UVOLTSWW980CRIDWH
BOR #:
3584536
The Compact Pro™ Round LED High Bay is designed for contractors from the ground up.
- The CPRB features two patent-pending elements, the tri-radial glare-control lens creates an even, brilliant light ideal for most lighting needs and the integrated folding hook provides simple and secure installation.
- Compact design saves time and money during installation.

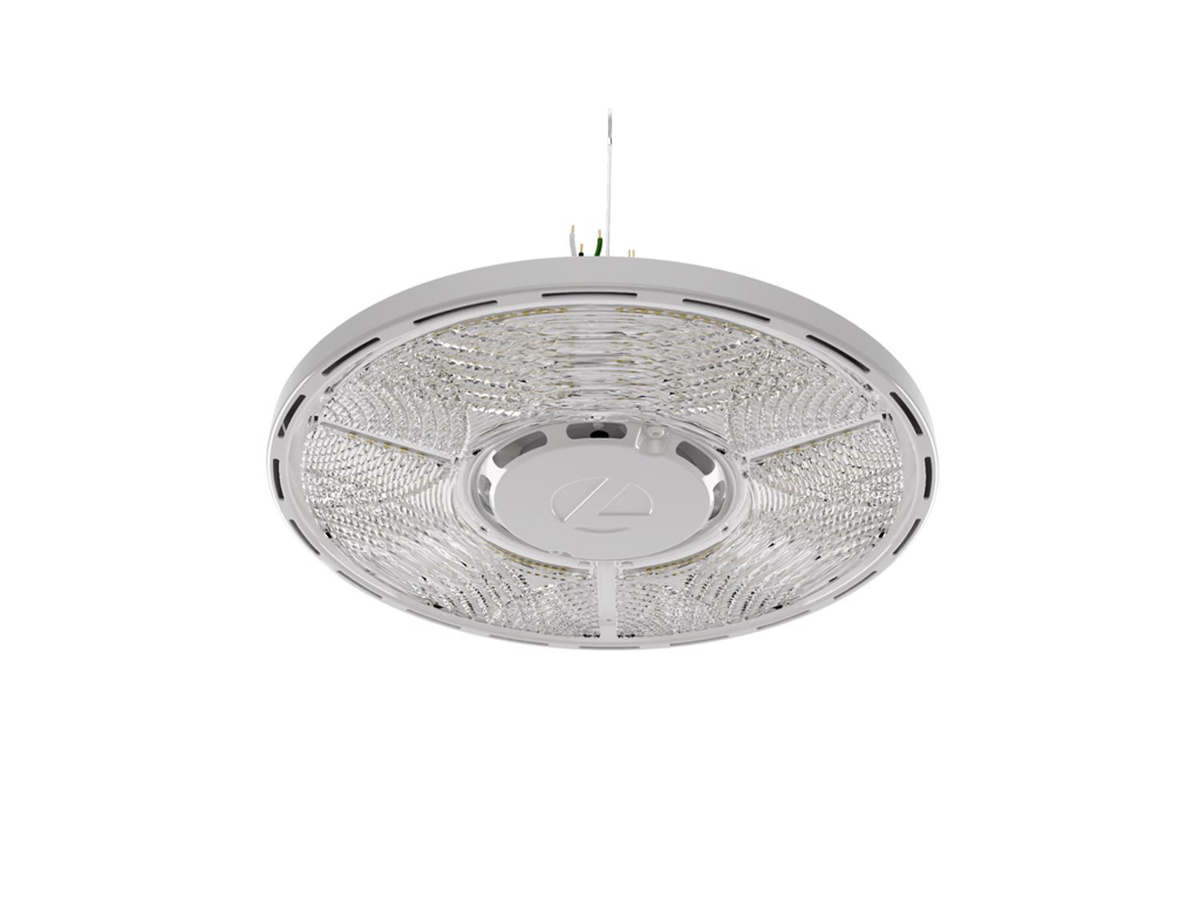

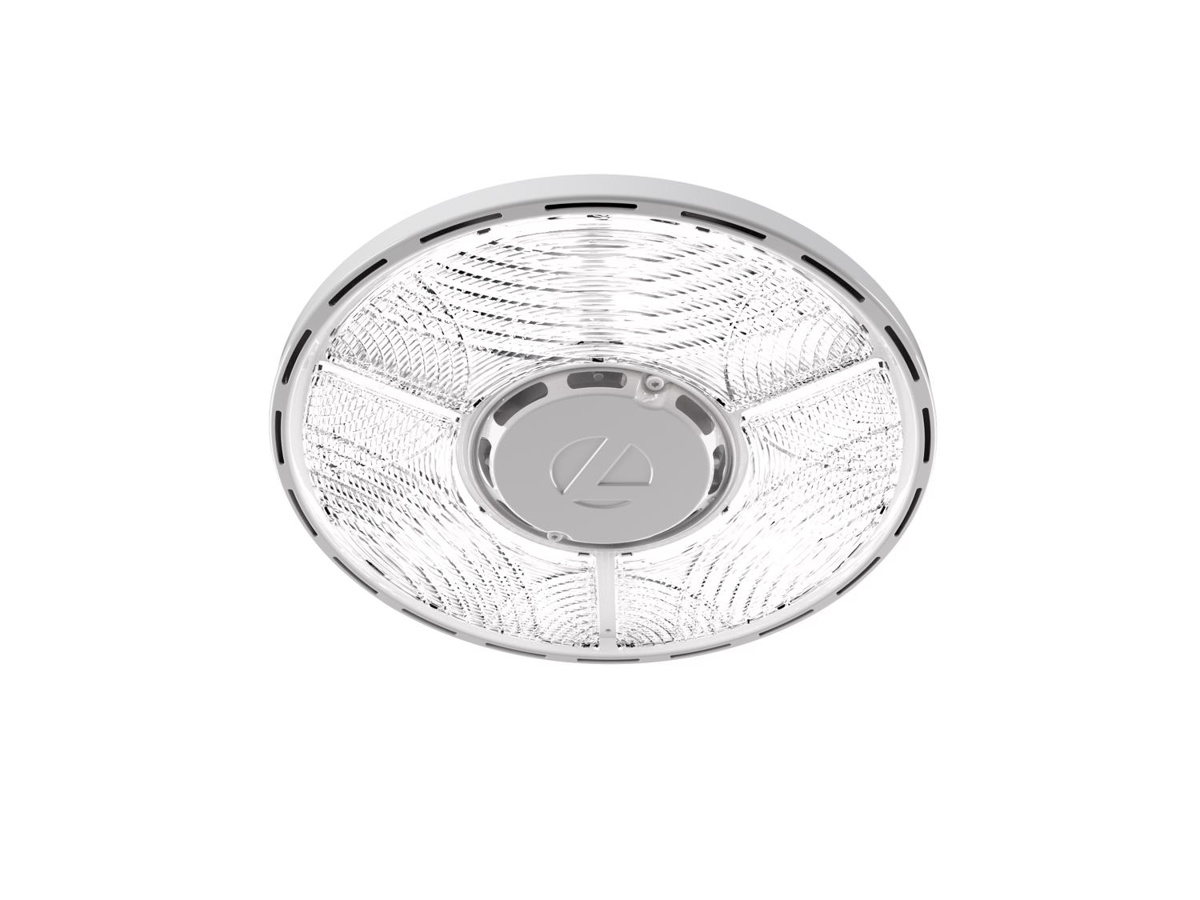

- Patent pending polycarbonate lens diffuses light source and reduces glare while protecting LEDs and providing medium distribution.
- Robust 6kV surge protection per ANSI standards for Industrial environments.
- Operates up to 55°C ambient.

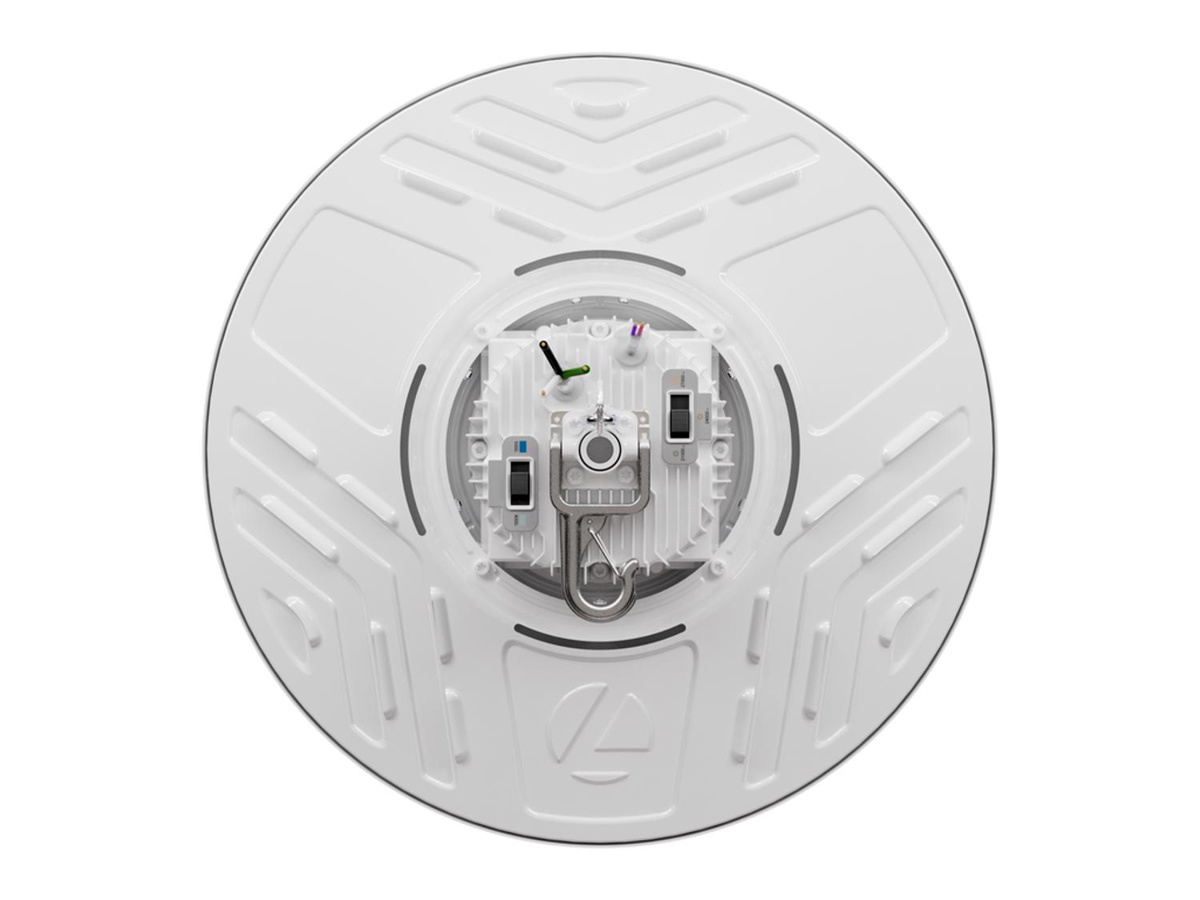

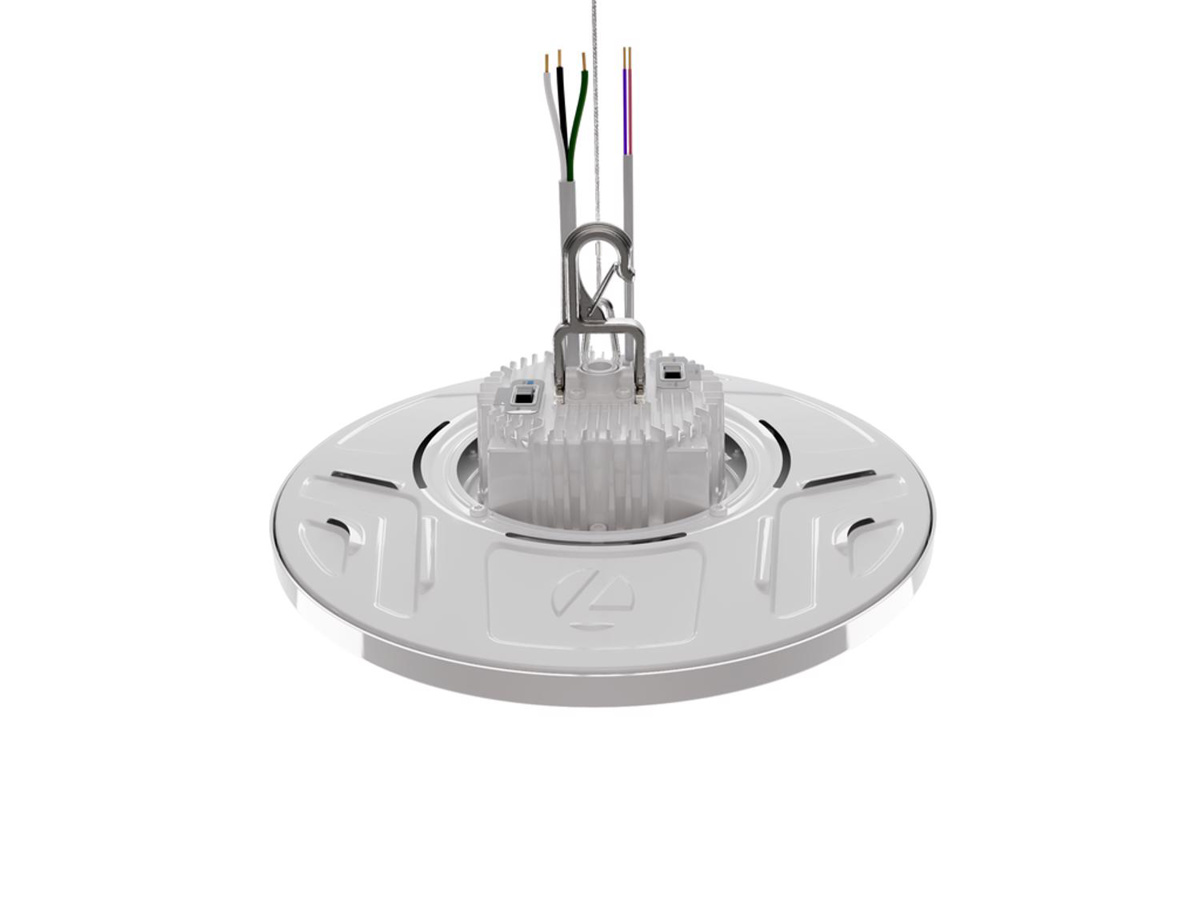

- Standard with permanently attached die-cast aluminum hook with safety latch. Patent pending.
- Also includes 7' safety chain.
- 0-10V dimming driver standard for 10% to 100% dimming capabilities.
- Ideal one-for-one replacement of conventional lighting systems such as HID and fluorescent.

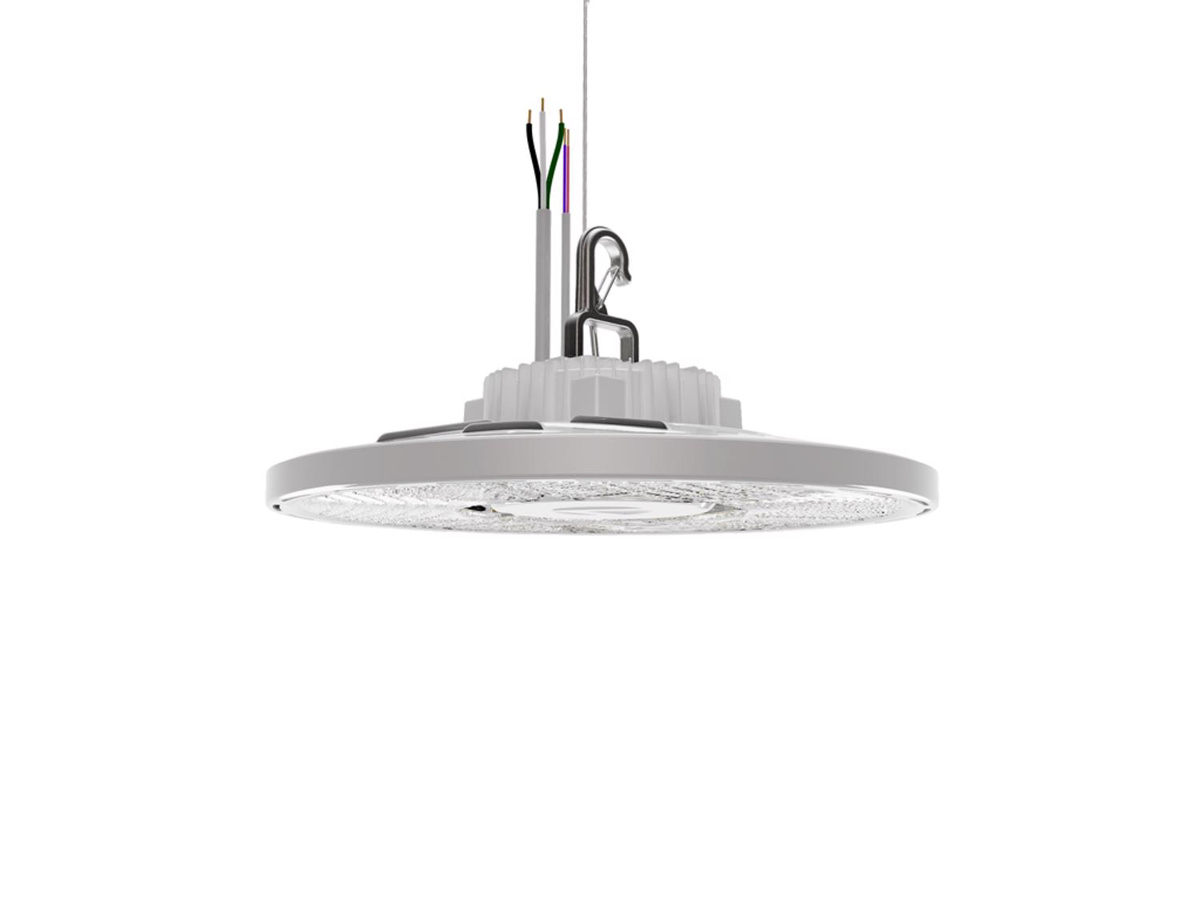

- Fixture comes standard with 6' power cord and 6' low voltage dimming cord.
- Damp location listed. IP54 rated.
| Material | Aluminum Die Cast |
| Brand | Lithonia |
| Height | 3.33 in |
| Environmental Condition | Damp Location |
| Lens Material | Polycarbonate |
| Voltage | 120 - 347 V |
| Average Rated Life (hrs) | 54,000 hrs |
| Dimmable | Dimmable |
| Lamp Type | LED |
| Fixture Type | Round Highbay |
| Distribution | Medium |
| Series | CPRB Series |
| CCT (K) | 4000/5000 K |
| CRI | 80 CRI |
| Wattage | 83/106/132 W |
| Lumens | 12000/15000/18000 lm |

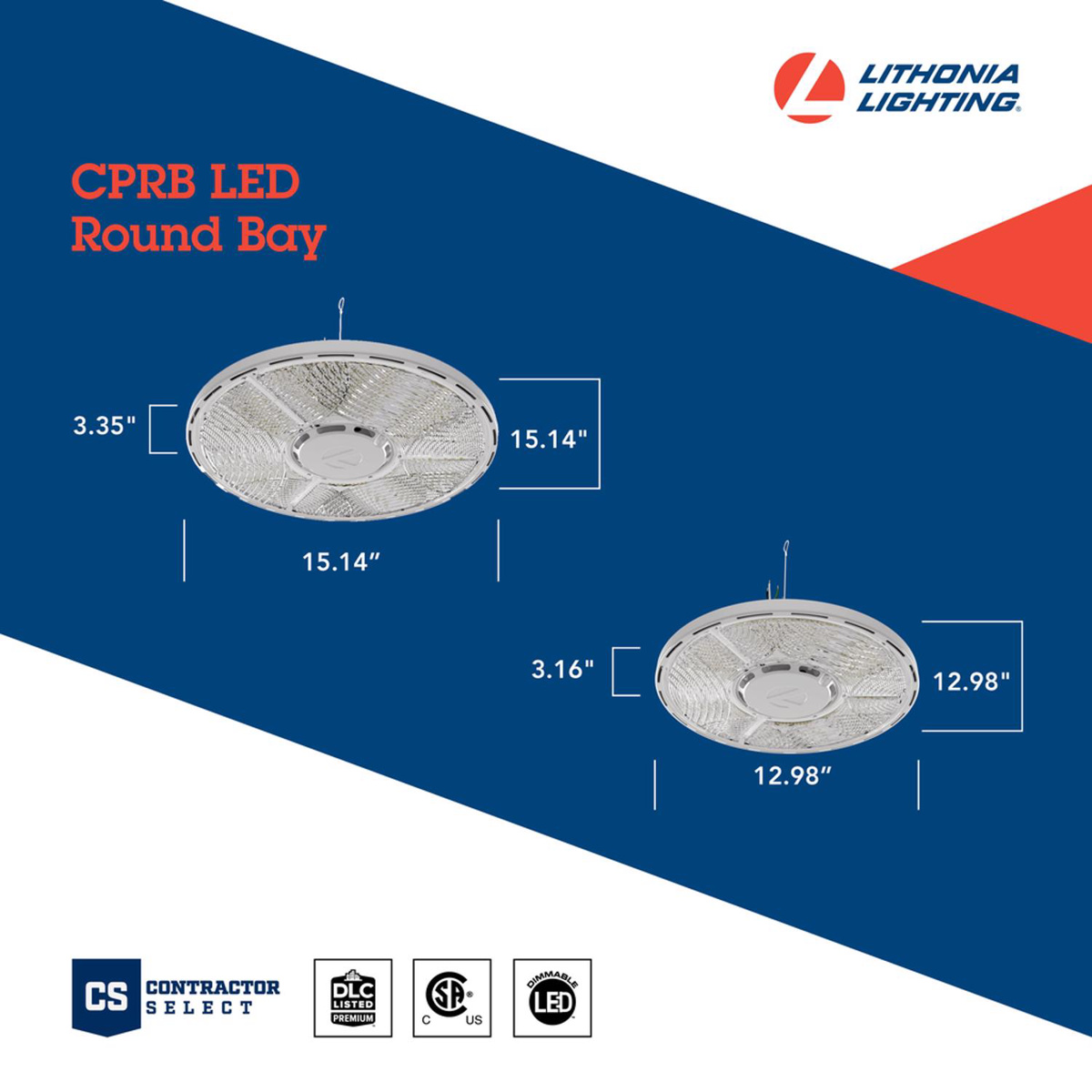

| Diameter | 12.98 in |
| Ballast Type | LED Driver |
| Color | White |
