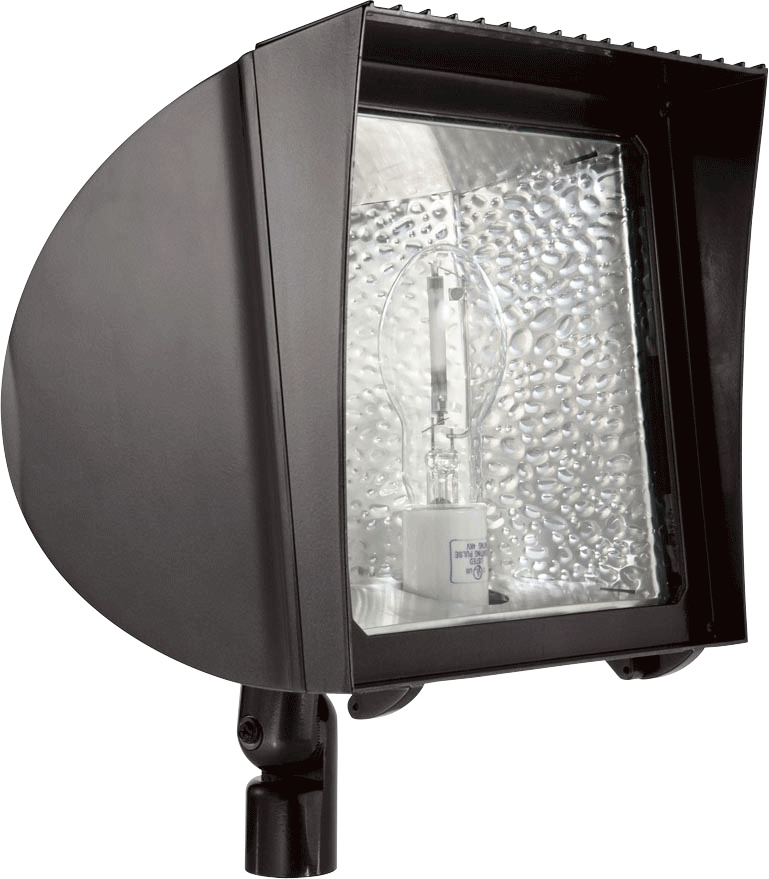

RAB Lighting FX Series Floodlights Metal Halide 120 - 277 V 70 W Bronze 5600 lm

PrimaryProductImage
PrimaryProductImage
Mfg #: FXH70QT
BOR #: 3346647
Looking for prices?
Sign In
Create an Account

RAB FlexFlood Light, 120/208/240/277 V, 91 W, 0.6/0.9/0.3/0.5/0.3/0.5/0.3/0.4 A, HID ED17 Metal Halide Lamp, 70 W, Medium Lamp Base, 15000 hr Average Life, HX-HPF QT Ballast, Tempered Glass Lens, 5600 Lumens, Arm Mount, Aluminum Housing, Bronze Housing

  • 15 in H x 9-3/4 in W x 10-1/2 in D
  • 77% efficiency and 62 LPW efficacy
  • Anodized aluminum reflector rotates for horizontal or vertical lamp position
  • Fins for heat dissipation extend lamp and ballast life
  • Medium base 4 kV pulse rated socket
  • Precision die cast aluminum housing and lens frame with durable polyester powder coating
  • Silicone gasket for durable weatherproofing and easy relamping
  • Suitable for ground mounting
  • Two field adjustable socket positions allow fine tuning of beam spread
See More
Product can be ordered only in multiples of
Specifications
Brand RAB Lighting
Ballast Type HX-HPF
Average Rated Life (hrs) 15,000 hrs
Voltage 120 - 277 V
Height 15 in
Depth 10.5 in
Material Aluminum Die Cast
Width 9-3/4 in
Lighting Mounting Type Knuckle
Number of Lamps 1 Lamp
Color Bronze
CRI 77 CRI
Lumens 5600 lm
Lamp Type Metal Halide
Wattage 70 W
Lens Tempered Glass
Fixture Type Floodlight
Dimmable Non-dimmable
Includes Lamps
