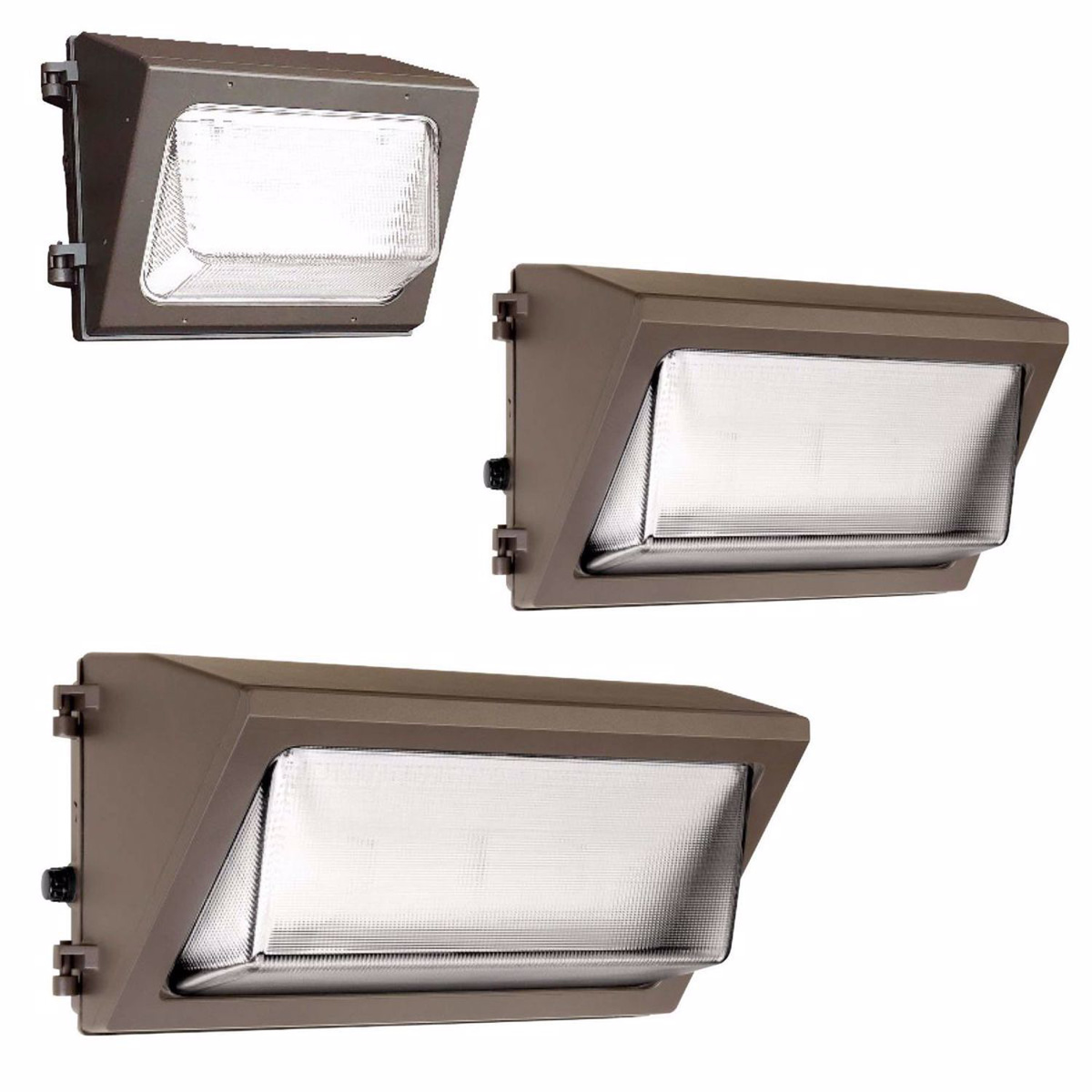

Current Lighting WGH1 Wallpacks LED 120 - 347 V 20 - 50 W Type IV 3200 - 7520 lm 3000/4000/5000 K Dark Bronze

PrimaryProductImage
PrimaryProductImage
Logo
Mfg #: WGH150LSCSUNVC
BOR #: 3638598
View all 2 in product family
Looking for prices?
Create an Account

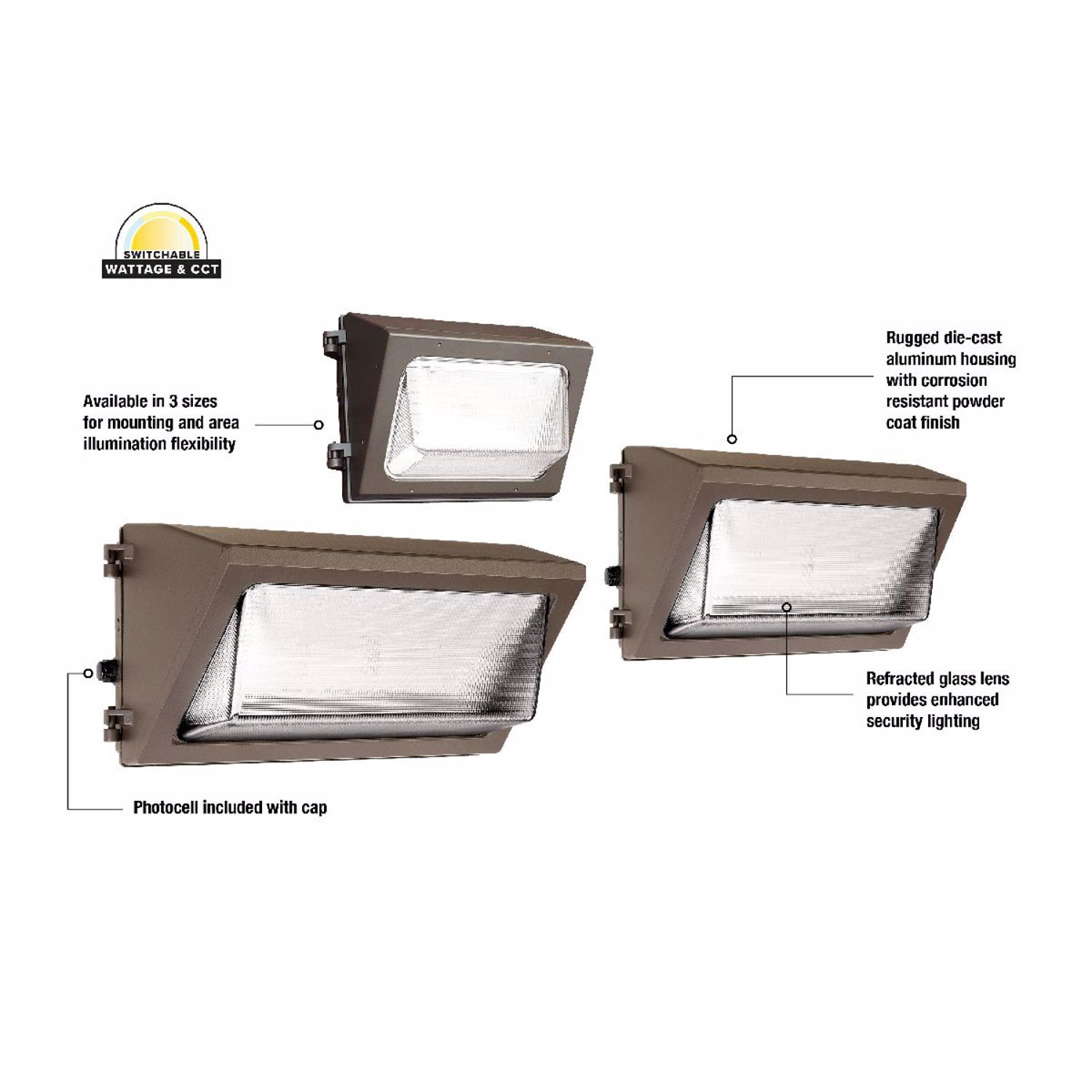

WGH1 wallpacks provide safety and security lighting.

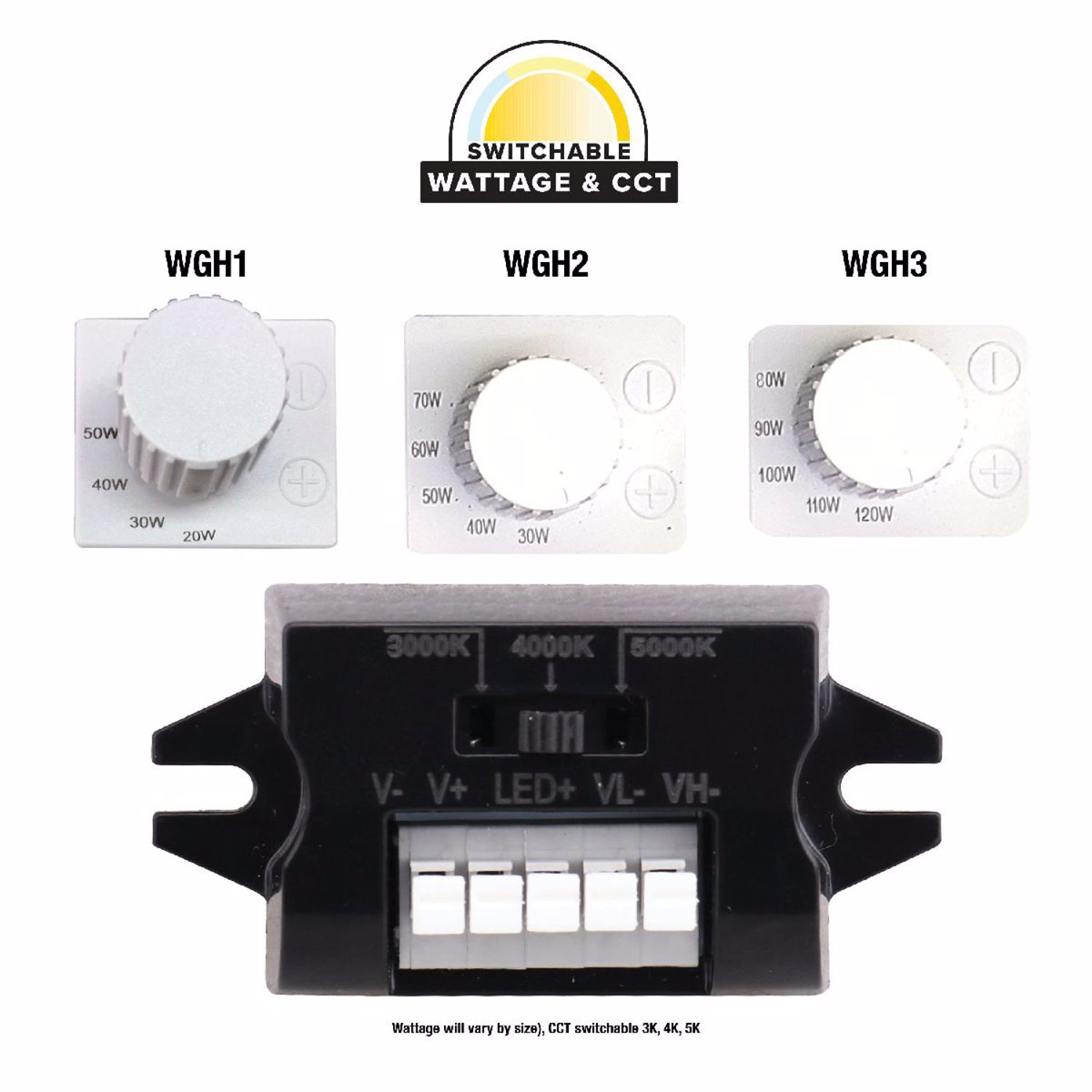

  • Field switchable wattage: 3000 - 7000 lm
  • Wall mount at heights from 15 - 25 ft refractor spreads light and softens light source image.
  • Impact resistant borosilicate glass refractor softens LED pixilation and provides uniform distribution
  • Cast aluminum housing has three 1/2 in conduit entries on top and sides
  • DLC® (DesignLights Consortium) Qualified
  • All units have dark bronze matte textured powder coat finish
  • Listed to UL 1598 for use in wet locations and IP 65 rated
  • Built in button photocell with shorting cap
  • Dimmable drivers standard
  • Door assembly hinges on side
  • Leveling device contained inside the housing for ease of installation
See More
Product can be ordered only in multiples of
Specifications
Device Control Type Photocell
Surge Protection 6 kV
Brand Current Lighting
Fixture Type Wallpack
Distribution Type IV
Series WGH1 LSCS Switchable
Width 10-3/4 in
Depth 7.61 in
Height 8-1/4 in
Color Dark Bronze
Lens Impact-resistant borosilicate glass lens
CCT (K) 3000/4000/5000 K
CRI 80 CRI
Wattage 20 - 50 W
Lumens 3200 - 7520 lm
Voltage 120 - 347 V
Lighting Mounting Type Wall
Environmental Condition Wet Location
Dimmable Dimmable
Lamp Type LED
Material Aluminum
Ballast Type LED Driver
Average Rated Life (hrs) 100,000 hrs
