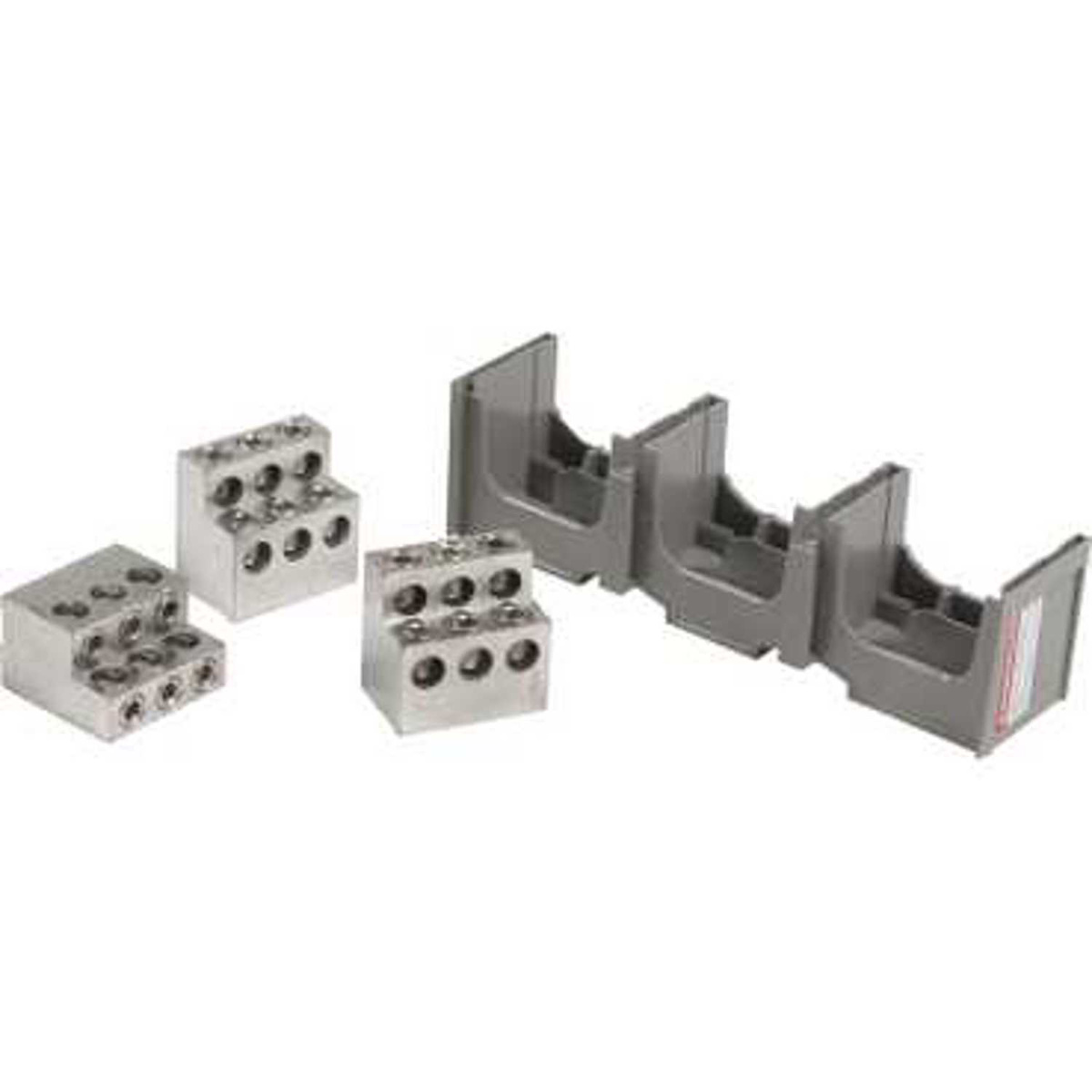

Square D PowerPacT™ CB PDC Power Distribution Connectors
PowerPact™ CB PDC Power Distribution Connectors
- The power distribution connectors (PDC) can be used for multiple load wire connections on one circuit breaker.
- Use in place of standard distribution blocks to save space and time.
Related Items
Select Options
| Circuit Breaker Type | P-frame ,, M-frame |
| [Ith] Conventional Free Air Thermal Current | 250-1200 A |
| Panelboard Main Breaker Kit Type | P-frame ,, M-frame |
| Product Certifications | UL ,, CSA |
| Panelboard Parts-Accessory Type | P-frame ,, M-frame |
| Brand | Square D |
| Amperage | 250-1200 A |
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf) | Catalog |
|
| Square D Specification Sheet | Specification Sheet |
|
| Power Distribution Connectors PDC12P4, PDC6P20, PDC12P44 and PDC6P204 for M-frame, P-frame and NS630b–NS1250 Circuit Breakers, Installation - 48049-126-02 (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
