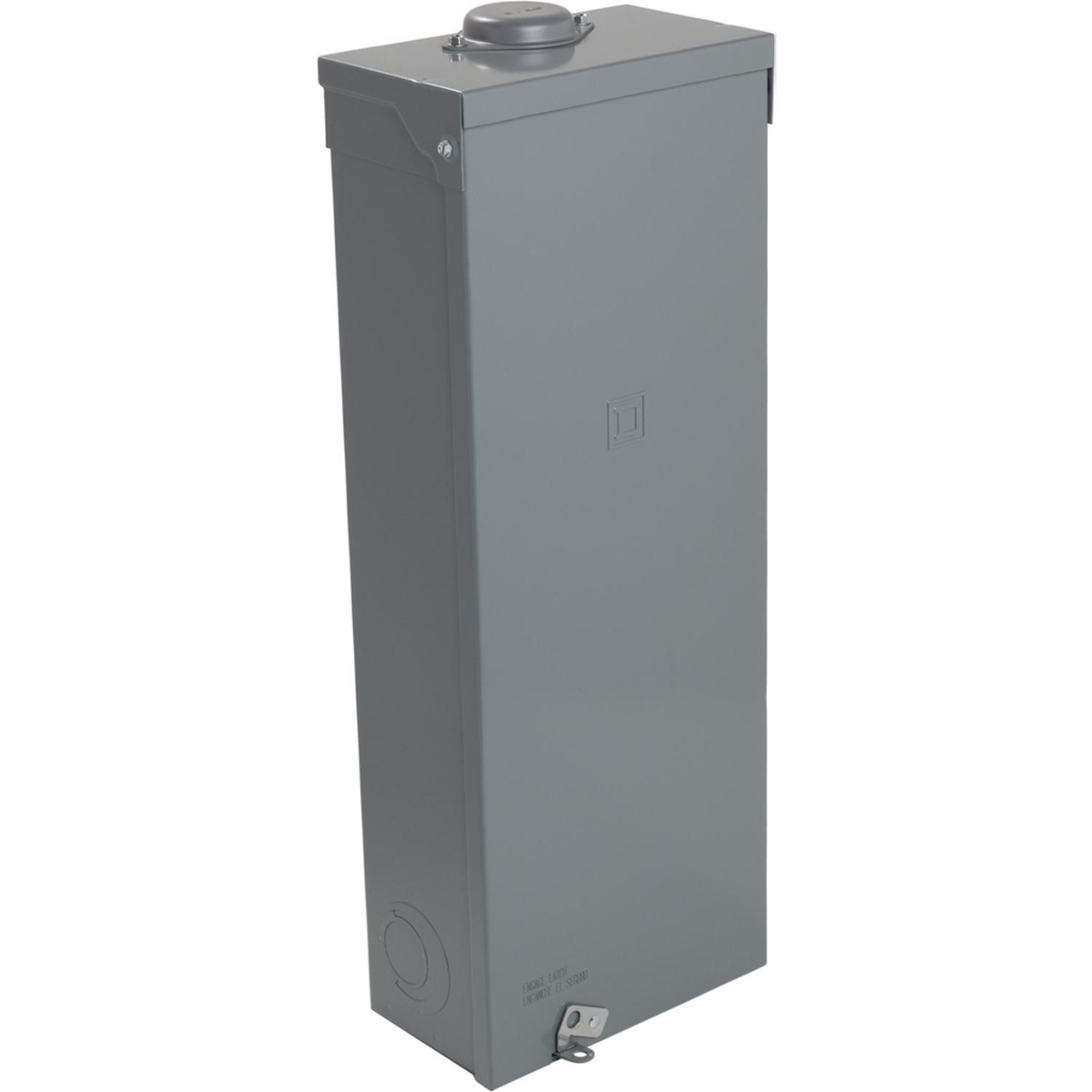

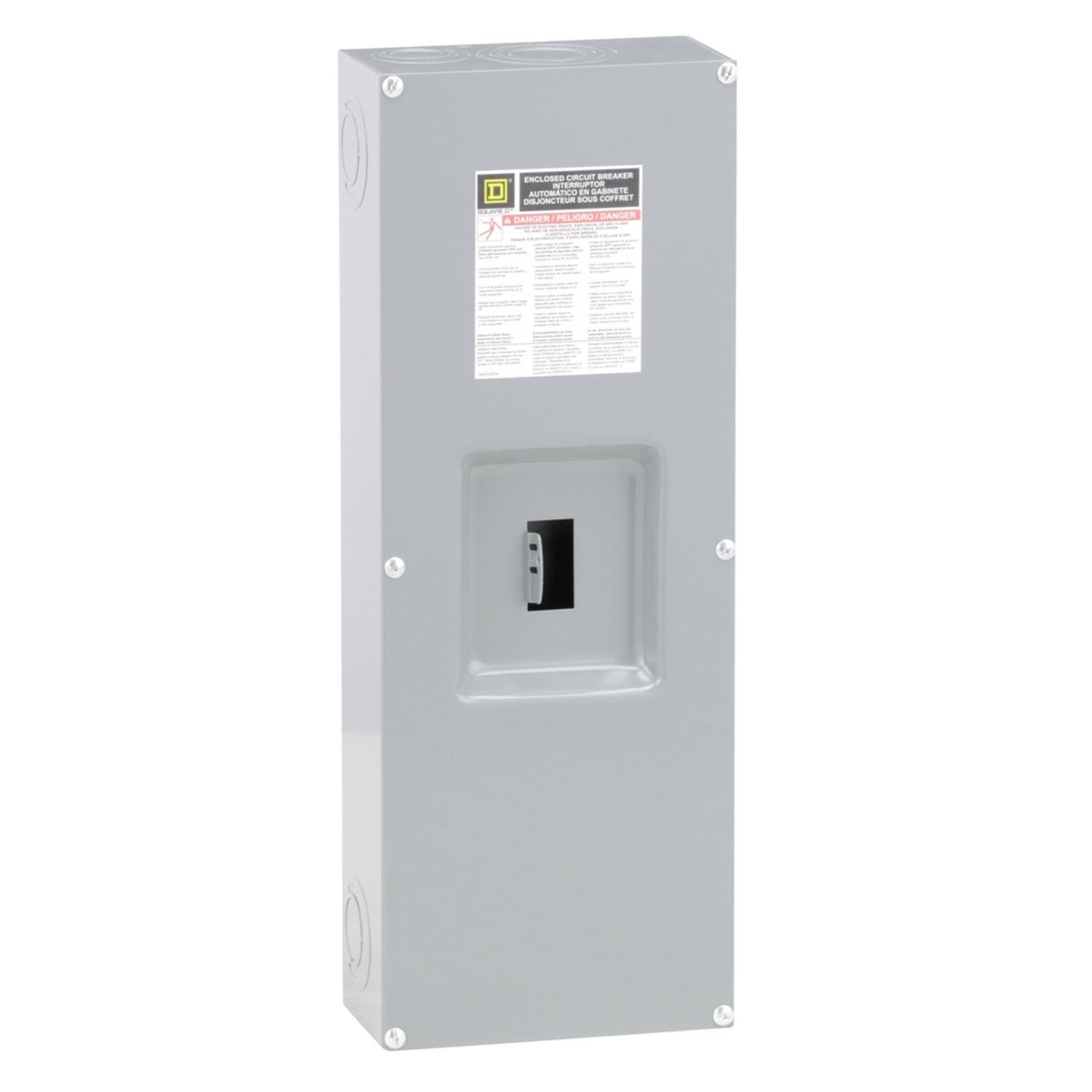

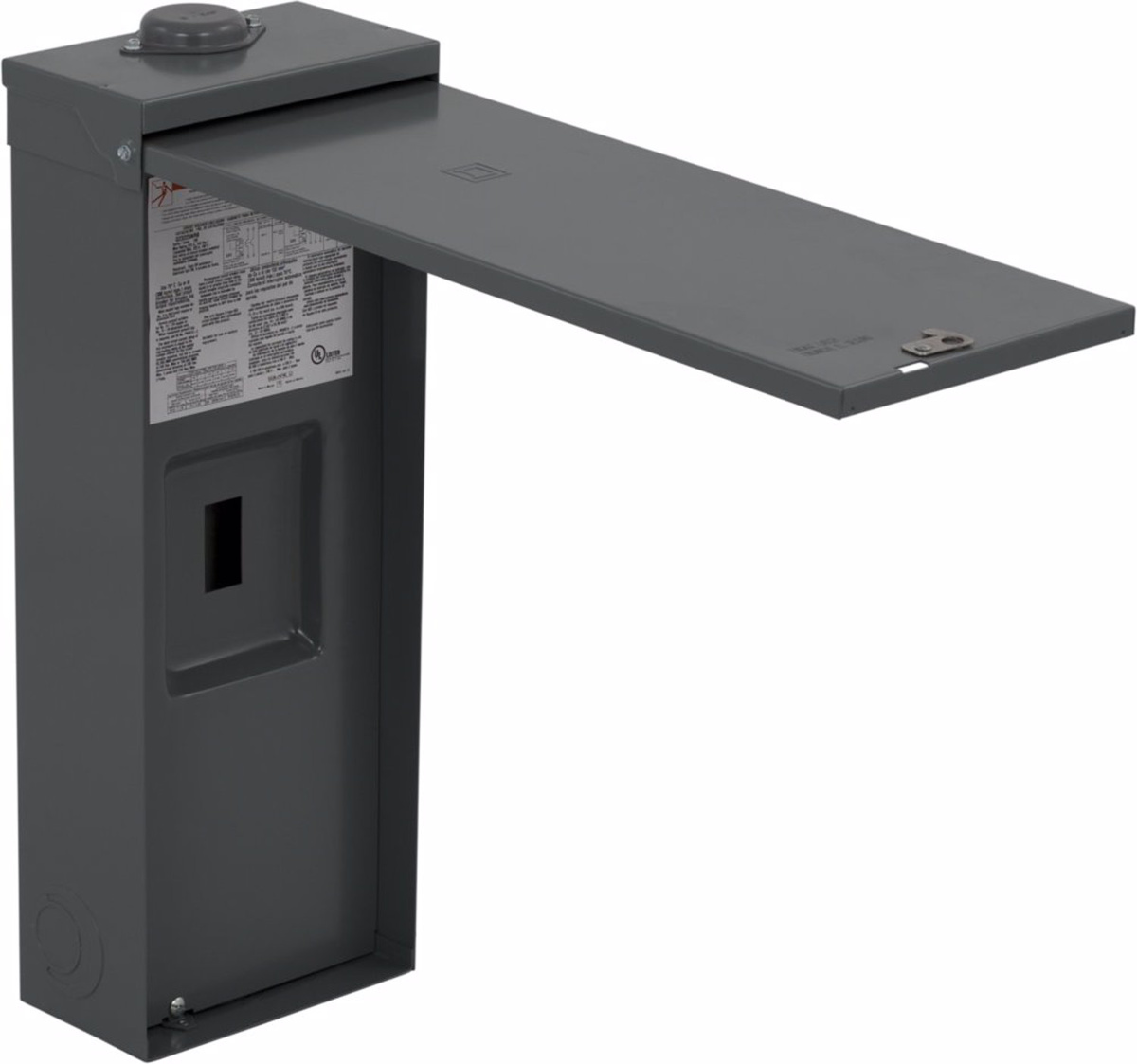

Square D PowerPacT™ Q Frame Circuit Breaker Enclosures 26.26 x 9.88 x 5.5 in NEMA 3R 100-225 A
Mfg #:
Q23225NRB
BOR #:
156364
PowerPact™ Q Frame Series Circuit Breaker Enclosures
- The enclosures for the PowerPact™ Q Frame Circuit Breaker are UL listed.
- The short circuit ratings of these enclosed circuit breakers are equal to the interrupter ratings, at the supply voltage marked on the circuit breaker installed, unless otherwise noted.
Related Items
Select Options
Square D PowerPacT™ QBL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 240 VAC 10 kAIC 2 Pole 1 Phase
View details
Square D PowerPacT™ QDL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 240 VAC 25 kAIC 2 Pole 1 Phase
View details
Square D PowerPacT™ QDL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 240 VAC 25 kAIC 3 Pole 3 Phase
View details
Square D PowerPacT™ QGL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 240 VAC 65 kAIC 3 Pole
View details
Square D PowerPacT™ QGL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 225 A 240 VAC 65 kAIC 2 Pole
View details
Square D PowerPacT™ QBL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 70 A 240 VAC 10 kAIC 2 Pole
View details
Square D PowerPacT™ QBL Cable-in / Cable-out Molded Case Industrial Circuit Breakers 70 A 240 VAC 10 kAIC 3 Pole
View details
| Brand | Square D |
| Height | 26.26 in |
| Voltage | 240 VAC |
| NEMA Rating | NEMA 3R |
| Width | 9.88 in |
| Mounting Type | Surface |
| Compatible With | Square D QBL, QJL, QGL |
| Depth | 5-1/2 in |
| Amperage | 100-225 A |
| Series | PowerPacT |
| Enclosure Material | steel |
| Frame Type | Q Frame |
| Number of Poles | 2 Pole/3 Pole |
| Enclosure Size | 26.26 x 9.88 x 5.5 in |
| PowerPact Q-Frame, Certificate, CSA - CSA_Certificate_060905-S-000-3211-02 (pdf) | Compliance |
|
| PowerPact Q-Frame, Certificate, UL - UL_Certificate_E84905_PowerPact_Q (pdf) | Compliance |
|
| PowerPact P-Frame, Certificate, CSA - CSA_Certificate_007551_0_000_1432-01 (pdf) | Compliance |
|
| Square D Specification Sheet | Specification Sheet |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Field Testing and Maintenance Guide Installation - 48049-900-02 (pdf) | Installation and Instruction Manuals |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf) | Catalog |
|
| Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf) | Catalog |
|
