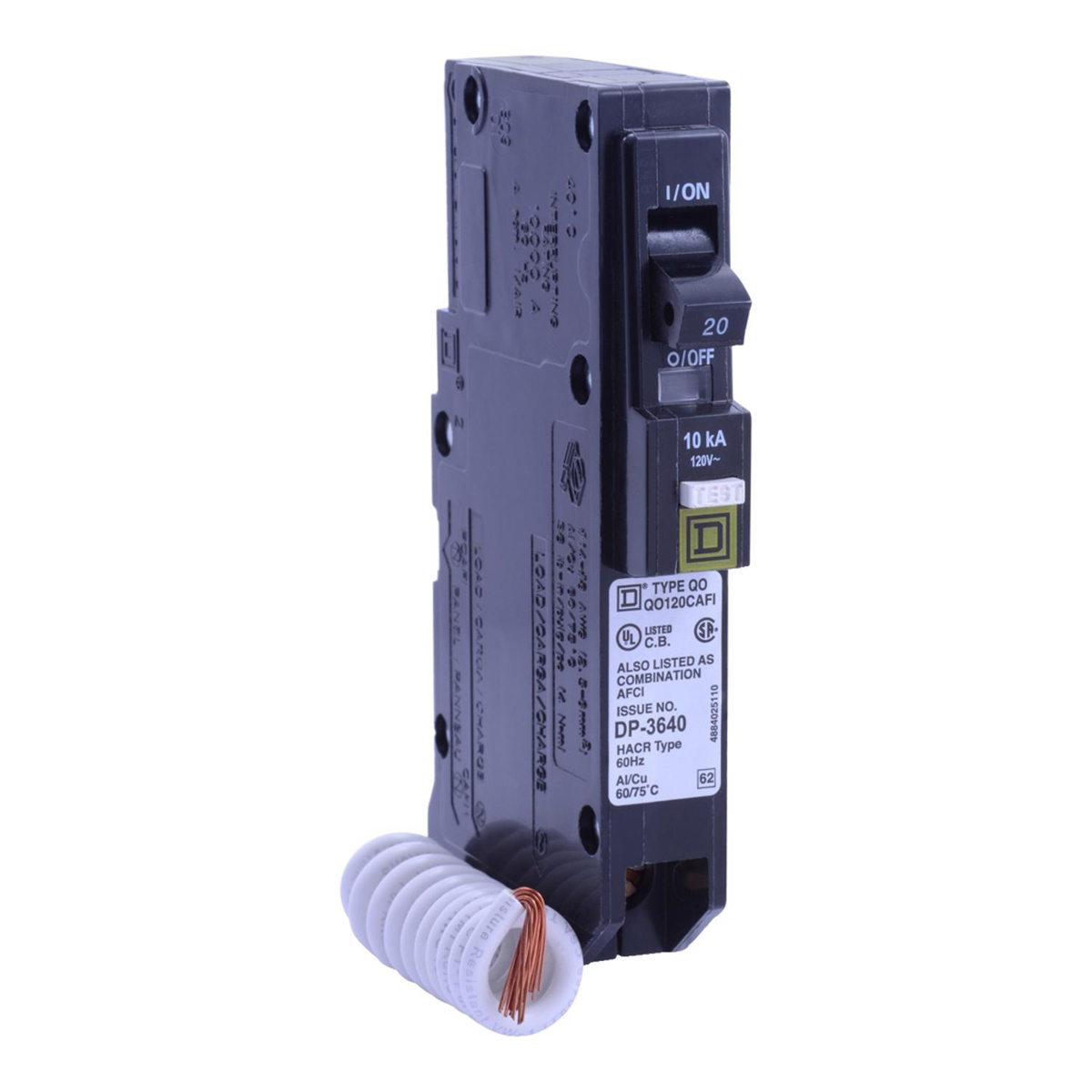

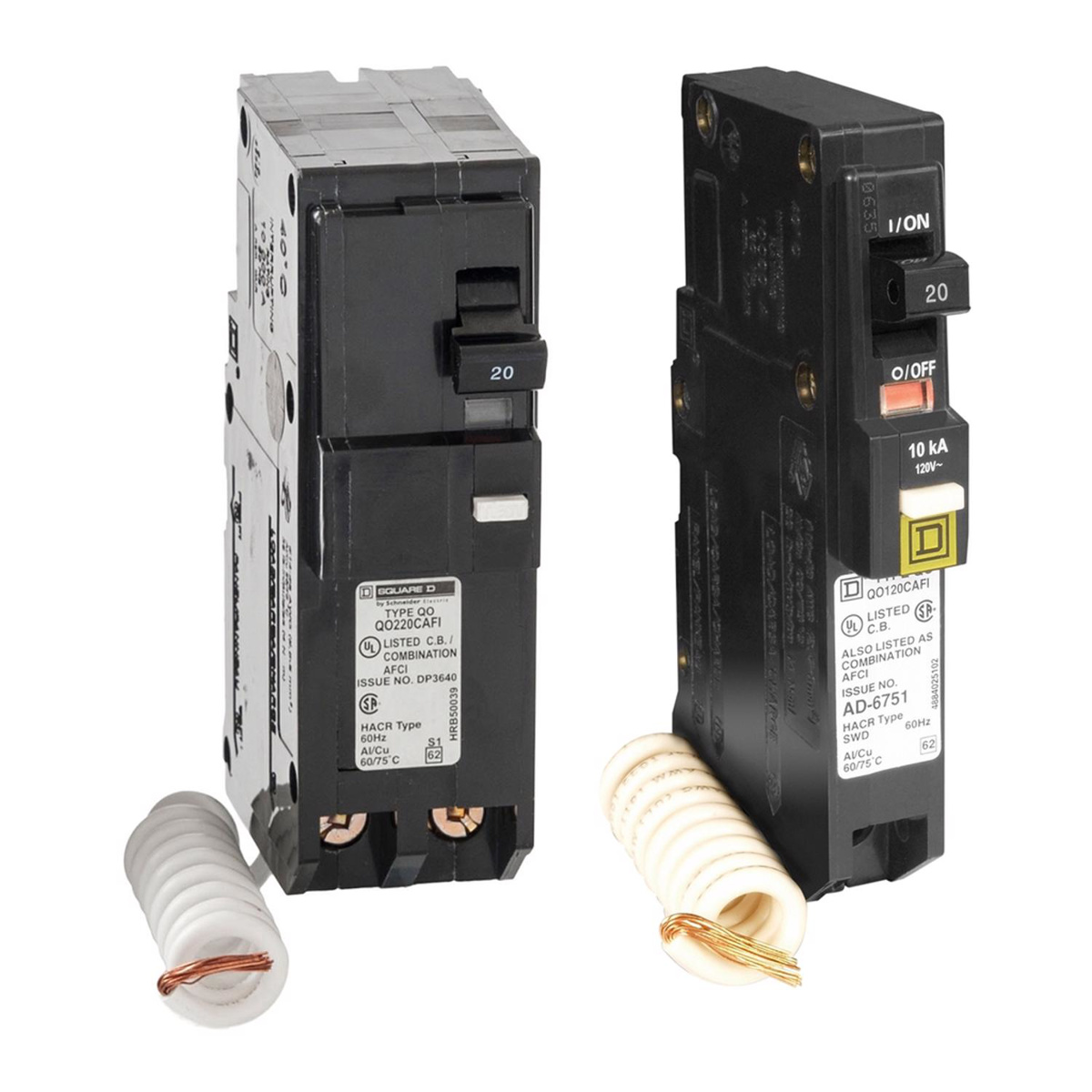

Square D QO™ Plug-in AFCI Circuit Breakers 20 A 120 VAC 10 kAIC 1 Pole 1 Phase
Image shown may be a representative image and may not reflect the exact product
| Brand | Square D |
| Circuit Breaker Type | combination ARC-fault |
| Includes | Pigtail |
| Trip Type | Thermal Magnetic |
| Net Weight | 0.227 kg |
| Indicator Type | Trip Flag |
| Number of Poles | 1 Pole |
| Interrupting Rating | 10 kAIC |
| Amperage | 20 A |
| Voltage | 120 VAC |
| Number of Spaces | 1 Space |
| Number of Phases | 1 Phase |
| Series | QO™ QO-CAFI |
| Mounting Type | plug-in |
| Product Certifications | UL Listed ,, CSA |
| Catalog 3 | Catalog |
|
| Catalog 2 | Catalog |
|
| Catalog 1 | Catalog |
|
| Brochure 1 | Brochure |
|
| Certificate 2 | Compliance |
|
| Brochure 2 | Brochure |
|
| Square D Specification Sheet | Specification Sheet |
|
| QO/QOB Combination AFCI (CAFI) Installation and Troubleshooting Instructions - 48840-248-01 (pdf) | Installation and Instruction Manuals |
|
| Brochure 3 | Brochure |
|
| Certificate 1 | Compliance |
|
