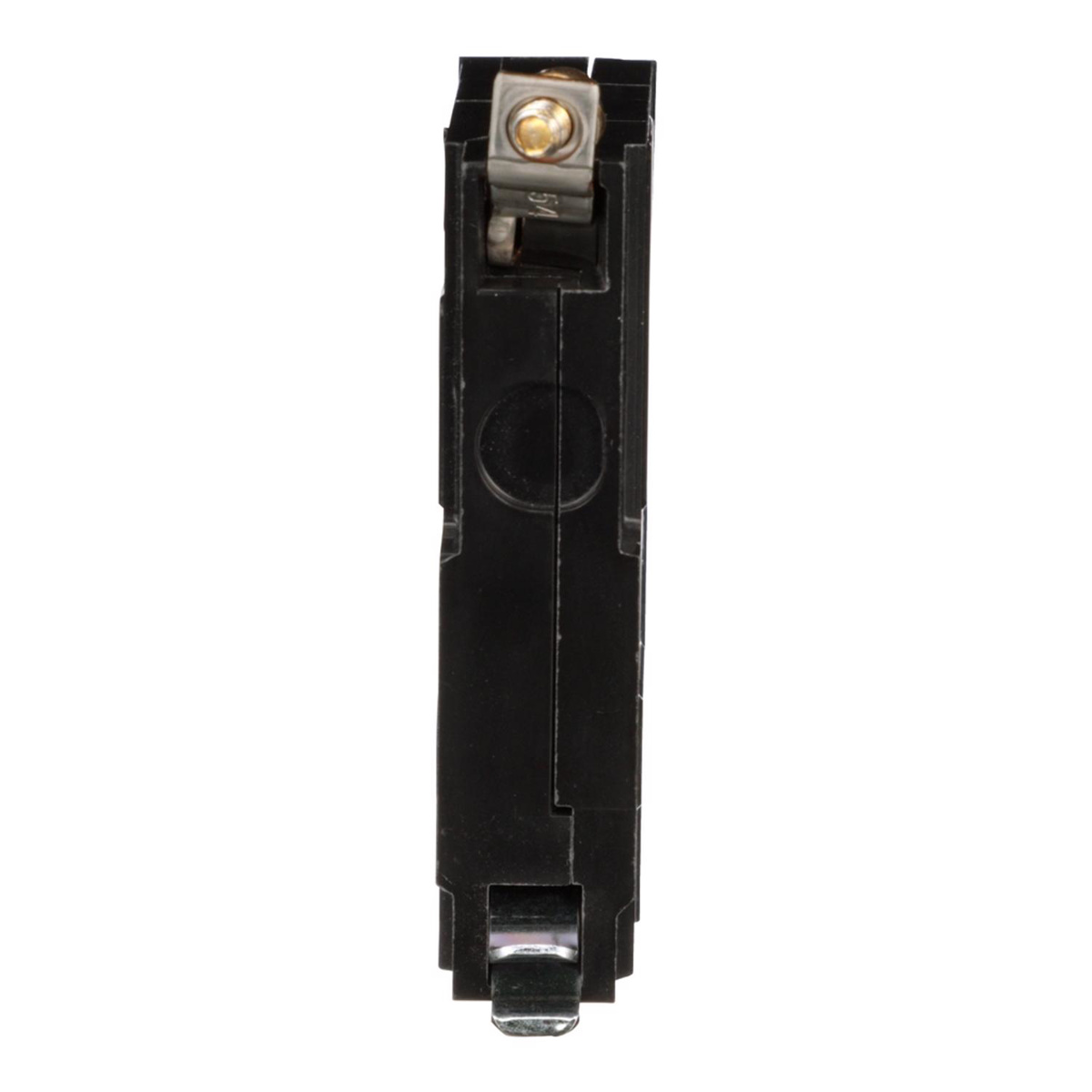

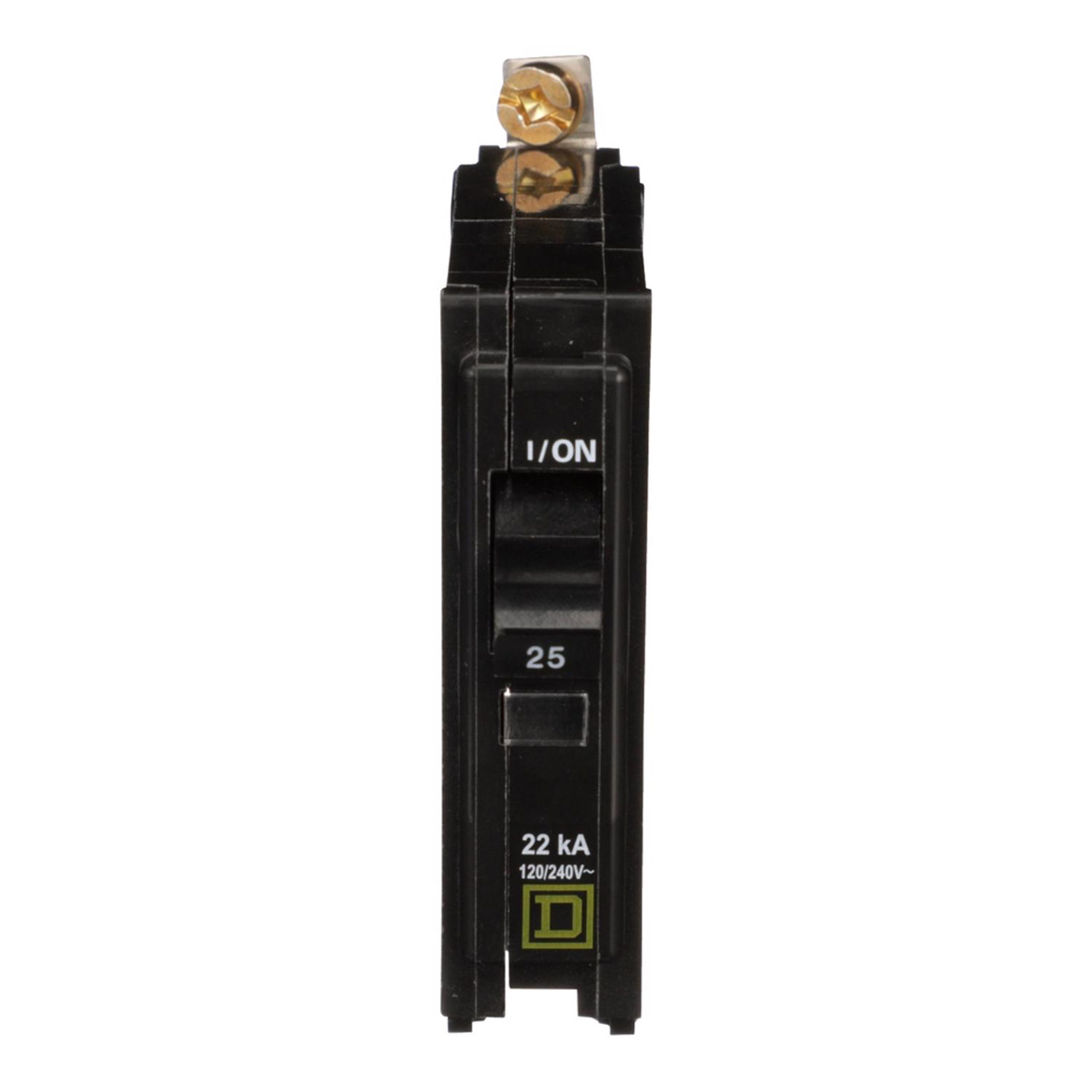

Square D QO™ QOB Bolt-on Miniature Circuit Breakers 25 A 120 VAC 22 kAIC 1 Pole 1 Phase
Image shown may be a representative image and may not reflect the exact product
| Brand | Square D |
| Circuit Breaker Type | standard |
| Trip Type | Thermal Magnetic |
| Net Weight | 0.132 kg |
| Indicator Type | Trip Flag |
| Number of Poles | 1 Pole |
| Interrupting Rating | 22 kAIC |
| Amperage | 25 A |
| Voltage | 120 VAC |
| Number of Spaces | 1 Space |
| Number of Phases | 1 Phase |
| Series | QO™ QOB-VH |
| Mounting Type | bolt-on |
| Product Certifications | UL Listed ,, CSA |
| Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf) | Catalog |
|
| Certificate | Compliance |
|
| Square D Specification Sheet | Specification Sheet |
|
| NQ/NQM Panelboards and QONQ Load Centers User Guide - Installation Instructions (80043-712) - 80043-712-06_Instruction+Bulletin_NQ-NQM+Panelboards+and+QONQ+Load+Centers (pdf) | Installation and Instruction Manuals |
|
| Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf) | Brochure |
|
| Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf) | Catalog |
|
| A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf) | Brochure |
|
Demonstrating Acceptable Installed QO Branch Breaker Movement | Schneider Electric Support
Tutorial demonstrating the small, acceptable movement of installed QO™ branch breakers both with ...
Demonstrating Acceptable Installed QO Branch Breaker Movement | Schneider Electric Support
Tutorial demonstrating the small, acceptable movement of installed QO™ branch breakers both with ...
Understanding QO™ Branch Breaker Handle Positions for On, Off & Tripped | Schneider Electric Support
Tutorial demonstrating the QO™ Branch Breaker Handle Positions for On, Off & Tripped. Square D™ QO™...
