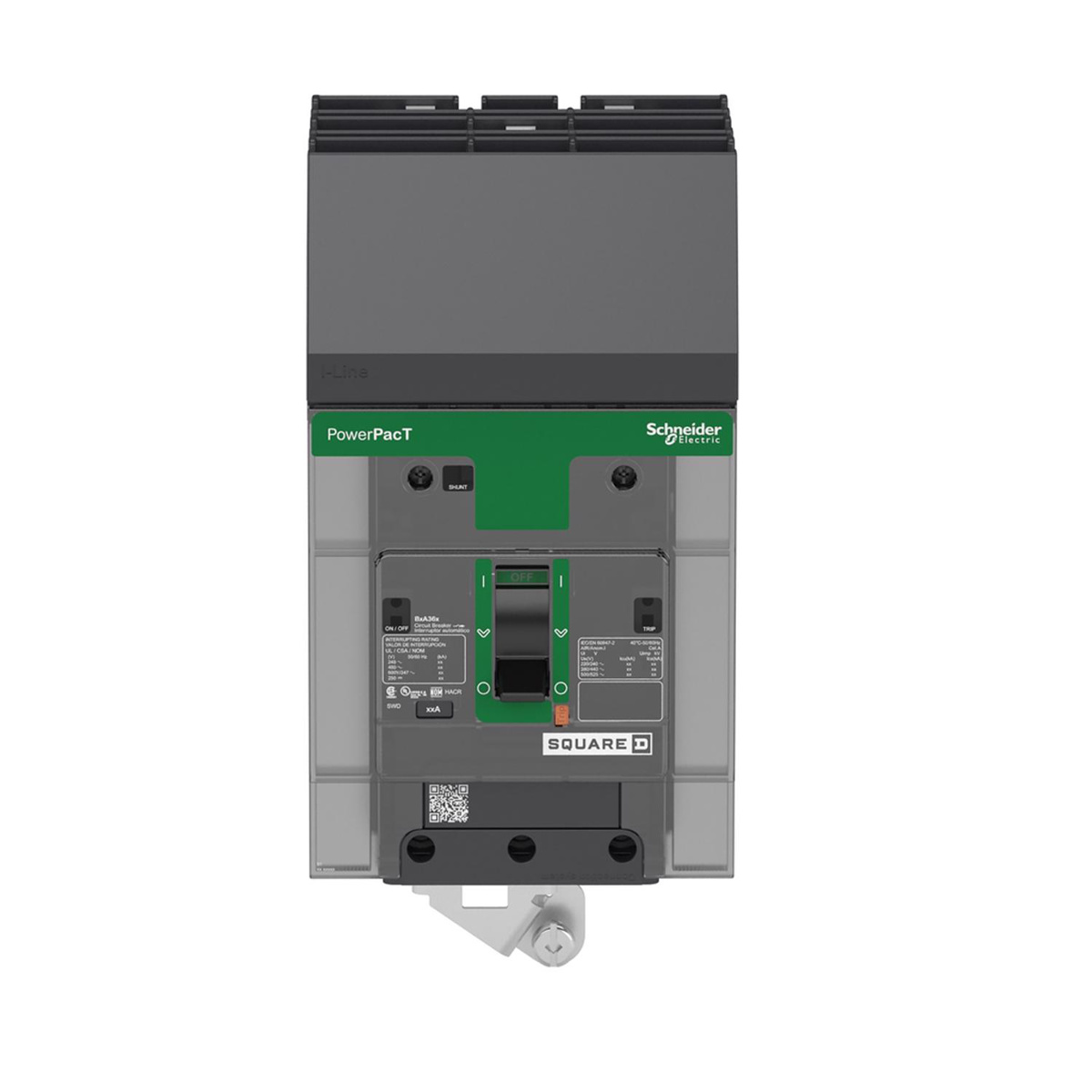

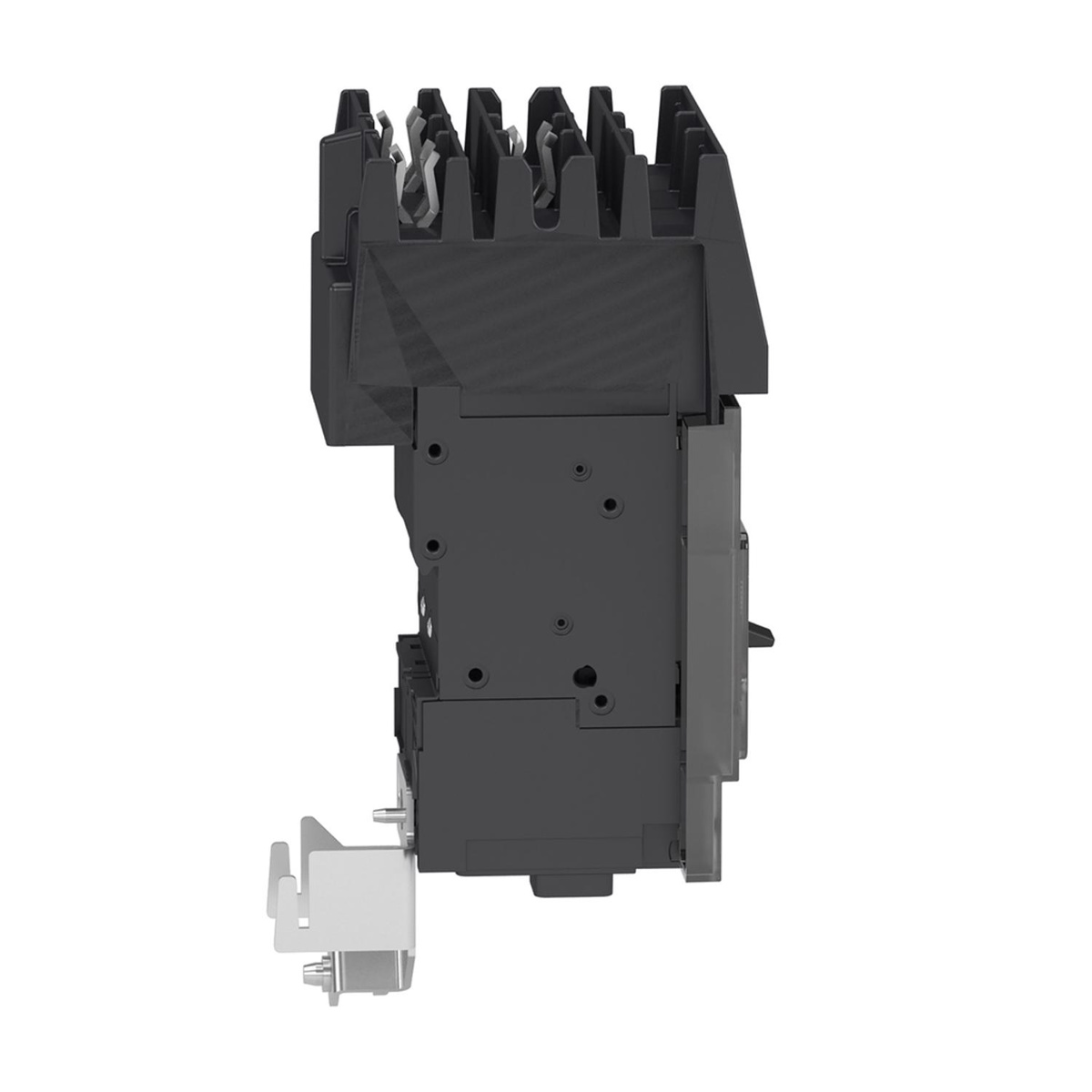

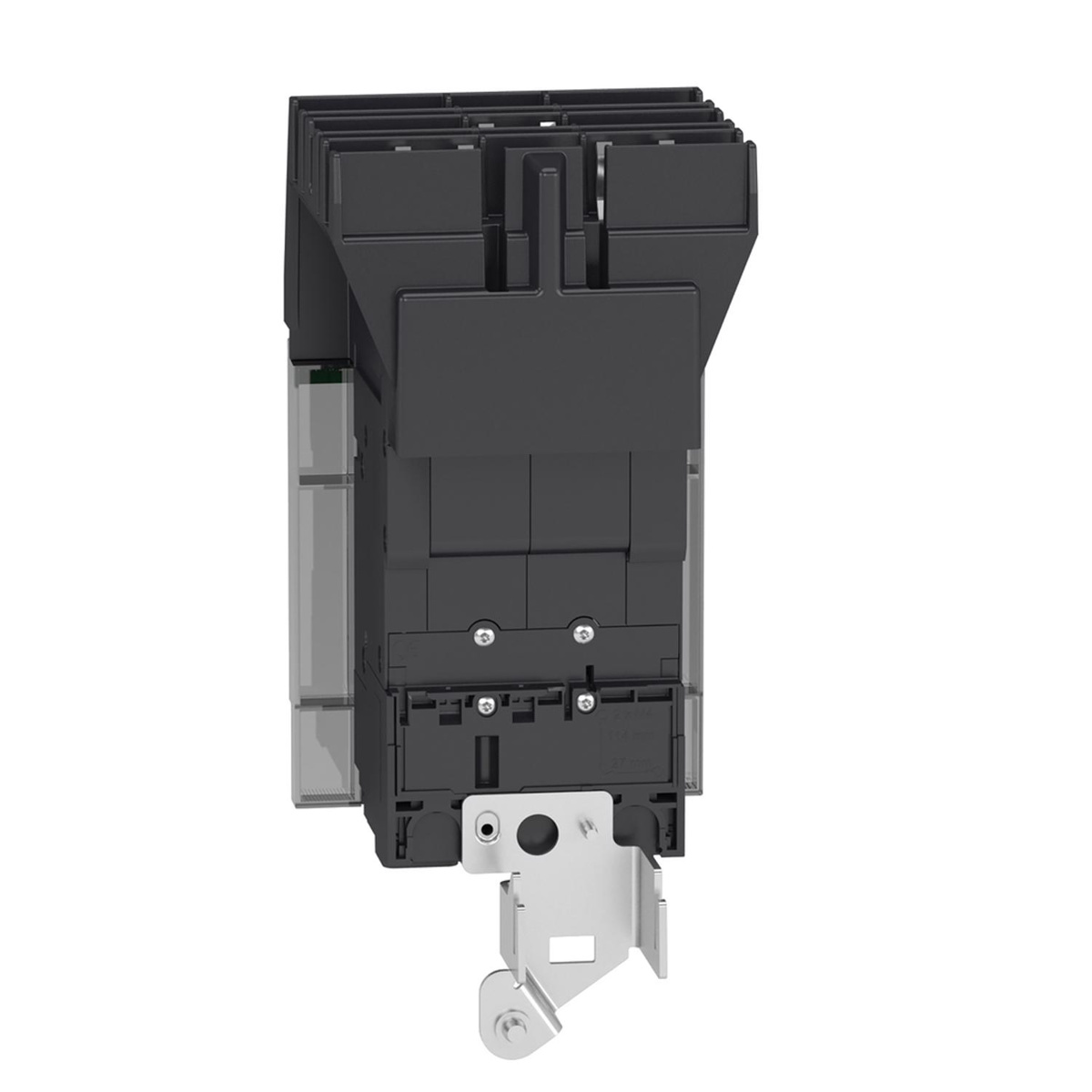

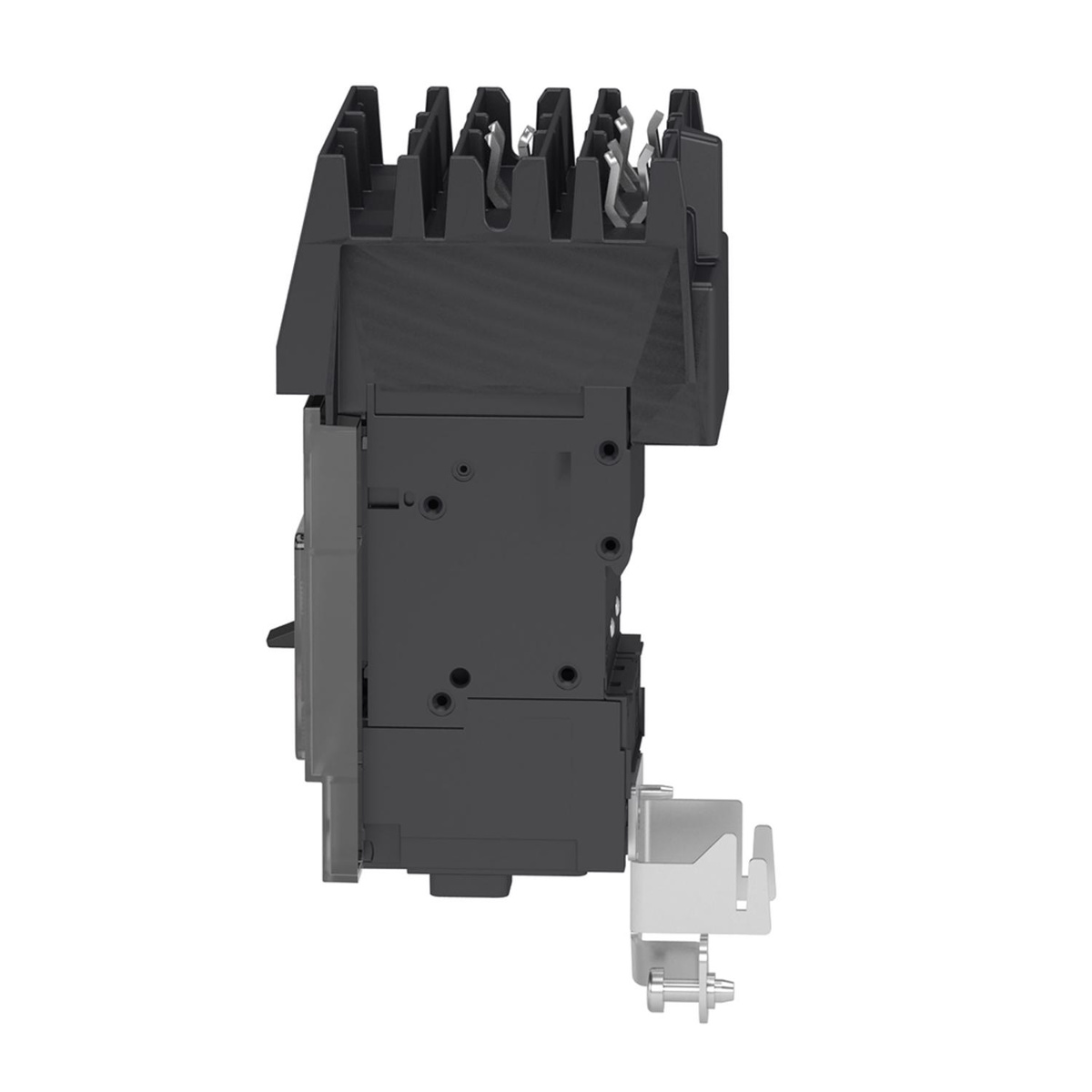

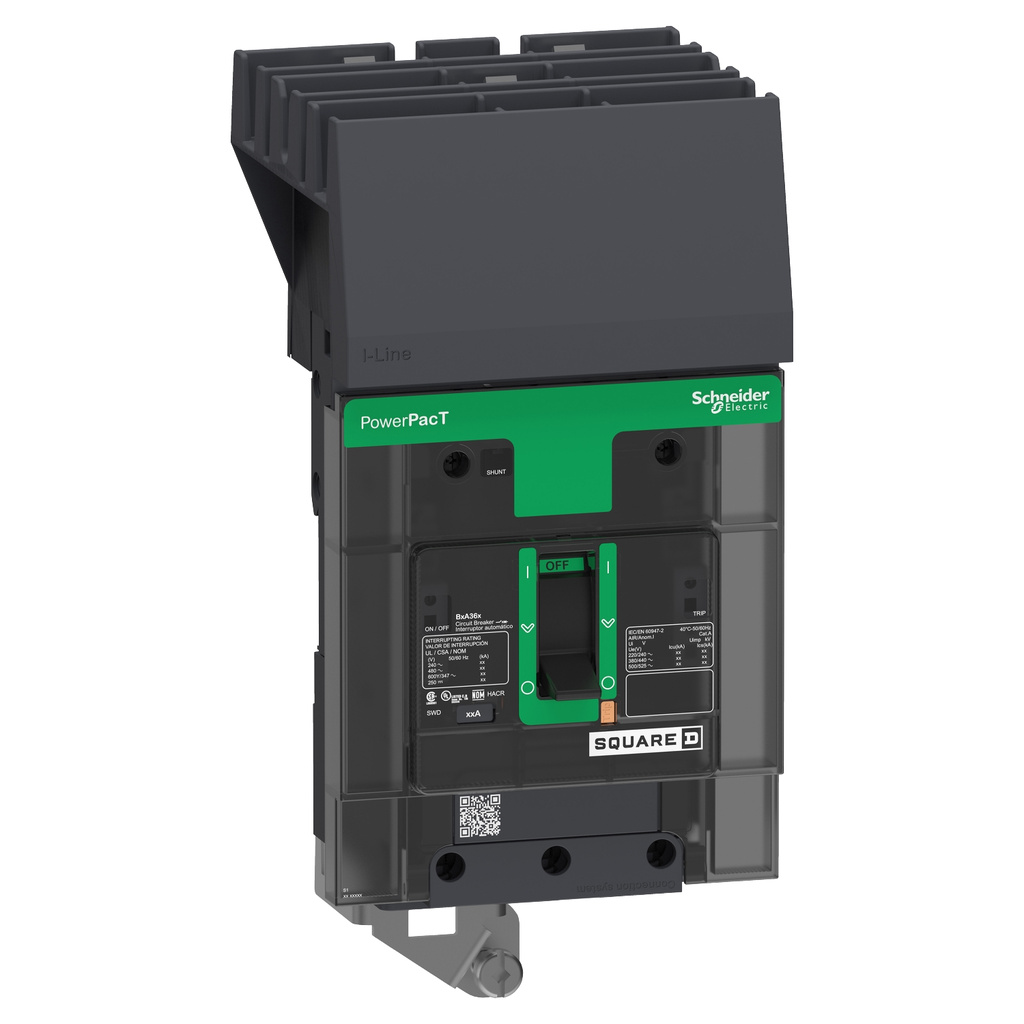

Schneider Electric PowerPacT™ BDA B Frame I-Line™ Circuit Breakers 15-15 A 480Y/277 VAC 18 kAIC 3 Pole 3 Phase
PowerPact™ I-Line™ Circuit Breakers
- BDA Series
- B Frame
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | I-Line |
| Voltage | 480Y/277 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 18 kAIC |
| Number of Phases | 3 Phase |
| Wire Size | 14 - 2/0 AWG |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 15-15 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 3 Pole |
| Net Weight | 1.315 kg |
| Product Certifications | UL ,, IEC ,, CCC ,, EAC ,, CSA ,, NOM |
| Wire Stripping Length | 20 mm |
| [Ith] Conventional Free Air Thermal Current | 15 A |
| Certificate 3 | Compliance |
|
| Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf) | Brochure |
|
| Certificate 1 | Compliance |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Certificate 2 | Compliance |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Catalog 2 | Catalog |
|
Installing Unit Mount PowerPact™ B-Frame Breakers onto Backpan | Schneider Electric Support
Tutorial for backpan mounting Unit Mount PowerPact™ B-Frame Molded Case Circuit Breakers by lining...
Installing LV426963 3 Pole Terminal Nut Kit onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426963 3 Pole Terminal Nut Kit on PowerPact B-Frame Molded Case...
Installing the Direct Mount Rotary Handle onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426930 Direct Mount Rotary Handle on PowerPact B-Frame Molded Case...
Mounting Shunt/Undervoltage Trip to PowerPact™ B-Frame Circuit Breakers | Schneider Electric Support
Tutorial for installing the AC Shunt Trip or Undervoltage Relay on PowerPact™ B-Frame Molded Case...
Installing LV426905 ON/OFF Padlock Attachment on PowerPact B Breaker | Schneider Electric Support
Tutorial for installing the LV426905 Fixed ON/OFF Padlock Attachment on PowerPact B-Frame Molded...
Installing LV426906 Fixed OFF Padlock Attachment on PowerPact B Breaker | Schneider Electric Support
Tutorial for installing the LV426906 Fixed OFF-Only Padlock Attachment on PowerPact B-Frame Molded...
