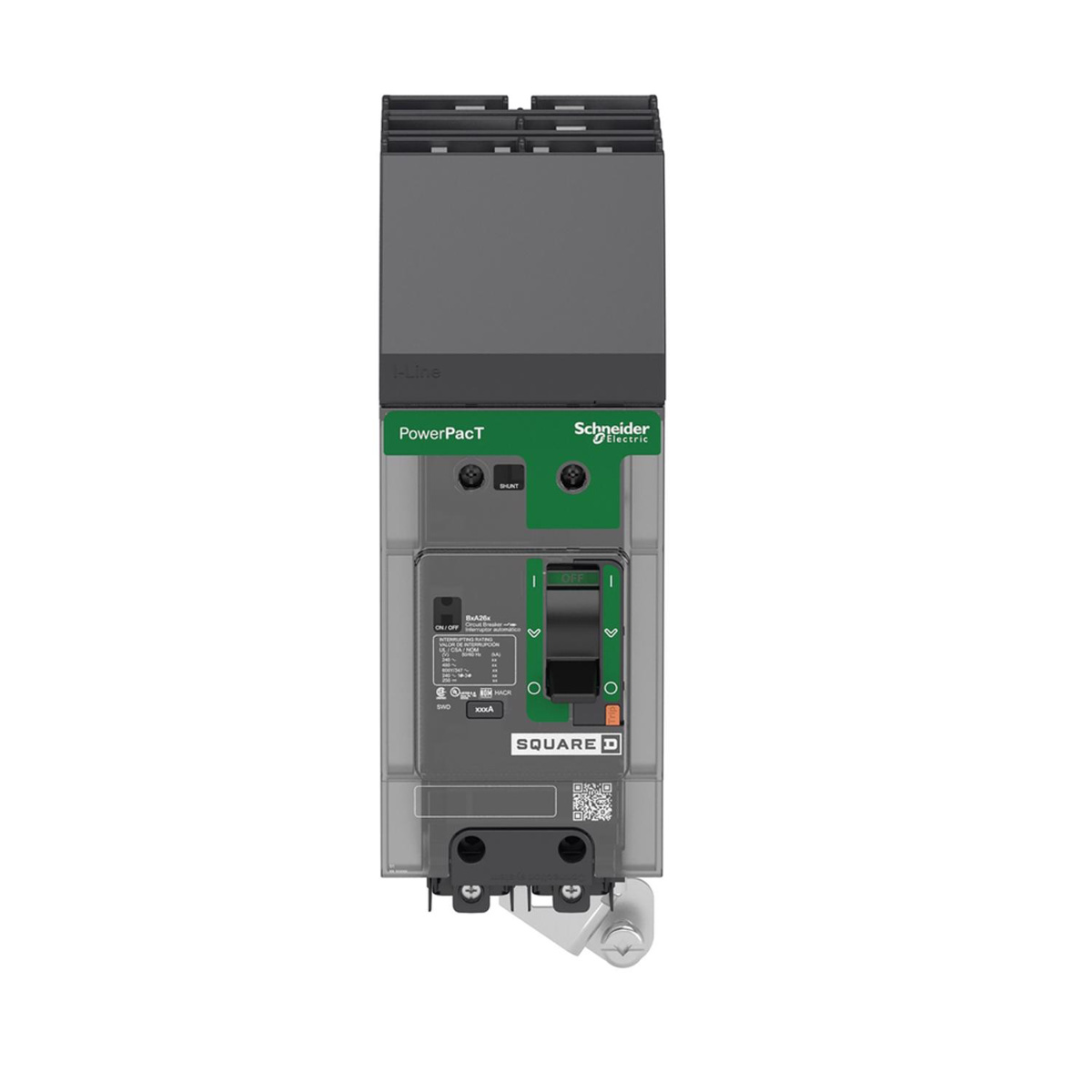

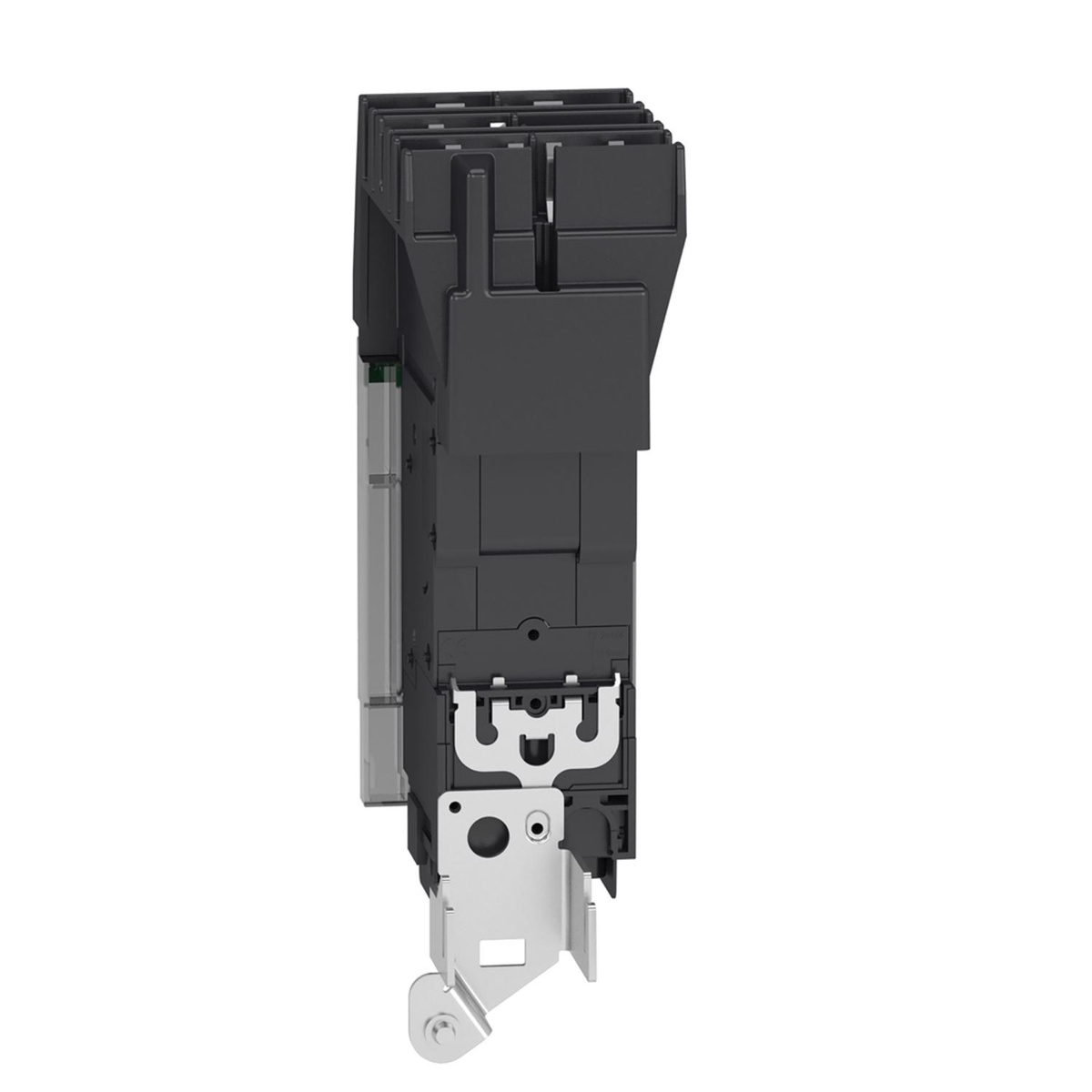

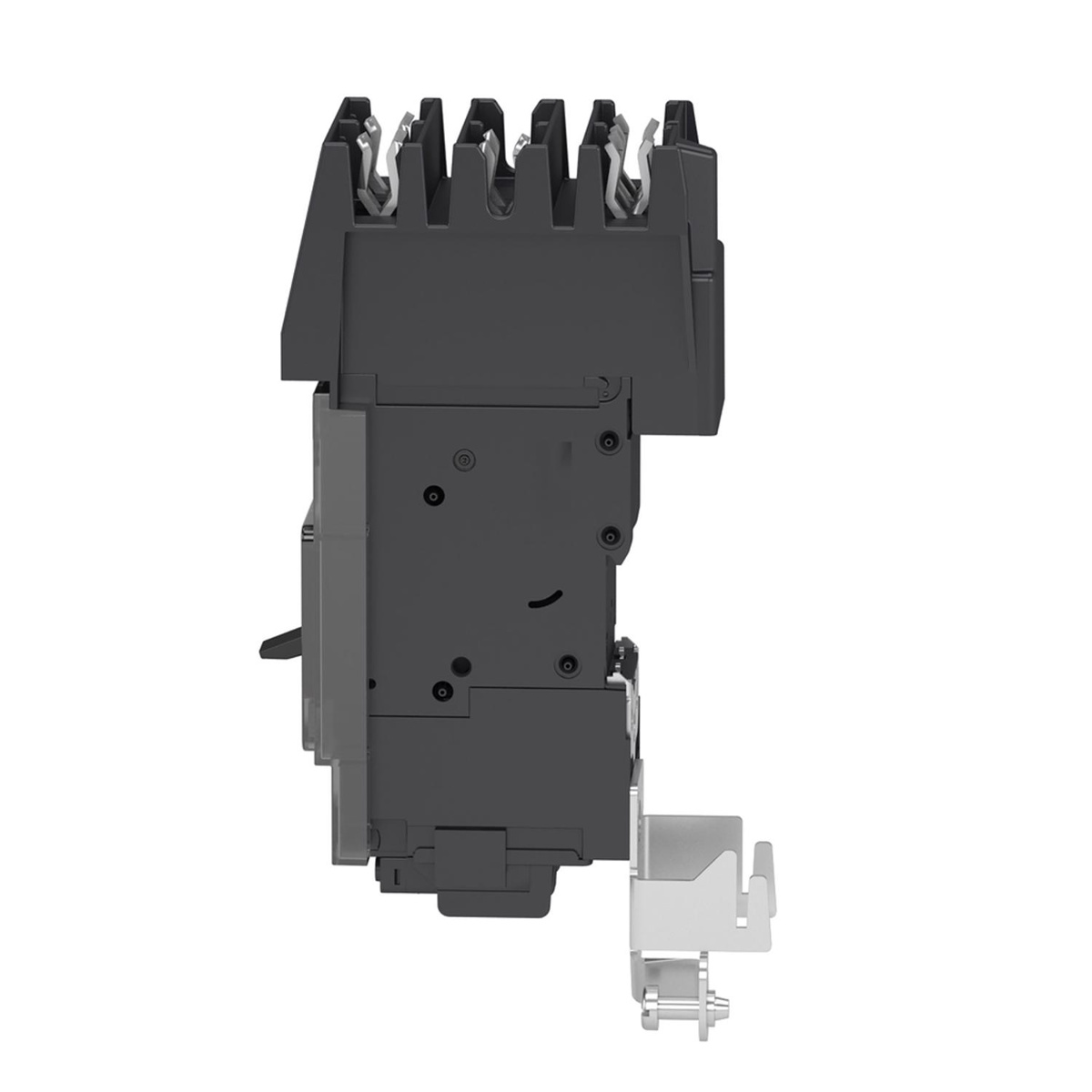

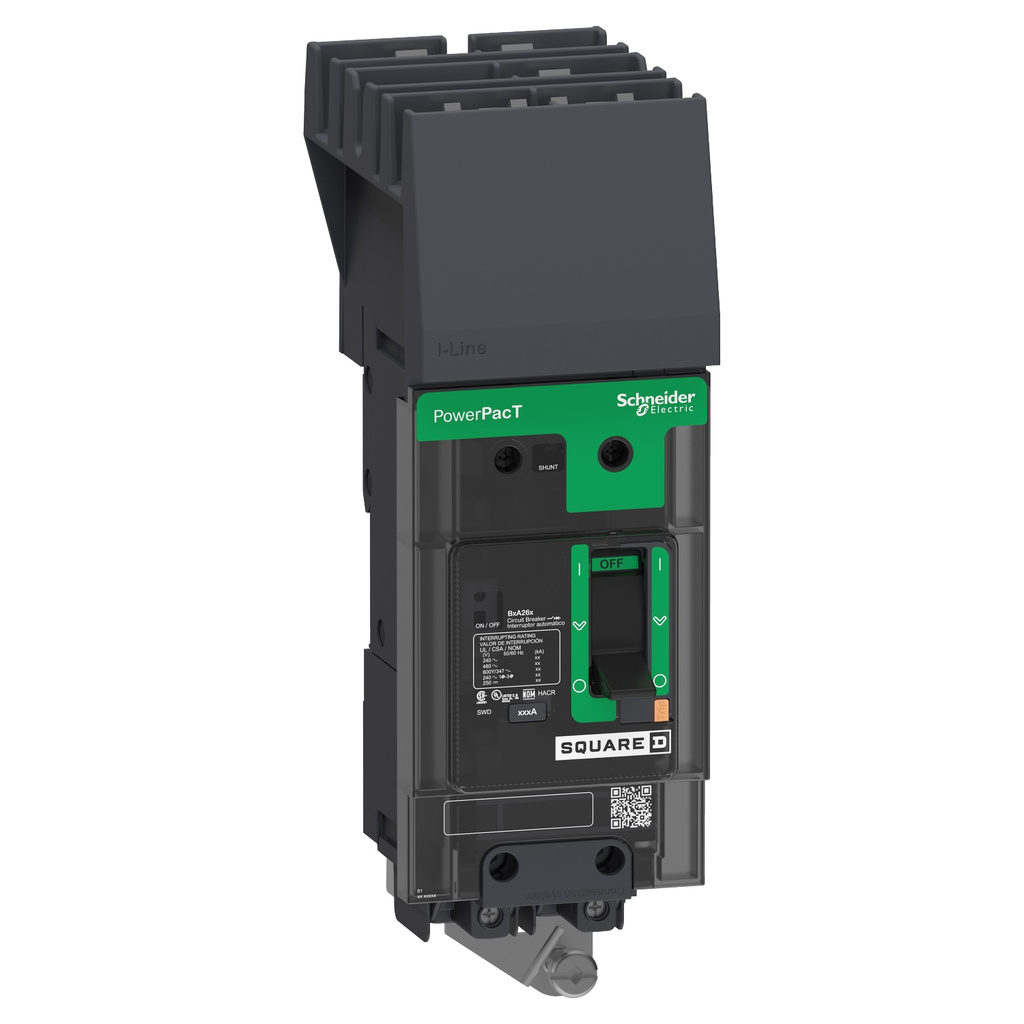

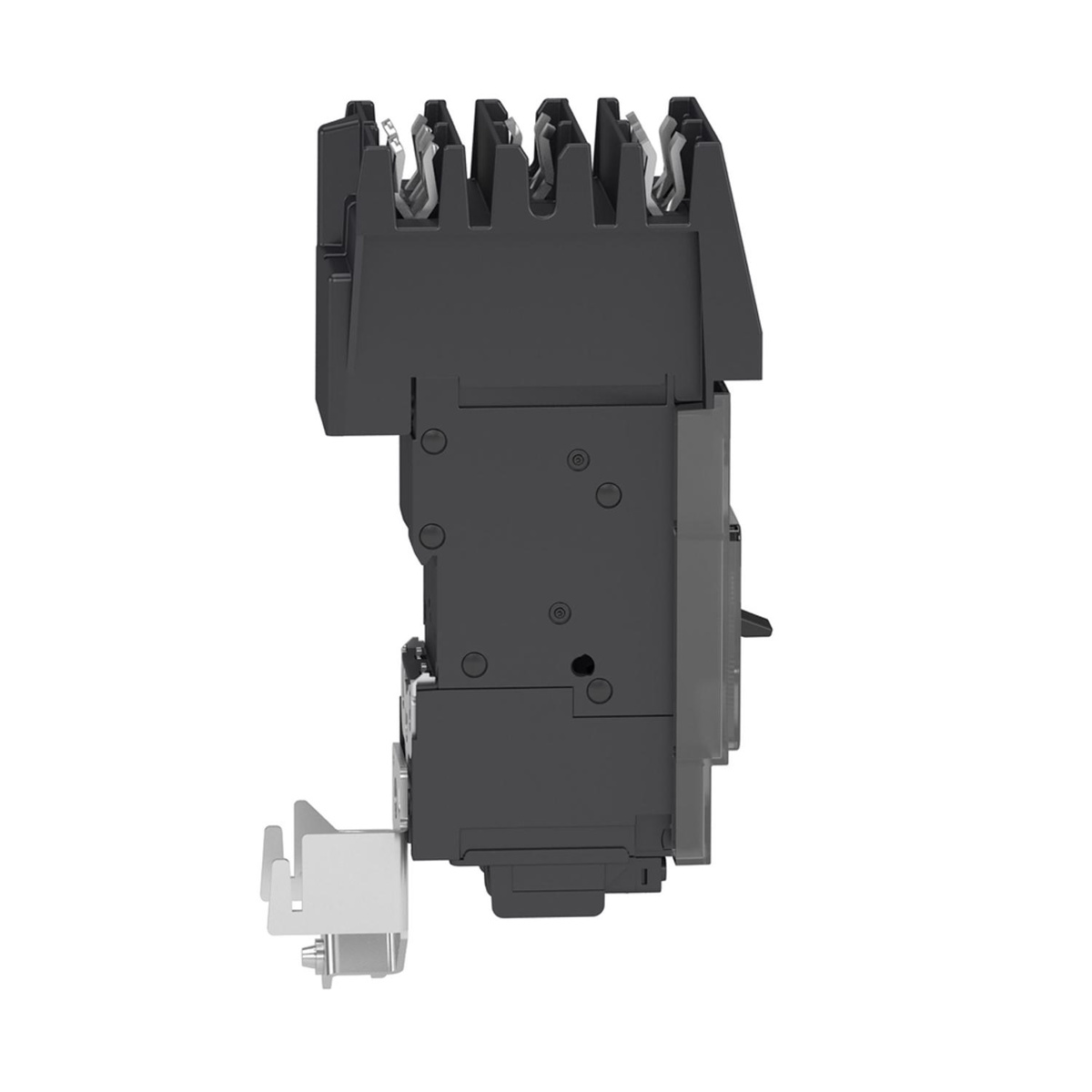

Schneider Electric PowerPacT™ BDA B Frame I-Line™ Circuit Breakers 20 A 480Y/277 VAC 18 kAIC 2 Pole
PowerPact™ I-Line™ Circuit Breakers
- BDA Series
- B Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 480Y/277 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 18 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 20 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 2 Pole |
| Net Weight | 0.952 kg |
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf) | Catalog |
|
| Certificate 3 | Compliance |
|
| Certificate 2 | Compliance |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
