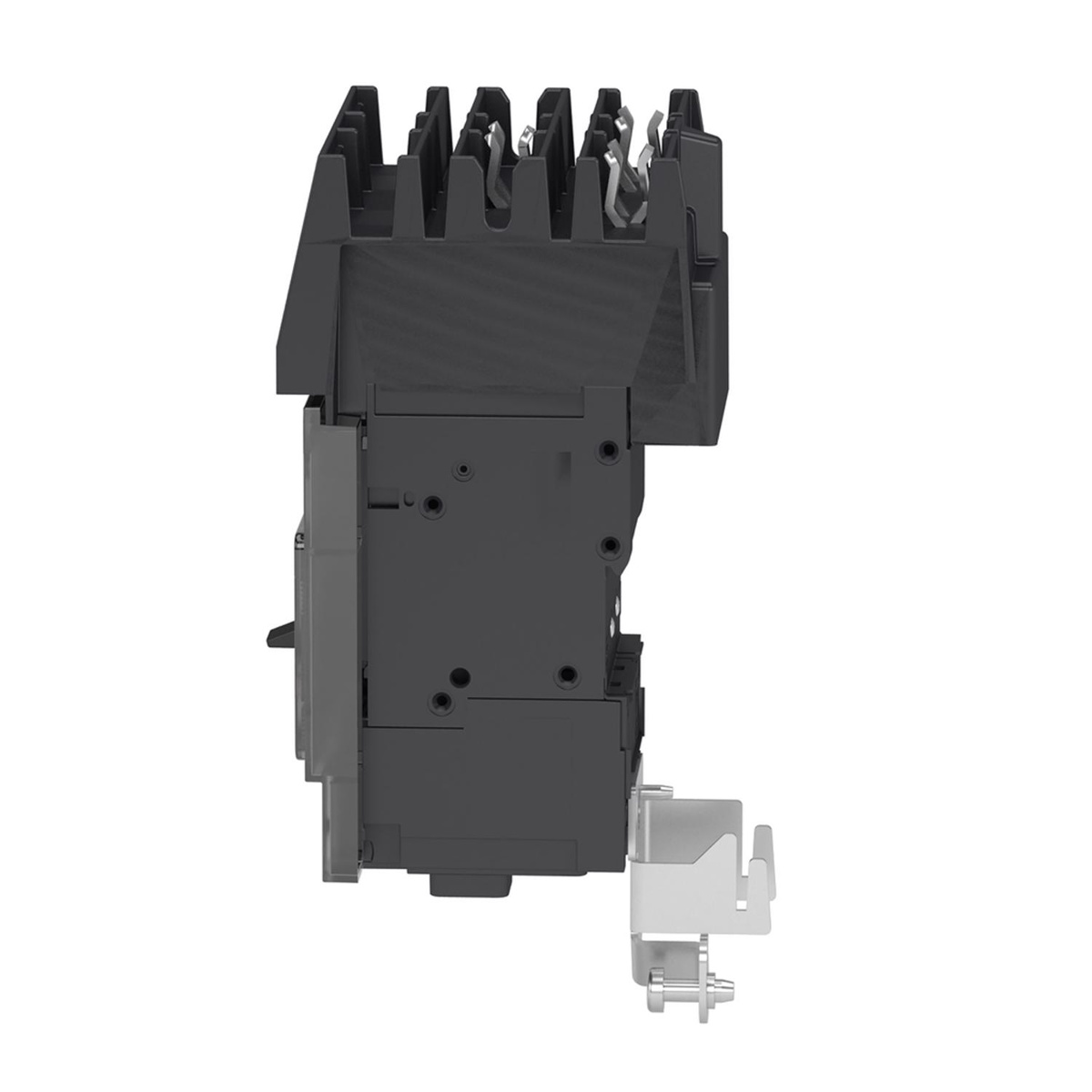

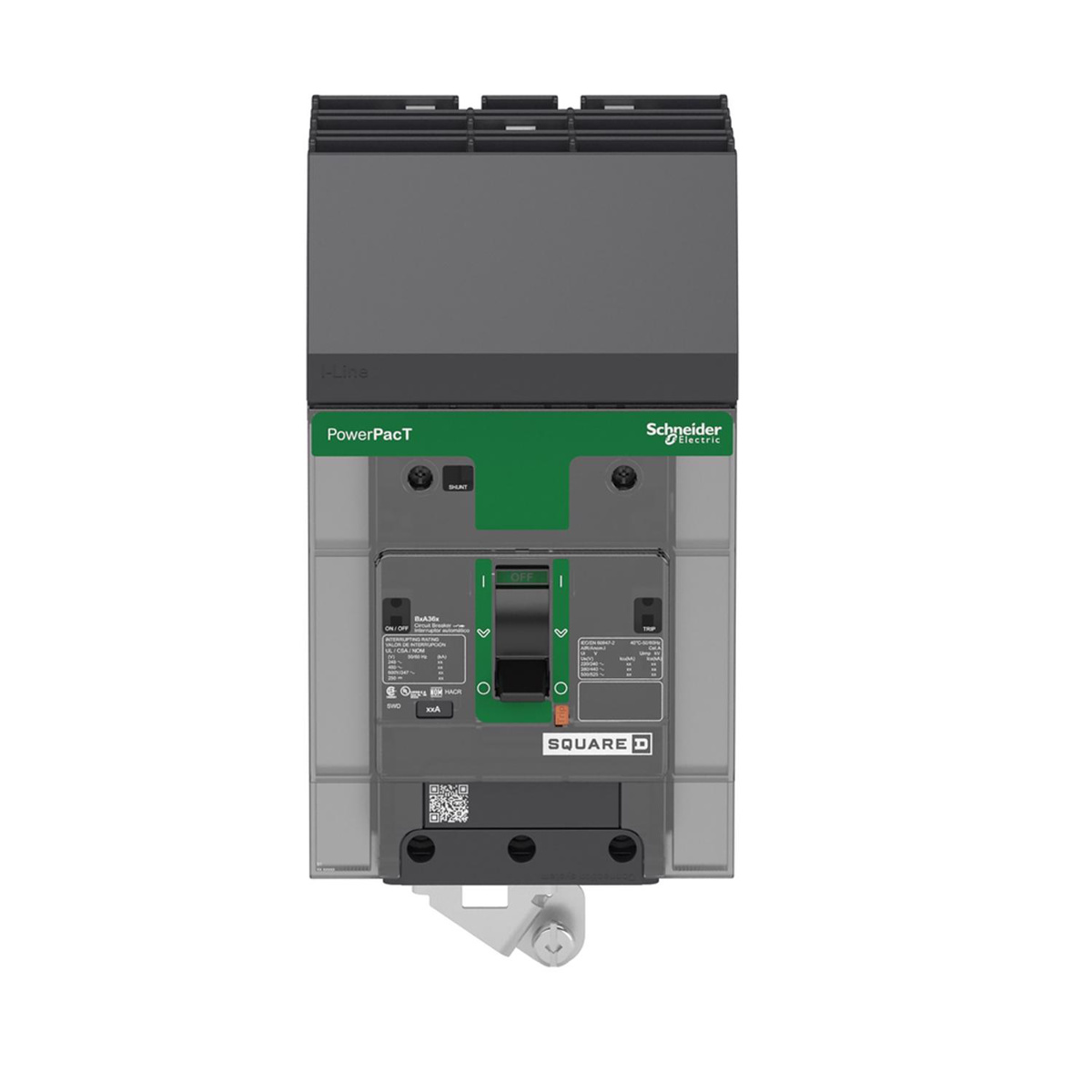

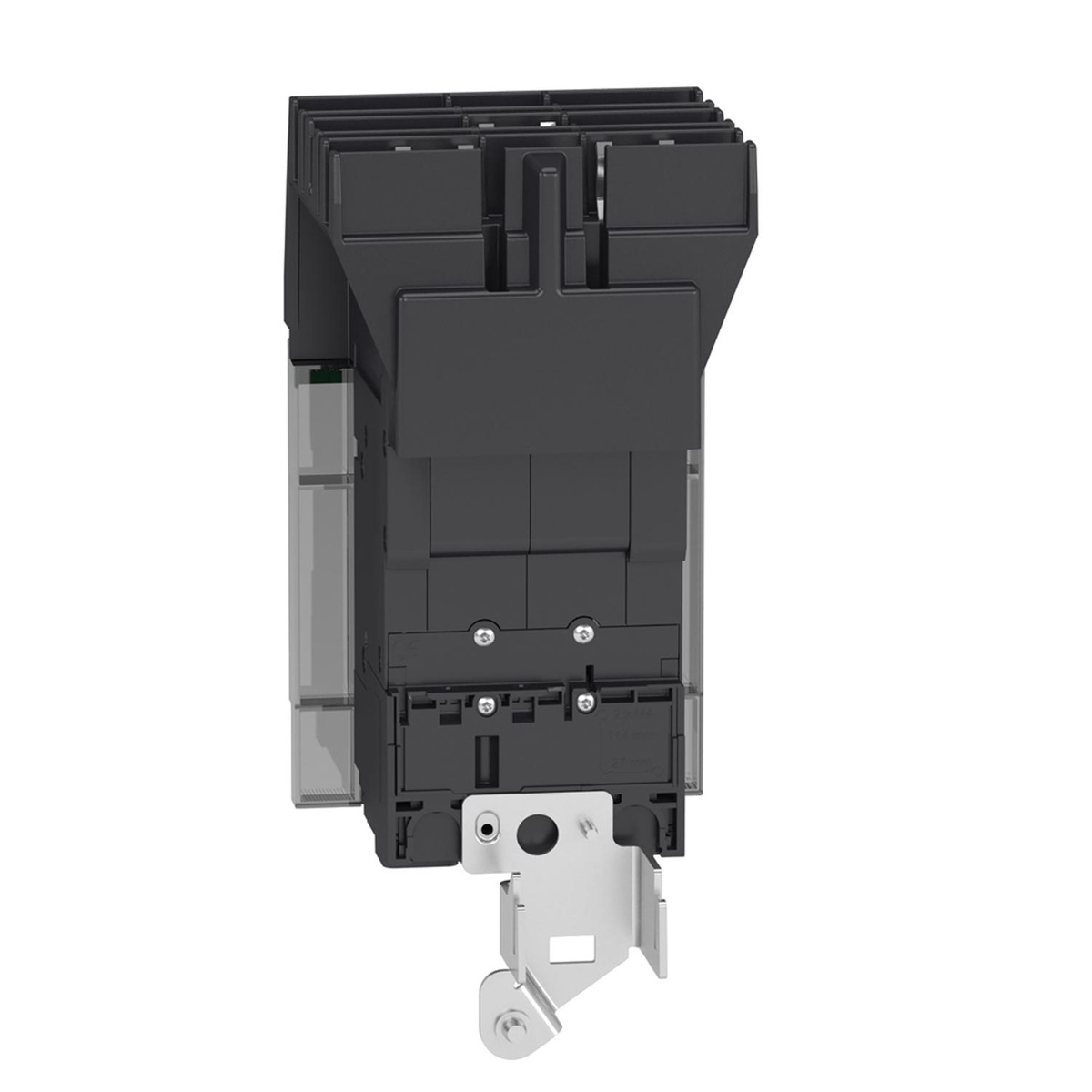

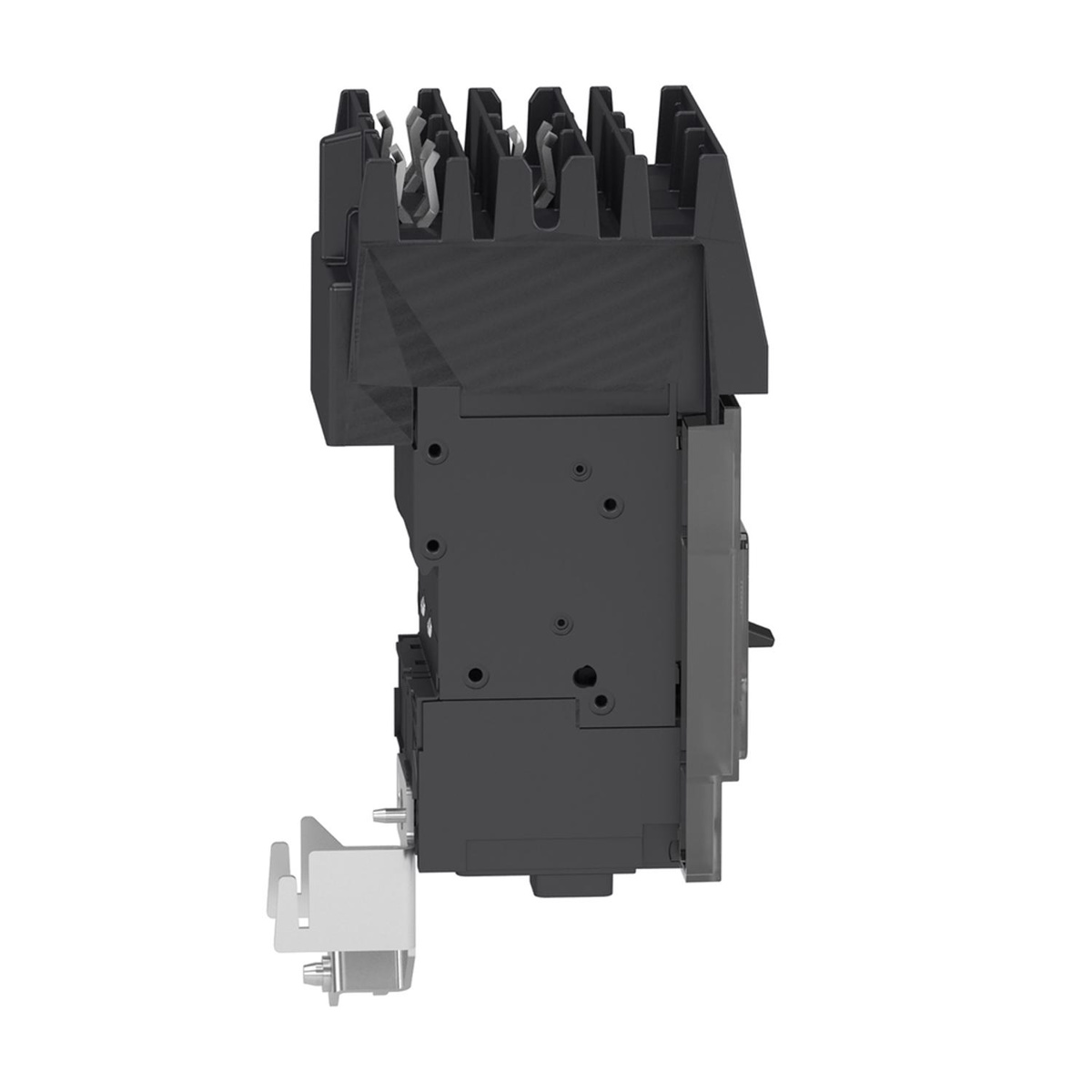

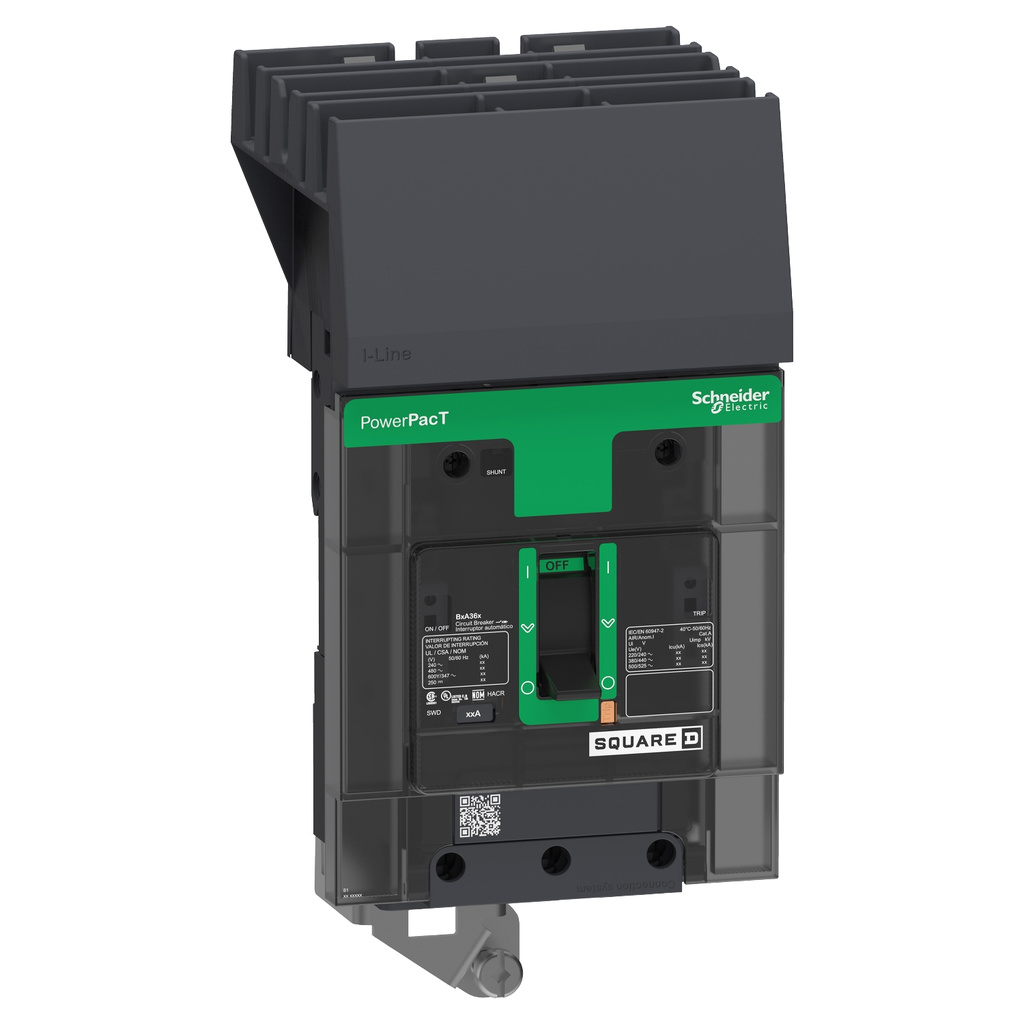

Schneider Electric PowerPacT™ BDA B Frame I-Line™ Circuit Breakers 45 A 480Y/277 VAC 18 kAIC 3 Pole
PowerPact™ I-Line™ Circuit Breakers
- BDA Series
- B Frame
| Brand | Square D |
| Voltage | 480Y/277 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 18 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 45 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 1.315 kg |
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Certificate 3 | Compliance |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Certificate 1 | Compliance |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
| Catalog 2 | Catalog |
|
| Square D I-Line Panelboards and Switchboards Brochure - 2100BR1301 (pdf) | Brochure |
|
| Certificate 2 | Compliance |
|
