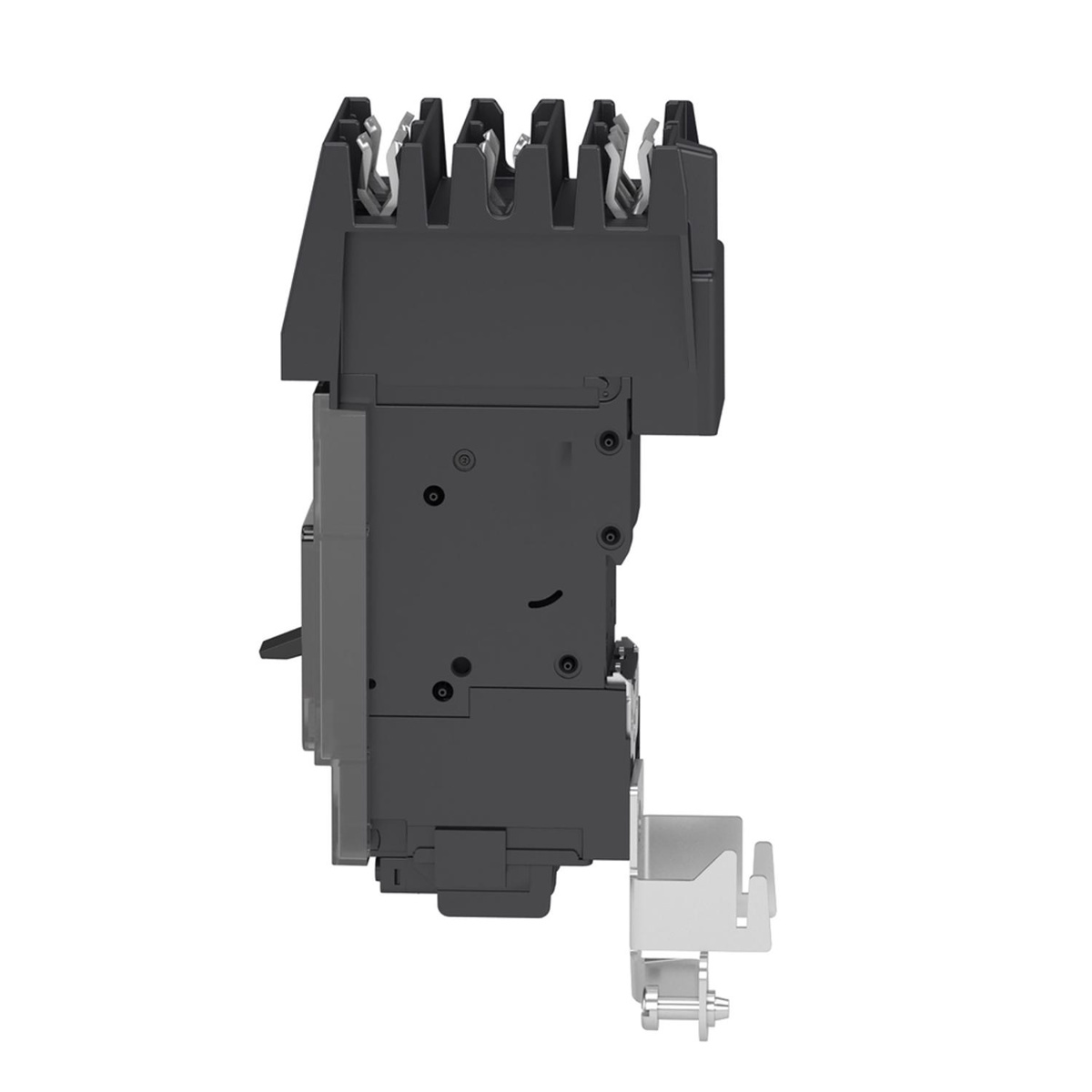

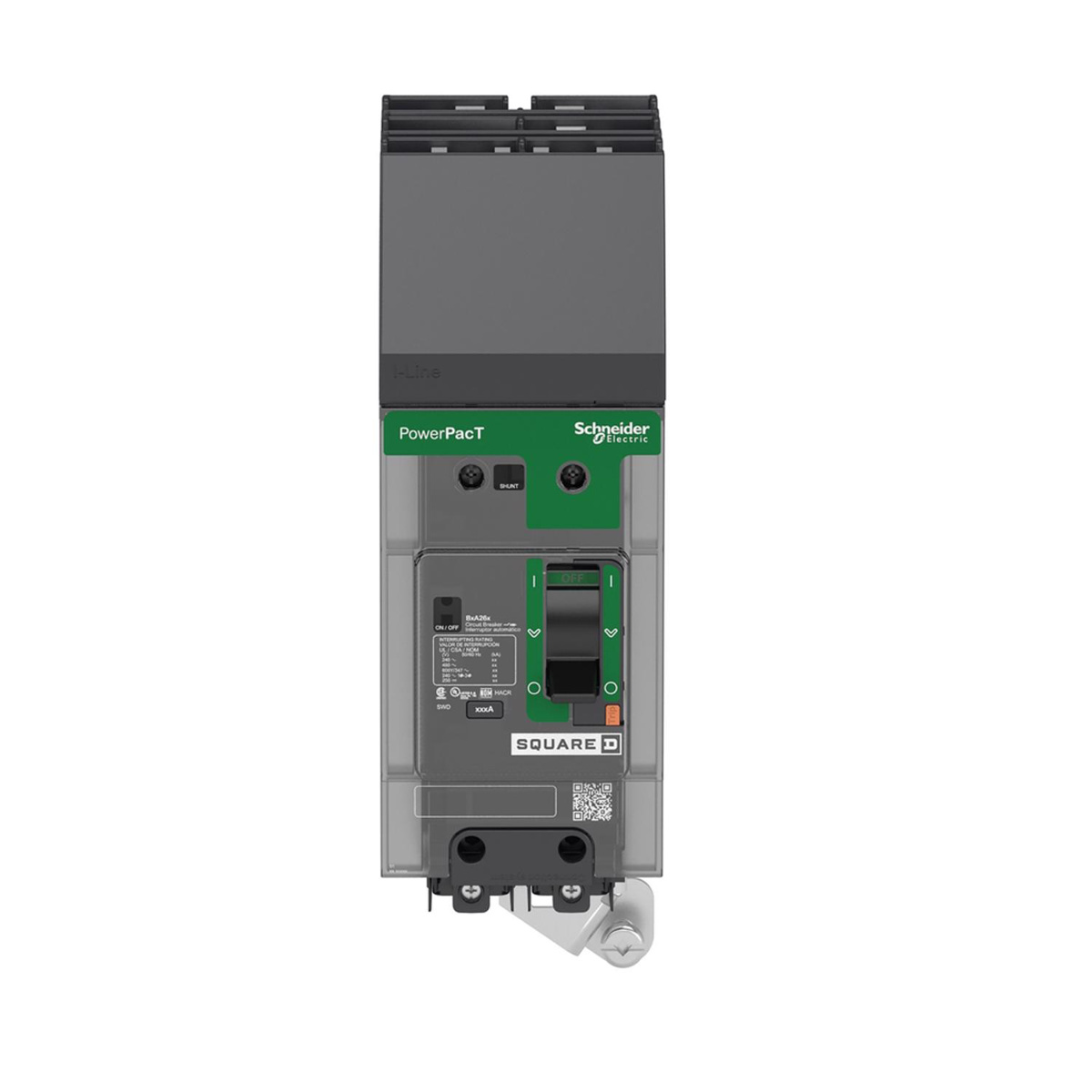

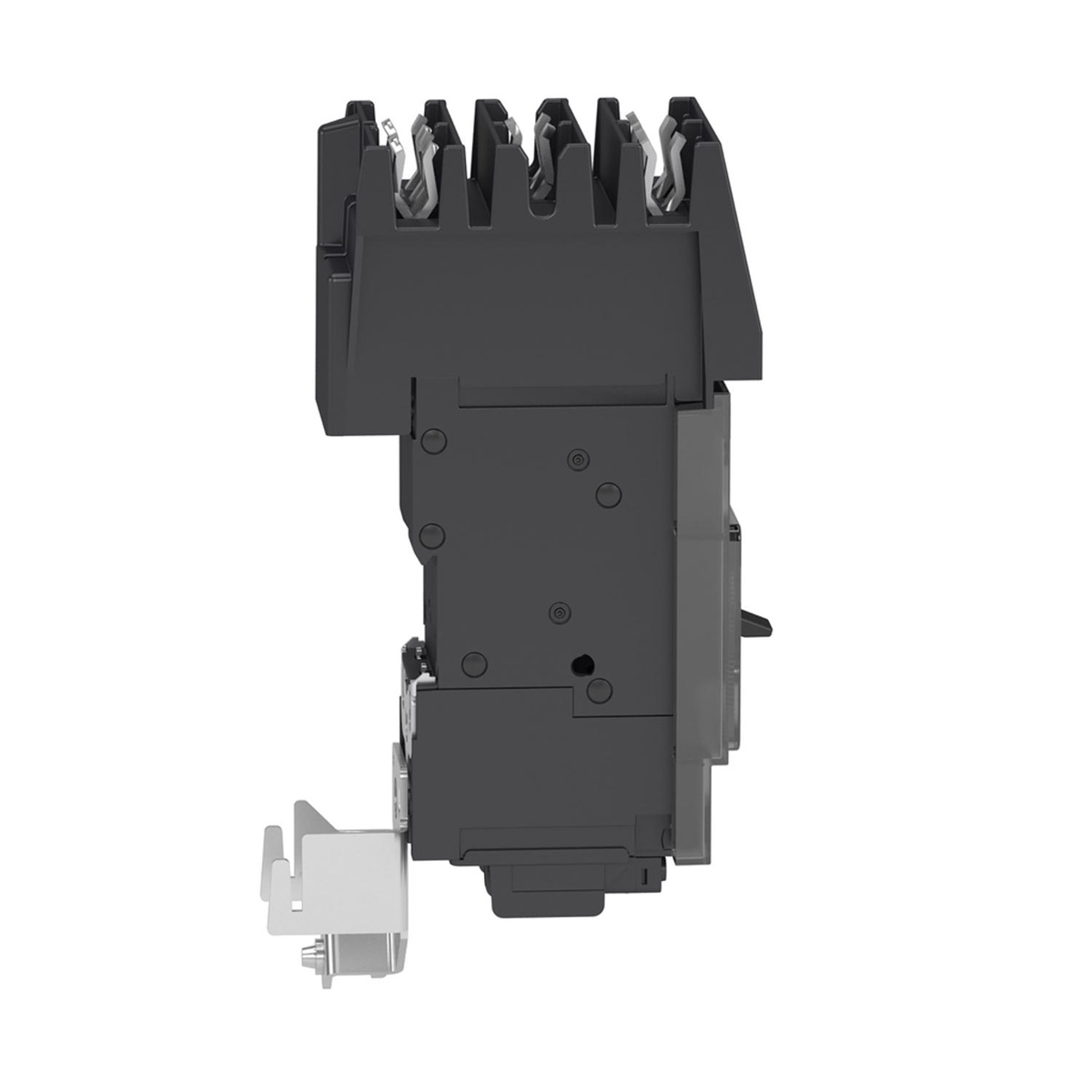

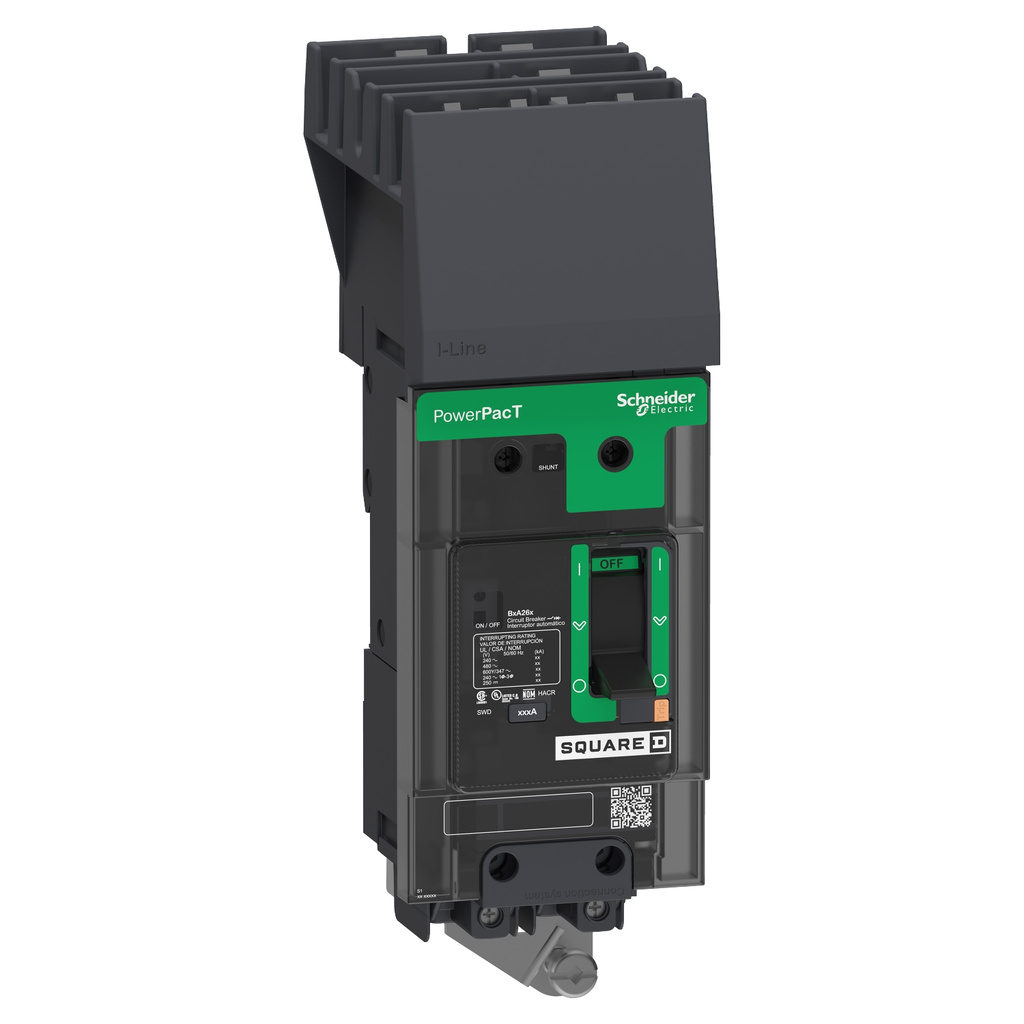

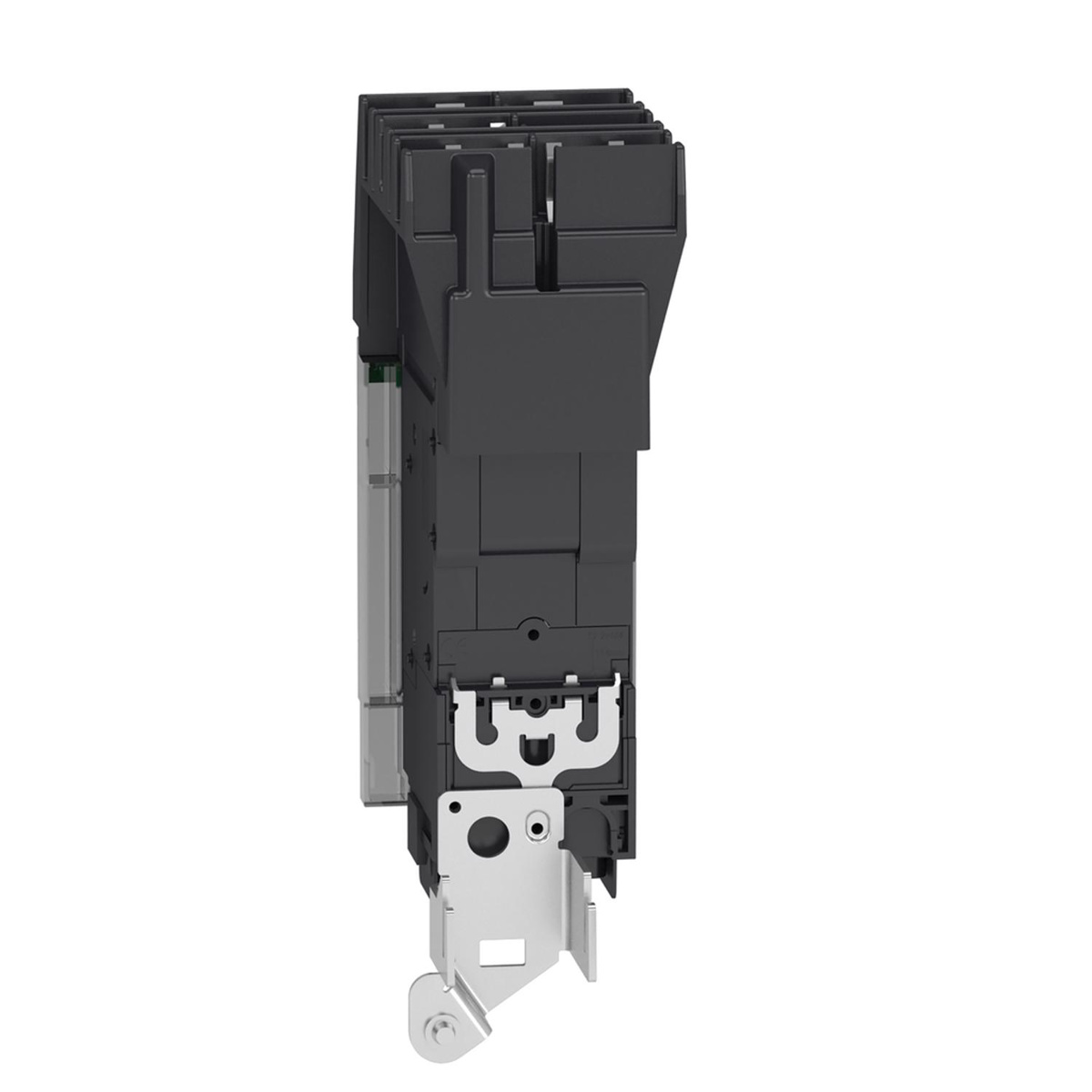

Schneider Electric PowerPacT™ BDA B Frame I-Line™ Circuit Breakers 90 A 600Y/347 VAC 14 kAIC 2 Pole
PowerPact™ I-Line™ Circuit Breakers
- BDA Series
- B Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 14 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 90 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 2 Pole |
| Net Weight | 0.952 kg |
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf) | Catalog |
|
| PowerPacT B I-Line Circuit Breakers Installation Instructions - GDE55876 (pdf) | Installation and Instruction Manuals |
|
Installing LV426920 Interphase Barrier onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426920 Interphase Barrier insulation accessory on PowerPact B-Frame...
Installing Power Distribution Connectors on PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the Power Distribution Connectors onto PowerPact B-Frame Molded Case ...
Installing S29370 Padlock Attachment on PowerPact B, H, J & L Breakers | Schneider Electric Support
Tutorial for installing the S29370 Removable OFF Position Padlock Attachment on PowerPact B-, H-, ...
Installing LV426922 Rear Insulation Screen onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426922 Rear Insulation Screen on PowerPact B-Frame Molded Case ...
Installing Mechanical Lug Kits on PowerPact B-Frame Breakers | Schneider Electric Support
Tutorial for installing aluminum or copper mechanical lug kits onto the PowerPact B-Frame Molded...
Installing LV426950 Auxiliary/Alarm Switch on PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426950 Auxiliary / Alarm Switch on PowerPact B-Frame Molded Case...
