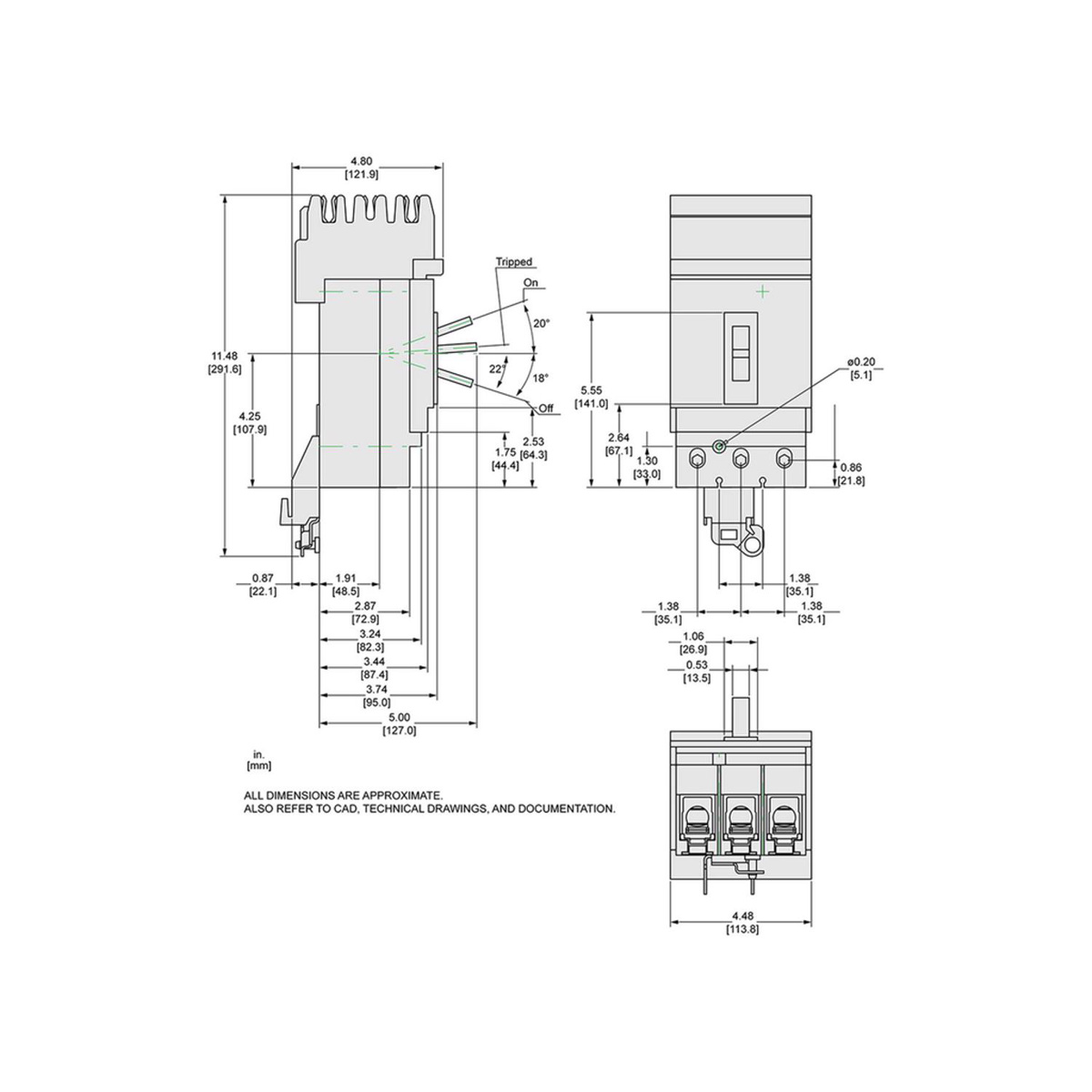

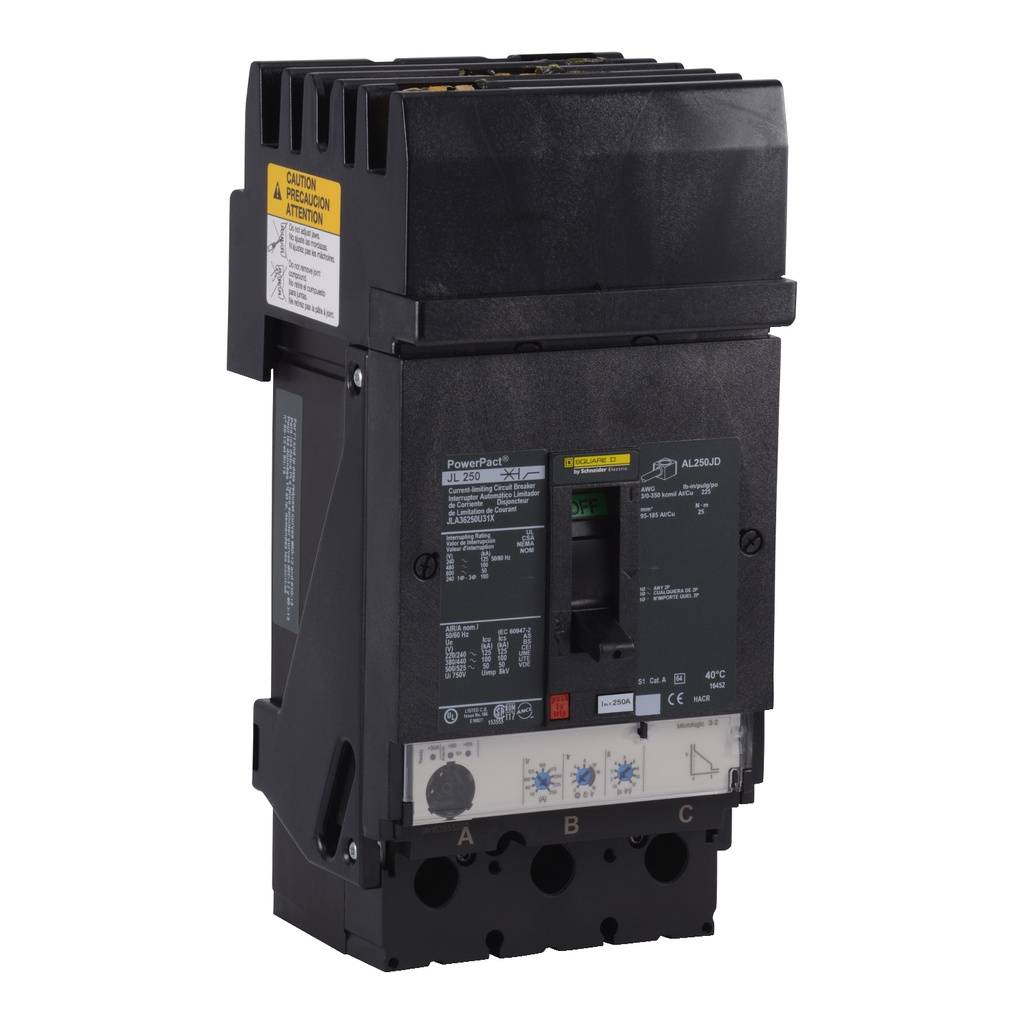

Square D JLA J Frame Molded Case Circuit Breakers 250 A 600 VAC 50 kAIC 3 Pole
Molded Case Circuit Breakers
- JLA Series
- J Frame
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 50 kAIC |
| Trip Type | Electronic |
| Amperage | 250 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 2.4 kg |
| Certificate | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT™ H- and J-Frame Electronic Trip Circuit Breaker Installation Instructions - JYT65475+Rev.+01 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
