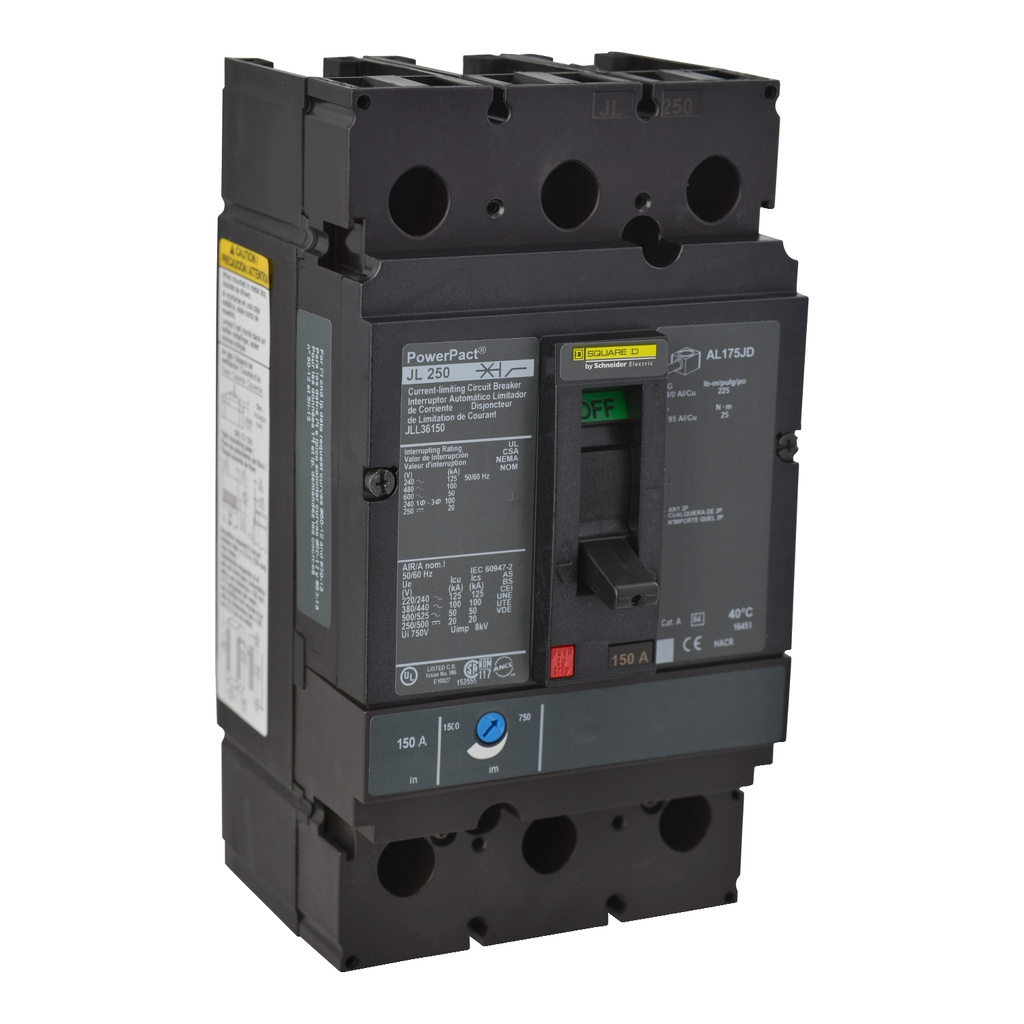

Square D JLL J Frame Molded Case Circuit Breakers 150 A 600 VAC 50 kAIC 3 Pole
Mfg #:
JLL36150
BOR #:
1685476
Molded Case Circuit Breakers
- JLL Series
- J Frame
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | J Frame |
| Interrupting Rating | 50 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 150 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 2.4 kg |
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPacT™ H- and J-Frame Circuit Breakers and Switches – Installation - JYT65471_Rev+02 (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
| NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf) | Catalog |
|
| Certificate 2 | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
