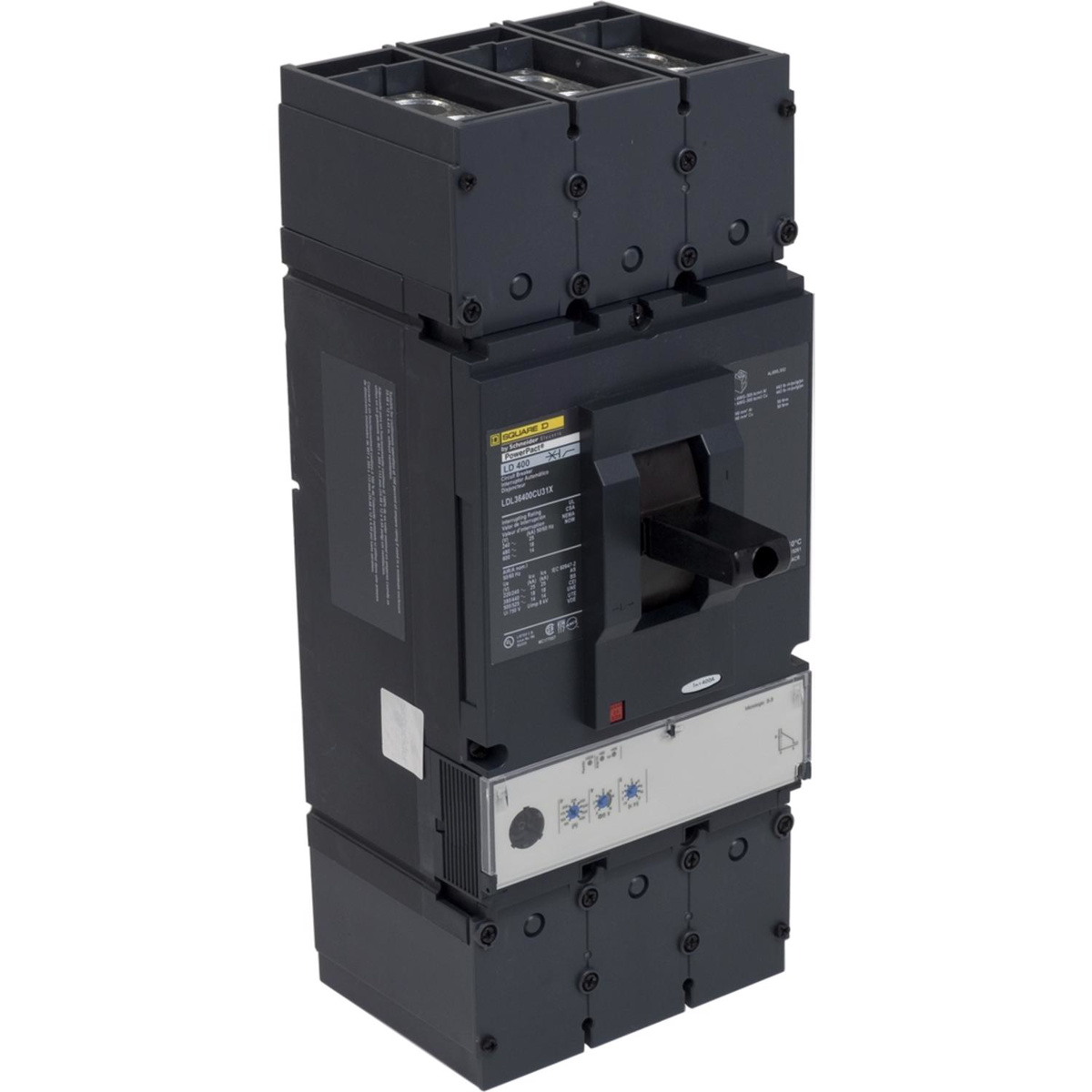

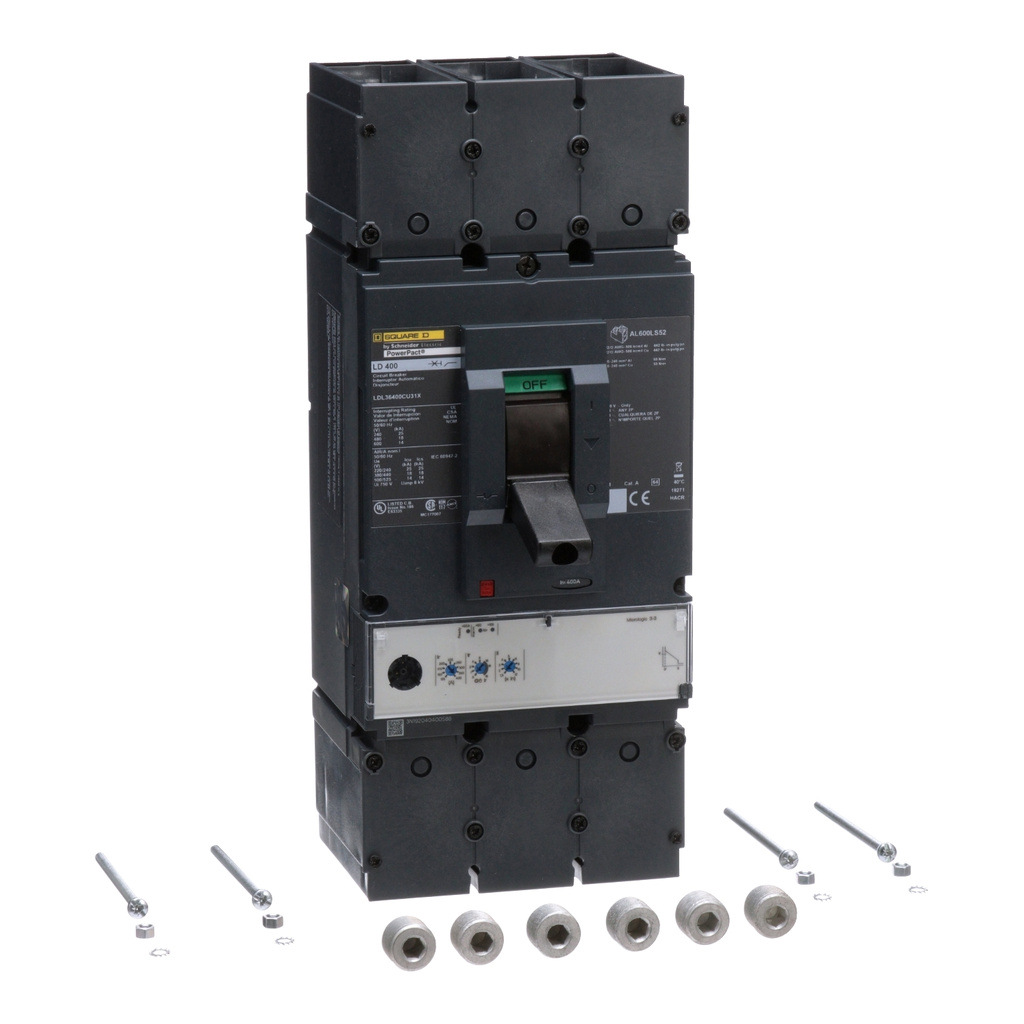

Square D LDL L Frame Molded Case Circuit Breakers 400 A 600 VAC 14 kAIC 3 Pole
Mfg #:
LDL36400CU31X
BOR #:
3018554
Molded Case Circuit Breakers
- LDL Series
- L Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | L Frame |
| Interrupting Rating | 14 kAIC |
| Trip Type | Electronic |
| Amperage | 400 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 6.2 kg |
| Mechanical Lug Kits for PowerPacT L-Frame and TeSys GV6 Circuit Breakers Installation Instructions - S1A14748 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT L-Frame Mission Critical Circuit Breaker Installation Instructions - JYT65476 (pdf) | Installation and Instruction Manuals |
|
| Certificate 2 | Compliance |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPacT L-Frame Electronic Trip Circuit Breakers Installation Instructions - JYT65477+Rev+01 (pdf) | Installation and Instruction Manuals |
|
| Certificate 1 | Compliance |
|
| Certificate 3 | Compliance |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
