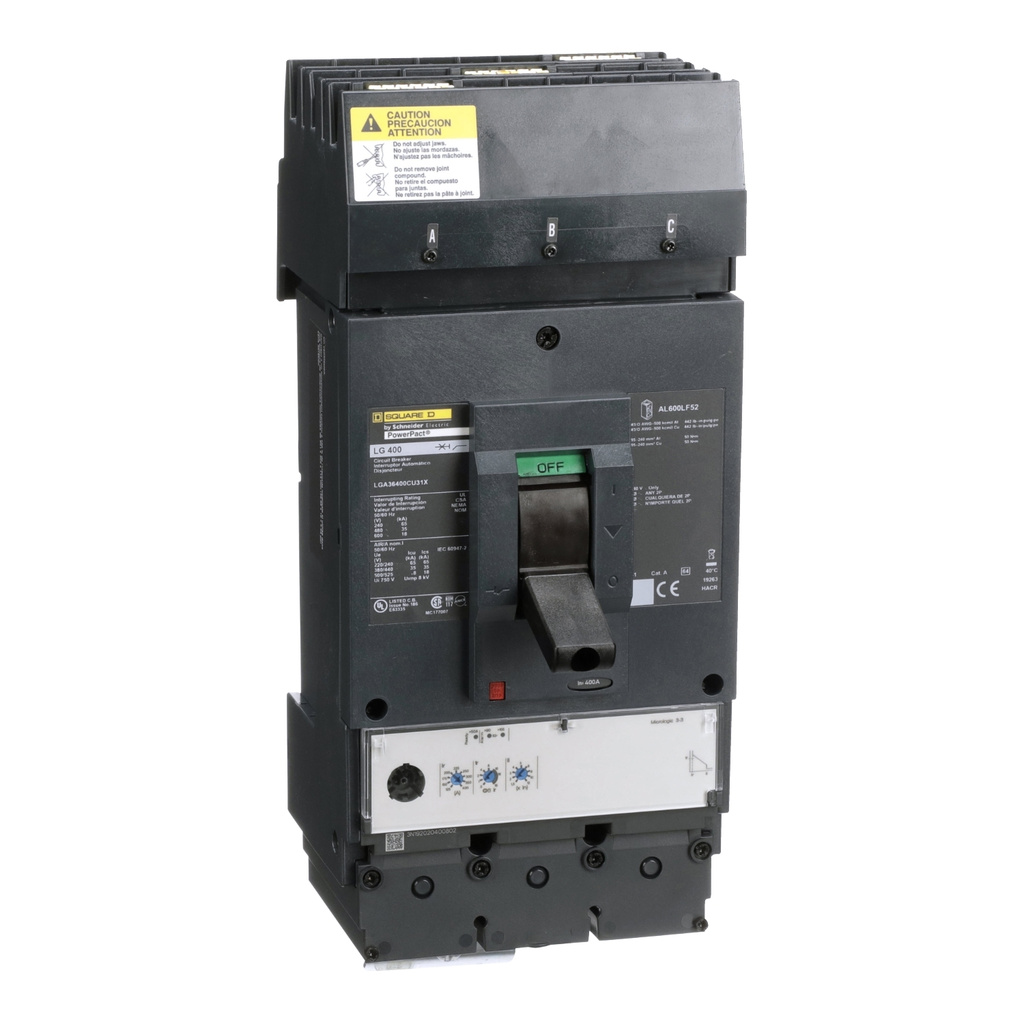

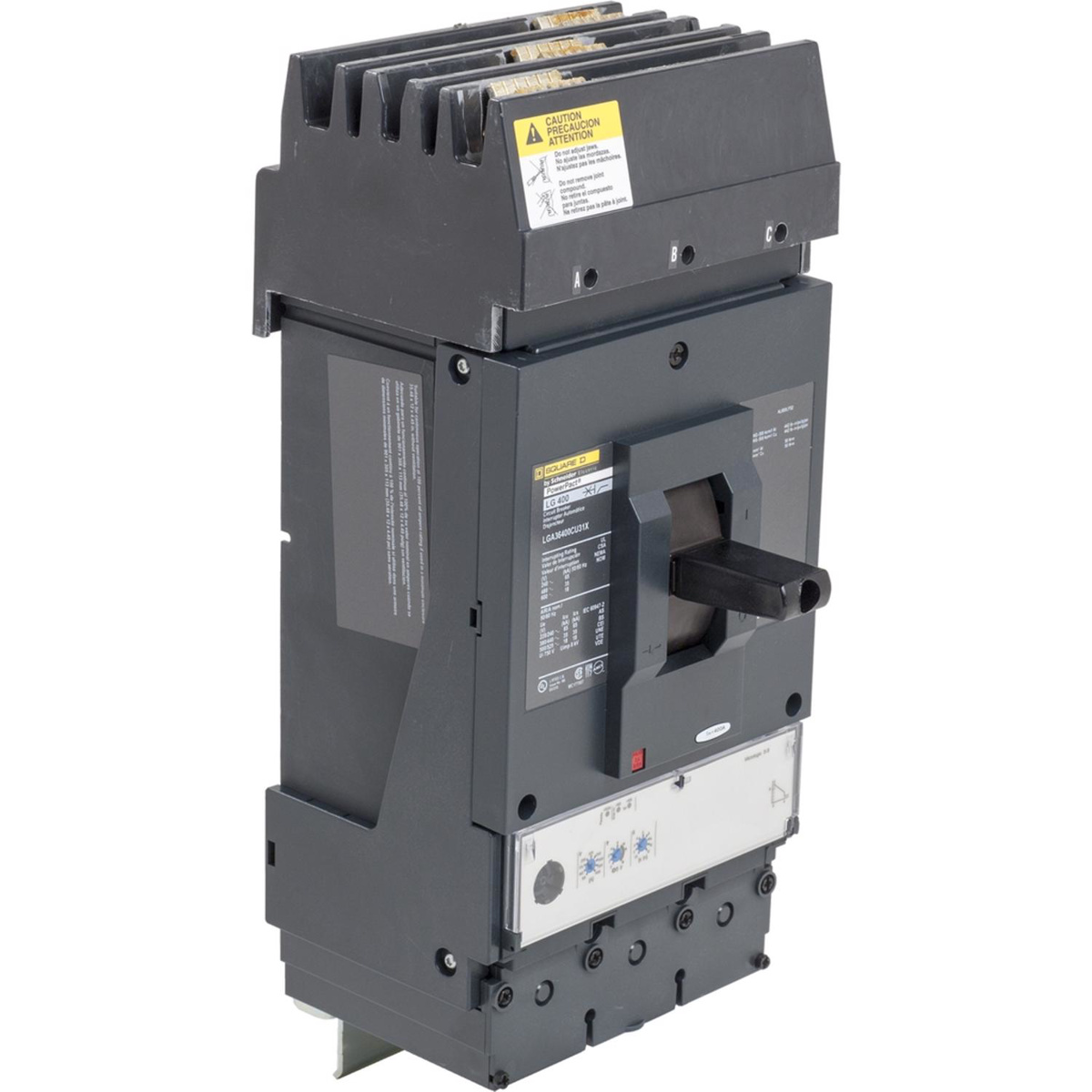

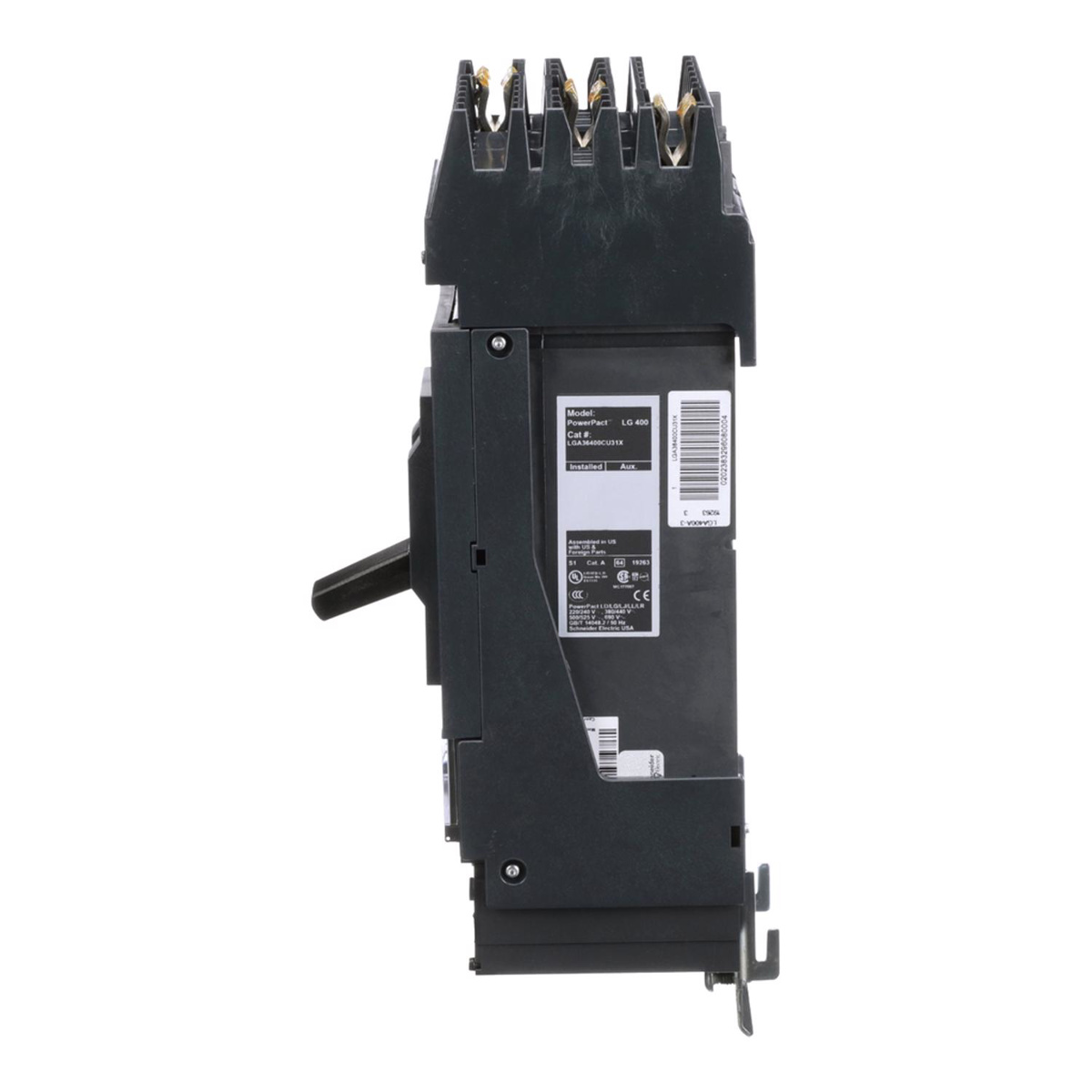

Square D LGA L Frame Molded Case Circuit Breakers 400 A 600 VAC 18 kAIC 3 Pole
Molded Case Circuit Breakers
- LGA Series
- L Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 600 VAC |
| Frame Type | L Frame |
| Interrupting Rating | 18 kAIC |
| Trip Type | Electronic |
| Amperage | 400 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 6.2 kg |
| Certificate 3 | Compliance |
|
| Certificate 1 | Compliance |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| PowerPacT L-Frame Electronic Trip Circuit Breakers Installation Instructions - JYT65477+Rev+01 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
| Certificate 2 | Compliance |
|
Installing MICROTUSEAL Micrologic Trip Unit Tamper Evident Seal | Schneider Electric Support
Tutorial for installing the MICROTUSEAL Micrologic Trip Unit Tamper Evident Seal on PowerPact H-,...
Installing S29370 Padlock Attachment on PowerPact B, H, J & L Breakers | Schneider Electric Support
Tutorial for installing the S29370 Removable OFF Position Padlock Attachment on PowerPact B-, H-, ...
Mounting Shunt/Undervoltage Trip to PowerPact H, J, or L-Frame Breakers | Schneider Electric
Learn how to properly mount a Shunt Trip or Undervoltage Relay (model S29386, 120V AC) onto...
Using Open Door Shaft Operator on PowerPact B, H, J, L-Frame Breakers | Schneider Electric Support
Tutorial for installing and using the LV426937 Open Door Shaft Operator for PowerPact™ B-, H-, J-,...
Mounting Shunt/Undervoltage Trip to PowerPact H, J, or L-Frame Breakers | Schneider Electric Support
Tutorial for installing the S29386 120v AC Shunt Trip / Undervoltage Relay on PowerPact™ H-, J-, or...
