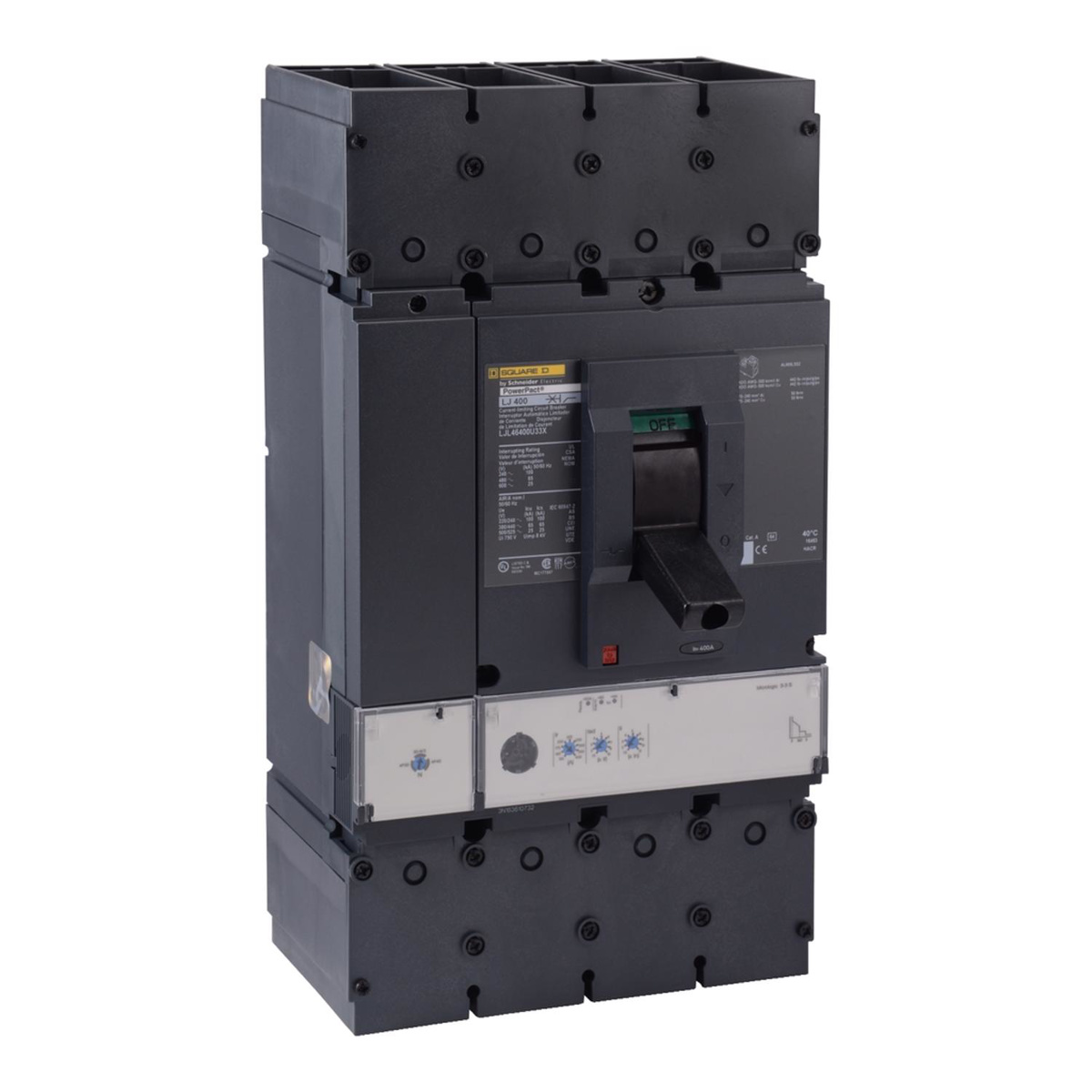

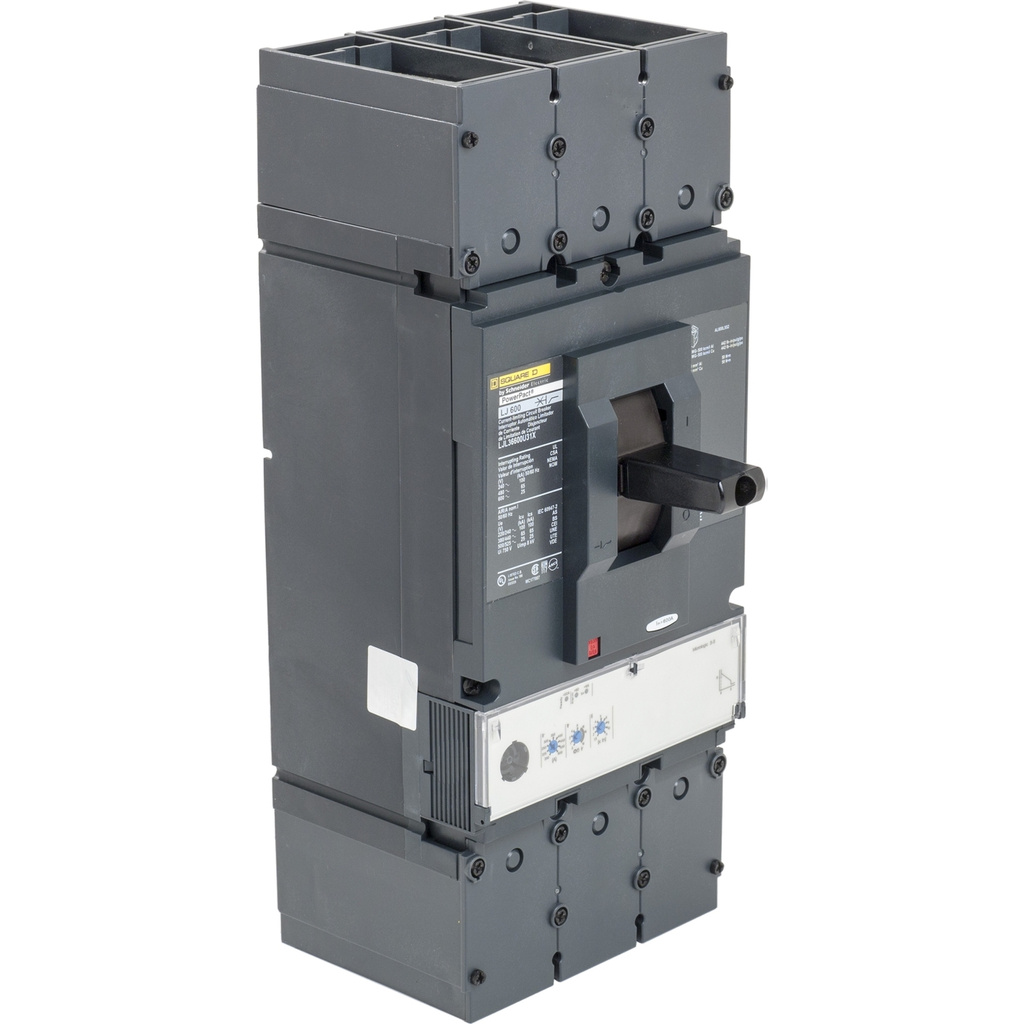

Square D LJL L Frame Molded Case Circuit Breakers 600-600 A 600 VAC 25 kAIC 3 Pole
Mfg #:
LJL36600U33X
BOR #:
2991023
Molded Case Circuit Breakers
- LJL Series
- L Frame
Related Items
Select Options
| Brand | Square D |
| Mounting Type | unit mount lug) |
| Voltage | 600 VAC |
| Frame Type | L Frame |
| Interrupting Rating | 25 kAIC |
| Trip Type | Electronic |
| Amperage | 600-600 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 3 Pole |
| Net Weight | 6.2 kg |
| Product Certifications | UL ,, CSA ,, NOM |
| Wire Stripping Length | 31 mm |
| [Ith] Conventional Free Air Thermal Current | 600 A |
| Certificate 2 | Compliance |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| PowerPacT L-Frame Electronic Trip Circuit Breakers Installation Instructions - JYT65477+Rev+01 (pdf) | Installation and Instruction Manuals |
|
| PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf) | Catalog |
|
| Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf) | Brochure |
|
| Certificate 3 | Compliance |
|
| Certificate 1 | Compliance |
|
| PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf) | Brochure |
|
