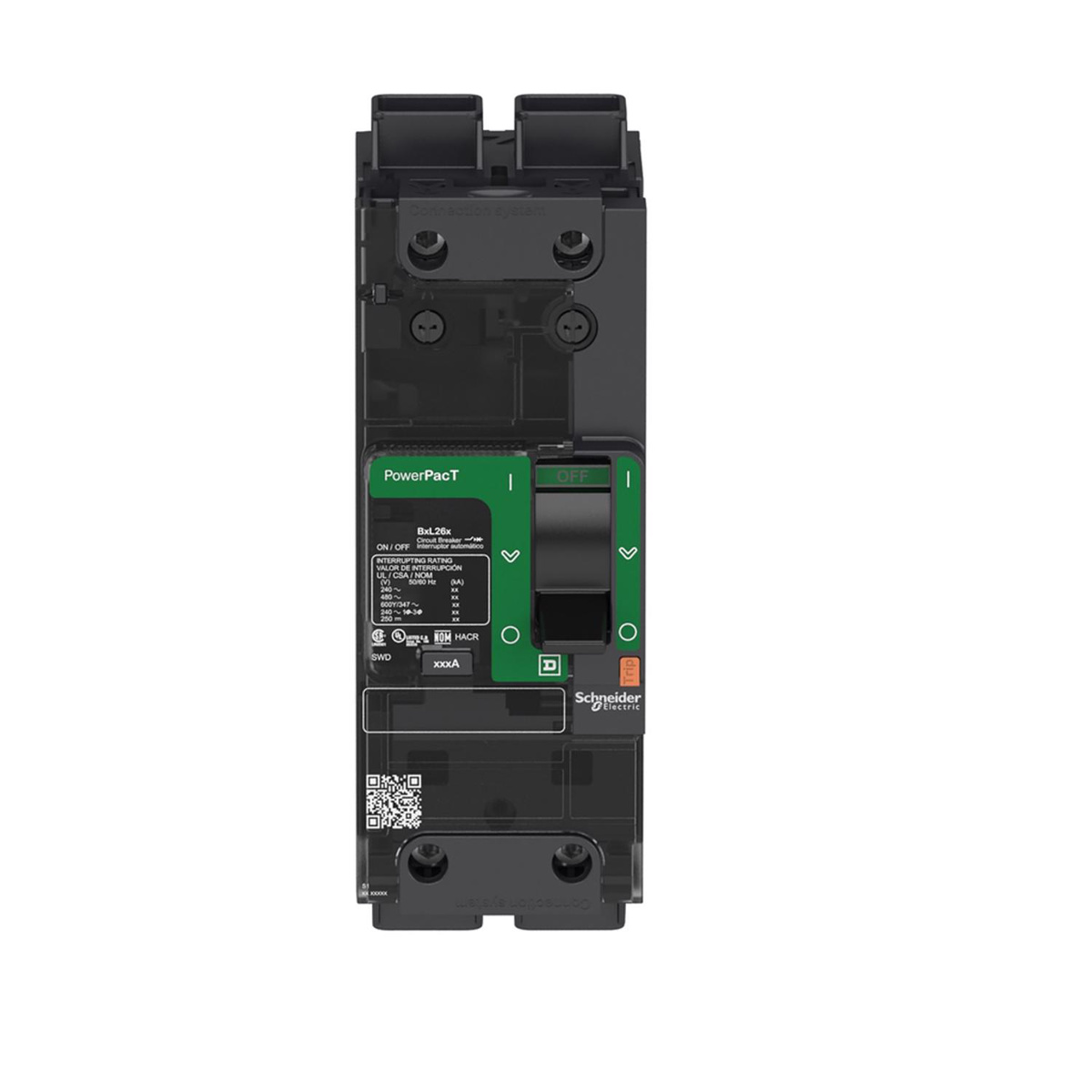

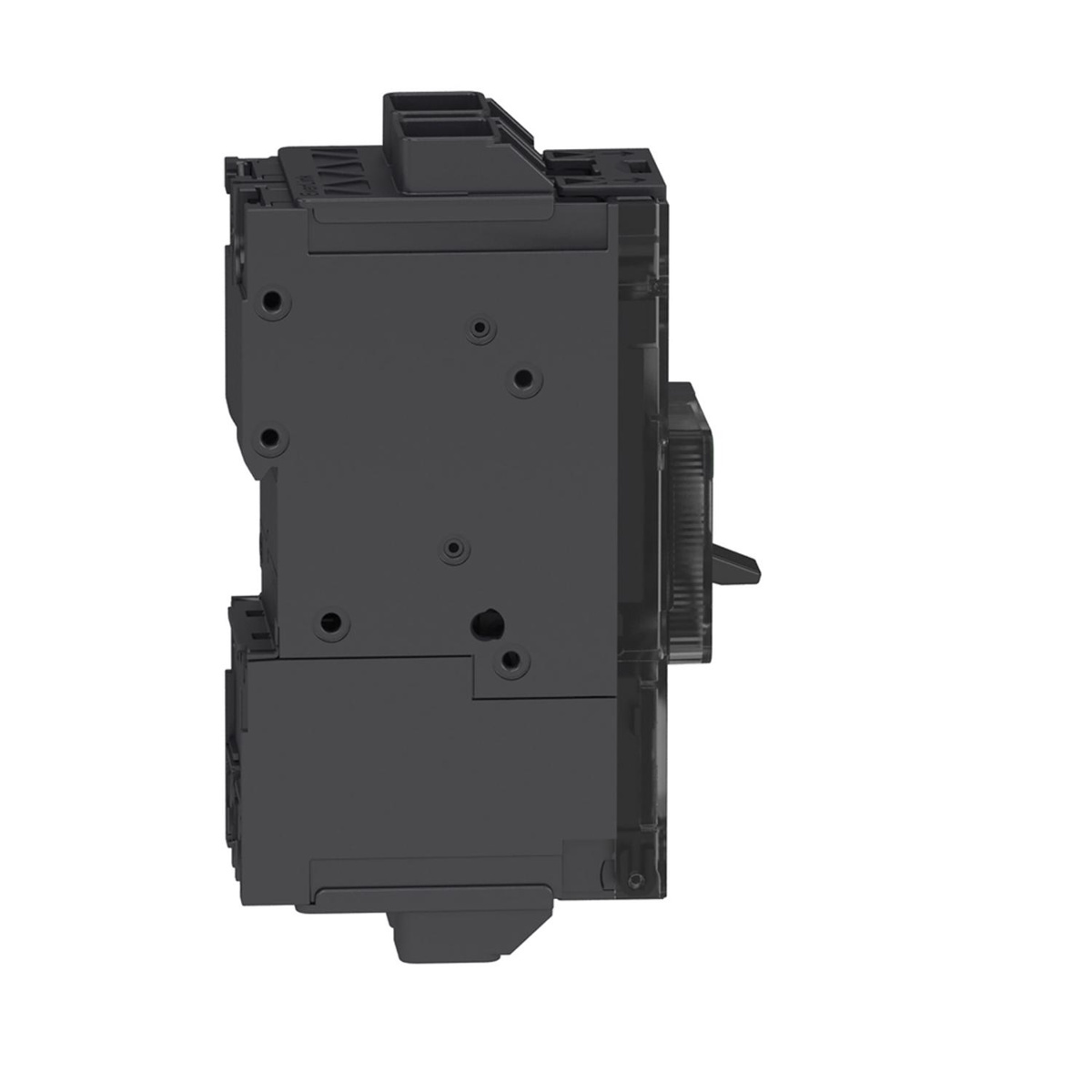

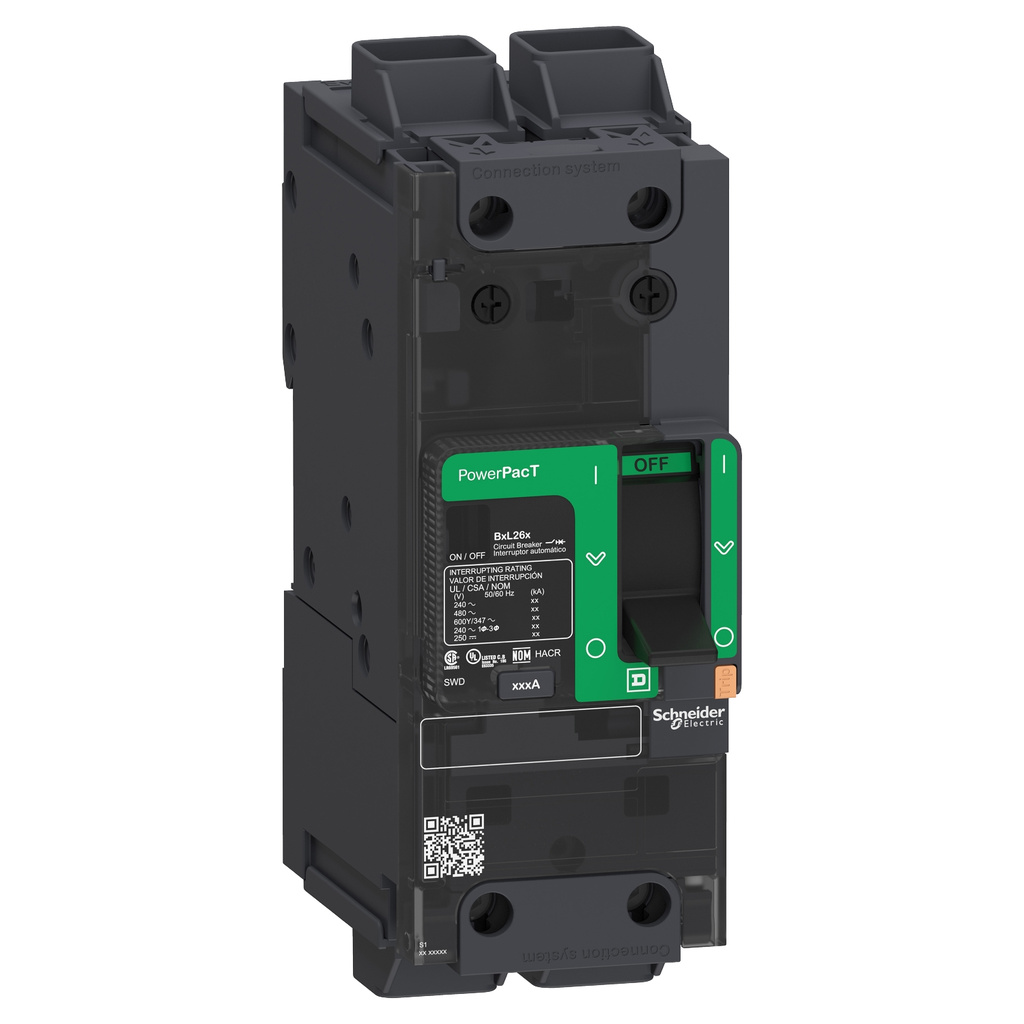

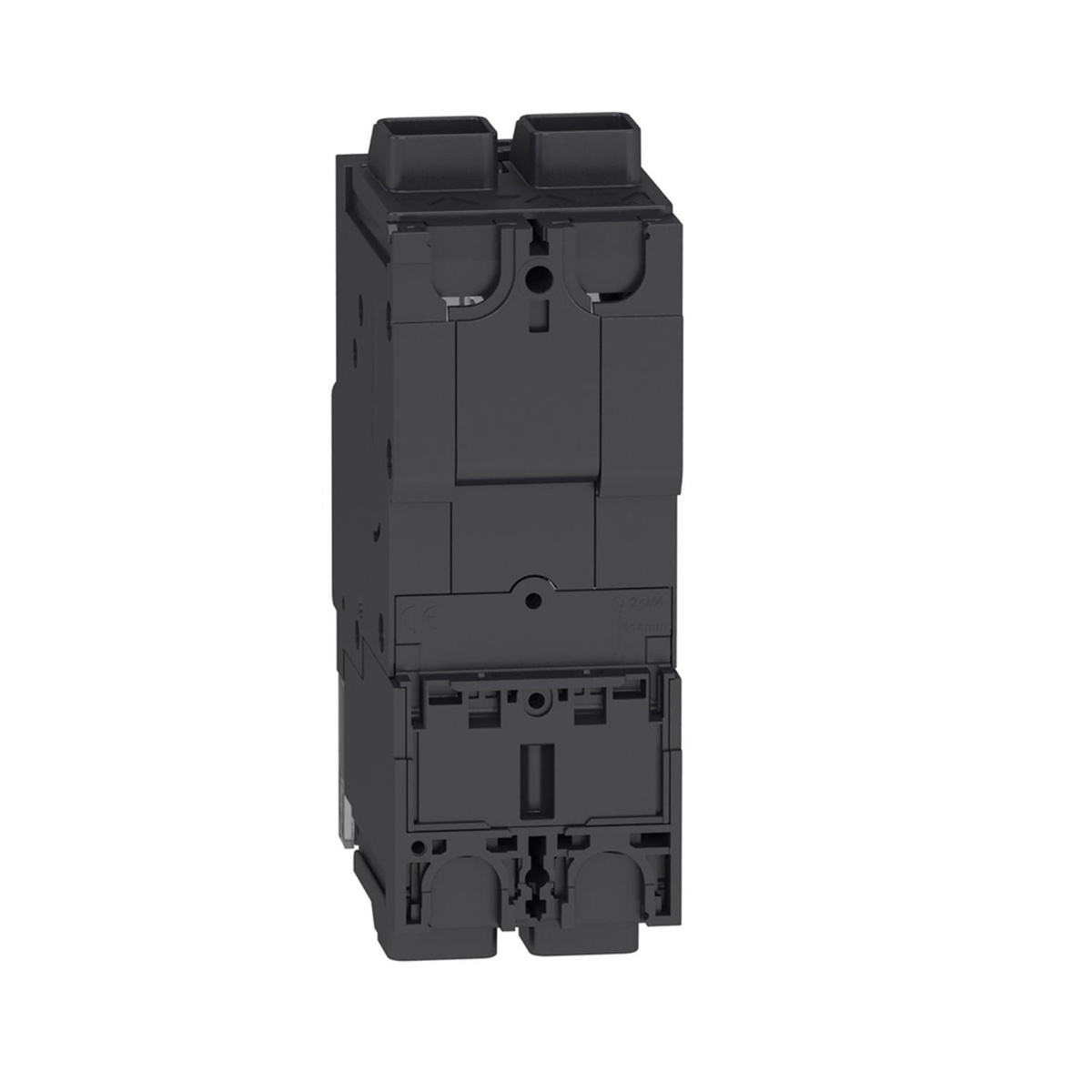

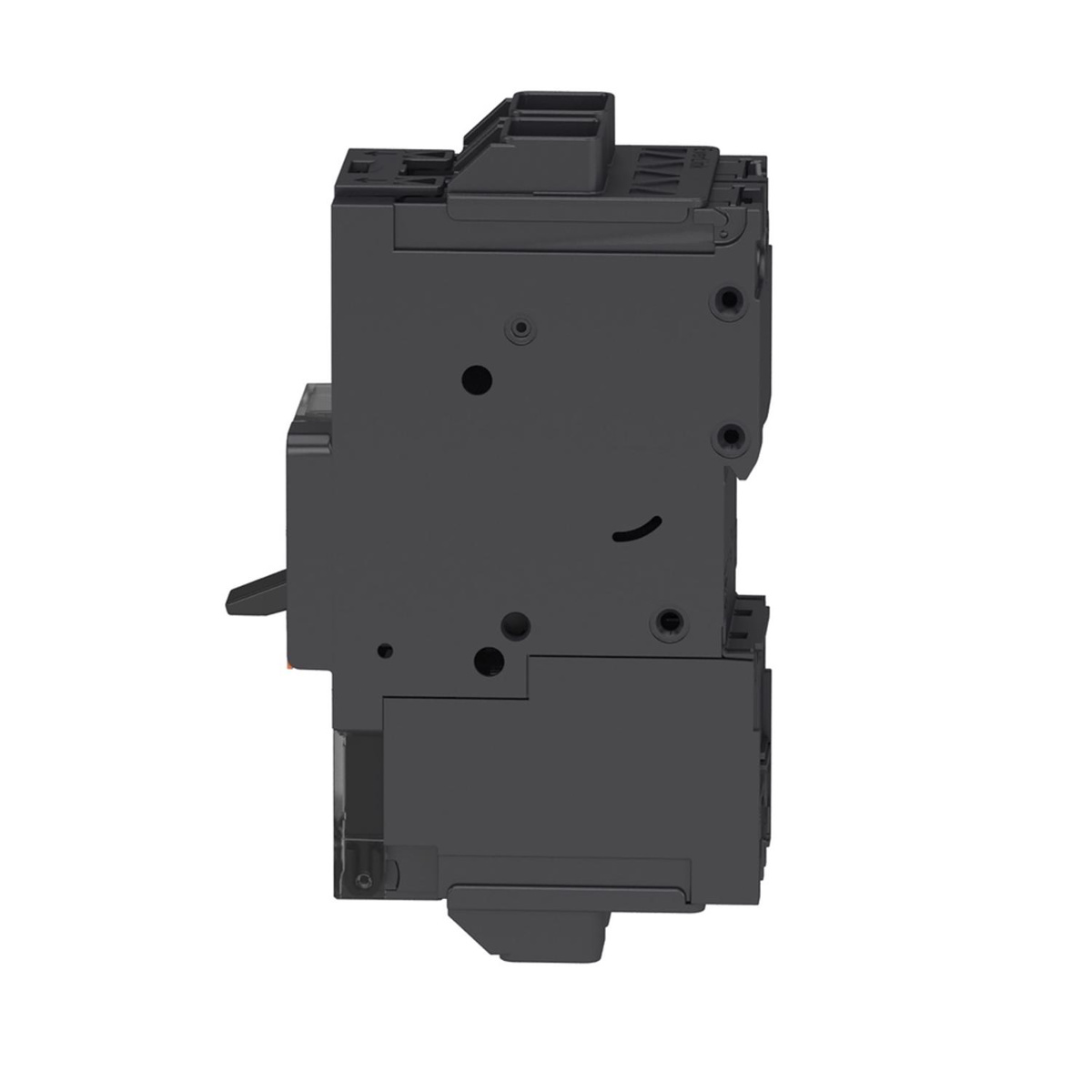

Square D PowerPacT™ BDL B Frame I-Line™ Circuit Breakers 30 A 600Y/347 VAC 14 kAIC 2 Pole
PowerPact™ I-Line™ Circuit Breakers
- BDL Series
- B Frame
Related Items
Select Options
| Brand | Square D |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 14 kAIC |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 30 A |
| Circuit Breaker Type | Molded Case Breaker |
| Number of Poles | 2 Pole |
| Net Weight | 0.769 kg |
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Certificate 1 | Compliance |
|
| Catalog Powerpact B Multistandard - LVPED216029EN (pdf) | Catalog |
|
| PowerPacT B-Frame 2, 3 and 4-Pole Circuit Breakers and Automatic Switches Installation - GDE55878+Rev.+02 (pdf) | Installation and Instruction Manuals |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| Certificate 2 | Compliance |
|
Installing LV426950 Auxiliary/Alarm Switch on PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426950 Auxiliary / Alarm Switch on PowerPact B-Frame Molded Case...
Installing LV426905 ON/OFF Padlock Attachment on PowerPact B Breaker | Schneider Electric Support
Tutorial for installing the LV426905 Fixed ON/OFF Padlock Attachment on PowerPact B-Frame Molded...
Installing Compression Lug Kits on PowerPact B-Frame Breakers | Schneider Electric Support
Tutorial for installing compression lug kits onto the PowerPact B-Frame Molded Case Circuit ...
Using Open Door Shaft Operator on PowerPact B, H, J, L-Frame Breakers | Schneider Electric Support
Tutorial for installing and using the LV426937 Open Door Shaft Operator for PowerPact™ B-, H-, J-,...
Installing LV426905 ON/OFF Padlock Attachment on PowerPact B Breaker | Schneider Electric Support
Tutorial for installing the LV426905 Fixed ON/OFF Padlock Attachment on PowerPact B-Frame Molded...
Installing LV426963 3 Pole Terminal Nut Kit onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426963 3 Pole Terminal Nut Kit on PowerPact B-Frame Molded Case...
