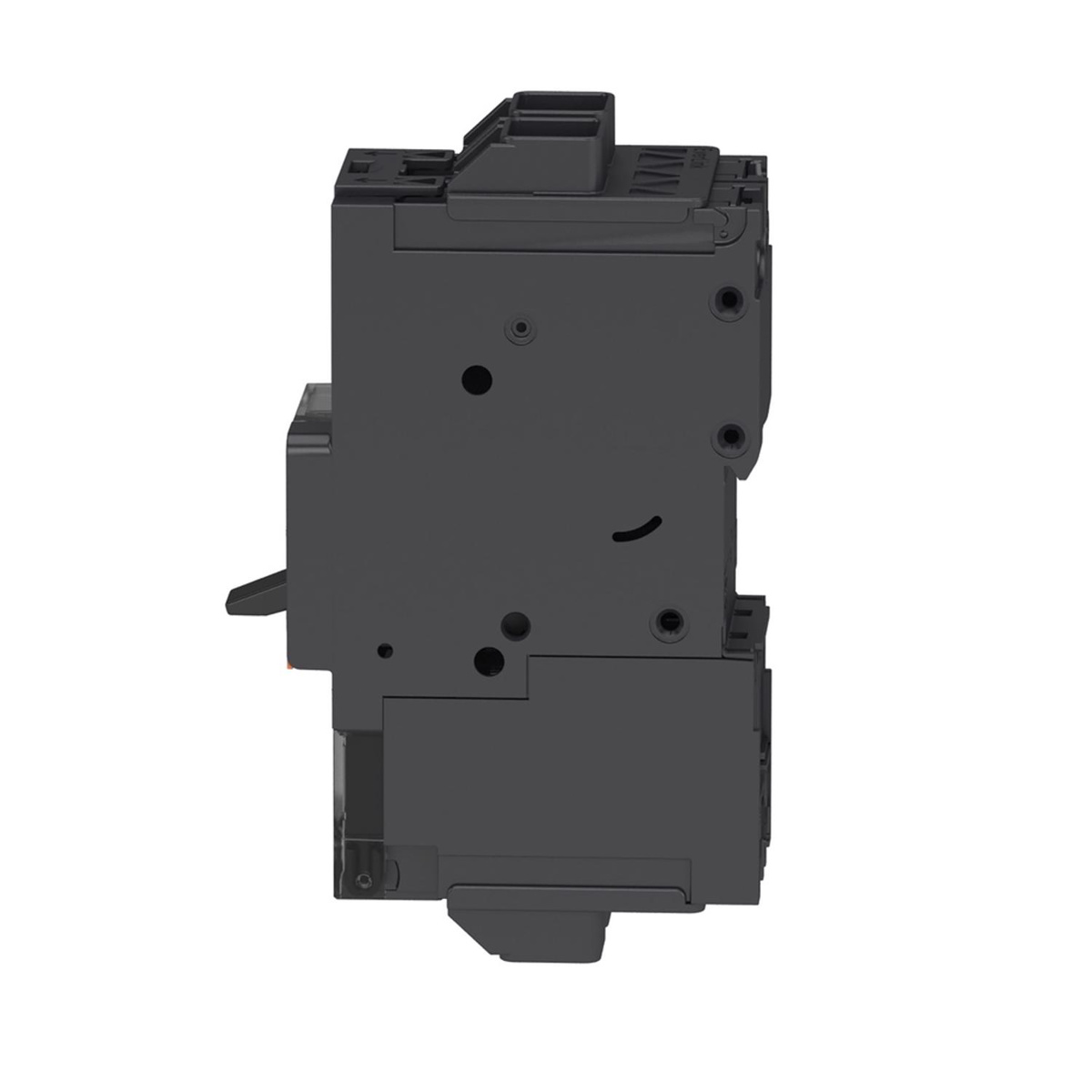

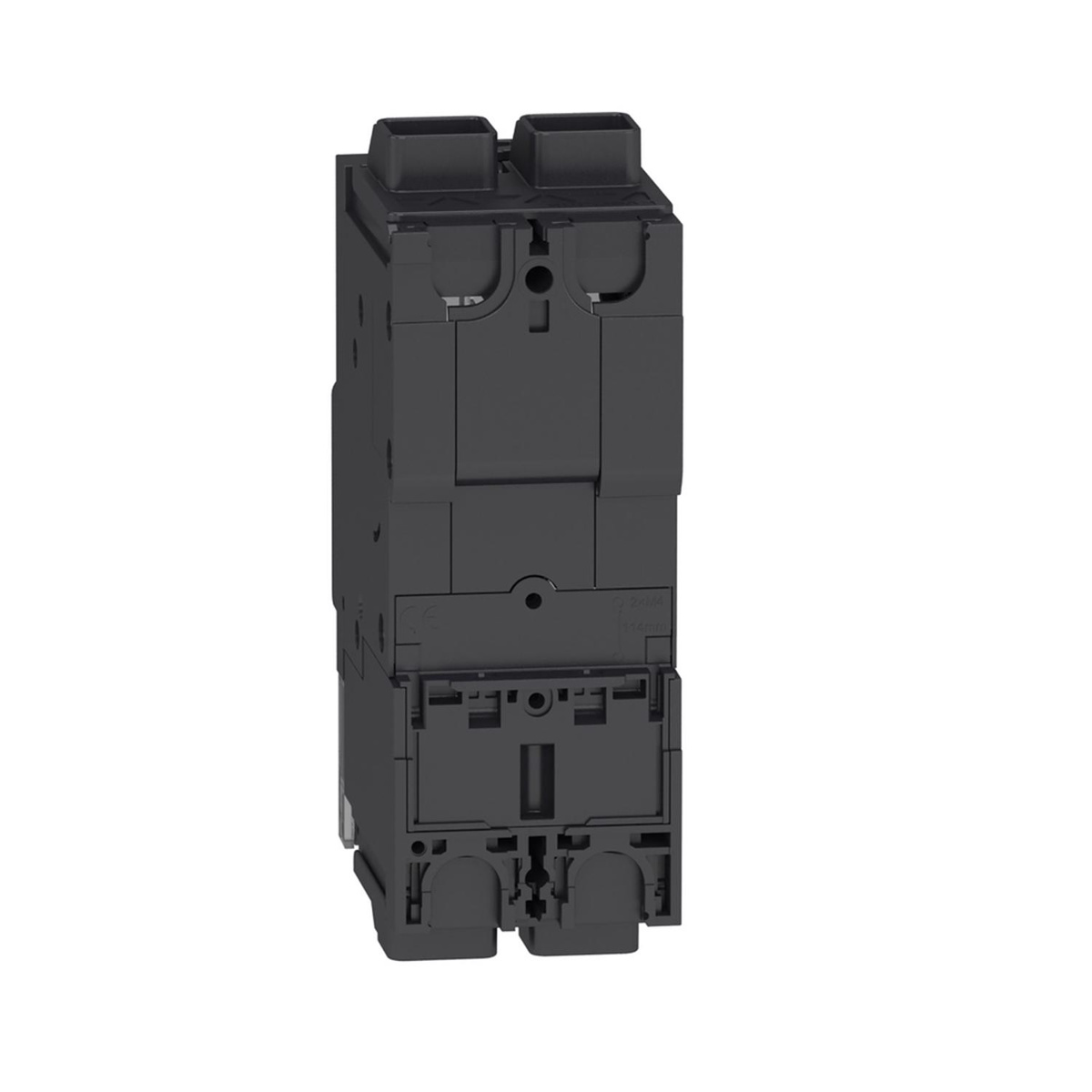

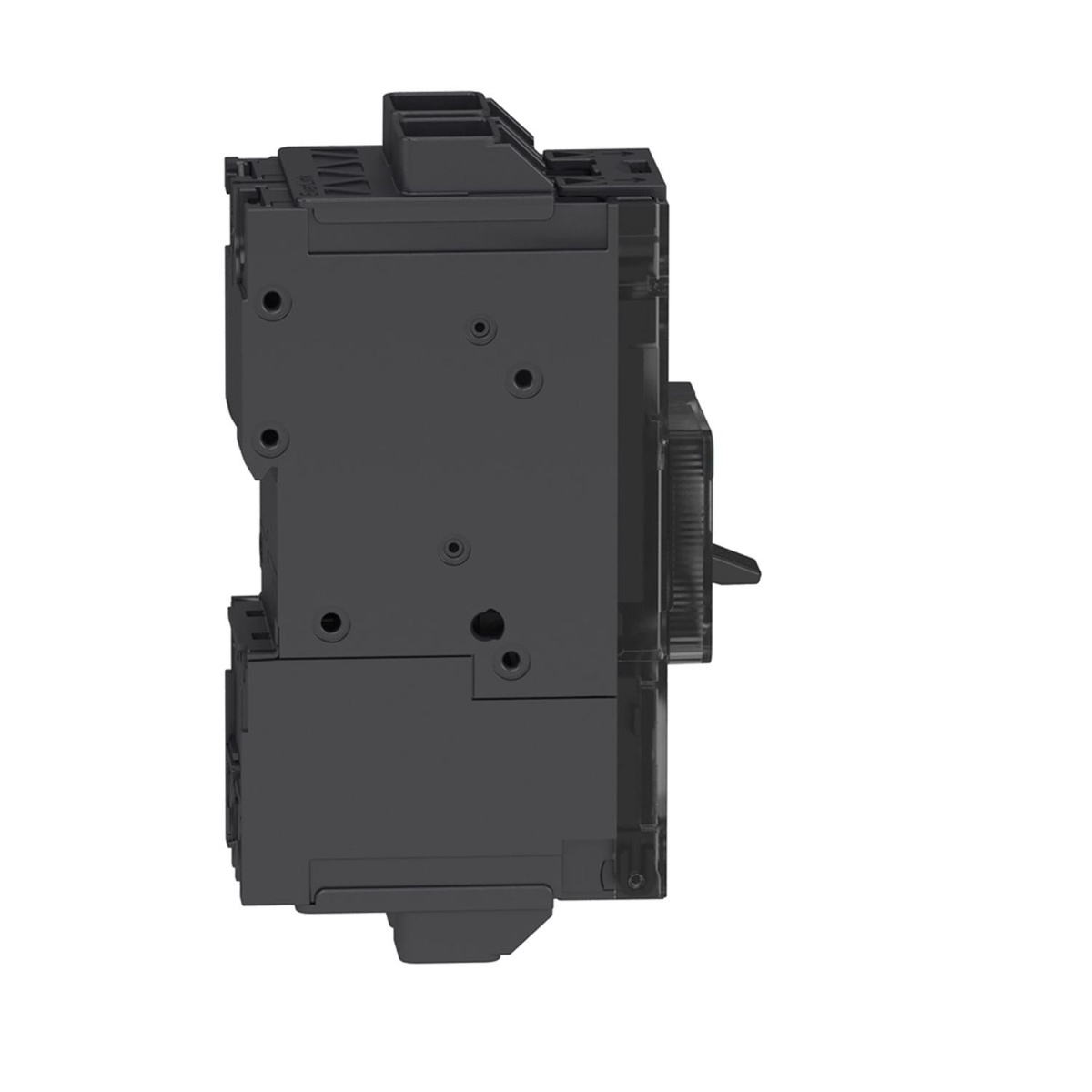

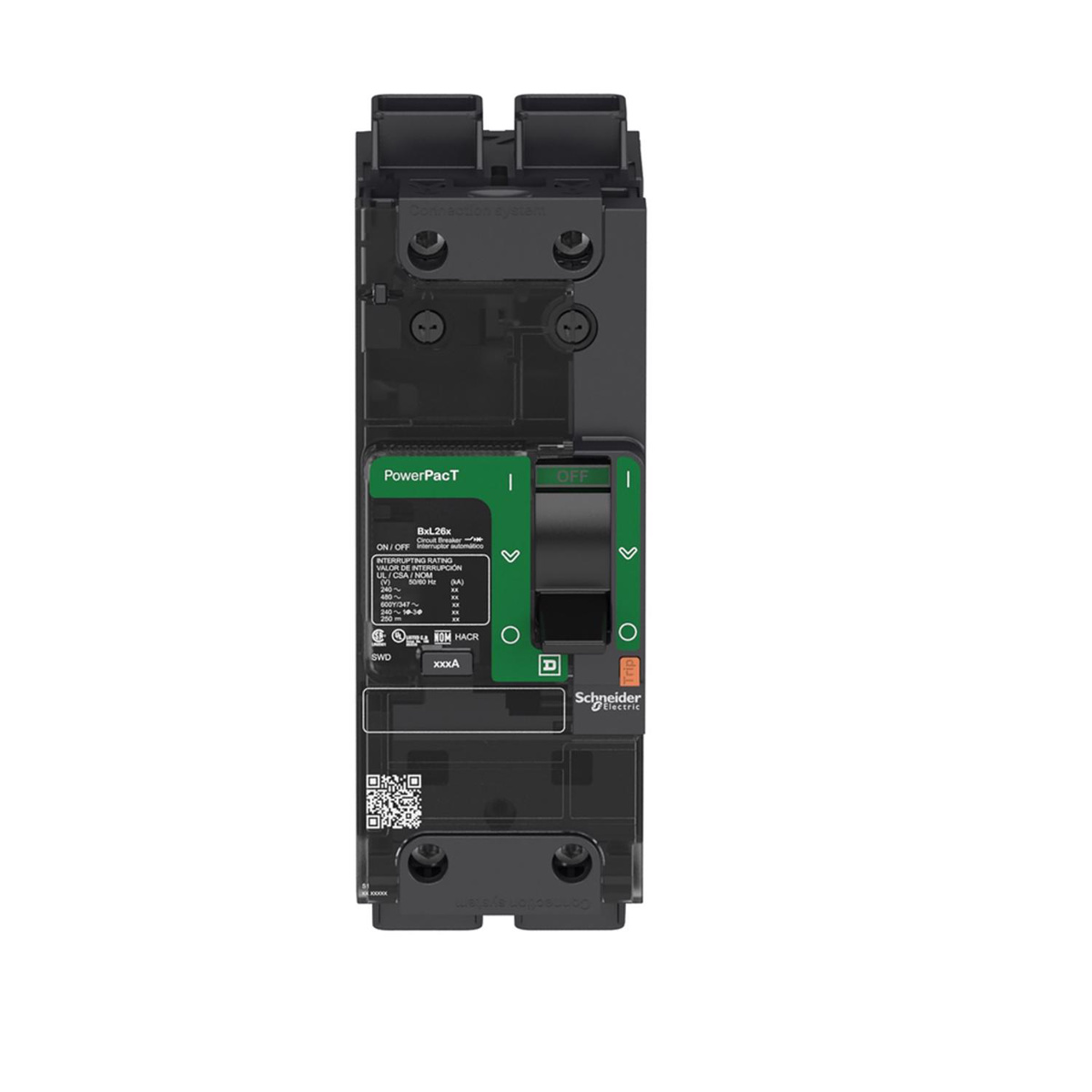

Square D PowerPacT™ BDL B Frame I-Line™ Circuit Breakers 50-50 A 600Y/347 VAC 14 kAIC 2 Pole 1 Phase
PowerPact™ I-Line™ Circuit Breakers
- BDL Series
- B Frame
Related Items
Select Options
| Brand | Square D |
| Includes | Auxiliary Switch |
| Mounting Type | clip-on 35 x 15 mm symmetrical DIN rail) ,, by screws plate) |
| Voltage | 600Y/347 VAC |
| Frame Type | B Frame |
| Interrupting Rating | 14 kAIC |
| Number of Phases | 1 Phase |
| Wire Size | 6 - 2/0 AWG |
| Trip Type | Fixed Thermal and Magnetic Trip |
| Amperage | 50-50 A |
| Circuit Breaker Type | Molded Case Breaker |
| Indicator Type | Common Trip |
| Number of Poles | 2 Pole |
| Net Weight | 0.769 kg |
| Product Certifications | UL ,, IEC ,, CCC ,, EAC ,, CSA ,, NOM |
| Wire Stripping Length | 20 mm |
| PowerPacT B-Frame 2, 3 and 4-Pole Circuit Breakers and Automatic Switches Installation - GDE55878+Rev.+02 (pdf) | Installation and Instruction Manuals |
|
| Certificate 4 | Compliance |
|
| Certificate 1 | Compliance |
|
| Certificate 2 | Compliance |
|
| PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) | Brochure |
|
| PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) | Brochure |
|
| Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf) | Catalog |
|
| Certificate 3 | Compliance |
|
Installing LV426920 Interphase Barrier onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426920 Interphase Barrier insulation accessory on PowerPact B-Frame...
Using Open Door Shaft Operator on PowerPact B, H, J, L-Frame Breakers | Schneider Electric Support
Tutorial for installing and using the LV426937 Open Door Shaft Operator for PowerPact™ B-, H-, J-,...
Using Open Door Shaft Operator on PowerPact B, H, J, L-Frame Breakers | Schneider Electric Support
Tutorial for installing and using the LV426937 Open Door Shaft Operator for PowerPact™ B-, H-, J-,...
Installing 3 Pole Everlink Control Wire Lug Kit on PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426974 3 Pole Everlink with Control Wire Terminal Lug Kit onto...
Mounting Shunt/Undervoltage Trip to PowerPact™ B-Frame Circuit Breakers | Schneider Electric Support
Tutorial for installing the AC Shunt Trip or Undervoltage Relay on PowerPact™ B-Frame Molded Case...
Installing LV426922 Rear Insulation Screen onto PowerPact B Breakers | Schneider Electric Support
Tutorial for installing the LV426922 Rear Insulation Screen on PowerPact B-Frame Molded Case ...
