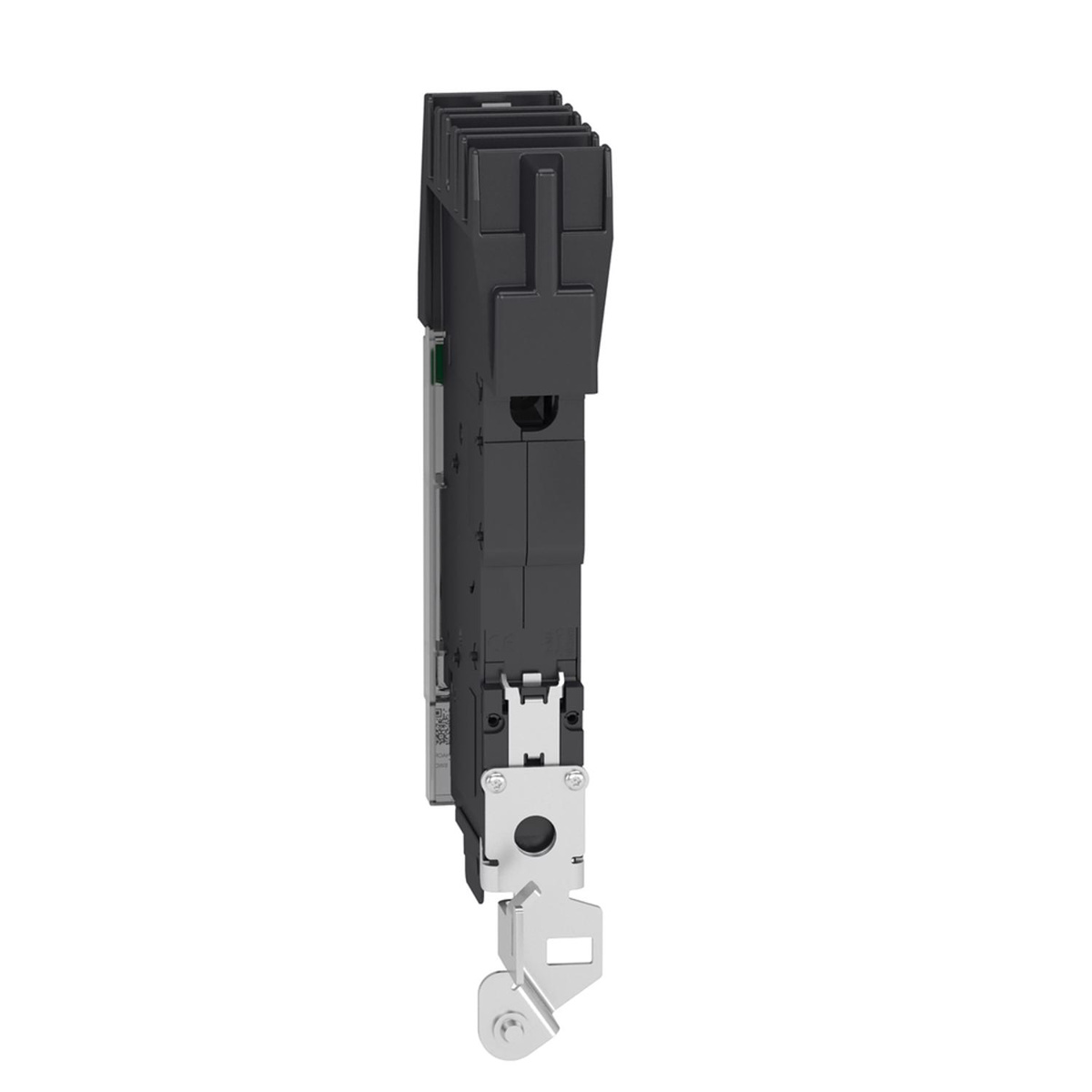

Square D PowerPacT™ BGA B Frame Circuit Breakers 30 A 600Y/347 VAC 18 kAIC 1 Pole

PrimaryProductImage
PrimaryProductImage PrimaryProductImage
Logo
Mfg #: BGA160305
BOR #: 3662556
View all 85 in product family
Looking for prices?
Create an Account

PowerPact™ Circuit Breakers

  • BGA Series
  • B Frame
See More
Product can be ordered only in multiples of
Specifications
Brand Square D
Mounting Type I-Line
Voltage 600Y/347 VAC
Frame Type B Frame
Interrupting Rating 18 kAIC
Wire Size 14 - 2/0 AWG
Trip Type Fixed Thermal and Magnetic Trip
Amperage 30 A
Circuit Breaker Type Molded Case Breaker
Number of Poles 1 Pole
Wire Stripping Length 20 mm
Related Documents
PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf) Brochure
Certificate Compliance
PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf) Catalog
PowerPacT B One-pole I-Line Circuit Breakers and Automatic Switches - Installation Instructions - EAV91191+Rev01+1P+B+I-Line+NA+ (pdf) Installation and Instruction Manuals
PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf) Brochure
